Side Shield - Outboard - Driver Seat - Remove and Replace: Install

  1. If a new driver seat outboard side shield is being installed, install the back rest and cushion adjust switch to the outboard side shield. See SWITCH - BACK REST AND CUSHION ADJUST - DRIVER SEAT (REMOVE AND REPLACE) .

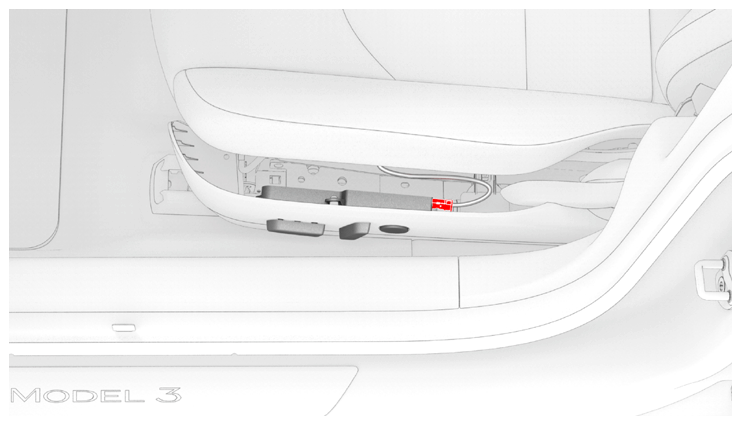

  2. Bring the driver seat outboard side shield to the driver seat, and then connect the electrical harness to the backrest and cushion adjust switch connector, if so equipped.
    G14740291Courtesy of TESLA, INC.

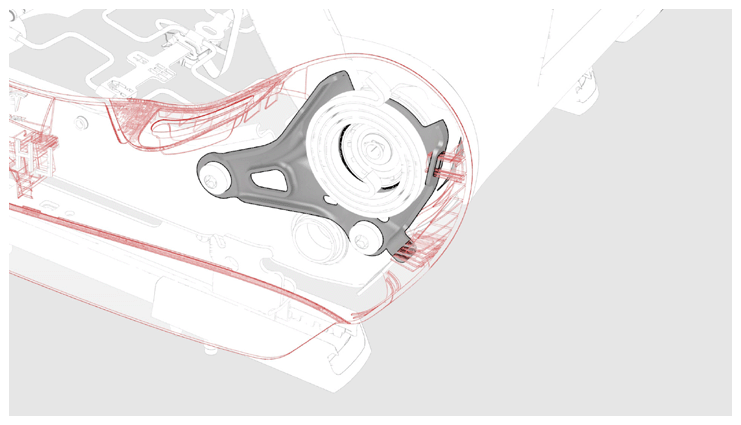

  3. Slide the driver seat outboard side shield forward to fasten the clips that attach the side shield to rear of the seat frame.
    G14740292Courtesy of TESLA, INC.

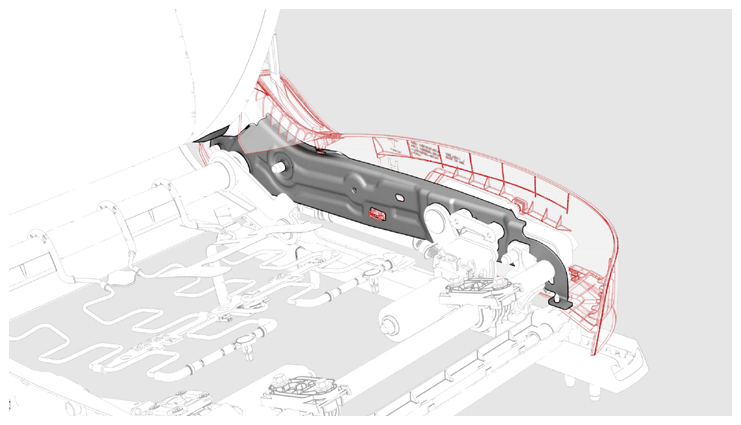

  4. Push the driver seat outboard side shield into the seat frame to fasten the clip that attaches the side shield to the center of the seat frame.
    G14740293Courtesy of TESLA, INC.

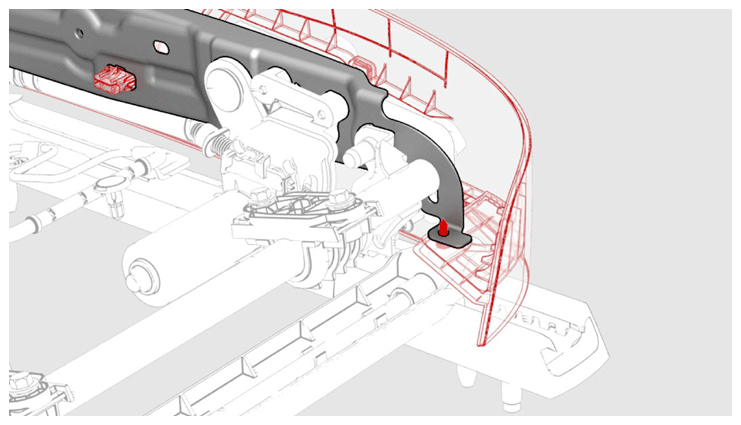

  5. Install the bolt that attaches the driver seat outboard side shield to the seat frame.

    2 N.m (1.5 ft-lbs)

    G14740294Courtesy of TESLA, INC.

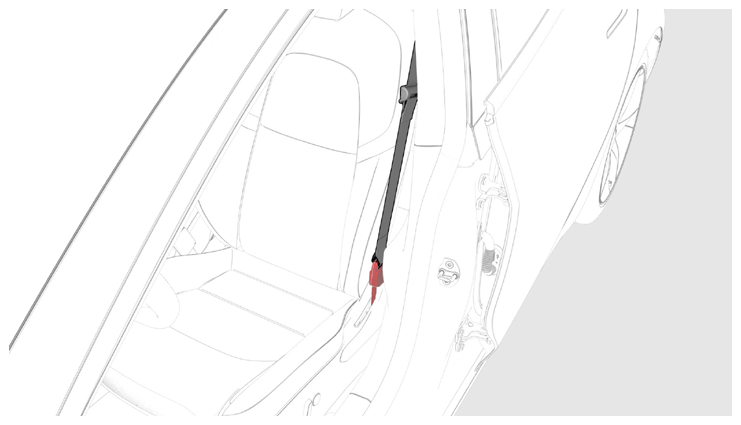

  6. Install the LH front seatbelt pretensioner coupling onto the LH front seat pretensioner.
    NOTE: Perform a pull-push-pull test to verify the pretensioner and coupling are fully engaged.
    G14740295Courtesy of TESLA, INC.
  7. Return the driver seat to its original position.
  8. Close the LH front door.
