Frame - Seat Back - 2nd Row - LH - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Remove the rear LH sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  4. Remove the LH 2nd row seat back. See SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  5. Remove the LH 2nd row seat back pivot sleeve. See PIVOT SLEEVE - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  6. Remove the LH 2nd row seat back hinge bracket. See BRACKET - HINGE - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  7. Remove the 2nd row armrest. See ARMREST - 2ND ROW (REMOVE AND REPLACE) .
  8. Remove the Center 2nd row headrest. See HEADREST - 2ND ROW - CENTER (REMOVE AND REPLACE) .
  9. Remove the headrest guide locks.

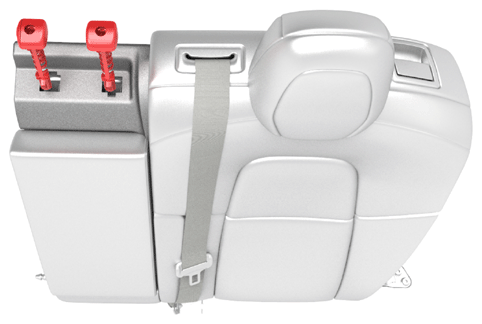

    G14740226Courtesy of TESLA, INC.
  10. Remove the 2nd row armrest closeout. See CLOSEOUT - ARMREST - 2ND ROW (REMOVE AND REPLACE) .
  11. Remove the Center 2nd row seatbelt. See SEATBELT - 2ND ROW - CENTER (REMOVE AND REPLACE) .
  12. Remove the LH 2nd row seat back latch. See LATCH - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  13. Remove the LH 2nd row seat back handle. See HANDLE - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .

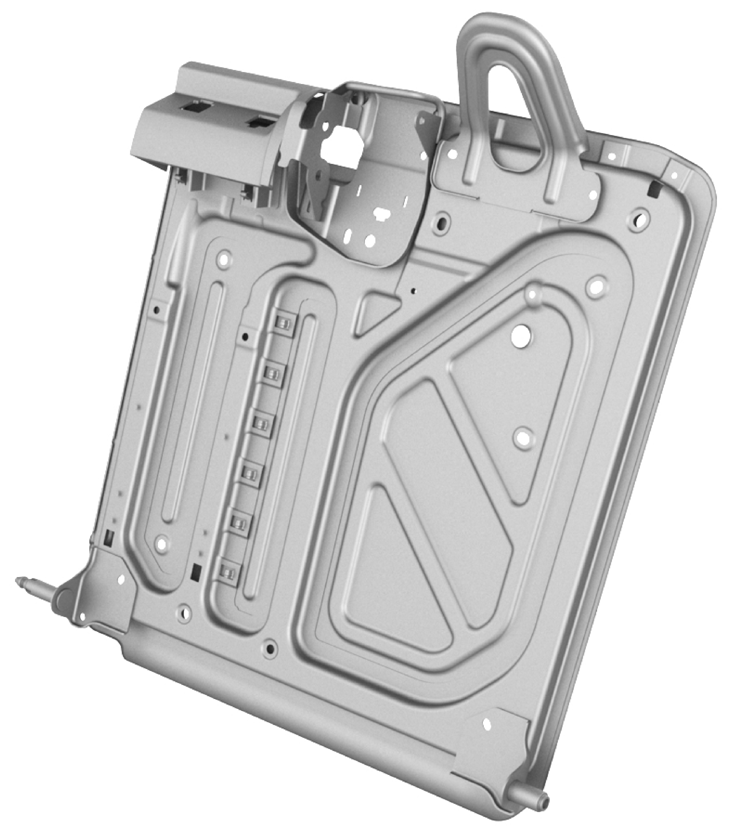

    G14740227Courtesy of TESLA, INC.
