Trim - Package Tray - Remove and Replace: Remove

  1. Move the driver seat and the front passenger seat fully forward.
    NOTE: Note the position of the driver seat and the front passenger seat prior to movement so that both seats are restored to their original position during installation.
  2. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Remove the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE) .
  4. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  5. Remove the LH rear C-pillar trim. See TRIM - C-PILLAR - REAR - LH (REMOVE AND REPLACE) .
  6. Remove the RH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  7. Remove the RH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  8. Remove the RH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  9. Remove the RH rear C-pillar trim. See TRIM - C-PILLAR - REAR - LH (REMOVE AND REPLACE) .

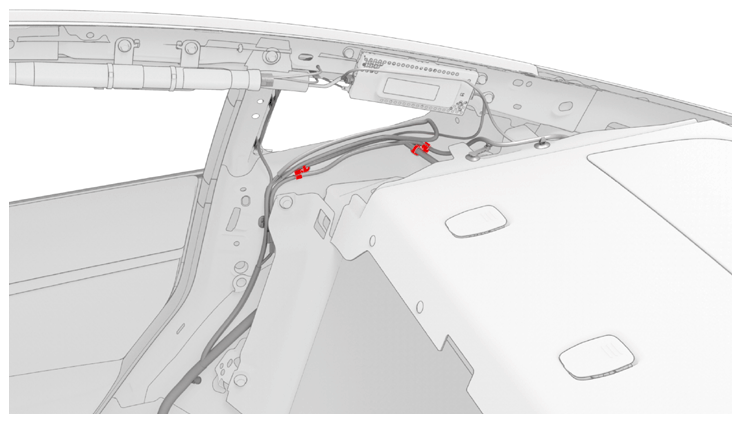

  10. Release the clips that attach the package tray wiring harness to the C-pillar.
    G14741113Courtesy of TESLA, INC.

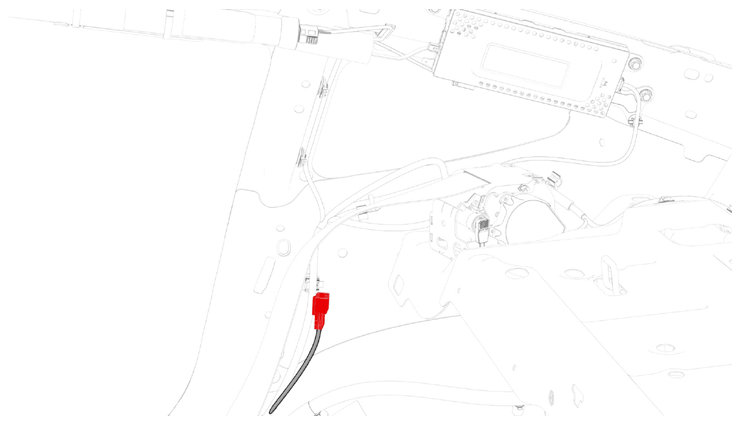

  11. Disconnect the package tray harness connector from the RH body electrical harness.
    G14741114Courtesy of TESLA, INC.

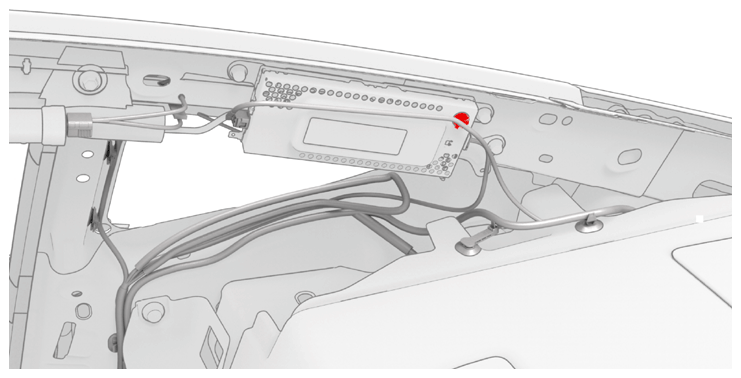

  12. Release the clip that attaches the speaker wiring harness to the tuner.
    G14741115Courtesy of TESLA, INC.

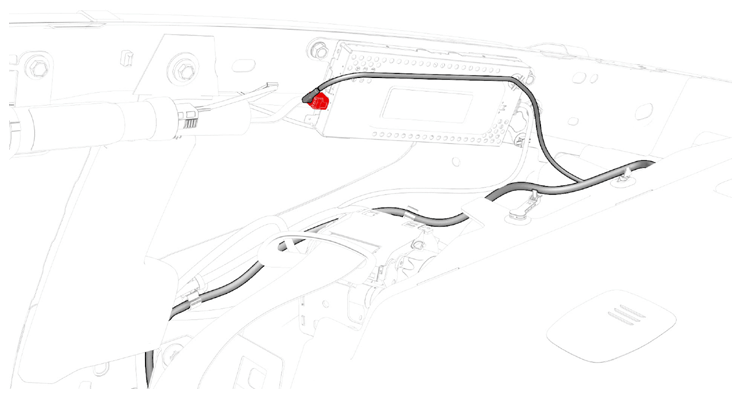

  13. Disconnect the speaker harness connector from the tuner.
    G14741116Courtesy of TESLA, INC.

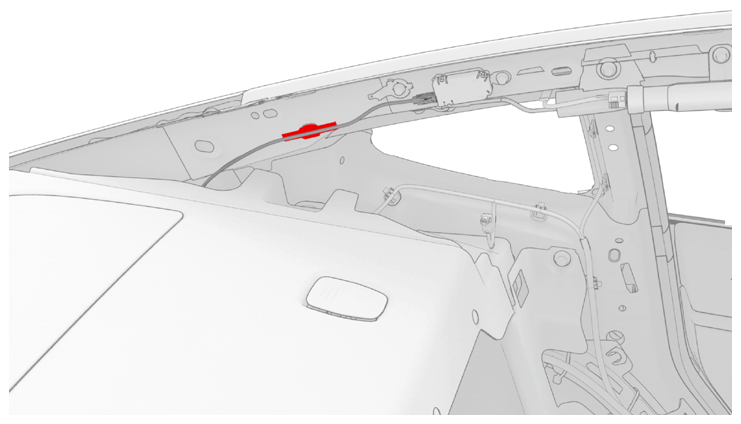

  14. Release the clip that attaches the antenna amplifier wiring harness to the body.
    G14741117Courtesy of TESLA, INC.

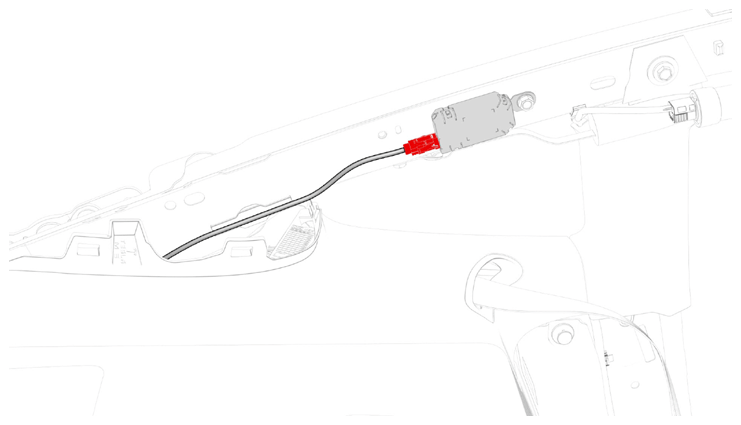

  15. Disconnect the electrical connector from the antenna amplifier.
    G14741118Courtesy of TESLA, INC.

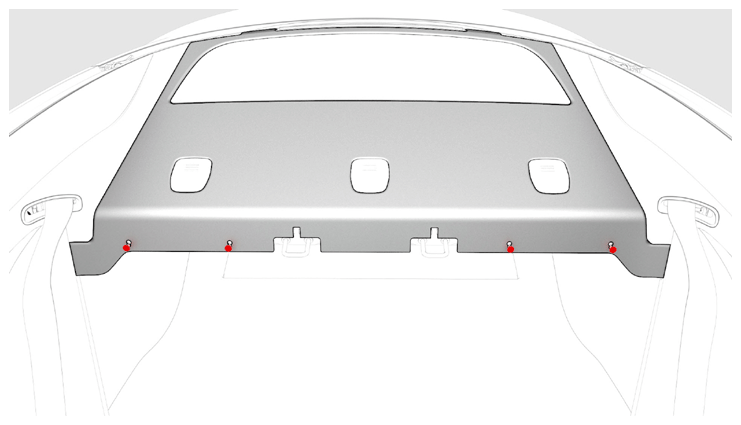

  16. Release the clips that attach the package tray trim to the body.
    G14741119Courtesy of TESLA, INC.
    NOTE: Number of clips vary on newer vehicles.

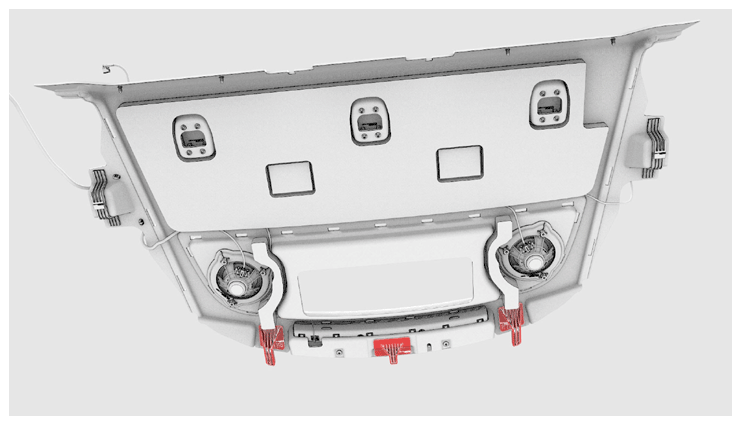

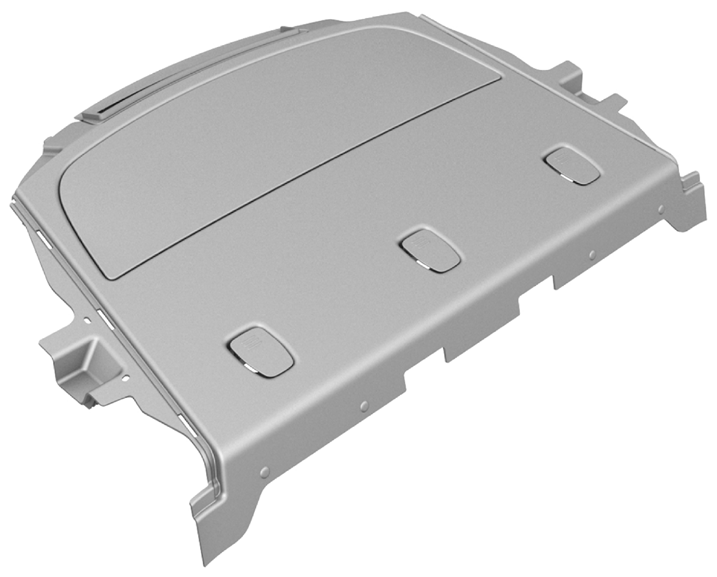

  17. Release the tabs that attach the package tray trim to the body, and then slide the package tray forward to remove it from the vehicle.
    G14741120Courtesy of TESLA, INC.
    G14741121Courtesy of TESLA, INC.
