Trim - Side Rail - LH - Remove and Install: Remove

  1. Open the LH rear door.

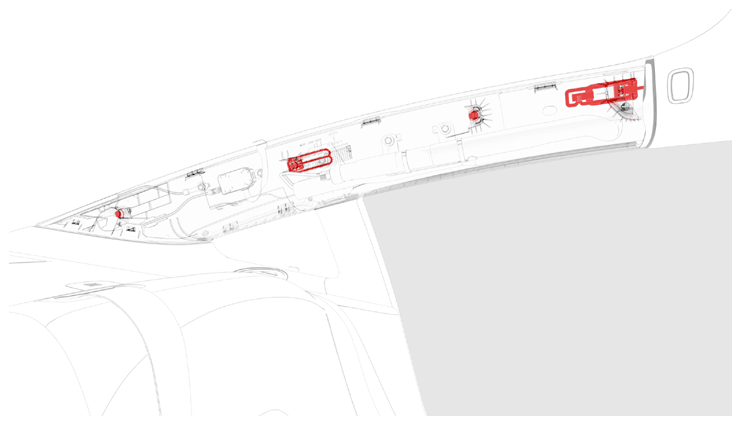

  2. Release the push clips (x2) that attach the LH side rail trim to the LH side rail.
    G14740902Courtesy of TESLA, INC.

    Tip: Release the top clip first (closest to the coat hanger) and work towards the trunk.

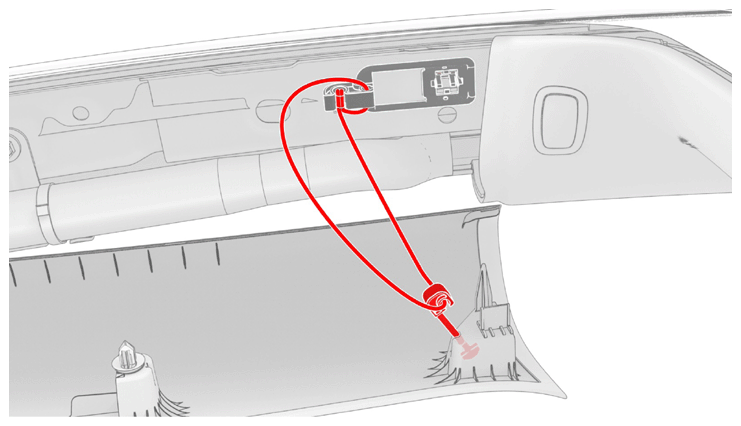

  3. Release the side rail trim tethers (x2) from the side rail trim one at a time by twisting and pulling away from the trim.
    G14740903Courtesy of TESLA, INC.
    multimedia:A supplement to the article is available.
    CAUTION: Do not remove the side rail trim tethers from the body side. If removed from the body side, the tethers will have to be replaced.

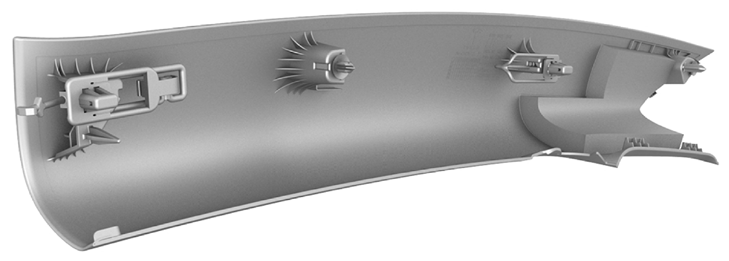

  4. Remove the side rail trim from the vehicle.
    NOTE: Remove any remaining LH side rail trim push clips from the LH side rail, and remove all push clips from the LH side rail trim.
    G14740904Courtesy of TESLA, INC.
