Trim - Sill - Trunk - Remove and Replace: Remove

  1. Remove the trunk floor trim. See TRIM - FLOOR - TRUNK (REMOVE AND REPLACE) .
  2. Release the clips that attach the trunk sill trim to the body.

    Tip: Pull the corner of the trunk sill trim upwards to release the corner clip, and then release the remaining clips.

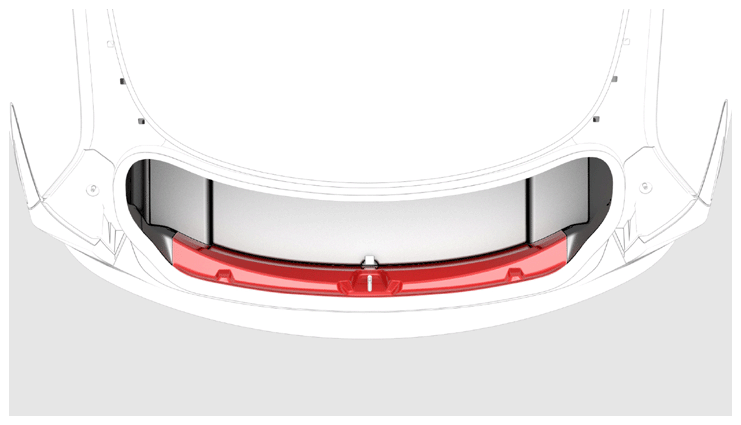

    G14741107Courtesy of TESLA, INC.

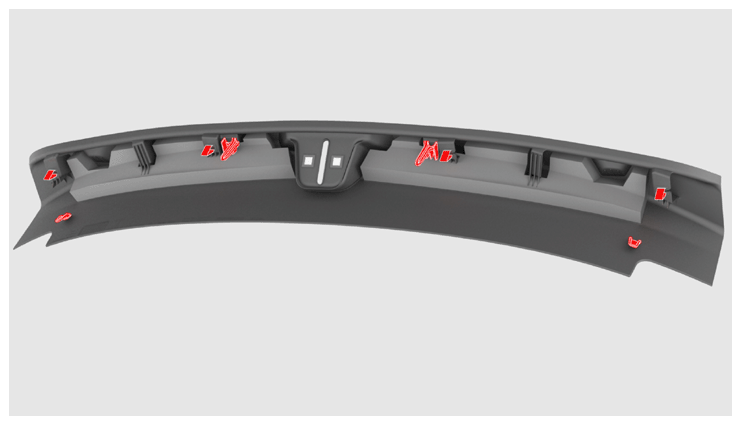

    G14741108Courtesy of TESLA, INC.
  3. Remove the trunk sill trim from the vehicle.

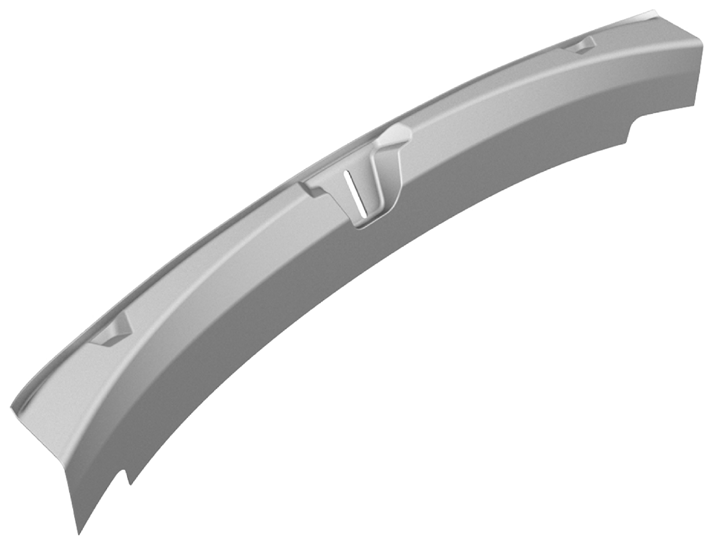

    G14741109Courtesy of TESLA, INC.
