Solenoid - Glove Box - Remove and Replace: Install

  1. Install the glove box solenoid to the glove box.
    NOTE: Align the glove box solenoid with the link rod, and then push down to install.

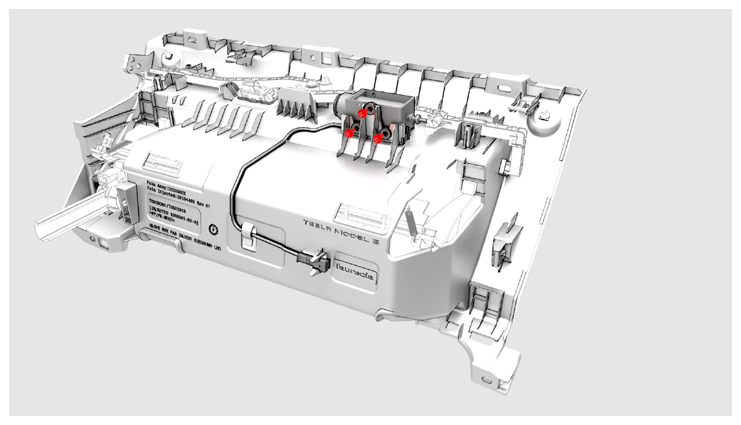

  2. Install the screws that attach the glove box solenoid to the glove box.

    0.8 N.m (7 in-lbs)

    G14740740Courtesy of TESLA, INC.

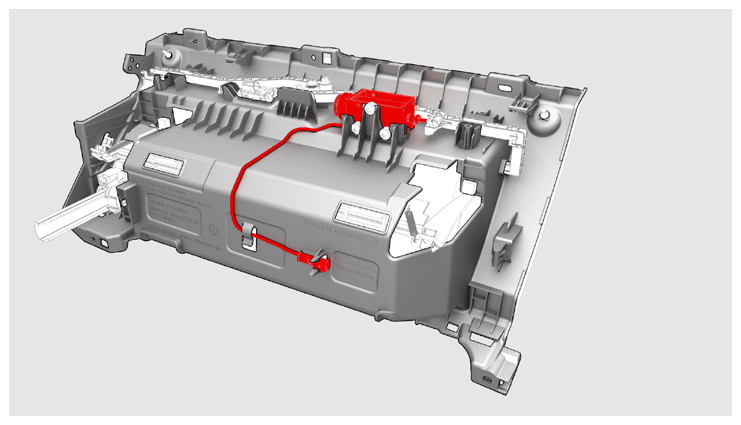

  3. Install the clips that attach the glove box solenoid electrical harness to the glove box.
    G14740741Courtesy of TESLA, INC.
  4. Install a new NVH pad onto the glove box.
    G14740742Courtesy of TESLA, INC.
  5. Install the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (REMOVE AND REPLACE) .
