Assembly - Trailer Hitch - Remove and Replace: Remove

Remove the rear fascia. See FASCIA - REAR (REMOVE AND INSTALL) .

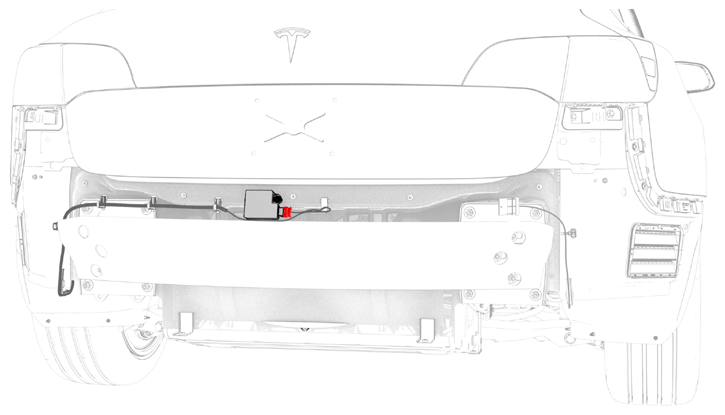

Disconnect the electrical harness from the rear Bluetooth passive entry antenna connector.

Courtesy of TESLA, INC.

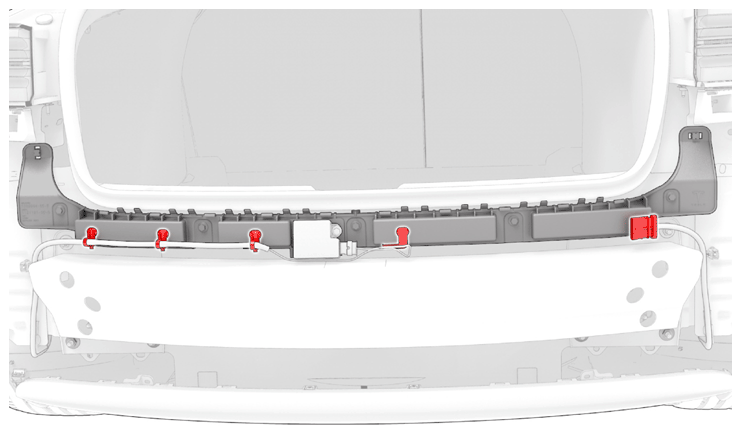

Release the clips that attach the electrical harnesses to the center rear bracket assembly.

Courtesy of TESLA, INC.

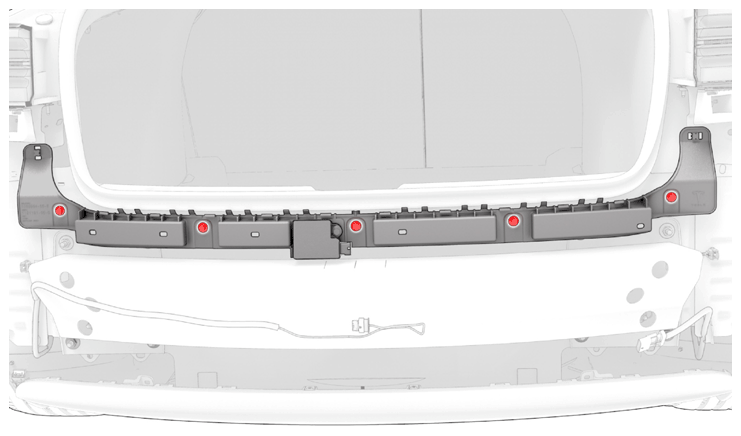

Remove the bolts (x5) that attach the center rear bracket to the body, and then remove the bracket from the vehicle.

Courtesy of TESLA, INC.

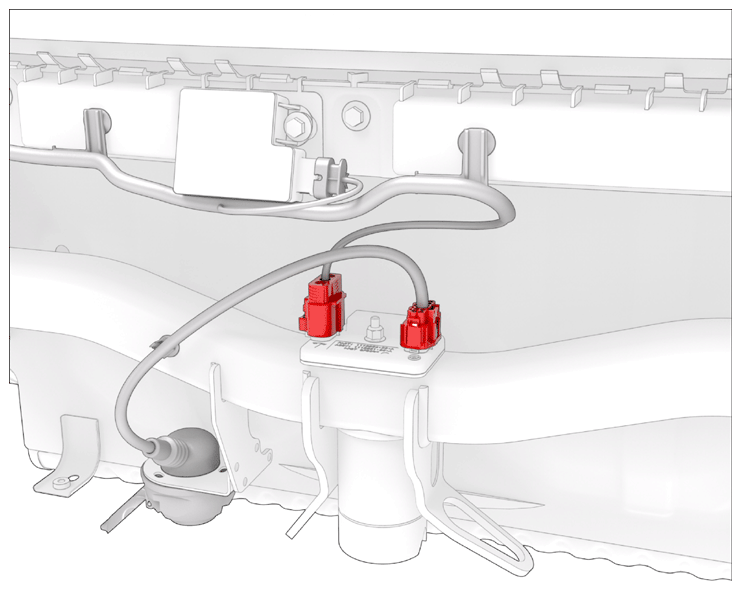

Disconnect the trailer hitch jumper harness and body electrical harness from the trailer hitch ECU connectors.

Courtesy of TESLA, INC.

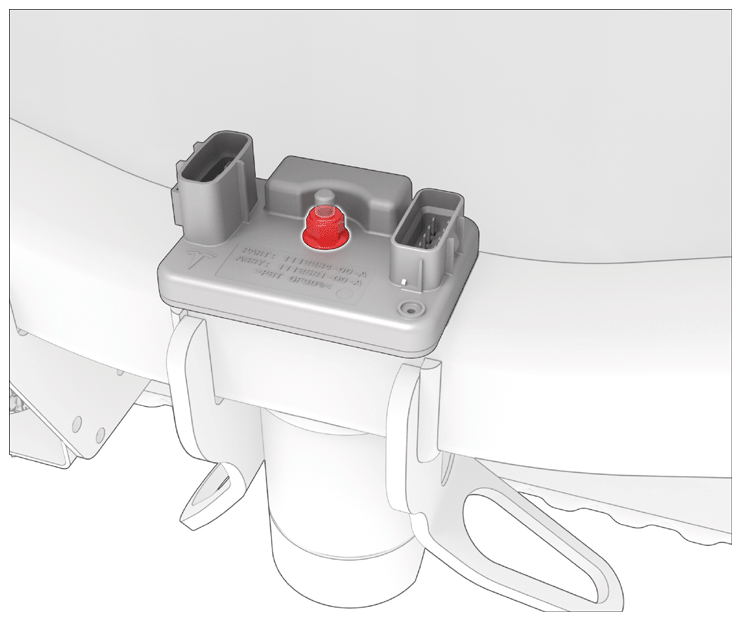

Remove the nut that attaches the trailer hitch ECU to the stud on the trailer hitch assembly, and then remove the ECU from the hitch assembly.
NOTE: Use a 10 mm deep socket.

Courtesy of TESLA, INC.

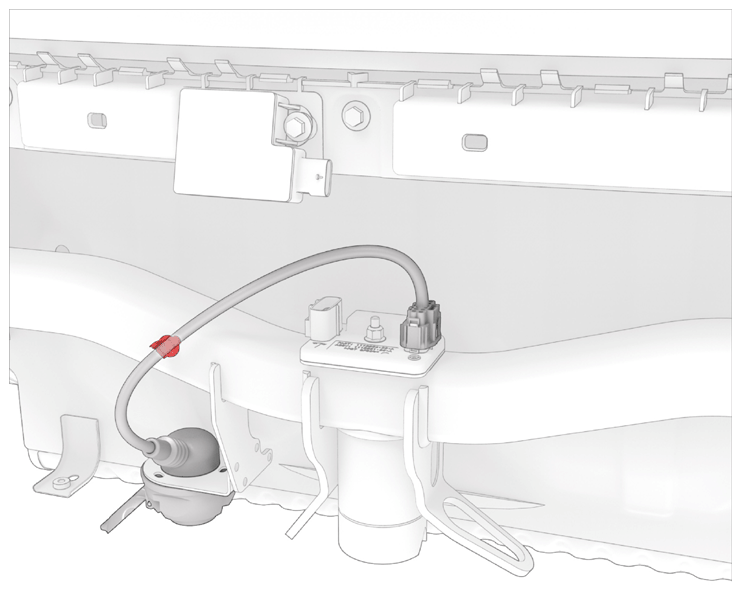

Release the fir tree clip that attaches the trailer hitch jumper harness to the trailer hitch assembly.

Courtesy of TESLA, INC.
Remove the bolts (x3) and nuts (x3) that attach the trailer hitch jumper harness to the bracket on the trailer hitch assembly, maneuver the jumper harness through the opening in the bracket on the trailer hitch assembly, and then remove the jumper harness from the hitch assembly.
NOTE: The bolts are inserted from the bottom, and the nuts are on top.

Courtesy of TESLA, INC.

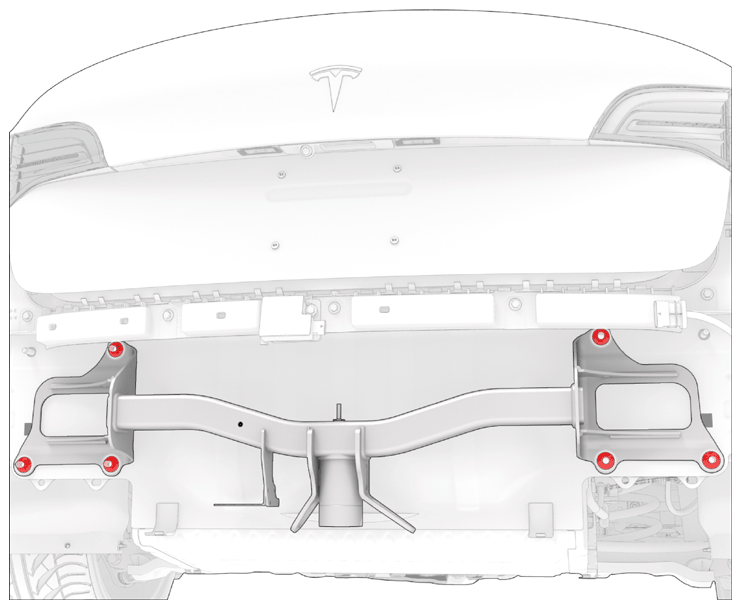

Remove the nuts (x6) that attach the trailer hitch assembly to the studs on the body.
Tip: Use of the following tool(s) is recommended:

Courtesy of TESLA, INC.
With the help of an assistant, remove the trailer hitch assembly from the vehicle.
