C-Clips - Strut - Trunk - LH - Remove and Replace: Remove

  1. Open the trunk and support it with a prop.

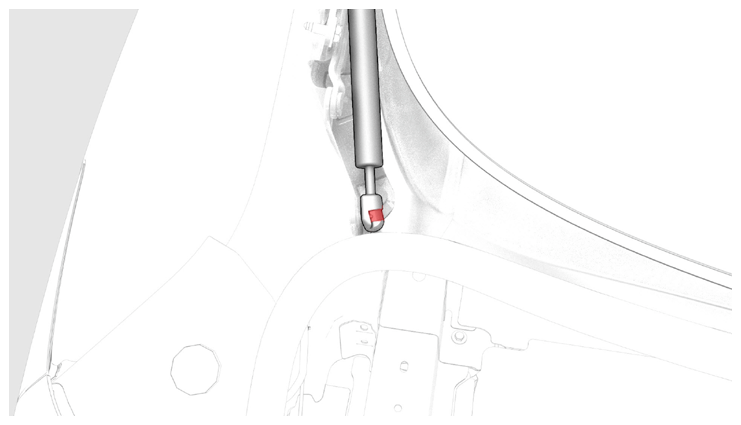

  2. Release the clip that attaches the lower end of the LH trunk gas strut to the hinge on the vehicle.
    G14739410Courtesy of TESLA, INC.

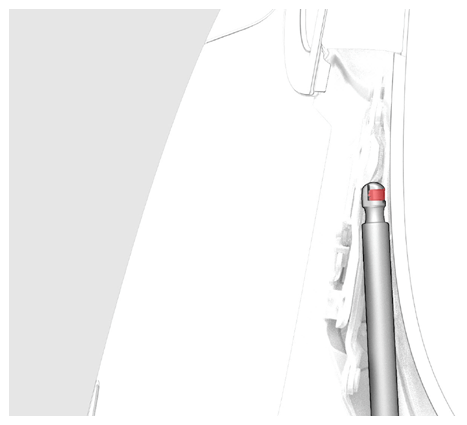

  3. Release the clip that attaches the upper end of the LH trunk gas strut to the hinge on the trunk lid, and then remove the strut from the vehicle.
    G14739411Courtesy of TESLA, INC.

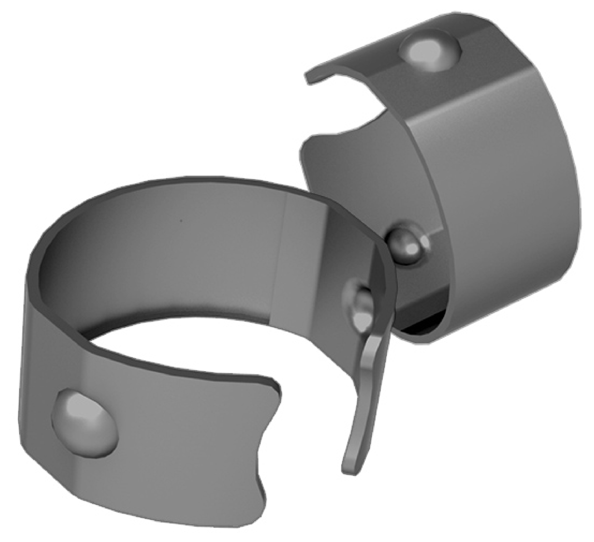

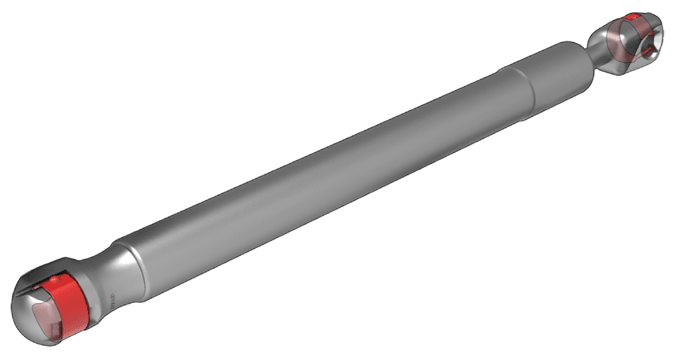

  4. Remove the clips (x2) from the LH trunk gas strut.
    G14739412Courtesy of TESLA, INC.
    G14739413Courtesy of TESLA, INC.
