Sensor - Parking Distance - Outer - Rear - Remove and Replace: Remove

  1. Remove bolt that attaches the LH side of the rear fascia to the body.

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • 2 in extension
    G14744144Courtesy of TESLA, INC.
  2. Pull the rear fascia outward to allow clearance to the rear parking sensor.
  3. Disconnect the electrical harness from the rear parking distance sensor connector.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G14744145Courtesy of TESLA, INC.
  4. Release the tabs that attach the rear parking distance sensor to the rear fascia, and then remove the sensor from the rear fascia.
    G14744146Courtesy of TESLA, INC.

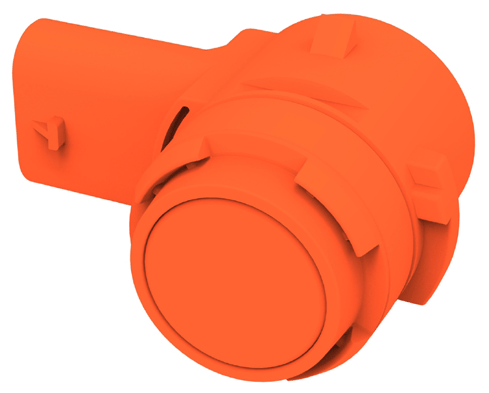

    G14744147Courtesy of TESLA, INC.
