Antenna - Wi-Fi - Remove and Replace: Remove

  1. Remove the LH and RH side rail trims. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  2. Open the LH and RH hook covers, and then release the clips that attach the screw covers to the LH and RH coat hooks.
    G14748579Courtesy of TESLA, INC.
  3. Remove the screws that attach the LH and RH rear coat hooks to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    G14748580Courtesy of TESLA, INC.
  4. Release the clips that attach the LH and RH upper B-pillar trims to the vehicle, and then set the B-pillar trims aside. See TRIM - B-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
    NOTE: It is not necessary to completely remove the upper B-pillar trims from the vehicle. While still attached to the seatbelt, set the trim aside.

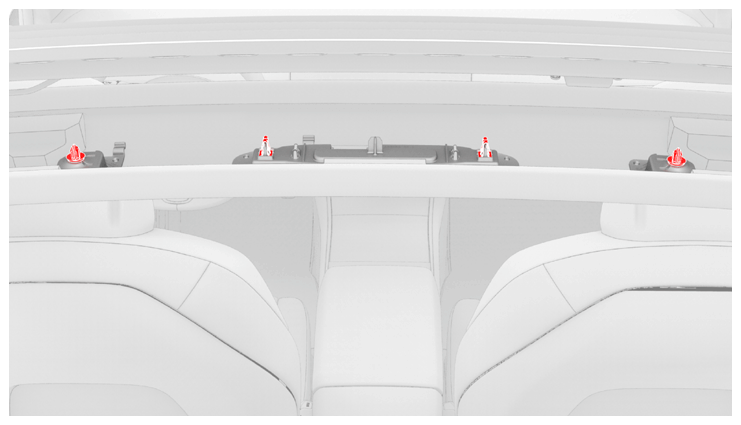

  5. Release the clips (4x) that attach the rear end of the headliner to the vehicle, and then insert up a rolled up rag between the headliner and body for additional clearance.
    CAUTION: Take care not to bend the headliner.
    G14748581Courtesy of TESLA, INC.
  6. Disconnect the electrical connector from the Wi-Fi antenna.
    G14748582Courtesy of TESLA, INC.
  7. Release the clips that attach the Wi-Fi antenna to the body, and then remove the antenna from the vehicle.
    G14748583Courtesy of TESLA, INC.
    G14748584Courtesy of TESLA, INC.
