Glove Box - With Knee Airbags (Heat Pump) - Remove And Replace: Install

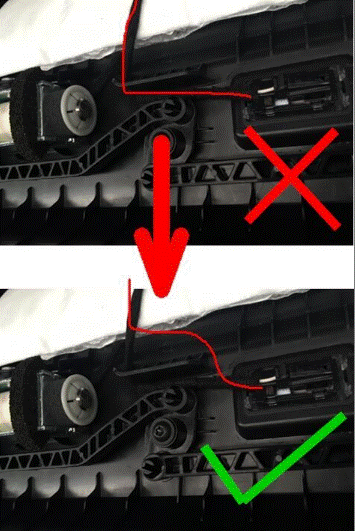

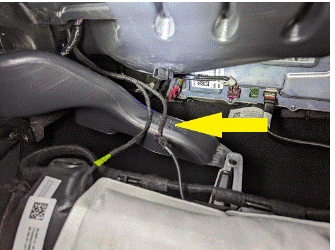

  1. Connect glove box assembly connectors
    NOTE: 3x connectors, New puddle lamp harness routing prevent blocking movement of pawls, Make sure harness is routed properly above passenger footwell air duct before connecting
    G00642476Courtesy of TESLA, INC.
    G00642475Courtesy of TESLA, INC.
    G00642477Courtesy of TESLA, INC.
  2. Install glove box into IP carrier
    NOTE:

    3x clips

    G00642474Courtesy of TESLA, INC.

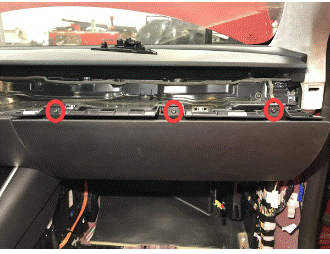

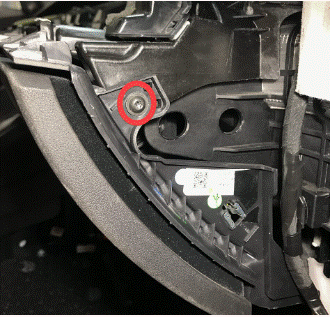

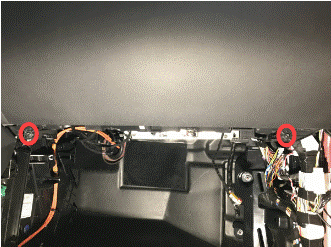

  3. Install screws securing glove box assembly to IP carrier
    NOTE:

    6x screws, T20, 2.3 Nm

    G00642478Courtesy of TESLA, INC.
    G00642479Courtesy of TESLA, INC.
    G00642480Courtesy of TESLA, INC.

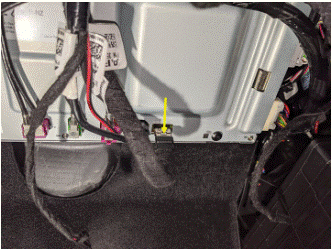

  4. Connect glove box USB cable to car computer
    NOTE:

    1x connector

    G00642481Courtesy of TESLA, INC.

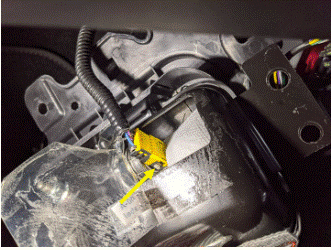

  5. Install passenger knee air bag onto vehicle
    NOTE:

    1x connector, Use caution not to damage connector and harness, Support knee air bag while connecting connector

    G00642482Courtesy of TESLA, INC.

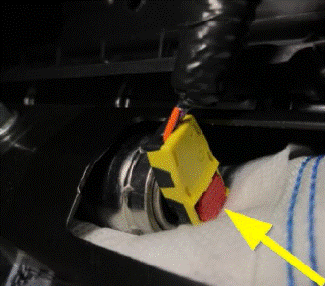

    G00642483Courtesy of TESLA, INC.

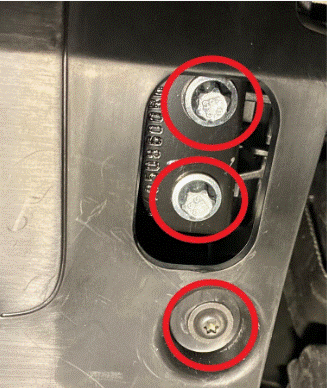

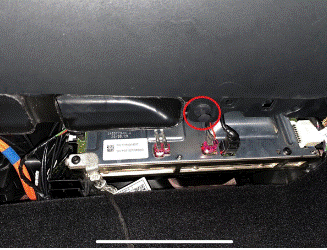

  6. Install bolts securing passenger knee air bag to vehicle
    NOTE:

    4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 1x push clip, If vehicle equipped with T30 bolts update to E10

    G00642484Courtesy of TESLA, INC.

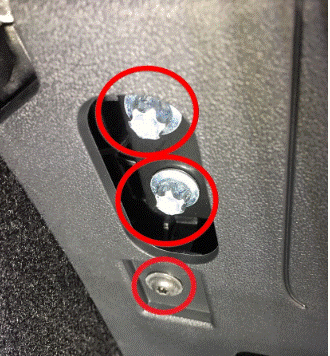

    G00642485Courtesy of TESLA, INC.
    G00642486Courtesy of TESLA, INC.

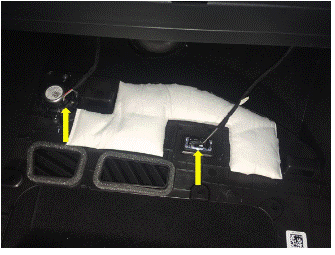

  7. Position RH footwell assembly
    NOTE:

    2x connectors

    G00642487Courtesy of TESLA, INC.

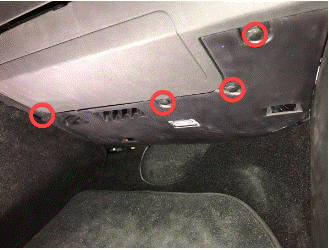

  8. Install RH footwell assembly onto IP
    NOTE:

    4x push clips

    G00642488Courtesy of TESLA, INC.

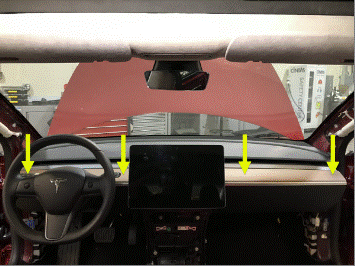

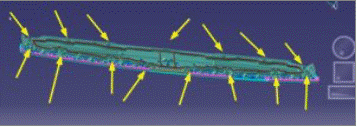

  9. Install main decor assembly
    NOTE:

    15x clips, 1x center clip

    G00642489Courtesy of TESLA, INC.
    G00642490Courtesy of TESLA, INC.

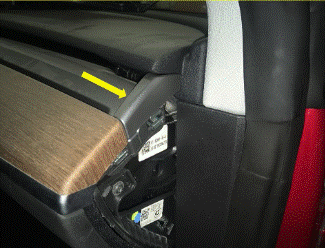

  10. Install RH air wave bezel cap to main decor assembly.
    NOTE:

    2x clips, Newer vehicles are equipped with solid bezel.

    G00642491Courtesy of TESLA, INC.

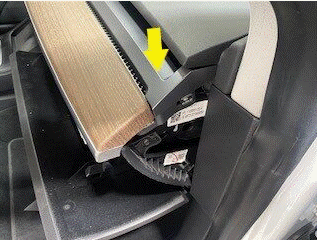

    G00642492Courtesy of TESLA, INC.

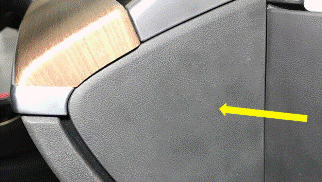

  11. Install RH IP end cap
    NOTE:

    3x clips

    G00642493Courtesy of TESLA, INC.

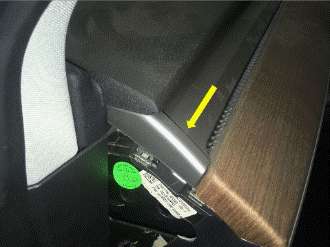

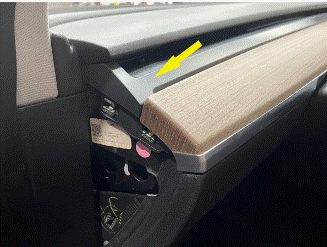

  12. Install LH air wave bezel cap to main decor assembly
    NOTE:

    2x clips, Newer vehicles are equipped with solid bezel.

    G00642494Courtesy of TESLA, INC.
    G00642495Courtesy of TESLA, INC.

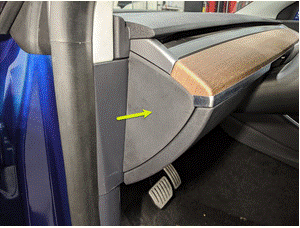

  13. Install LH IP end cap
    NOTE:

    3x clips

    G00642496Courtesy of TESLA, INC.
  14. Connect first responder loop
    NOTE:

    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer

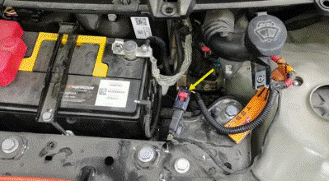

    G00642497Courtesy of TESLA, INC.
  15. Connect 12V negative terminal
    NOTE:

    1x nut, 10mm, 6 Nm

    G00642498Courtesy of TESLA, INC.
  16. Install rear apron
    NOTE:

    12x clips

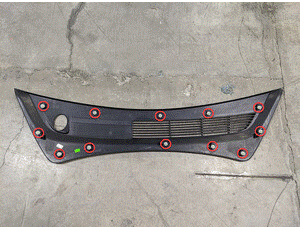

    G00642499Courtesy of TESLA, INC.

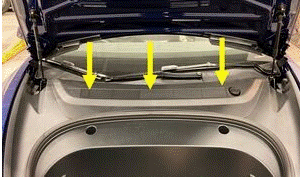

    G00642500Courtesy of TESLA, INC.
  17. Close hood

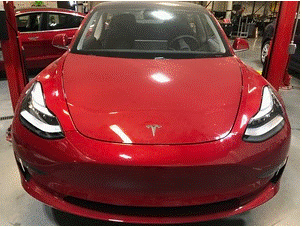

    G00642501Courtesy of TESLA, INC.

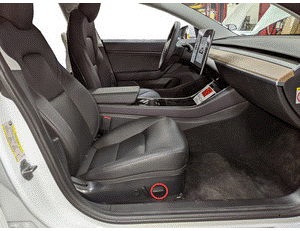

  18. Move RH front seat to original position
    G00642502Courtesy of TESLA, INC.
  19. Raise LF and RF windows

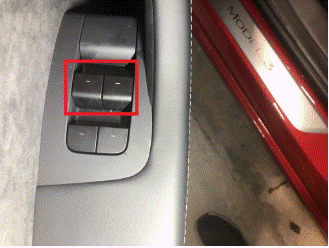

    G00642503Courtesy of TESLA, INC.

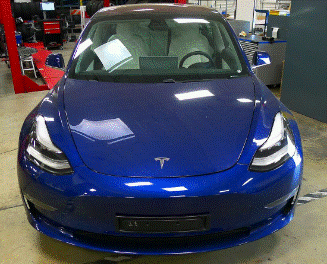

  20. Close both front doors
    G00642504Courtesy of TESLA, INC.
