Trim - Cushion - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Remove

  1. Remove the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .

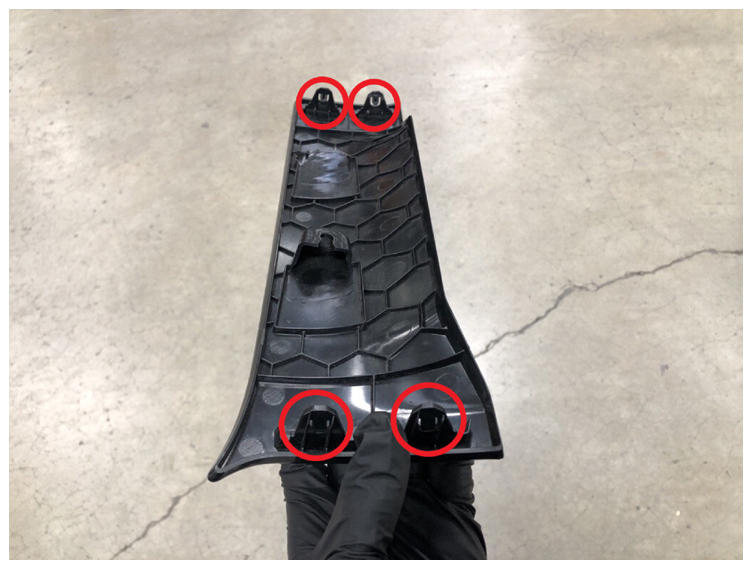

  2. Remove the RH 2nd row seat toe kick cover.
    G14823726Courtesy of TESLA, INC.

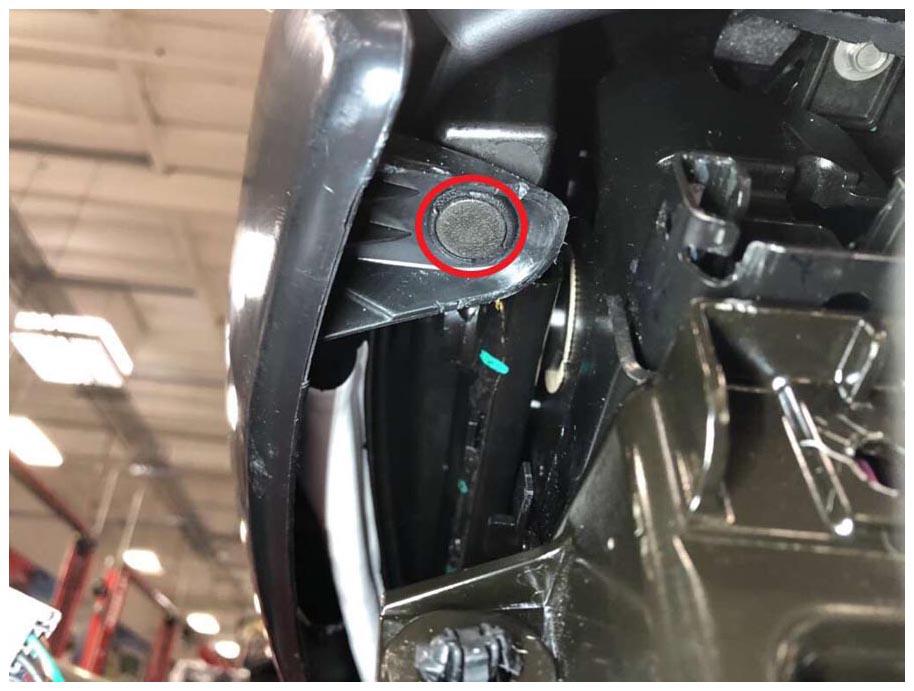

  3. Remove the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14872846Courtesy of TESLA, INC.

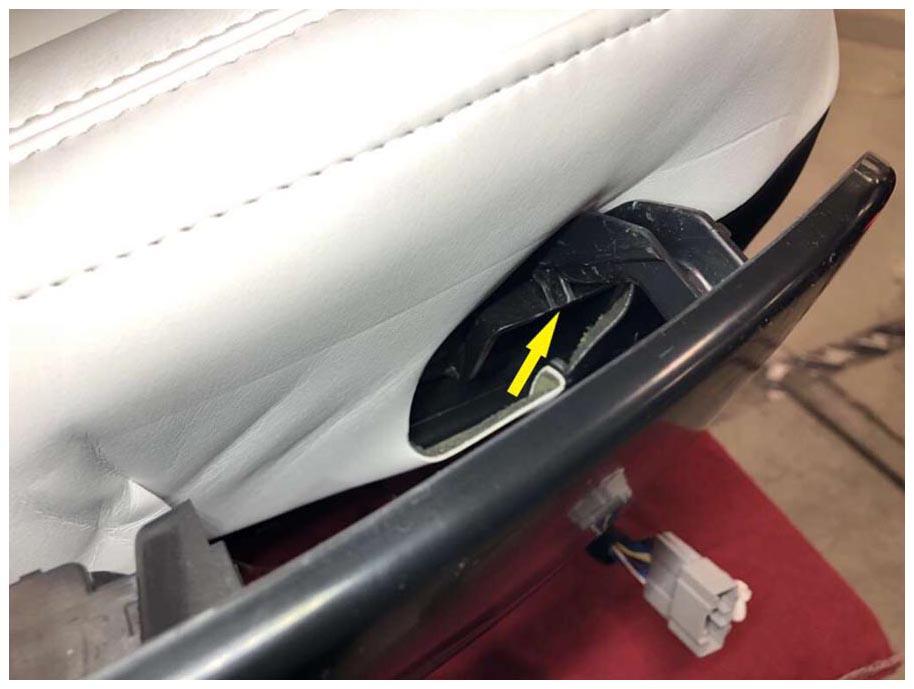

  4. Release the clip that attaches the RH 2nd row seat side shield to the RH 2nd row seat assembly, and then lift the shield up to release it from the assembly.
    NOTE: Do not pull the shield away from the assembly as there is still an electrical connector connected
    G14872847Courtesy of TESLA, INC.

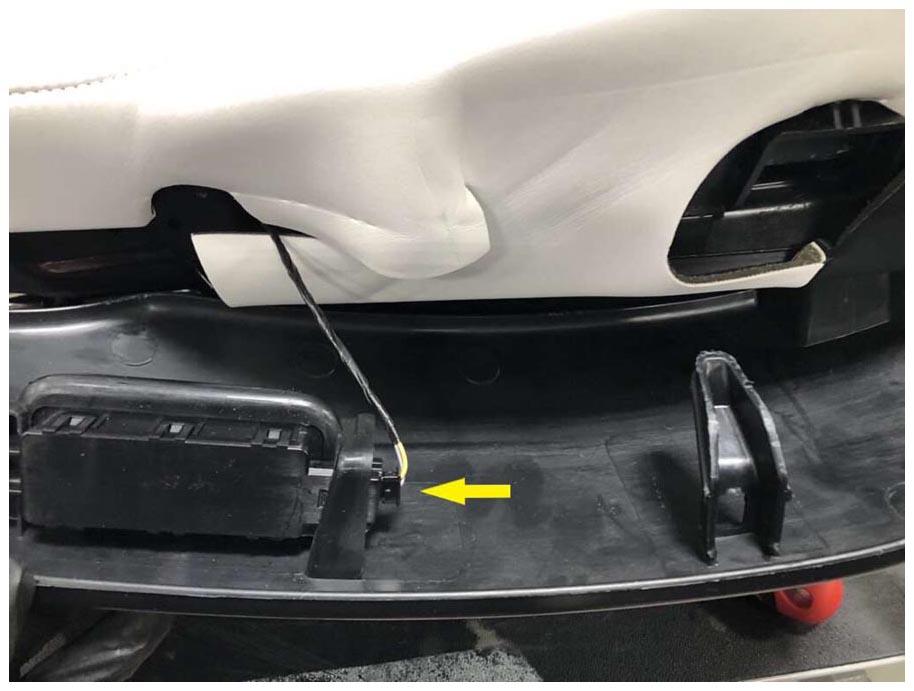

  5. Disconnect the RH 2nd row seat side shield electrical connector, and then remove the shield from the assembly.
    G14872848Courtesy of TESLA, INC.

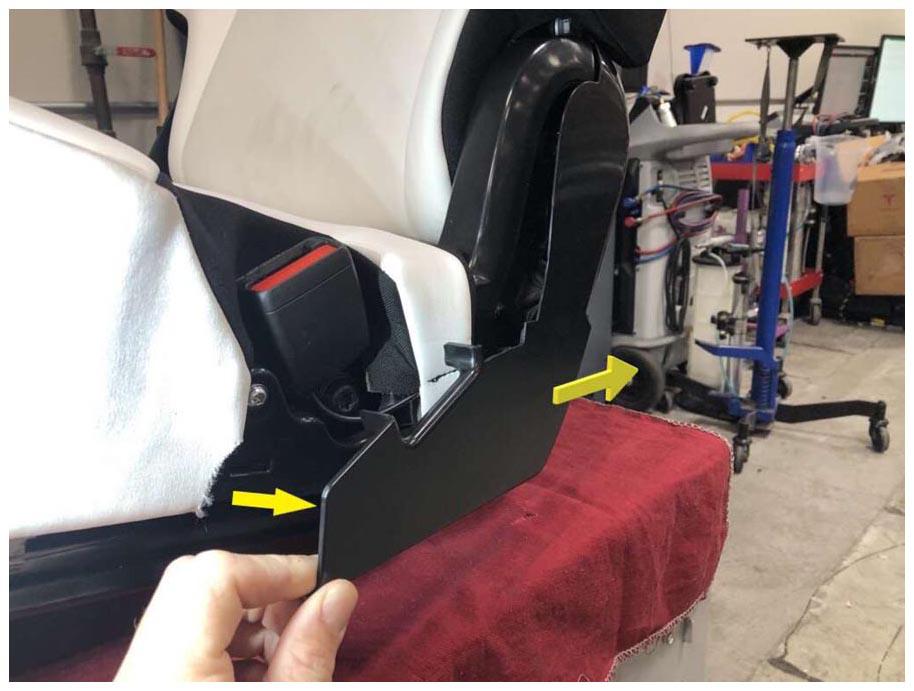

  6. Release the clips (x4) that attach the RH 2nd row seat outer B-cover from the inner B-cover, and slide the cover towards the rear of the seat to remove it from the assembly.
    G14872850Courtesy of TESLA, INC.
  7. Fold the seat to the upright position.

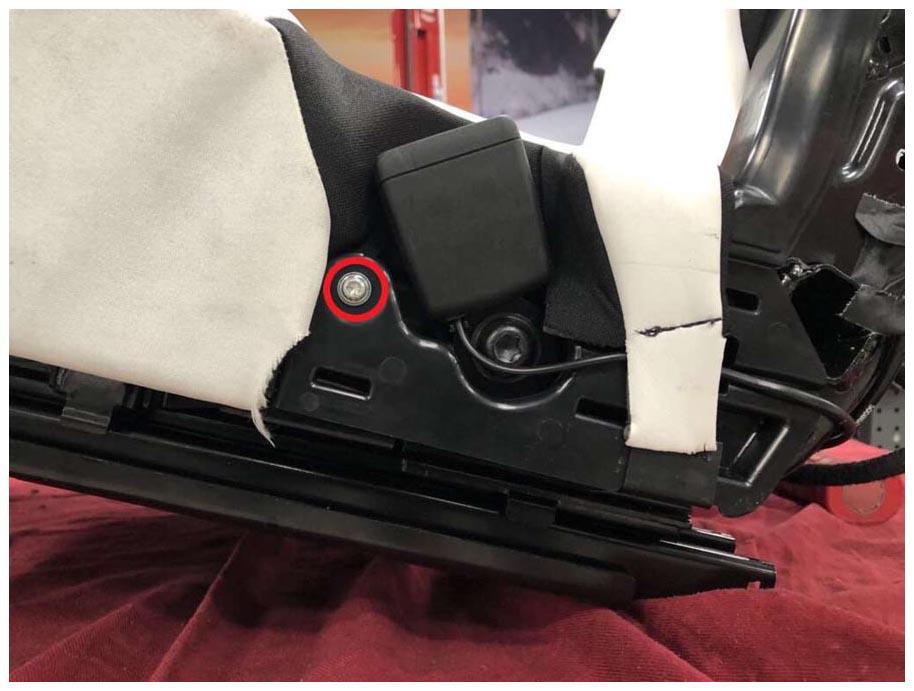

  8. Remove the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.

    Torque 1.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • Flex head ratchet/flex head torque wrench
    G14872851Courtesy of TESLA, INC.

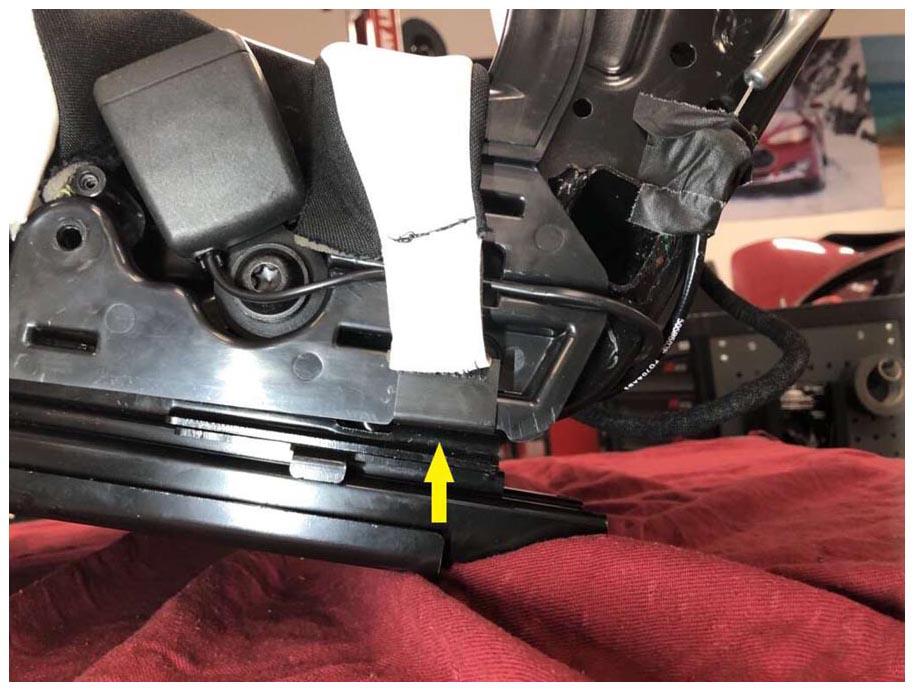

  9. Release the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
    G14872852Courtesy of TESLA, INC.

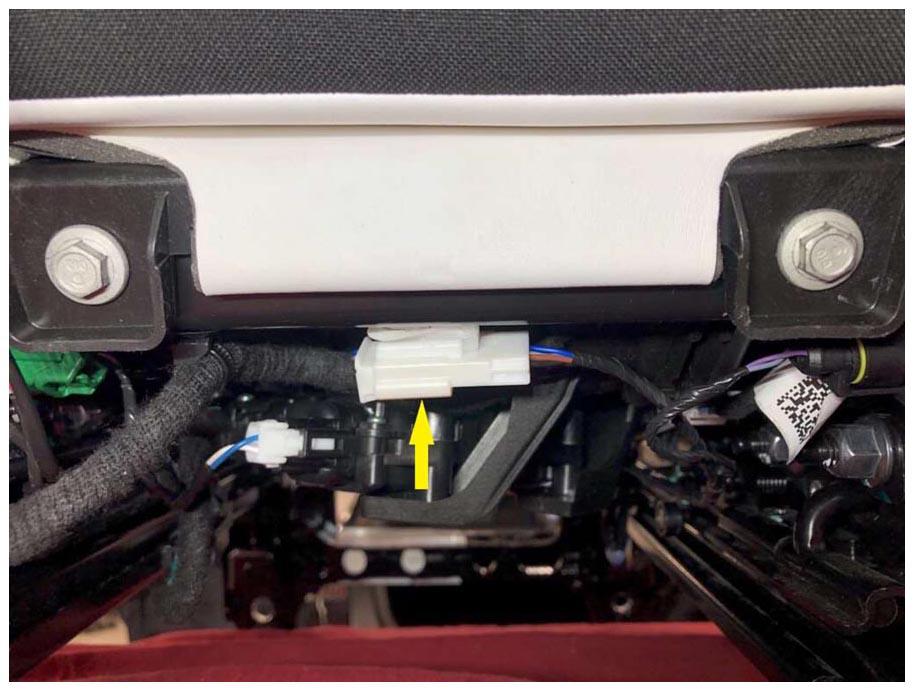

  10. Disconnect the LH 2nd row seatback harness electrical connector.
    G14872853Courtesy of TESLA, INC.

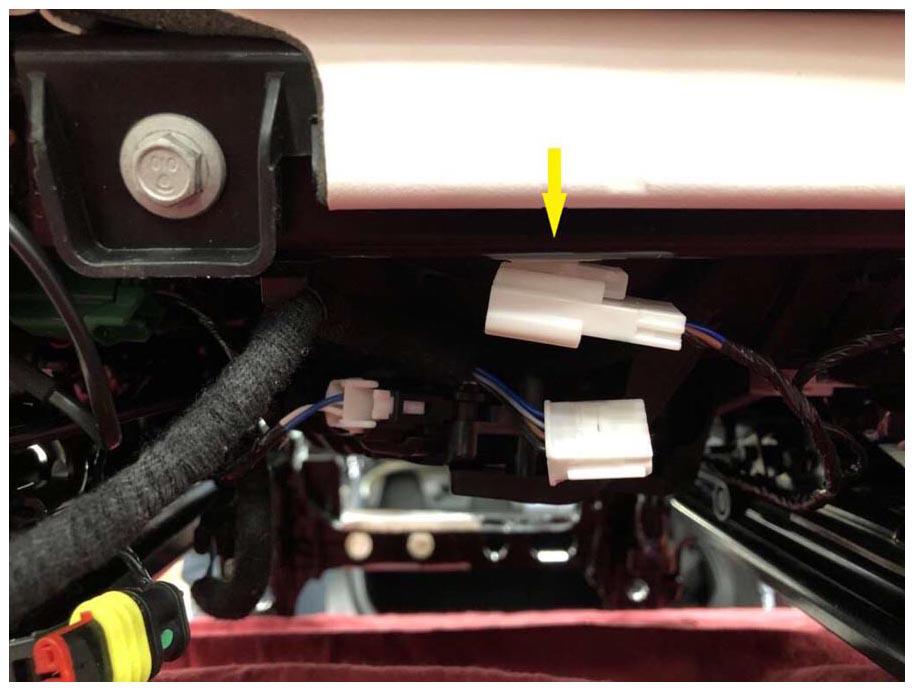

  11. Release the clip that attaches the RH 2nd row seat cushion harness connector to the seat frame.
    G14872854Courtesy of TESLA, INC.

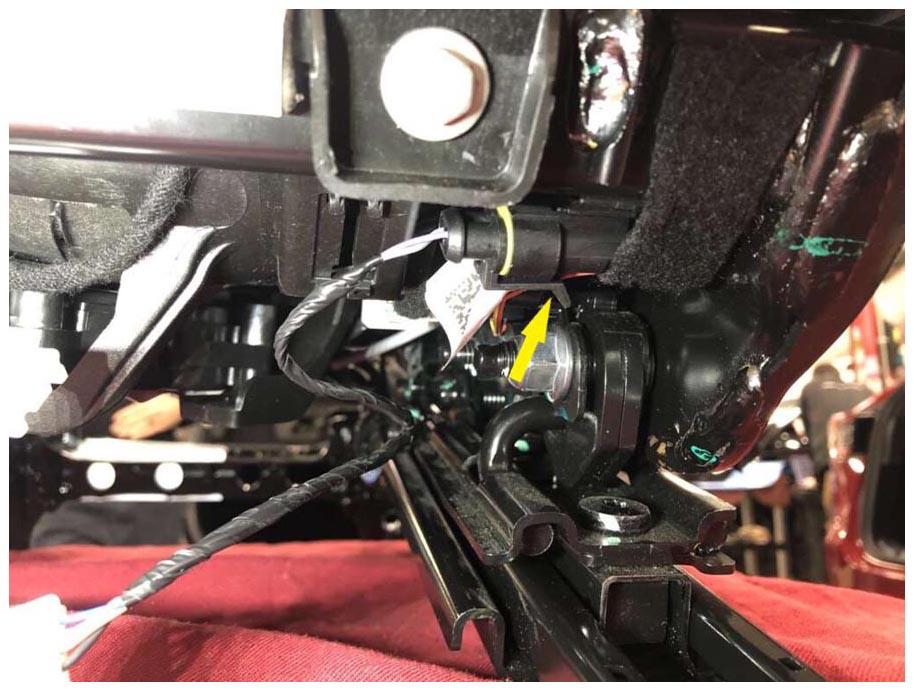

  12. Disconnect the RH 2nd row seat RH floor latch electrical connector.
    G14872855Courtesy of TESLA, INC.

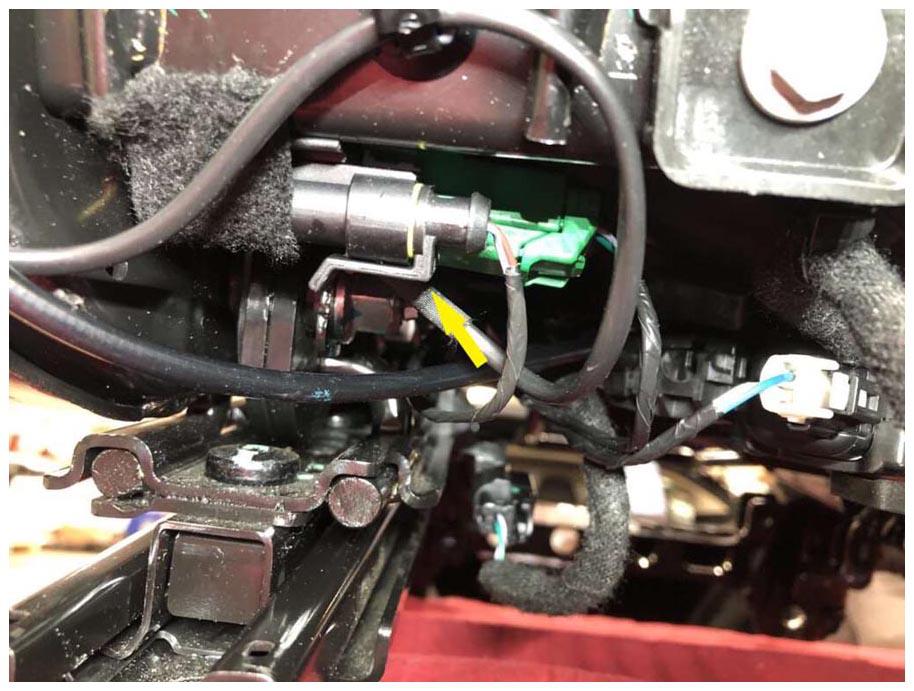

  13. Disconnect the RH 2nd row seat LH floor latch electrical connector.
    G14872856Courtesy of TESLA, INC.

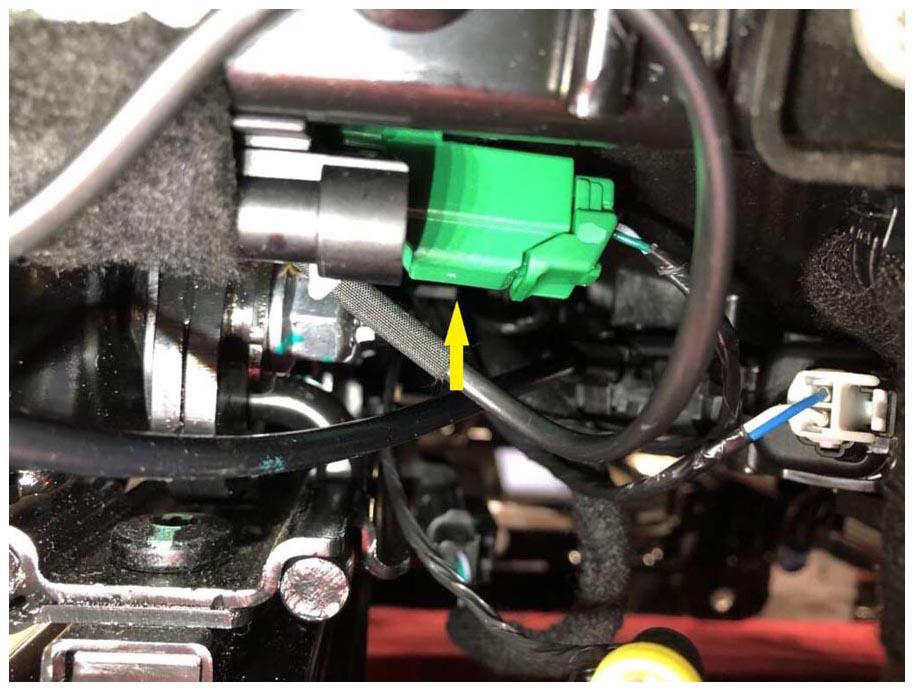

  14. Disconnect the RH 2nd row seat seatbelt buckle electrical connector.
    G14872857Courtesy of TESLA, INC.

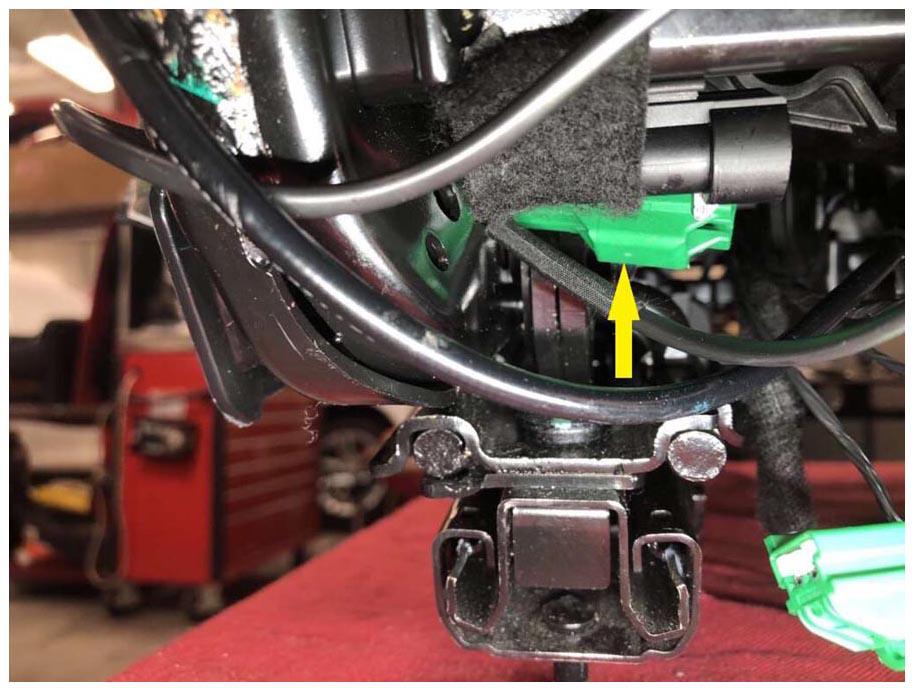

  15. Release the clip that attaches the RH 2nd row seat seatbelt buckle connector to the cushion pan.
    G14872858Courtesy of TESLA, INC.

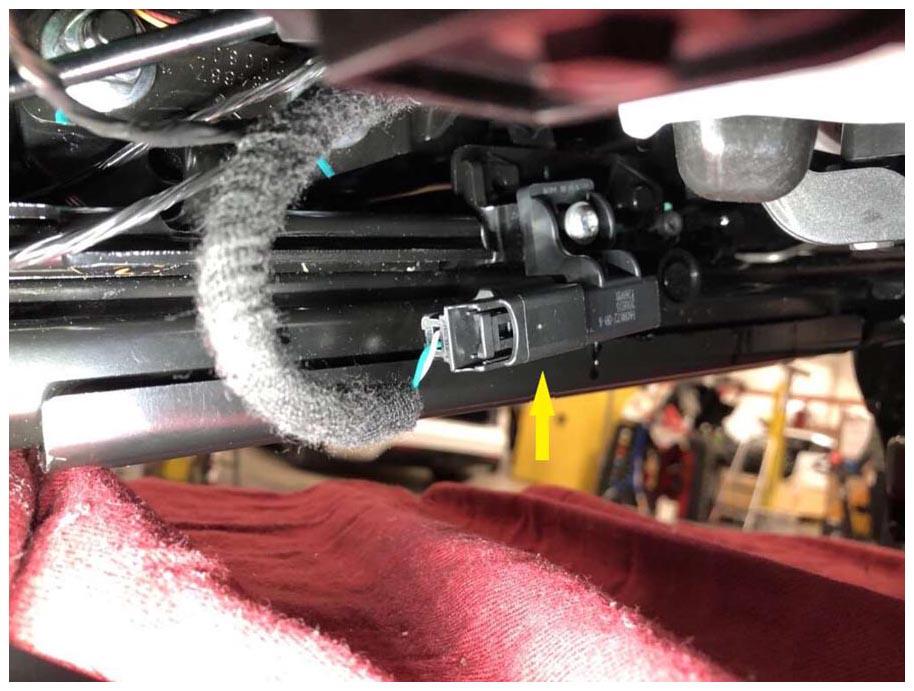

  16. Disconnect the RH 2nd row seat track position sensor electrical connector.
    G14872859Courtesy of TESLA, INC.

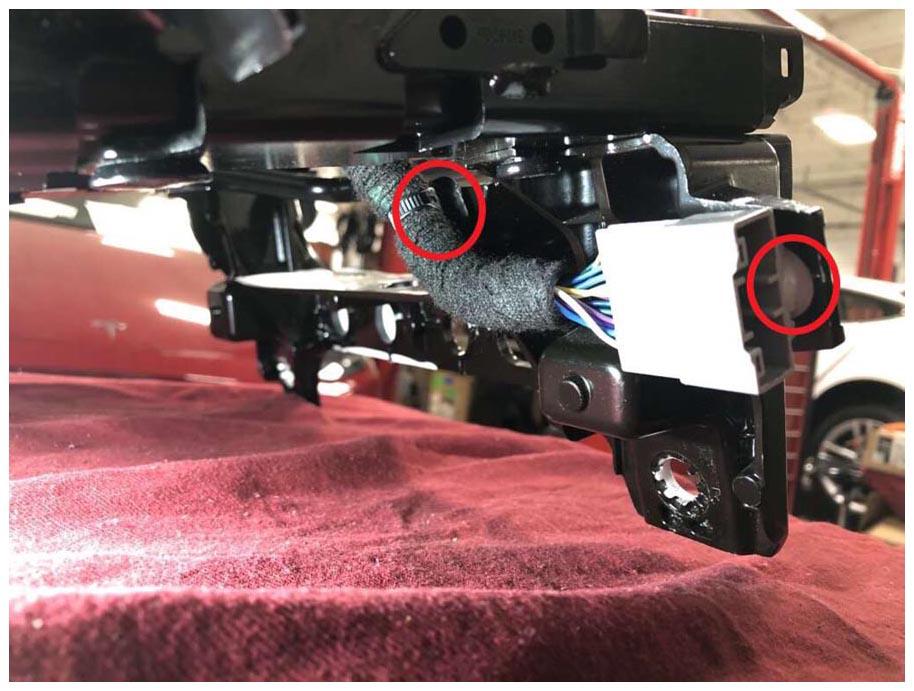

  17. Release the clips that attach the RH 2nd row seat cushion harness to the podium.
    G14872861Courtesy of TESLA, INC.

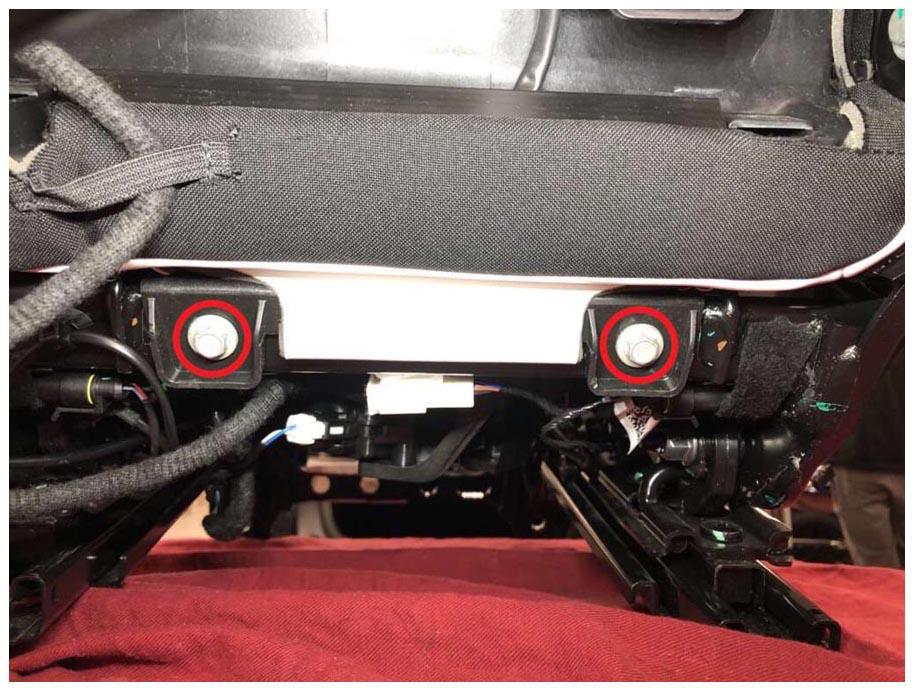

  18. Remove the bolts that attach the RH 2nd row seat cushion pan to the seat frame.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G14872862Courtesy of TESLA, INC.

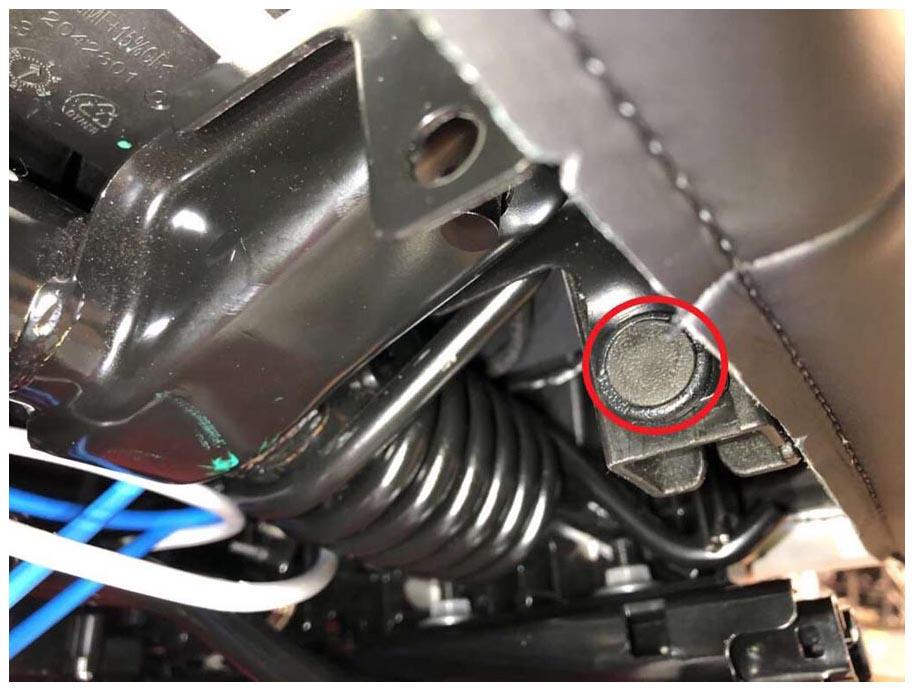

  19. Remove the clip that attaches the RH 2nd row seat cushion pan to the seat frame.
    G14872863Courtesy of TESLA, INC.

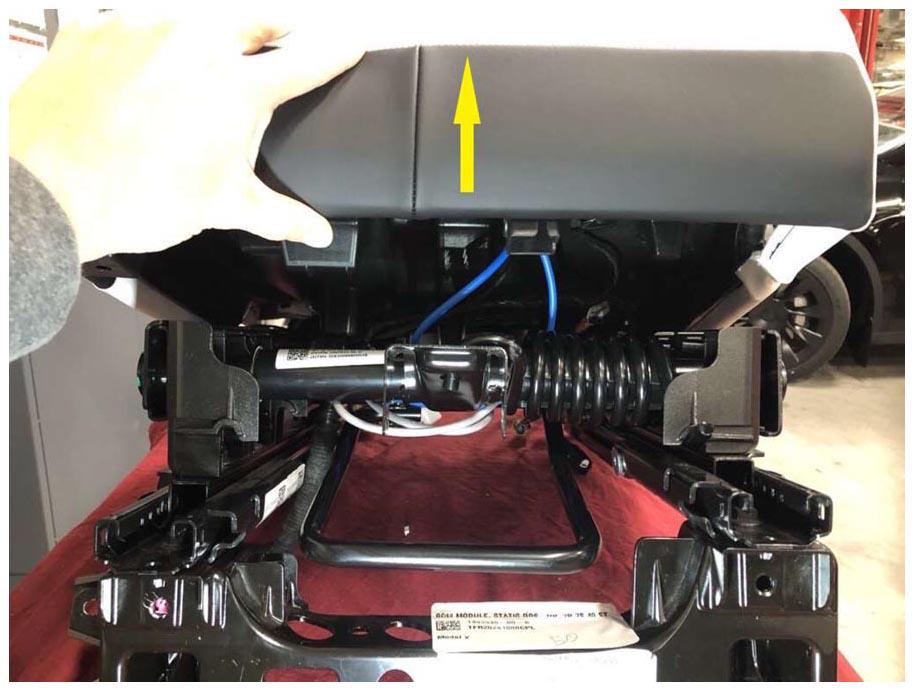

  20. Slightly lift the RH 2nd row seat cushion pan upward, but do not fully remove the cushion at this time.
    G14872864Courtesy of TESLA, INC.

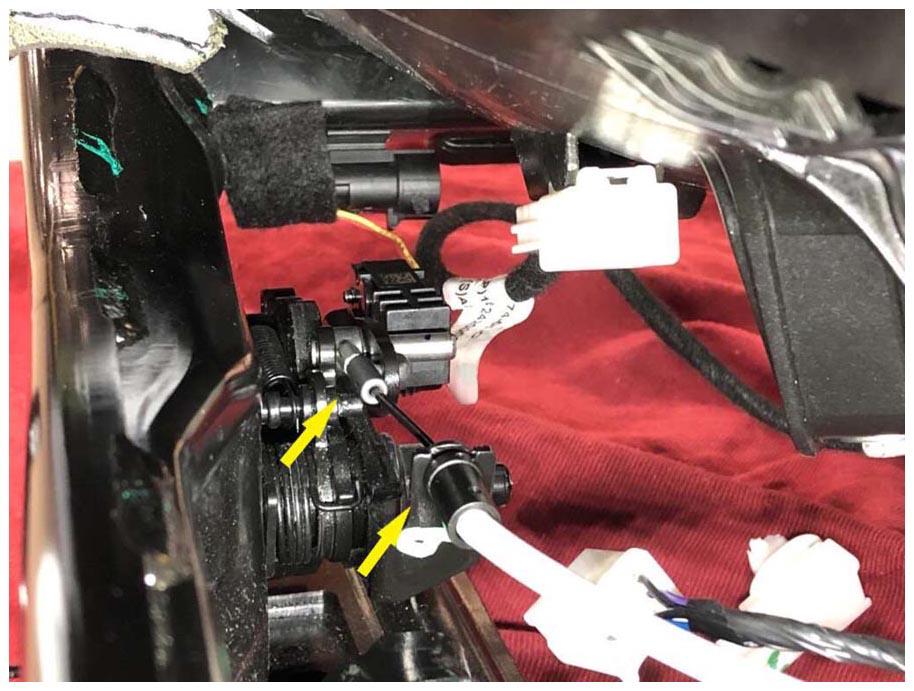

  21. Release the clips that attach the RH 2nd row seat floor latch actuator cable from the RH floor latch.
    G14872865Courtesy of TESLA, INC.

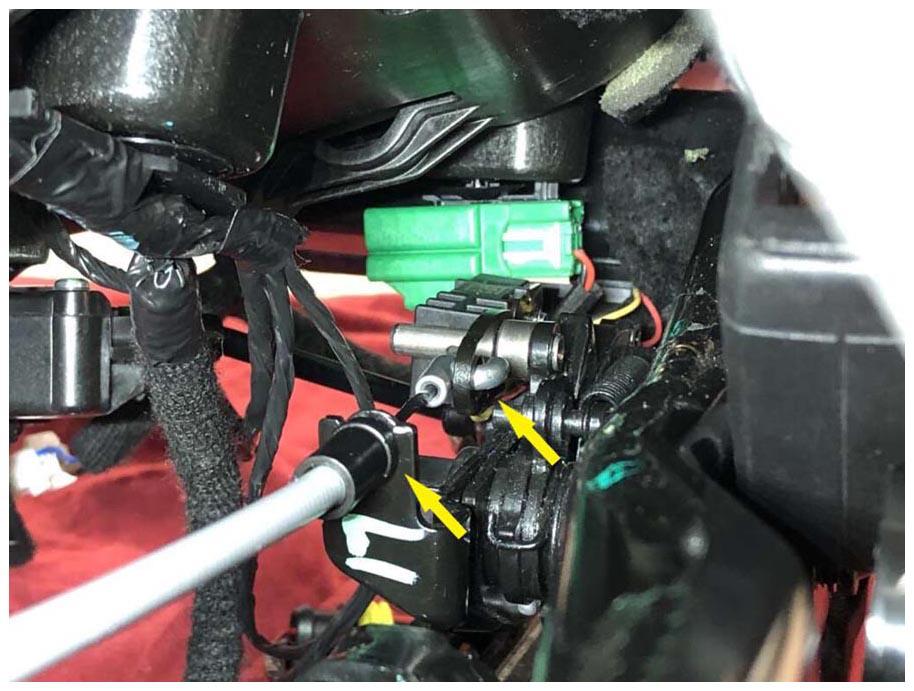

  22. Release the clips that attach the RH 2nd row seat floor latch actuator cable from the LH floor latch.
    G14872866Courtesy of TESLA, INC.

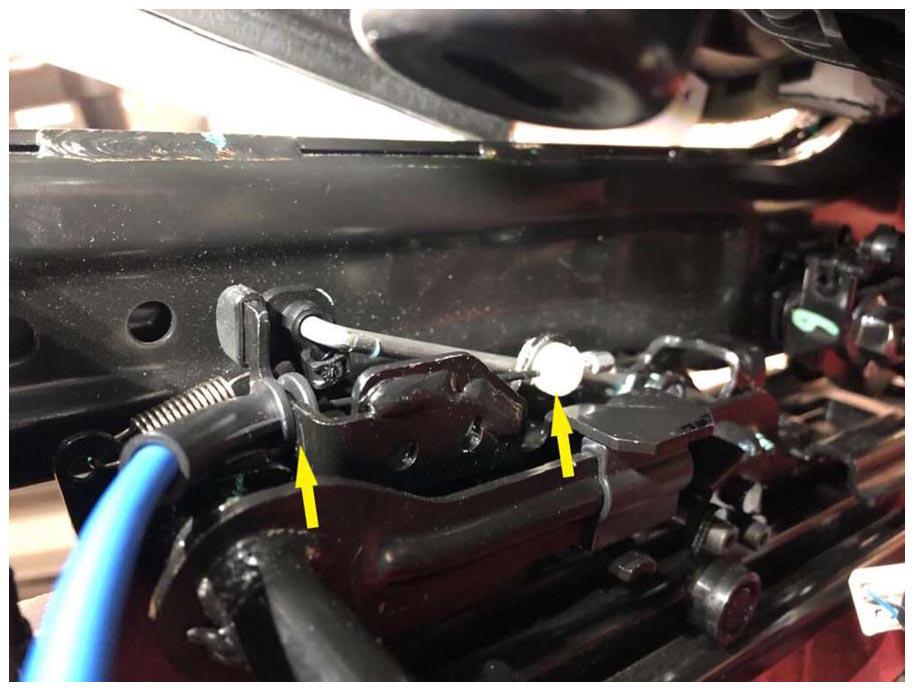

  23. Release the clips that attach the RH 2nd row seat easy entry actuator cable to the RH easy entry latch.
    G14872867Courtesy of TESLA, INC.

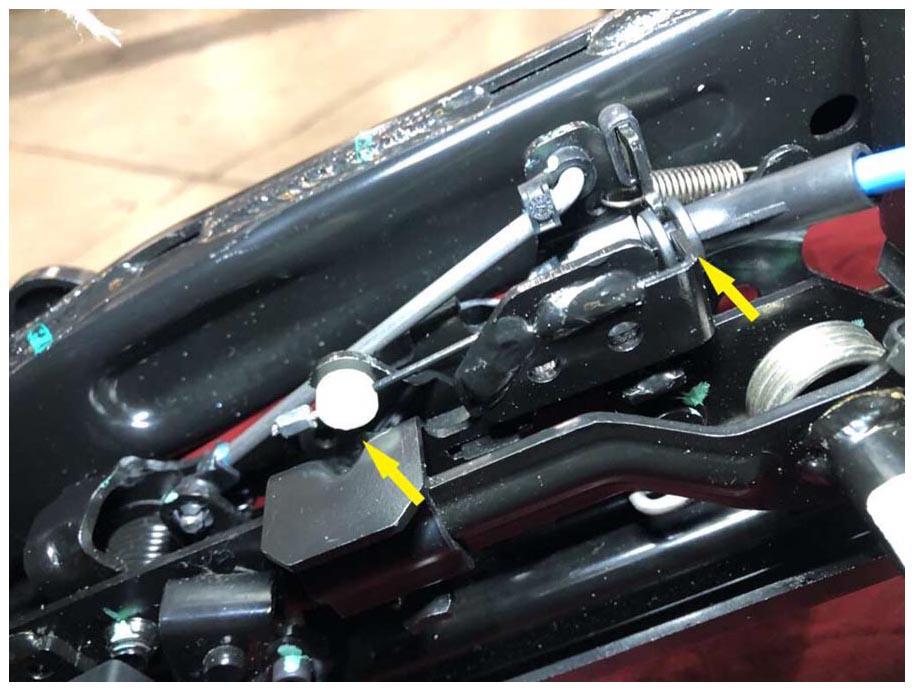

  24. Release the clips that attach the RH 2nd row seat easy entry actuator cable to the LH easy entry latch.
    G14872868Courtesy of TESLA, INC.

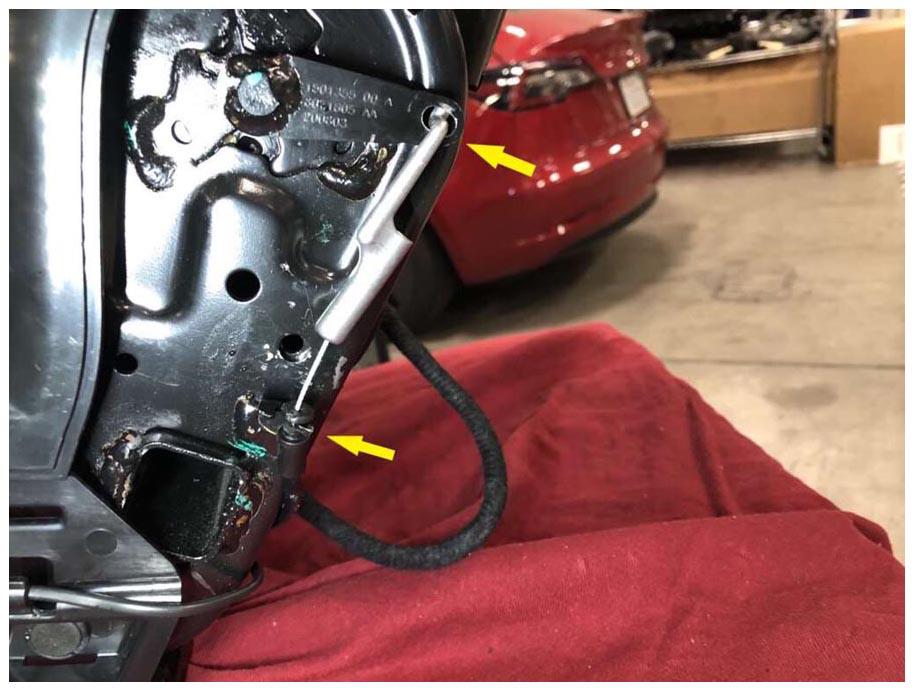

  25. Release the clips that attach the RH 2nd row seat recliner actuator cable to the recliner release arm.
    G14872869Courtesy of TESLA, INC.

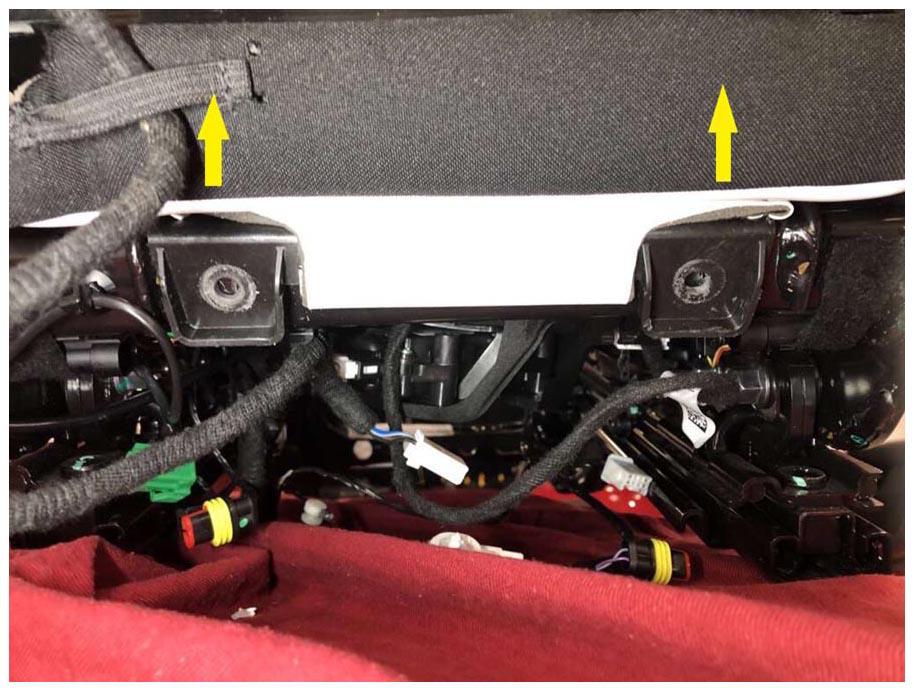

  26. Remove the RH 2nd row seat cushion assembly from seat frame.
    G14872870Courtesy of TESLA, INC.

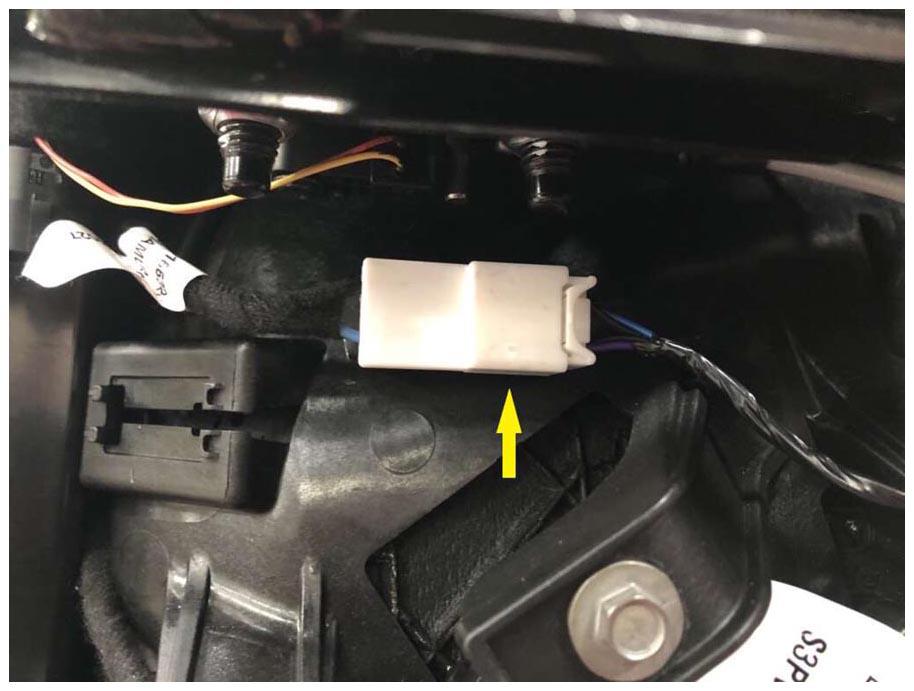

  27. Disconnect the RH 2nd row seat heat pad electrical connector.
    G14872871Courtesy of TESLA, INC.

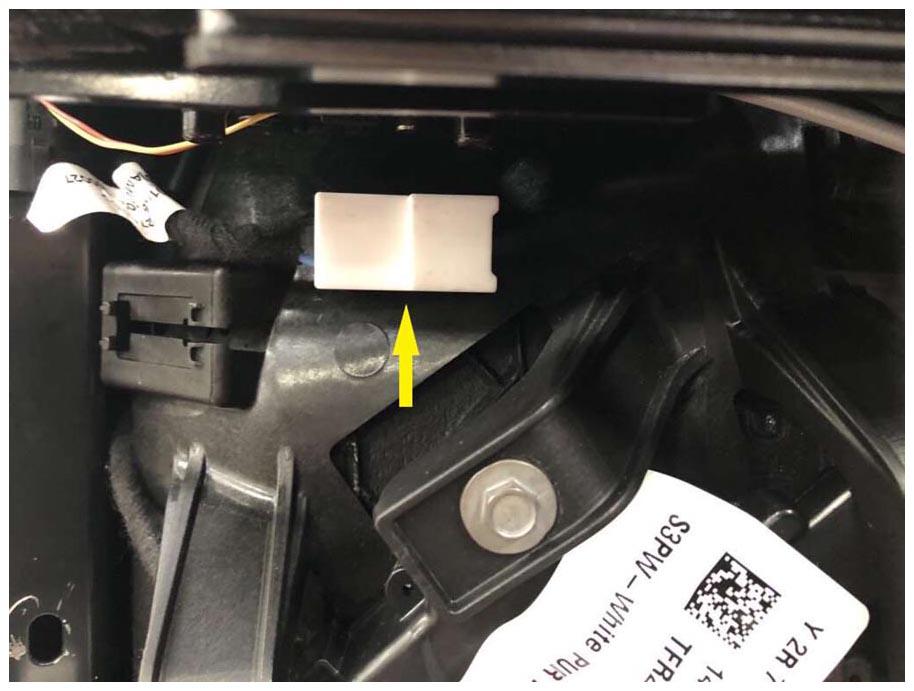

  28. Release locking tab that attaches the RH 2nd row seat heater pad connector to the cushion pan.
    G14872872Courtesy of TESLA, INC.

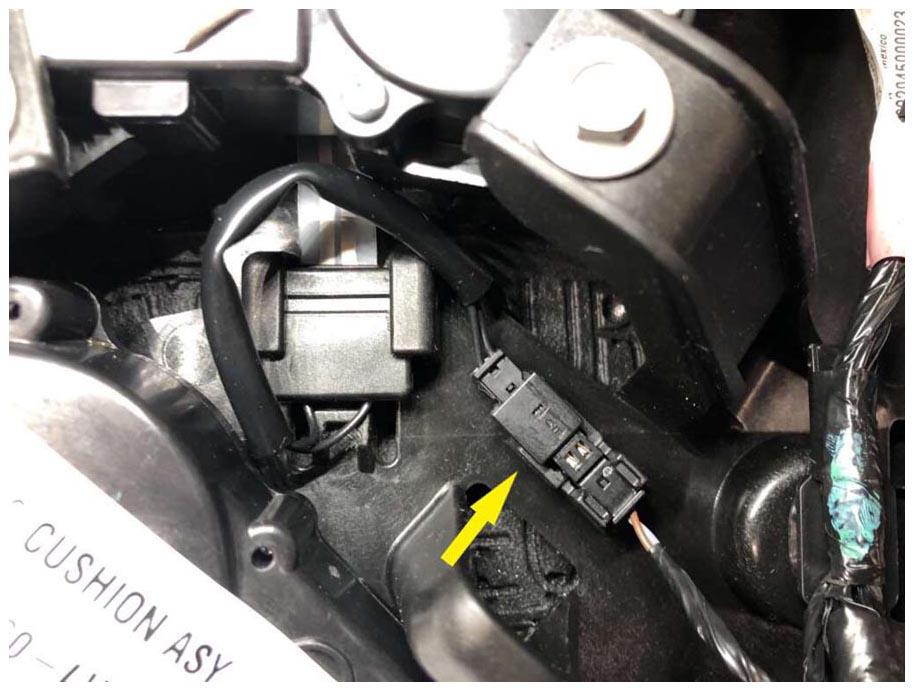

  29. Disconnect the RH 2nd row seat occupancy sensor electrical connector.
    G14872873Courtesy of TESLA, INC.

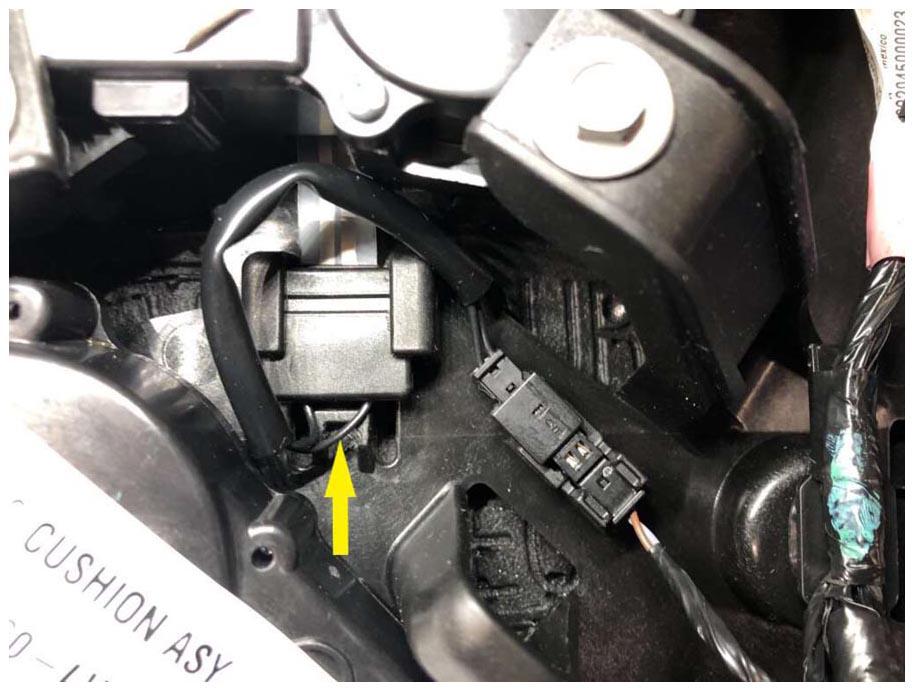

  30. Release the holding tab that attaches the RH 2nd row seat occupancy sensor harness to the cushion pan.
    G14872874Courtesy of TESLA, INC.

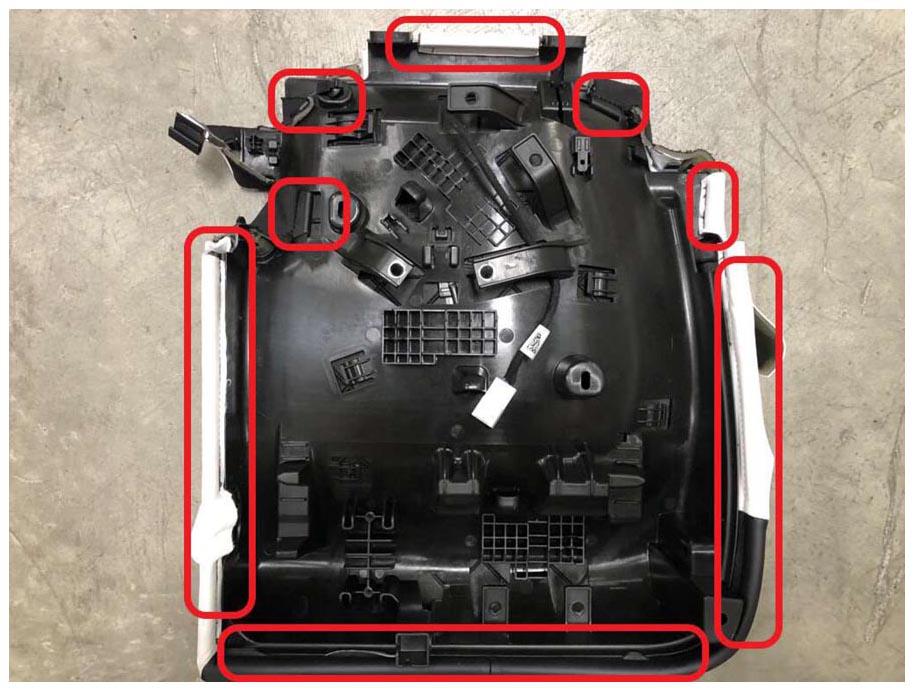

  31. Release the hooks that attach the RH 2nd row seat cushion trim cover to the cushion pan, and then remove the trim cover from the cushion pan.
    G14872875Courtesy of TESLA, INC.

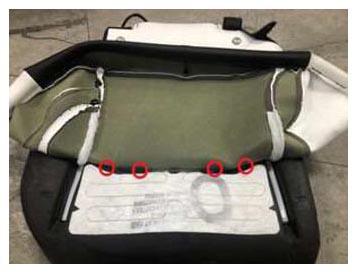

  32. Release the Velcro that attaches the RH 2nd row seat cushion trim to the foam pad until the front hog rings are visible.
    NOTE: Release the Velcro approximately 11 cm.
    G14872876Courtesy of TESLA, INC.

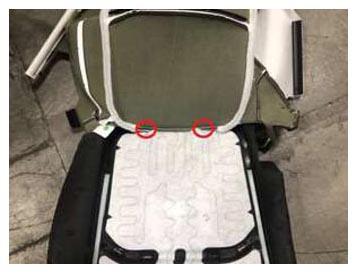

  33. Use diagonal cutters to cut the hog rings at the front of the RH 2nd row seat cushion trim, and then release the cover from the hog rings.
  34. Separate the remaining portion of the RH 2nd row seat cushion trim from the foam pad until the remaining hog rings are visible.
    G14872877Courtesy of TESLA, INC.
  35. Use diagonal cutters to cut the remaining hog rings, release the cover from the hog rings, and then remove the RH 2nd row seat cushion trim.
