Trim - Cushion - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Install

  1. Position the RH 2nd row seat cushion trim onto the foam padding.

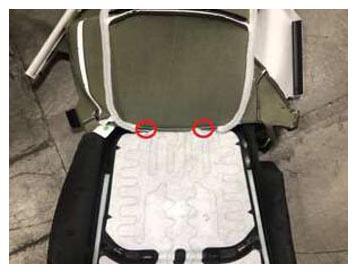

  2. Use hog ring pliers to crimp the hog rings to the RH 2nd row seat cushion trim at the rear of the foam padding.
    G14872878Courtesy of TESLA, INC.
  3. Attach an additional 21 cm of the remaining portion of the RH 2nd row seat cushion trim to the foam padding.

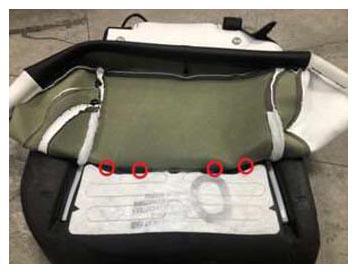

  4. Use hog ring pliers to crimp the hog rings to the RH 2nd row seat cushion trim at the front of the foam padding.
    G14872879Courtesy of TESLA, INC.
  5. Attach the remaining portion of the RH 2nd row seat cushion trim to the foam padding.

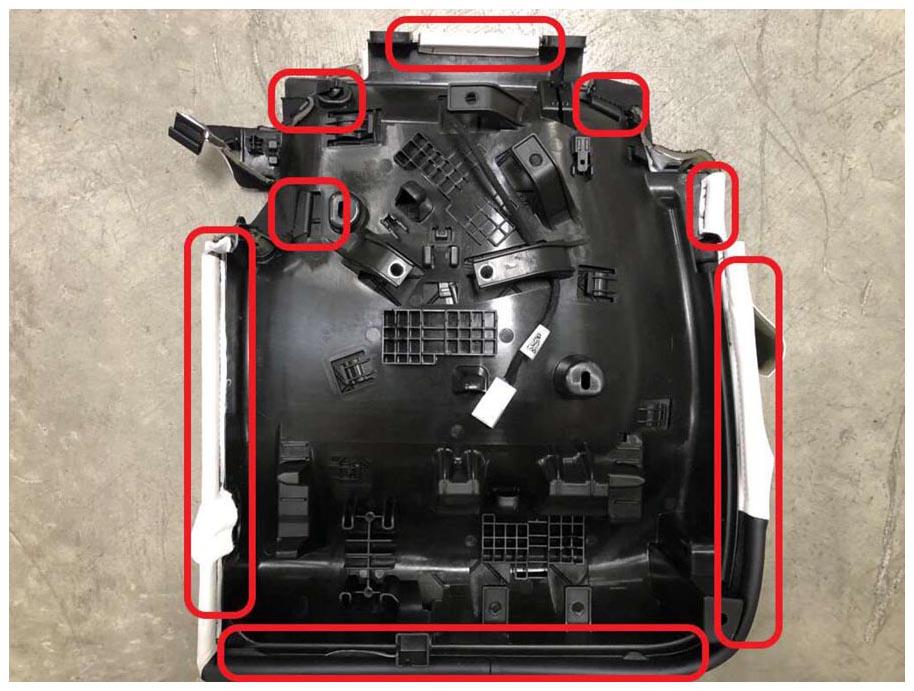

  6. Position the RH 2nd row seat cushion trim cover onto the cushion pan, and then fasten the hooks.
    G14872880Courtesy of TESLA, INC.

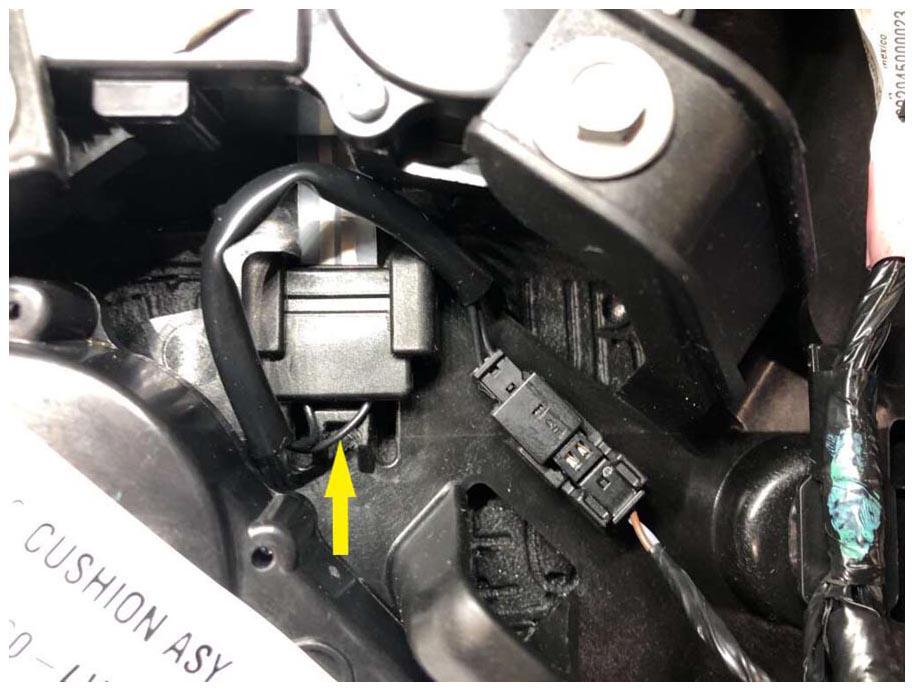

  7. Fasten the holding tab that attaches the RH 2nd row seat occupancy sensor harness to the cushion pan.
    G14872881Courtesy of TESLA, INC.

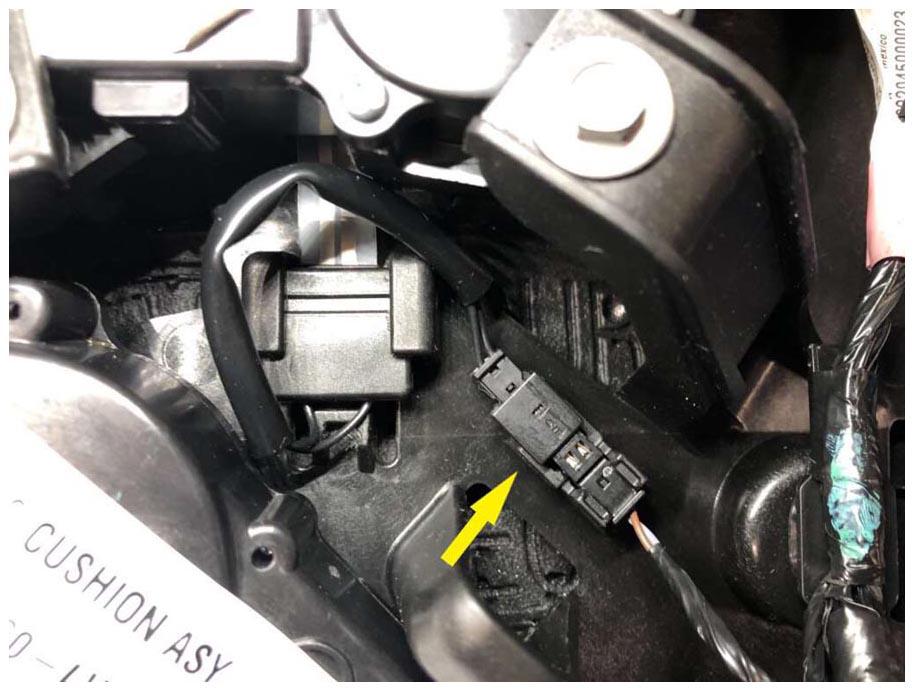

  8. Connect the RH 2nd row seat occupancy sensor electrical connector.
    G14872882Courtesy of TESLA, INC.

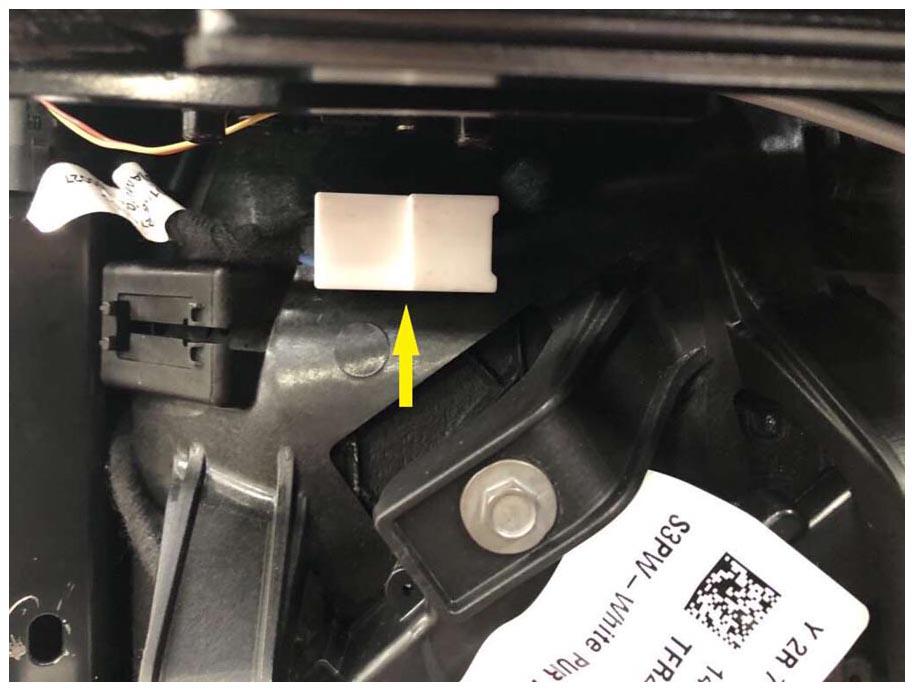

  9. Install the RH 2nd row seat heater pad connector to the cushion pan.
    G14872883Courtesy of TESLA, INC.

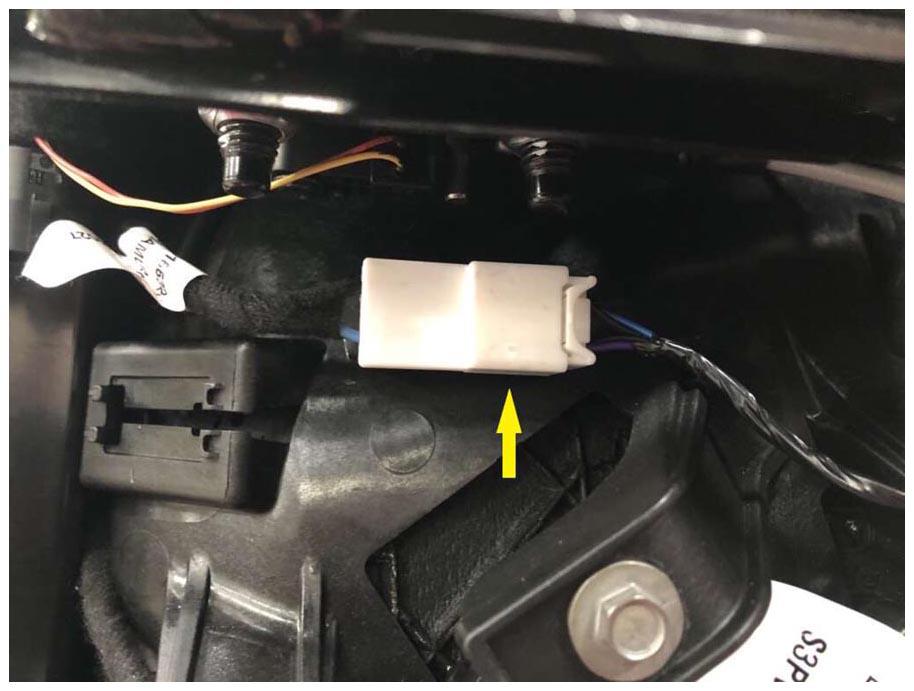

  10. Connect the RH 2nd row seat heat pad electrical connector.
    G14872884Courtesy of TESLA, INC.
  11. Position the RH 2nd row seat cushion assembly onto the seat from, but do not fully seat the cushion assembly.

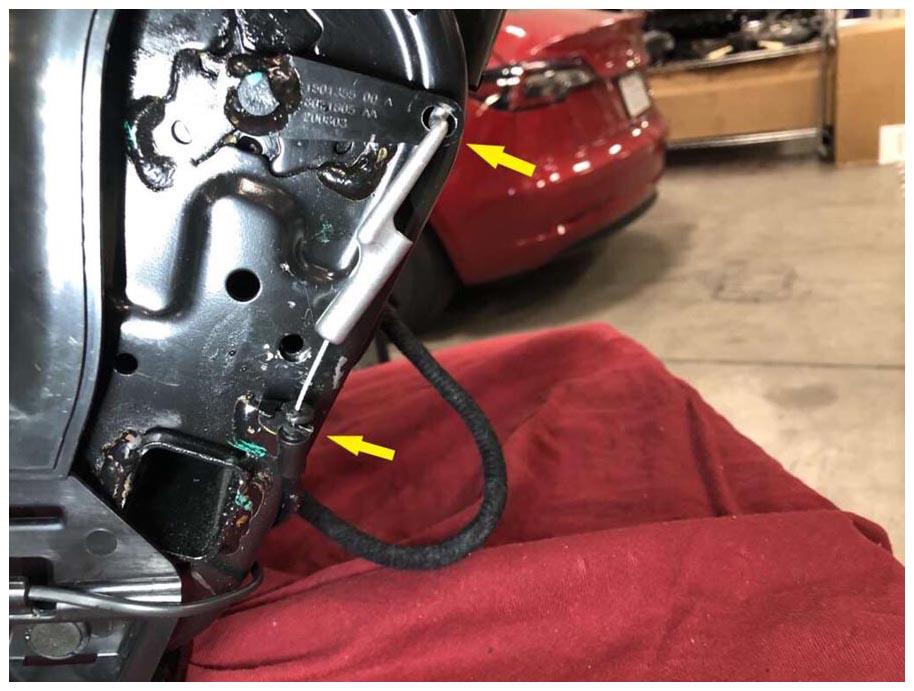

  12. Fasten the clips that attach the RH 2nd row seat recliner actuator cable to the recliner release arm.
    G14872885Courtesy of TESLA, INC.

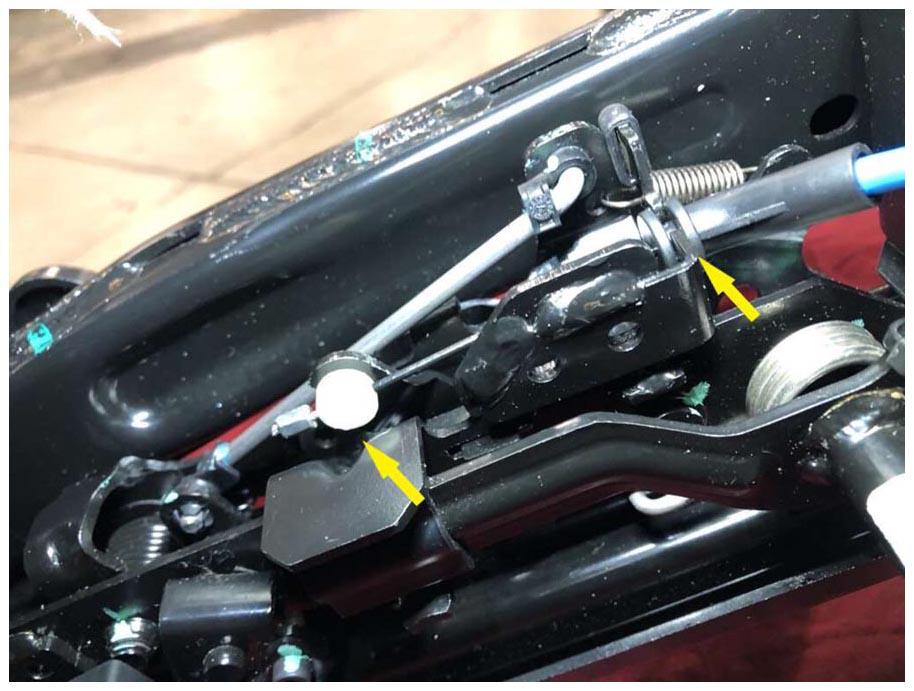

  13. Install the RH 2nd row seat easy entry actuator cable to the LH easy entry latch.
    G14872886Courtesy of TESLA, INC.

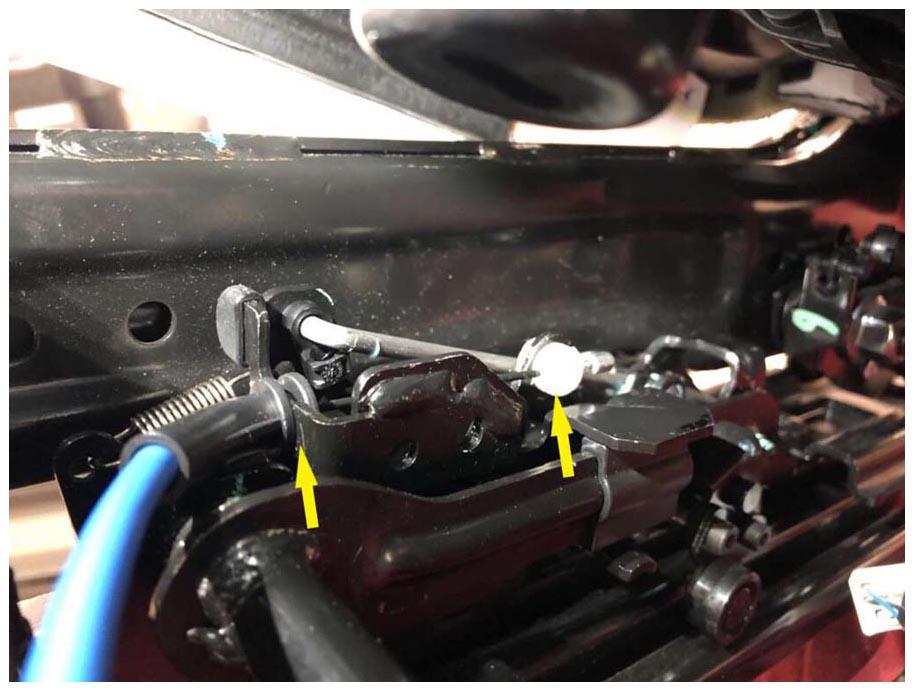

  14. Install the RH 2nd row seat easy entry actuator cable to the RH easy entry latch.
    G14872887Courtesy of TESLA, INC.

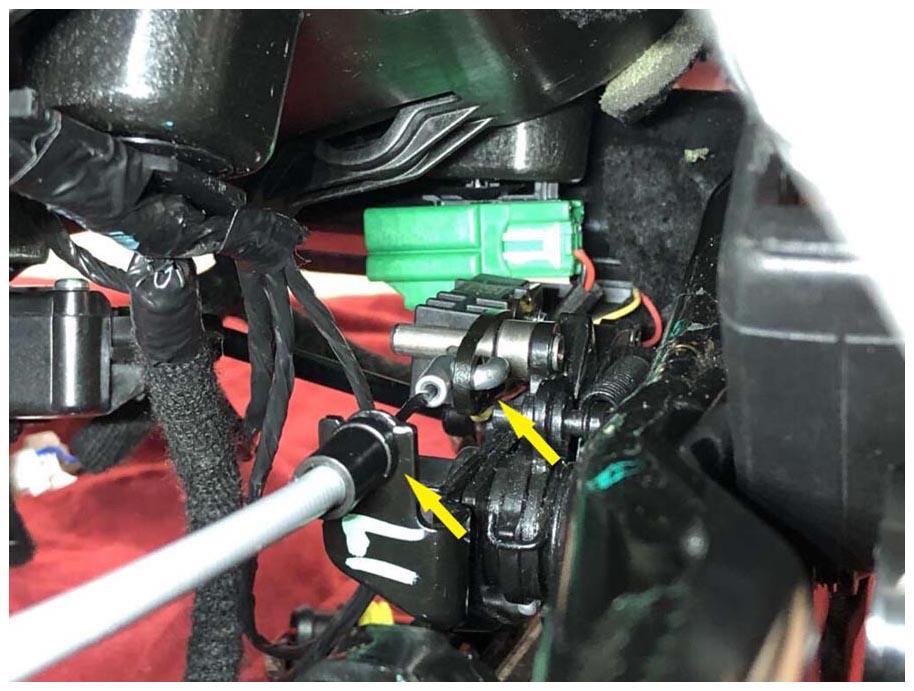

  15. Install the RH 2nd row seat floor latch actuator cable to the LH floor latch.
    G14872888Courtesy of TESLA, INC.

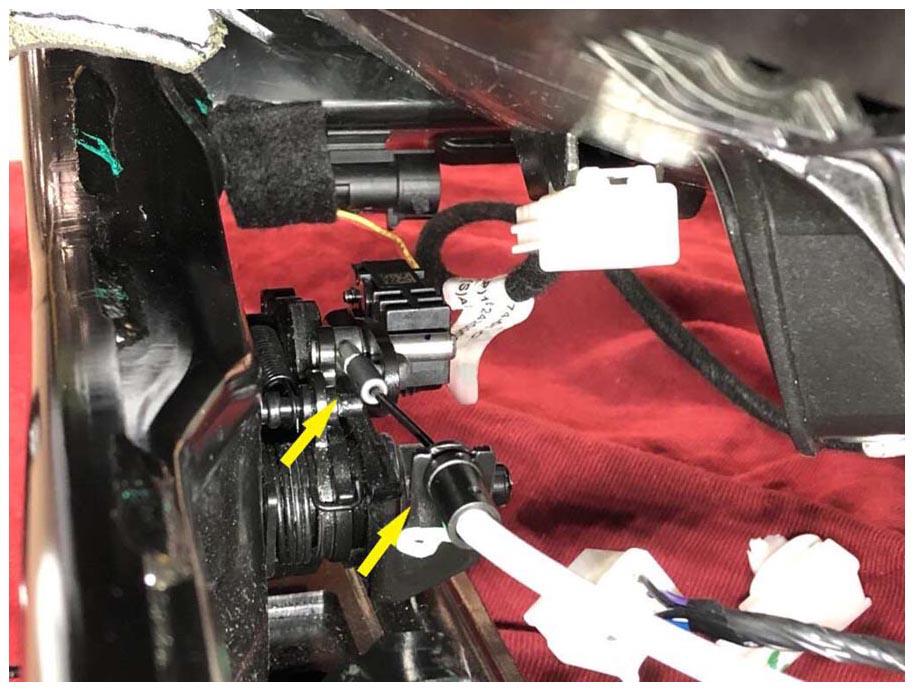

  16. Install the RH 2nd row seat floor latch actuator cable from the RH floor latch.
    G14872889Courtesy of TESLA, INC.
  17. Push downward on the RH 2nd row seat cushion assembly to fully seat it to the seat frame.

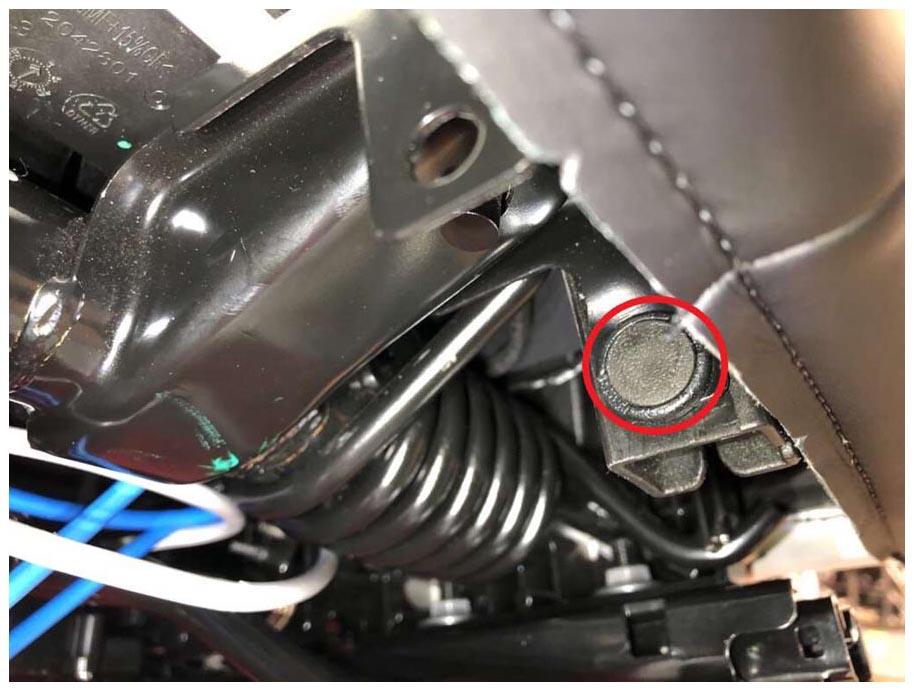

  18. Install the clip that attaches the RH 2nd row seat cushion pan to the seat frame.
    G14872891Courtesy of TESLA, INC.

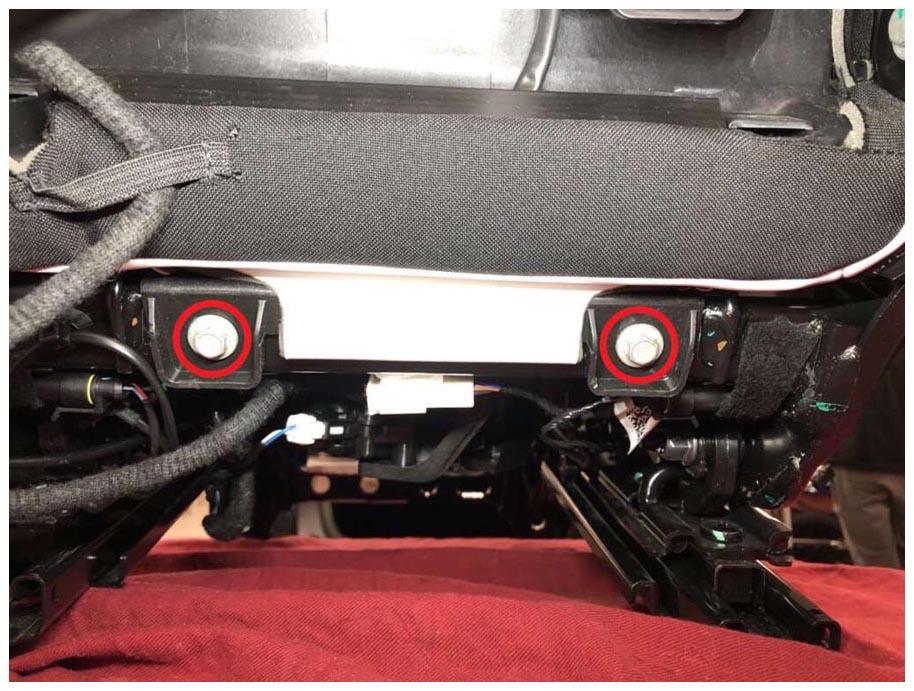

  19. Install the bolts that attach the RH 2nd row seat cushion pan to the seat frame.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G14872892Courtesy of TESLA, INC.

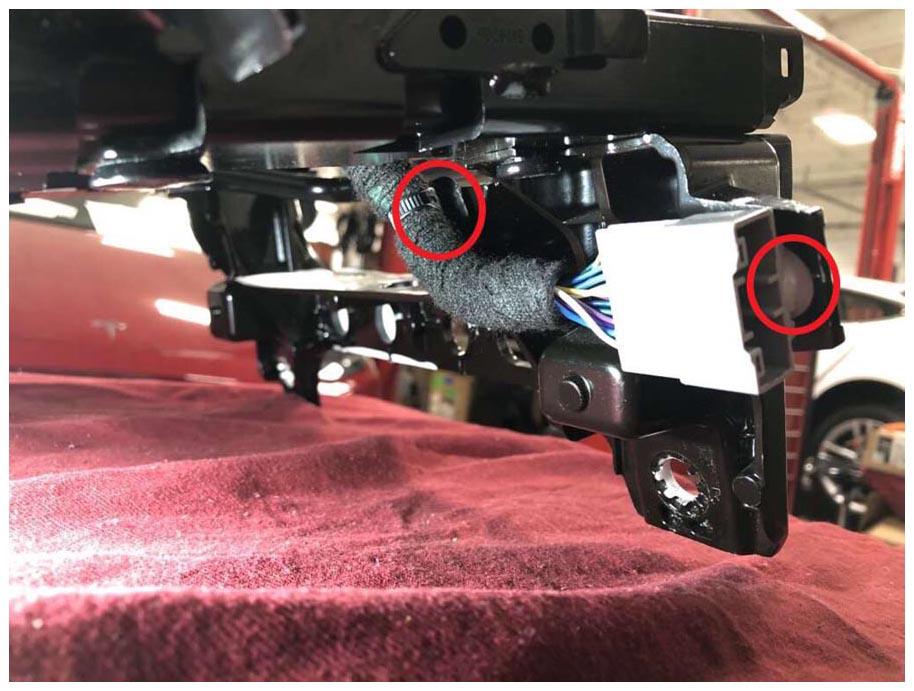

  20. Fasten the clips that attach the RH 2nd row seat cushion harness to the podium.
    G14872893Courtesy of TESLA, INC.

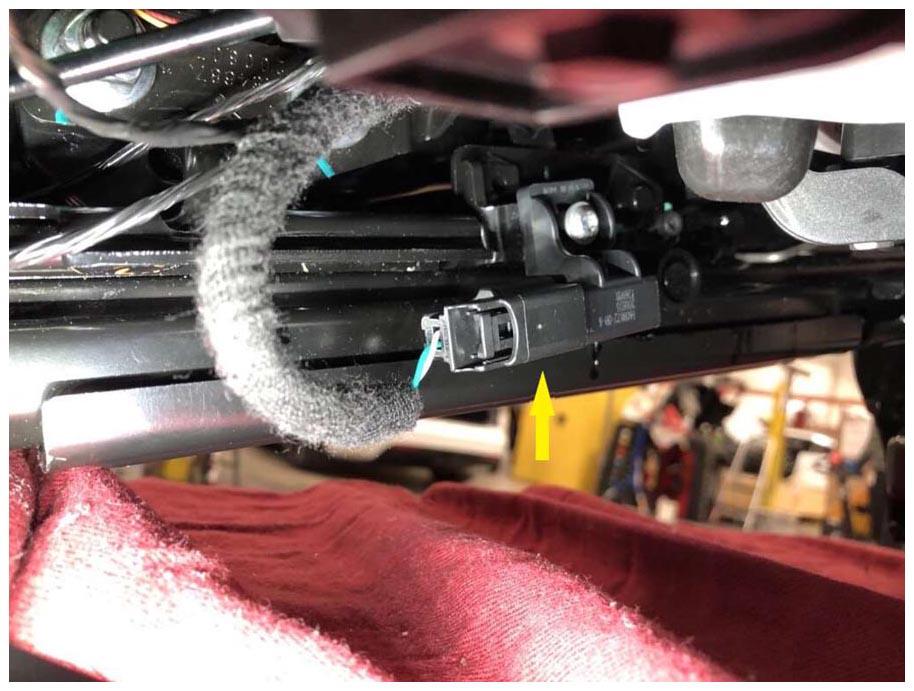

  21. Connect the RH 2nd row seat track position sensor electrical connector.
    G14872894Courtesy of TESLA, INC.

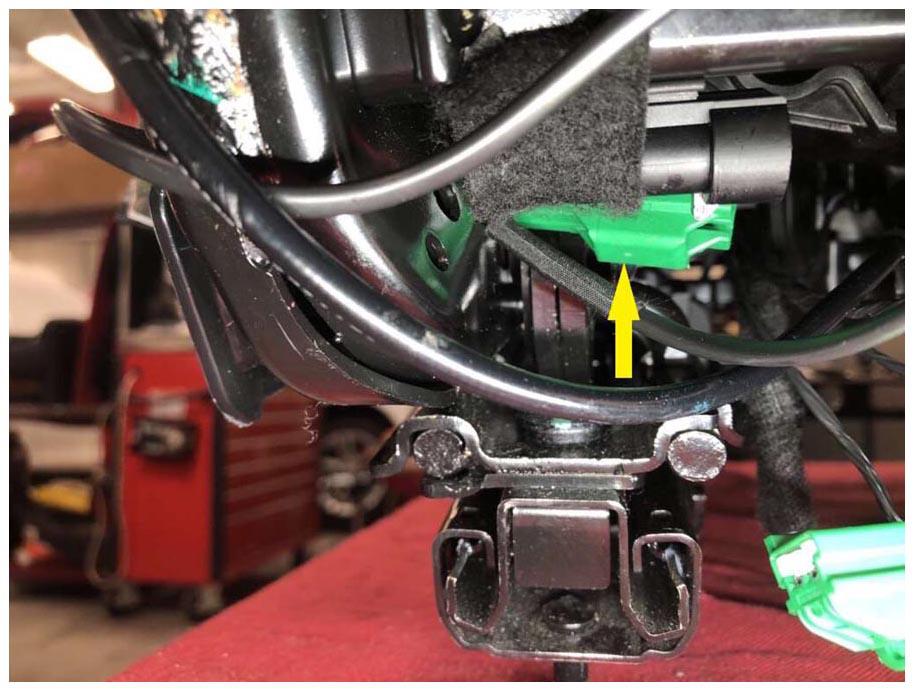

  22. Fasten the clip that attaches the RH 2nd row seat seatbelt buckle connector to the cushion pan.
    G14872895Courtesy of TESLA, INC.

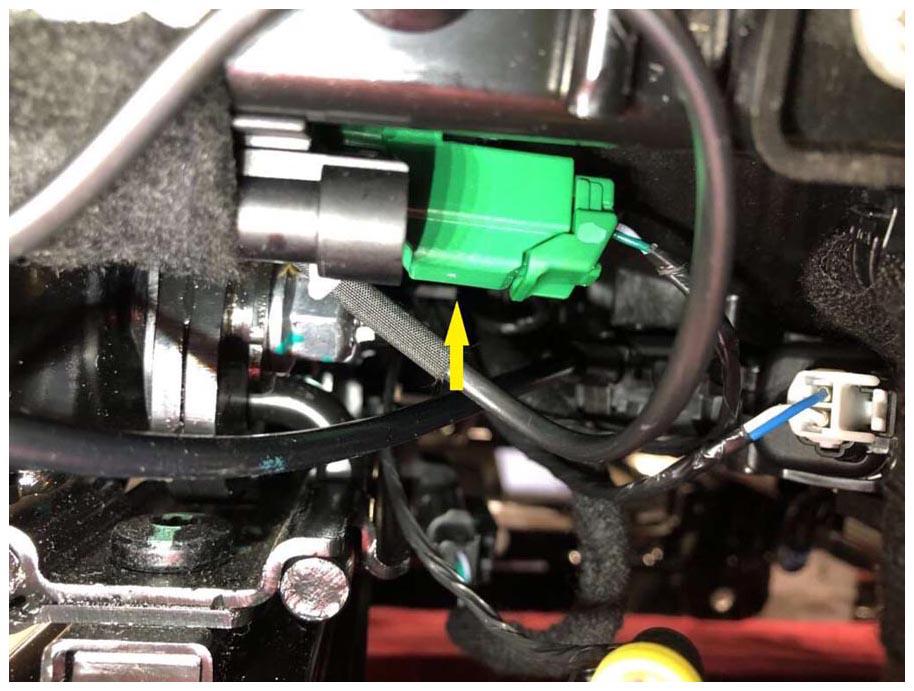

  23. Connect the RH 2nd row seat seatbelt buckle electrical connector.
    G14872896Courtesy of TESLA, INC.

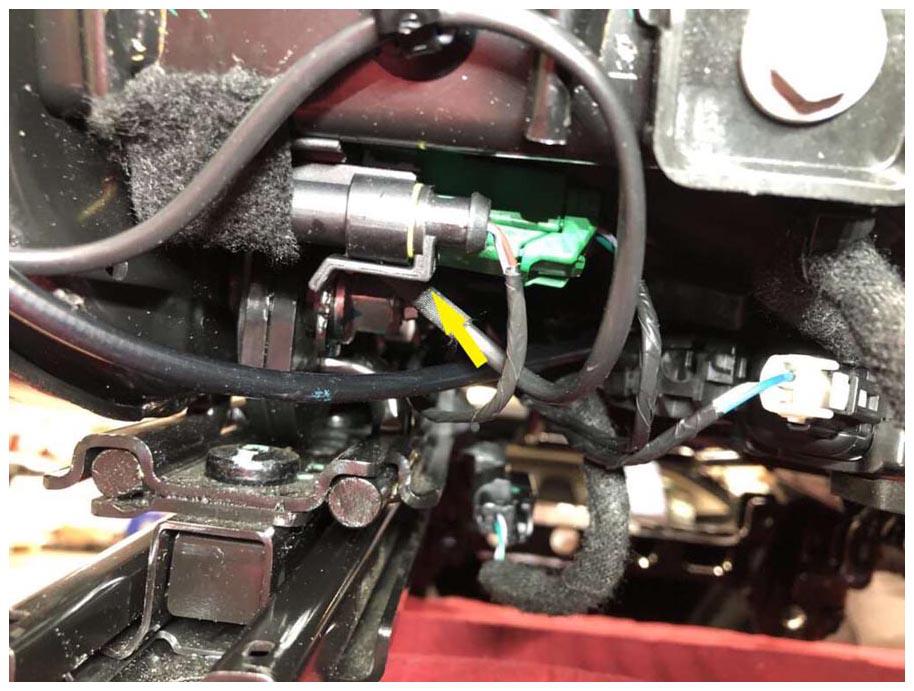

  24. Connect the RH 2nd row seat LH floor latch electrical connector.
    G14872897Courtesy of TESLA, INC.

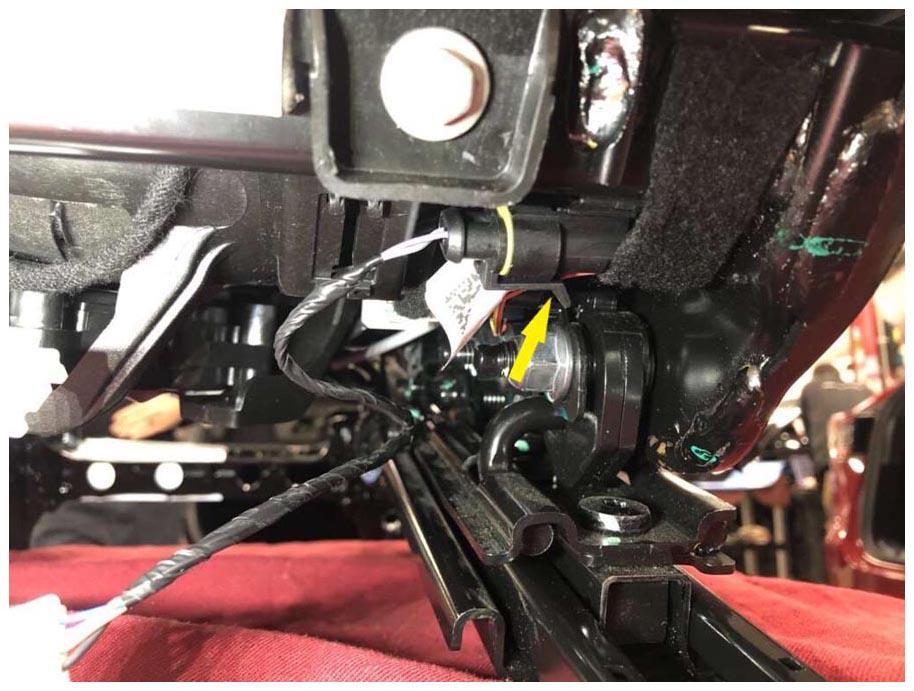

  25. Connect the RH 2nd row seat RH floor latch electrical connector.
    G14872898Courtesy of TESLA, INC.

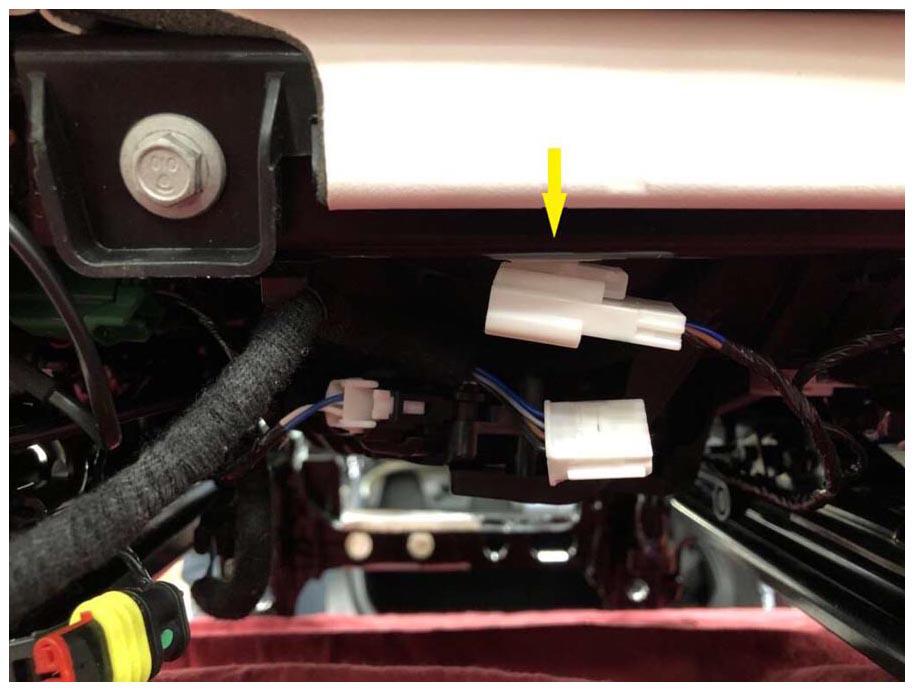

  26. Install the clip that attaches the RH 2nd row seat cushion harness connector to the seat frame.
    G14872899Courtesy of TESLA, INC.

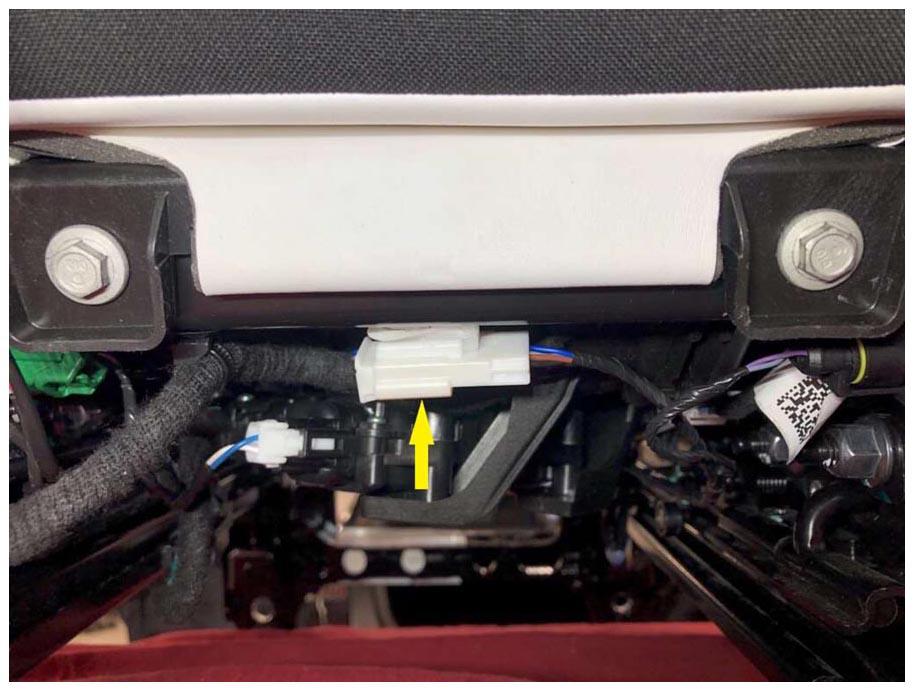

  27. Connect the LH 2nd row seatback harness electrical connector.
    G14872900Courtesy of TESLA, INC.

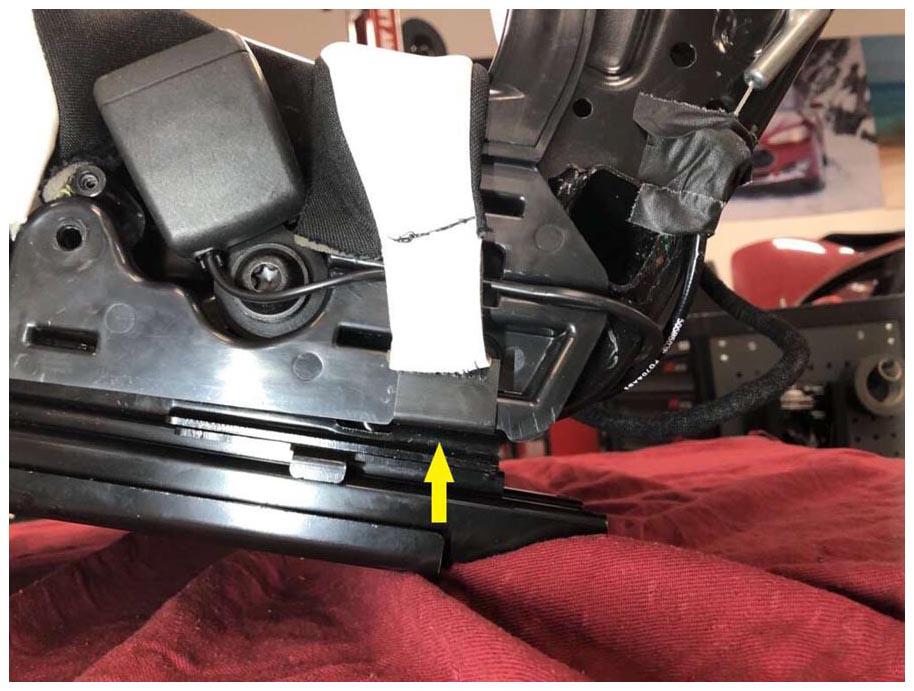

  28. Fasten the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
    G14872901Courtesy of TESLA, INC.

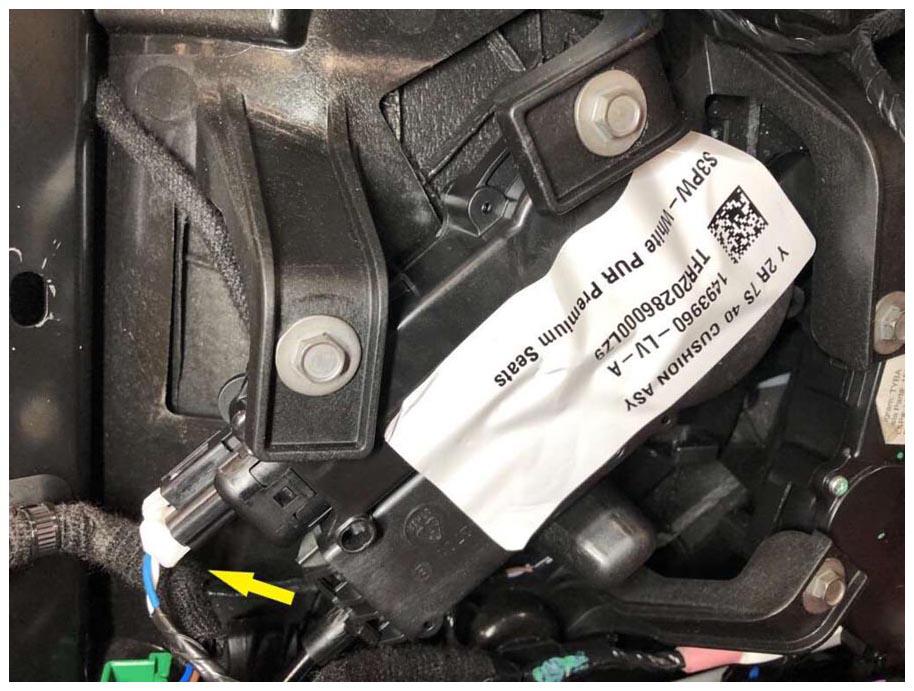

  29. Disconnect the RH 2nd row seat recliner actuator electrical connector.
    G14872902Courtesy of TESLA, INC.
  30. Using the seat fold tool, connect the recliner actuator electrical connector into the recliner actuator, and then activate the switch to fold the RH 2nd row seat down.
  31. Disconnect the seat fold tool from the RH 2nd row seat.
  32. Connect the RH 2nd row seat recliner actuator electrical connector.

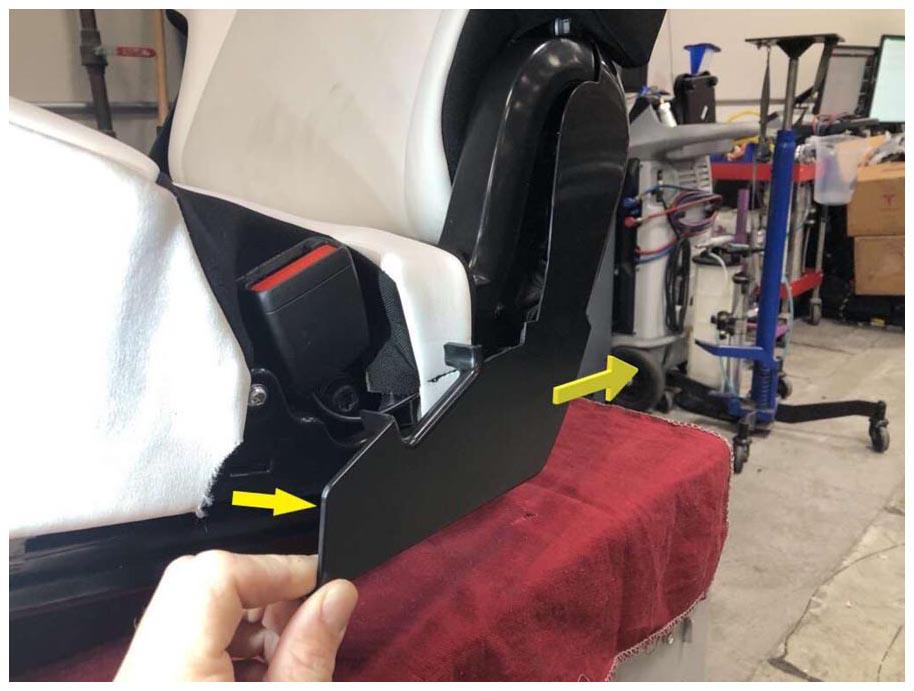

  33. Position the RH 2nd row seat outer B-cover onto the inner B-cover, and then install the clips (x4).
    G14872903Courtesy of TESLA, INC.

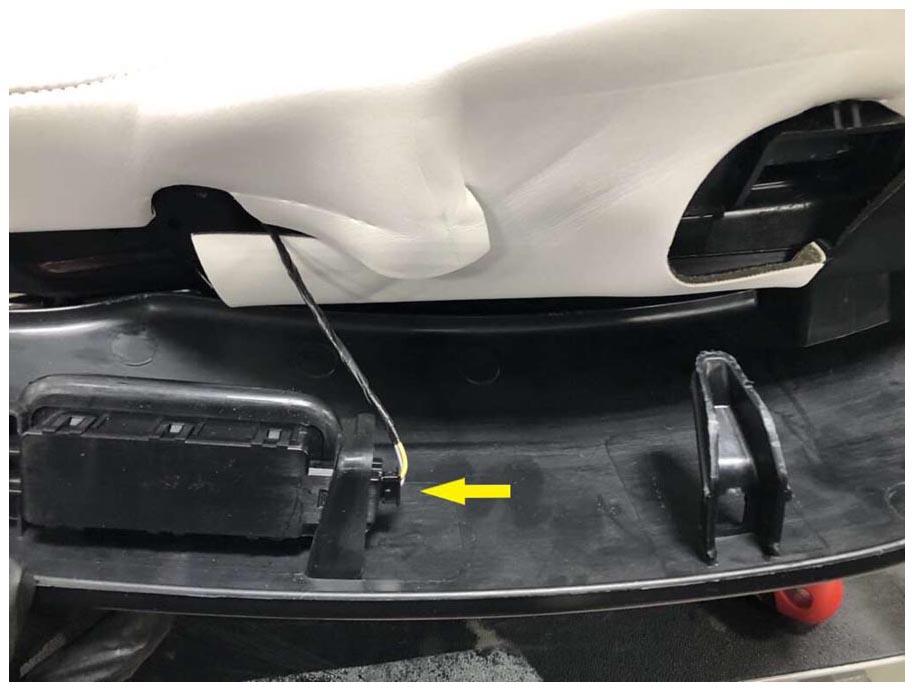

  34. Connect the RH 2nd row seat side shield electrical connector.
    G14872904Courtesy of TESLA, INC.

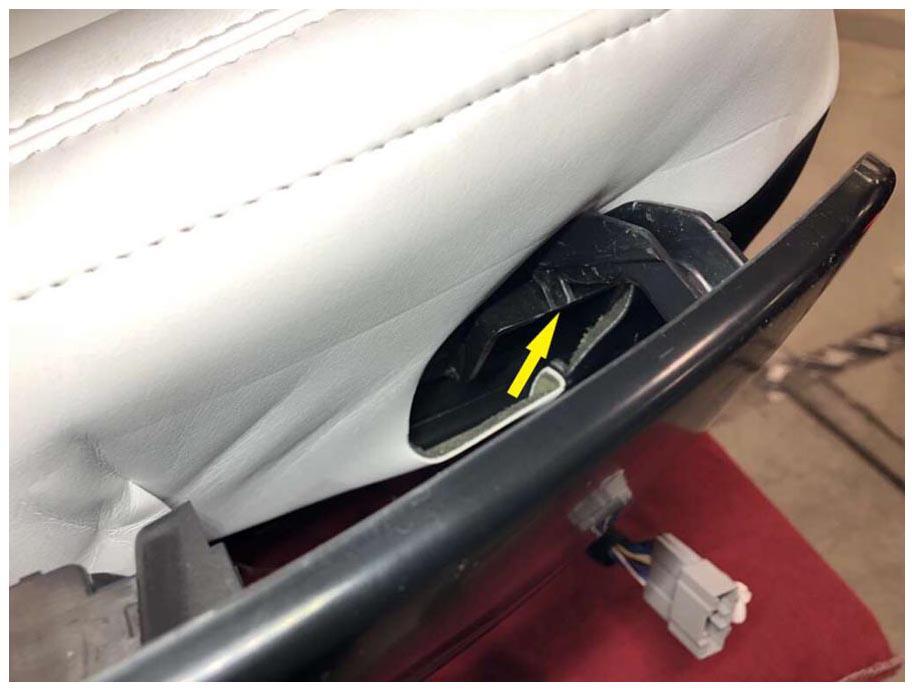

  35. Position the RH 2nd row seat side shield onto the RH 2nd row seat assembly, and then install the clip.
    G14872905Courtesy of TESLA, INC.

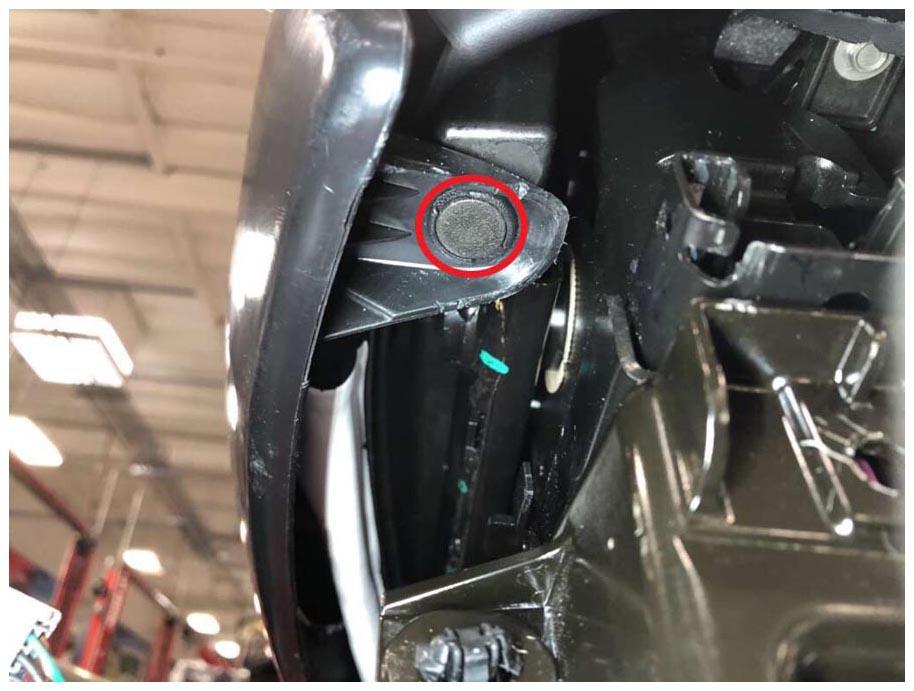

  36. Install the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14872906Courtesy of TESLA, INC.

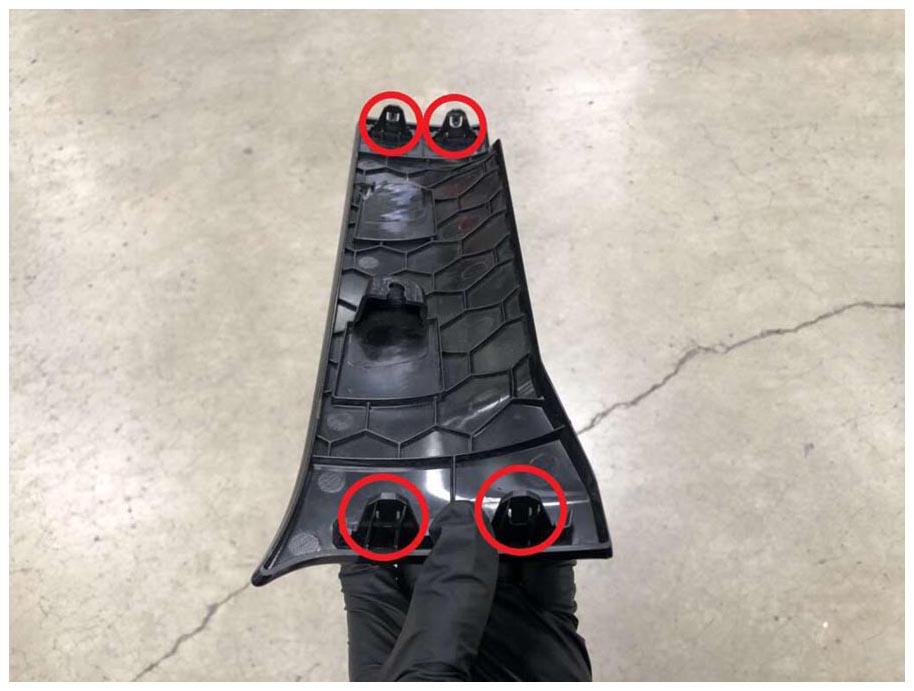

  37. Install the RH 2nd row seat toe kick cover.
    G14872907Courtesy of TESLA, INC.
  38. Install the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
