Remove And Replace

  1. Open all four doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward
  5. Partially remove LH rear door seal
    G14823605Courtesy of TESLA, INC.
  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14823606Courtesy of TESLA, INC.
    G14823607Courtesy of TESLA, INC.
  7. Fold 60 seat into down position
    G14823608Courtesy of TESLA, INC.
    G14823609Courtesy of TESLA, INC.
  8. Disconnect logic connector at LH seat frame
    NOTE: 1x connector
    G14823610Courtesy of TESLA, INC.
  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823611Courtesy of TESLA, INC.
    G14823612Courtesy of TESLA, INC.
  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal
    G14823613Courtesy of TESLA, INC.
  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14823614Courtesy of TESLA, INC.
  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823615Courtesy of TESLA, INC.
  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14823616Courtesy of TESLA, INC.
    G14823617Courtesy of TESLA, INC.
    G14823618Courtesy of TESLA, INC.
  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks
    G14823619Courtesy of TESLA, INC.
    G14823620Courtesy of TESLA, INC.
    G14823621Courtesy of TESLA, INC.
  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14823622Courtesy of TESLA, INC.
    G14823623Courtesy of TESLA, INC.
  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823624Courtesy of TESLA, INC.
  17. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823625Courtesy of TESLA, INC.
  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14823626Courtesy of TESLA, INC.
    G14823627Courtesy of TESLA, INC.
  19. Remove front push clip from 60 outer sideshield assembly
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover
    G14823628Courtesy of TESLA, INC.
    G14823629Courtesy of TESLA, INC.
  20. Remove 60 outer sideshield assembly
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14823630Courtesy of TESLA, INC.
    G14823631Courtesy of TESLA, INC.
  21. Release clips and remove inboard outer trim from 60 seat
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G14823632Courtesy of TESLA, INC.
    G14823633Courtesy of TESLA, INC.

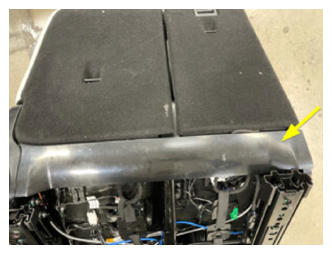

  22. Remove 60 seat toe kick cover
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G14823634Courtesy of TESLA, INC.
    G14823635Courtesy of TESLA, INC.
  23. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14823636Courtesy of TESLA, INC.
    G14823637Courtesy of TESLA, INC.
  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal
    G14823638Courtesy of TESLA, INC.
    G14823639Courtesy of TESLA, INC.
    G14823640Courtesy of TESLA, INC.
  25. Remove center backpanel from center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release
    G14823641Courtesy of TESLA, INC.
    G14823642Courtesy of TESLA, INC.
    G14823643Courtesy of TESLA, INC.
  26. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14823644Courtesy of TESLA, INC.
    G14823645Courtesy of TESLA, INC.
  27. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14823646Courtesy of TESLA, INC.
    G14823647Courtesy of TESLA, INC.
  28. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14823648Courtesy of TESLA, INC.
  29. Remove push clips for 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14823649Courtesy of TESLA, INC.
  30. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14823650Courtesy of TESLA, INC.
    G14823651Courtesy of TESLA, INC.
  31. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14823652Courtesy of TESLA, INC.
  32. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14823653Courtesy of TESLA, INC.
    G14823654Courtesy of TESLA, INC.
    G14823655Courtesy of TESLA, INC.
    G14823656Courtesy of TESLA, INC.
  33. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G14823657Courtesy of TESLA, INC.
  34. Manually release the center seatback latch
    NOTE: Use small screwdriver to manipulate the center seatback latch to release
    G14823658Courtesy of TESLA, INC.
    G14823659Courtesy of TESLA, INC.
  35. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14823660Courtesy of TESLA, INC.
    G14823661Courtesy of TESLA, INC.
    G14823662Courtesy of TESLA, INC.
  36. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14823663Courtesy of TESLA, INC.
    G14823664Courtesy of TESLA, INC.
  37. Remove headrest guides from 60 seat
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G14823665Courtesy of TESLA, INC.
    G14823666Courtesy of TESLA, INC.
  38. Remove 60 seatback
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards
    G14823667Courtesy of TESLA, INC.
  39. Remove 60 seat bottom
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G14823668Courtesy of TESLA, INC.

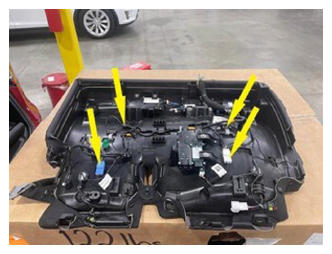

  40. Remove remaining connections from 60 seat pan
    NOTE: 4x connections, Remove remaining connections to 60 seat cushion
    G14823669Courtesy of TESLA, INC.
  41. Remove seat cover from 60 seat pan
    NOTE: Remove 60 seat cover from perimeter of seat pan by releasing J-hooks around the perimeter of the seat
    G14823670Courtesy of TESLA, INC.

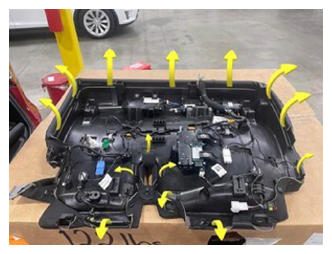

  42. Remove 60 seat cushion from seat cover

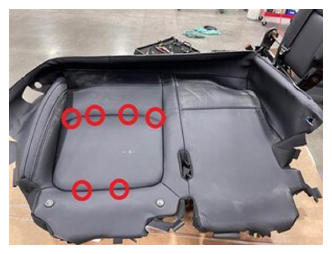

    NOTE: 6x hog ring, Cut the hog rings holding the seat cover to seat cushion and remove seat cover
    G14823671Courtesy of TESLA, INC.
    G14823672Courtesy of TESLA, INC.
    G14823673Courtesy of TESLA, INC.

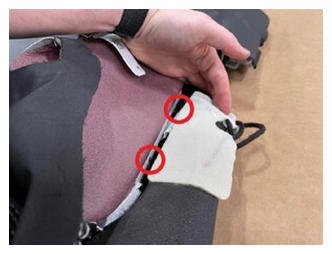

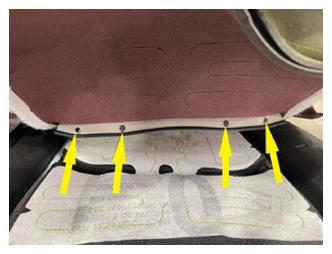

  43. Install seat cover on cushion

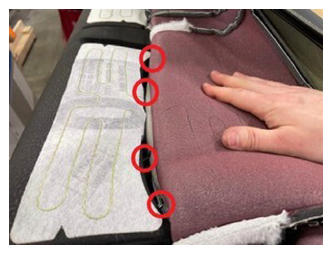

    NOTE: 6x hog ring, Place seat cover on new cushion and attach with 6x hog rings, ensure the hog rings go through the seat in the intended areas
    G14823674Courtesy of TESLA, INC.
    G14823675Courtesy of TESLA, INC.
    G14823676Courtesy of TESLA, INC.
    G14823677Courtesy of TESLA, INC.

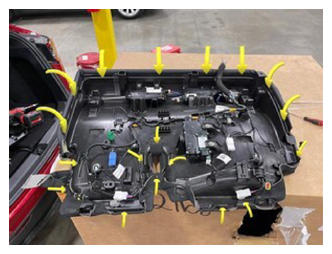

  44. Install 60 seat pan onto seat cushion
    NOTE: Place seat pan onto seat cushion and cover, Secure seat cover to pan by hooking the J-hooks around the perimeter of the seat
    G14823678Courtesy of TESLA, INC.

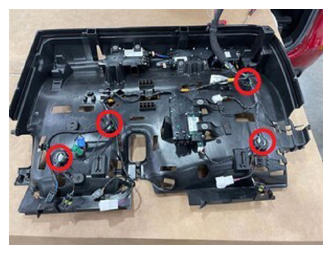

  45. Install 60 under-seat harness
    NOTE: 4x clips
    G14823679Courtesy of TESLA, INC.

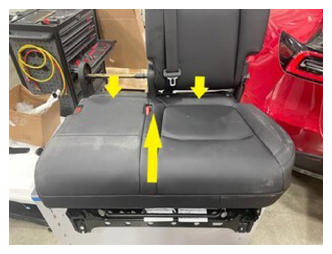

  46. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G14823680Courtesy of TESLA, INC.

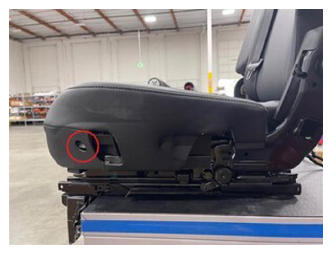

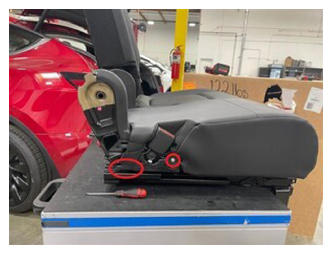

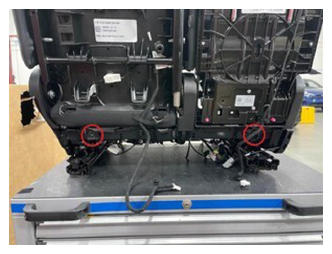

  47. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G14823681Courtesy of TESLA, INC.
    G14823682Courtesy of TESLA, INC.
    G14823683Courtesy of TESLA, INC.

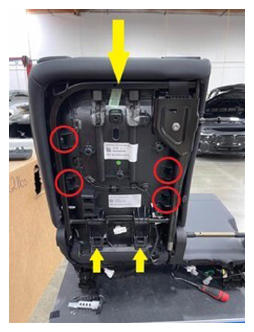

  48. Install 60 seat back into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G14823684Courtesy of TESLA, INC.

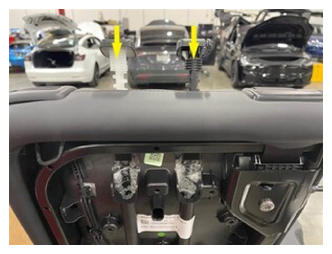

  49. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G14823685Courtesy of TESLA, INC.

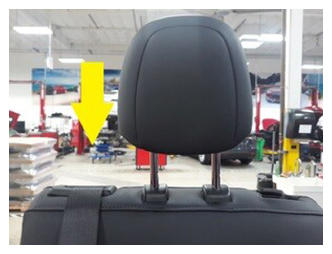

  50. Install headrest onto 60 seat assembly
    NOTE: Push down to secure
    G14823686Courtesy of TESLA, INC.

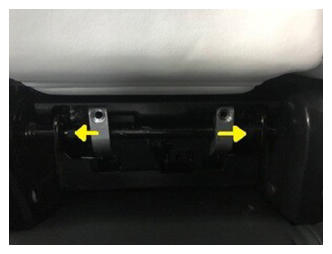

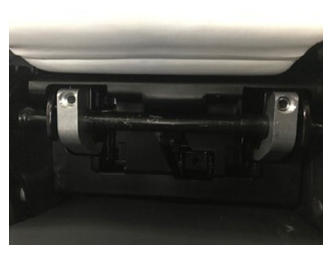

  51. Install center seatback pivot clamps

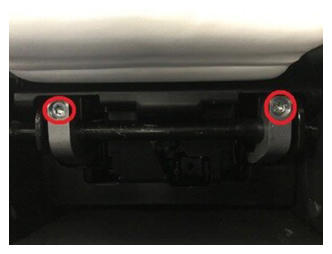

    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G14823687Courtesy of TESLA, INC.
    G14823688Courtesy of TESLA, INC.
    G14823689Courtesy of TESLA, INC.
  52. Install center seatback lumbar bun

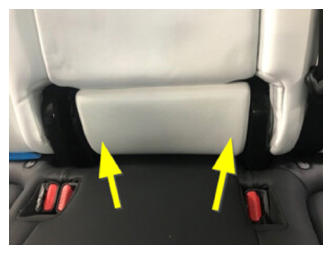

    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G14823690Courtesy of TESLA, INC.

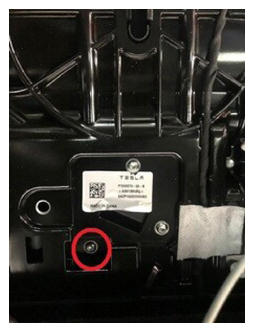

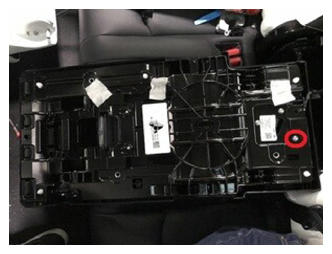

  53. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14823691Courtesy of TESLA, INC.
    G14823692Courtesy of TESLA, INC.

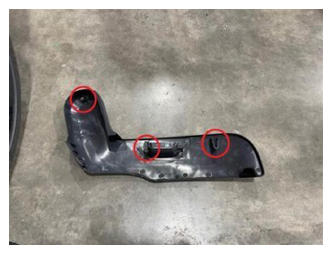

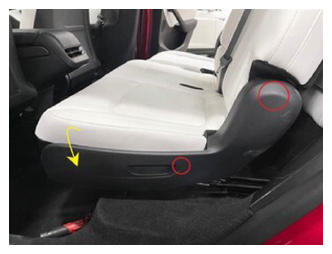

  54. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G14823693Courtesy of TESLA, INC.
    G14823694Courtesy of TESLA, INC.

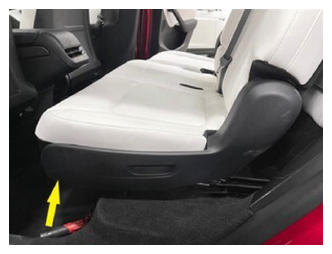

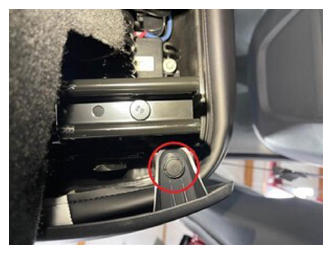

  55. Install push clip at front of outer 60 sideshield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim
    G14823695Courtesy of TESLA, INC.
    G14823696Courtesy of TESLA, INC.

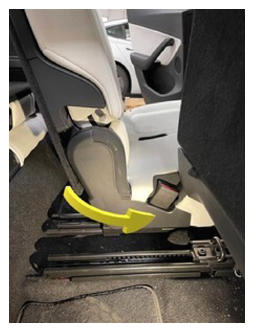

  56. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and reseat 3x clips
    G14823697Courtesy of TESLA, INC.

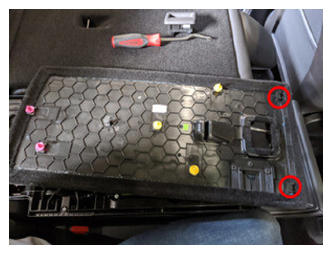

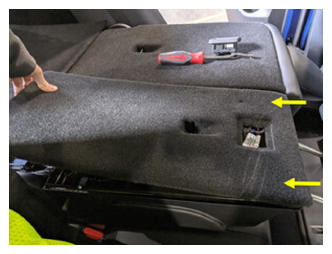

  57. Insert backpanel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G14823698Courtesy of TESLA, INC.
    G14823699Courtesy of TESLA, INC.
  58. Install center backpanel onto seat back

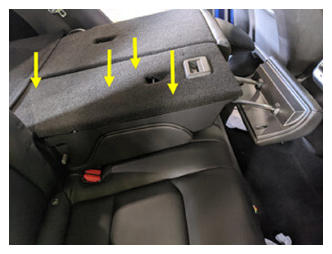

    NOTE: 5x clips
    G14823700Courtesy of TESLA, INC.

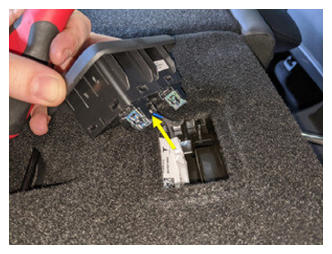

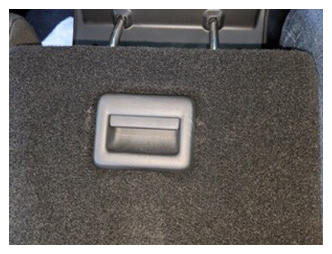

  59. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G14823701Courtesy of TESLA, INC.
    G14823702Courtesy of TESLA, INC.
    G14823703Courtesy of TESLA, INC.

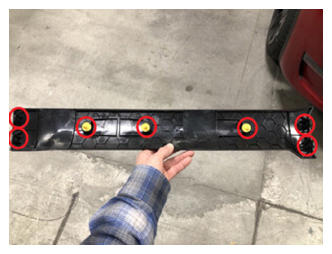

  60. Install 60 toe kick cover
    NOTE: 7x clips
    G14823704Courtesy of TESLA, INC.
    G14823705Courtesy of TESLA, INC.

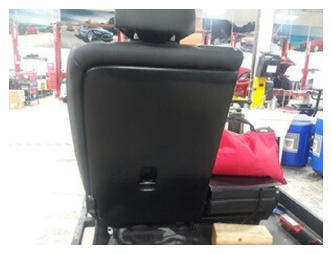

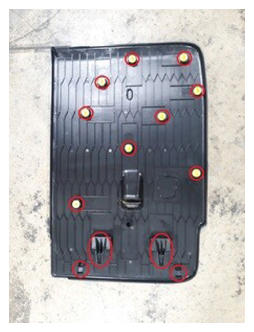

  61. Install LH seatback onto 60 seat assembly

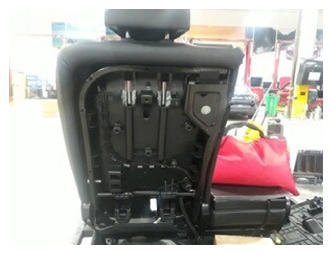

    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G14823706Courtesy of TESLA, INC.
    G14823707Courtesy of TESLA, INC.
    G14823708Courtesy of TESLA, INC.

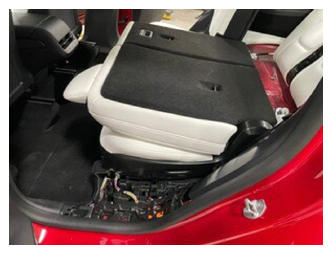

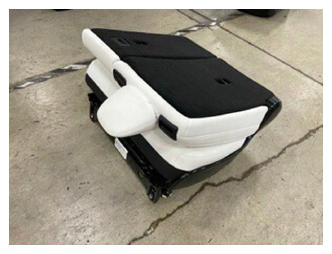

  62. Install 2nd row 60 seat assembly
    NOTE: Recommend assistance
    G14823709Courtesy of TESLA, INC.
    G14823710Courtesy of TESLA, INC.

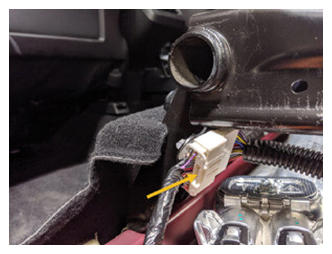

  63. Connect logic connector at LH 60 seat frame
    NOTE: 1x connector
    G14823711Courtesy of TESLA, INC.

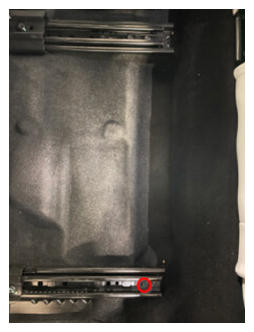

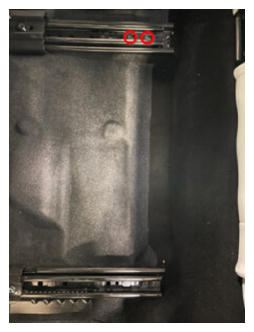

  64. Install fasteners securing 60 seat frame to body

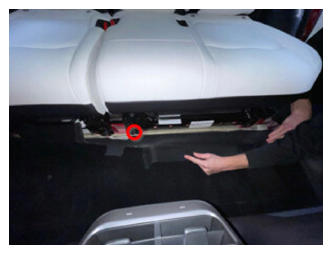

    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G14823712Courtesy of TESLA, INC.
    G14823713Courtesy of TESLA, INC.
    G14823714Courtesy of TESLA, INC.
    G14823715Courtesy of TESLA, INC.

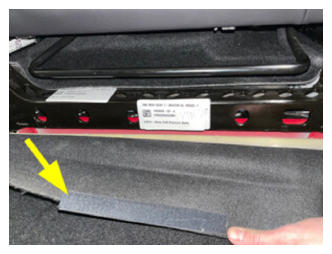

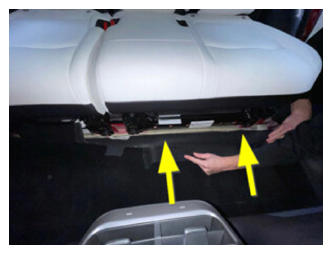

  65. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on
    G14823716Courtesy of TESLA, INC.
    G14823717Courtesy of TESLA, INC.

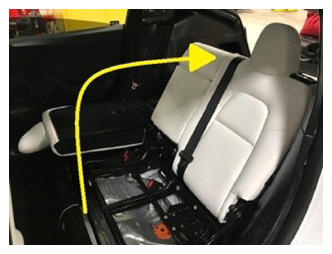

  66. Fold the 60 seat into vertical position
    NOTE: Remove seat back protection if necessary
    G14823718Courtesy of TESLA, INC.

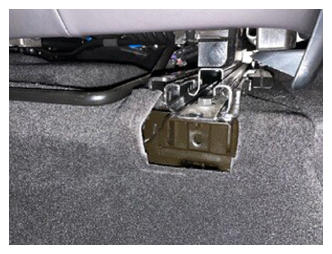

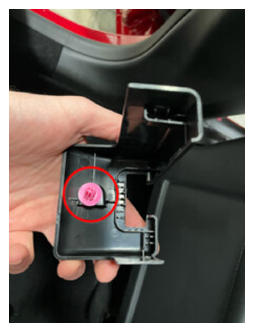

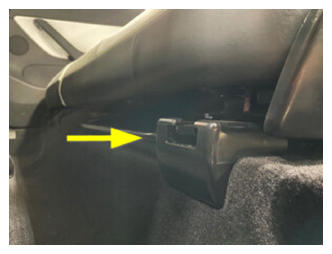

  67. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14823719Courtesy of TESLA, INC.
    G14823720Courtesy of TESLA, INC.
    G14823721Courtesy of TESLA, INC.

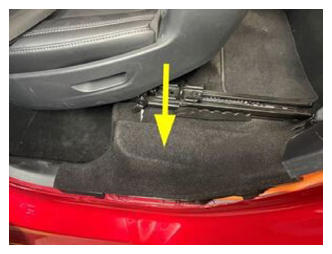

  68. Install LH 7s Lower C-Pillar Trim

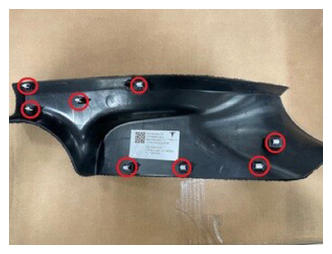

    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14823722Courtesy of TESLA, INC.
    G14823723Courtesy of TESLA, INC.

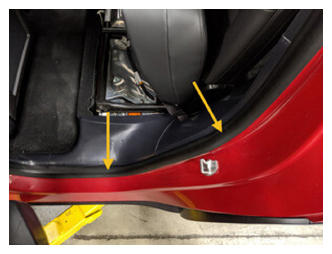

  69. Reseat LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal
    G14823724Courtesy of TESLA, INC.
  70. Move RH front seat to original position
  71. Move LH front seat to original position
  72. Raise all four windows
  73. Close all four doors
    NOTE: If 12 V is powered up, Unlatch rear doors before closing
