Remove And Replace

  1. Open all four doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward

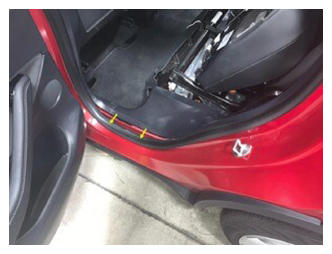

  5. Partially remove LH rear door seal
    G14823475Courtesy of TESLA, INC.

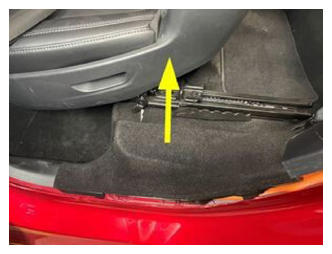

  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14823476Courtesy of TESLA, INC.

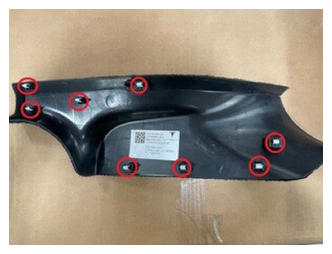

    G14823477Courtesy of TESLA, INC.

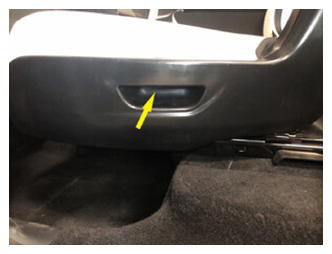

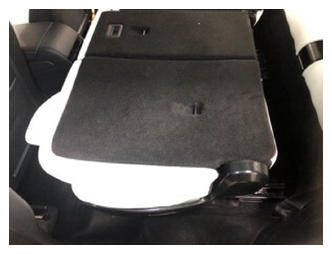

  7. Fold 60 seat into down position
    G14823478Courtesy of TESLA, INC.
    G14823479Courtesy of TESLA, INC.

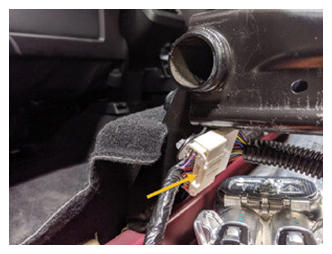

  8. Disconnect logic connector at LH seat frame
    NOTE: 1x connector
    G14823480Courtesy of TESLA, INC.

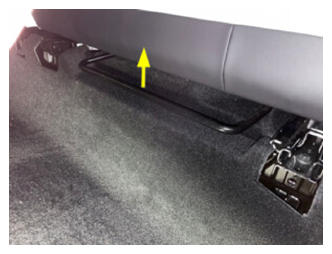

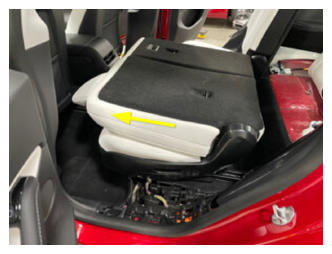

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823481Courtesy of TESLA, INC.
    G14823482Courtesy of TESLA, INC.
  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal
    G14823483Courtesy of TESLA, INC.
  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14823484Courtesy of TESLA, INC.
  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823485Courtesy of TESLA, INC.

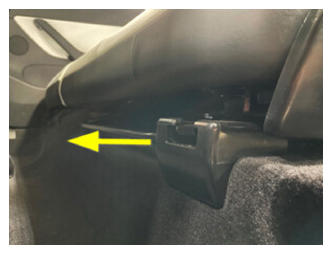

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14823486Courtesy of TESLA, INC.
    G14823487Courtesy of TESLA, INC.
    G14823488Courtesy of TESLA, INC.

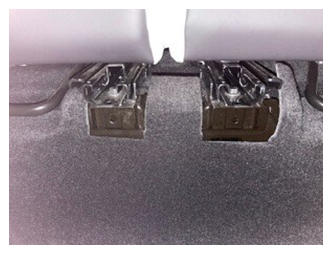

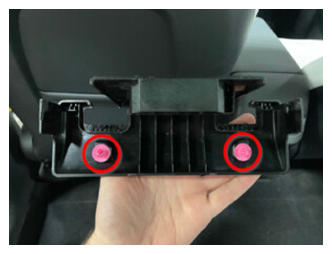

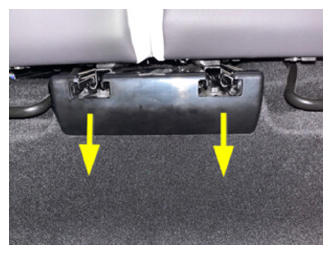

  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks
    G14823489Courtesy of TESLA, INC.
    G14823490Courtesy of TESLA, INC.
    G14823491Courtesy of TESLA, INC.

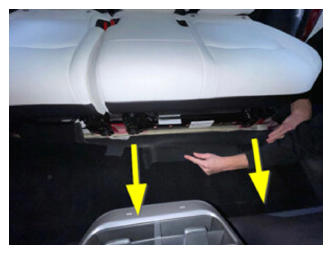

  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14823492Courtesy of TESLA, INC.
    G14823493Courtesy of TESLA, INC.

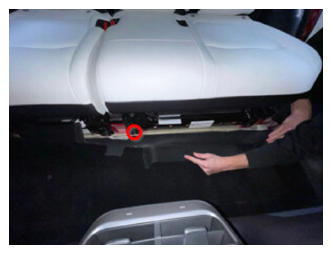

  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823494Courtesy of TESLA, INC.
  17. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823495Courtesy of TESLA, INC.

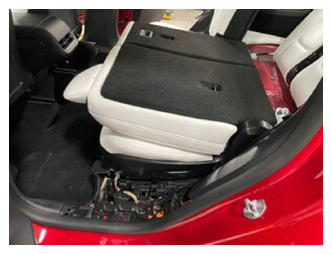

  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14823496Courtesy of TESLA, INC.
    G14823497Courtesy of TESLA, INC.
  19. Remove front push clip from 60 outer sideshield assembly
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover

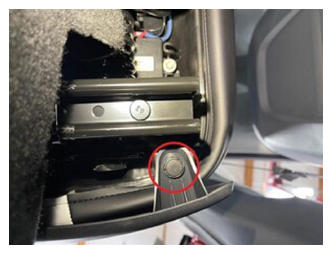

    G14823498Courtesy of TESLA, INC.
    G14823499Courtesy of TESLA, INC.

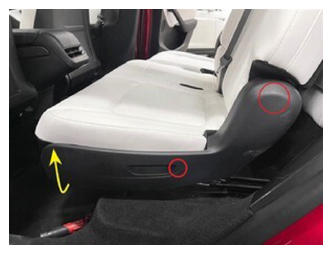

  20. Remove 60 outer sideshield assembly
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14823500Courtesy of TESLA, INC.
    G14823501Courtesy of TESLA, INC.

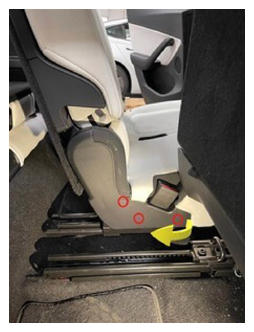

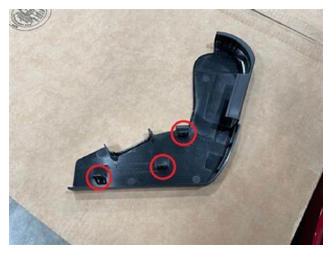

  21. Release clips and remove inboard outer trim from 60 seat
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G14823502Courtesy of TESLA, INC.
    G14823503Courtesy of TESLA, INC.

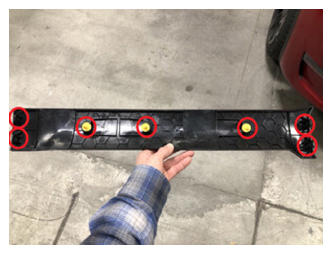

  22. Remove 60 seat toe kick cover
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G14823504Courtesy of TESLA, INC.
    G14823505Courtesy of TESLA, INC.

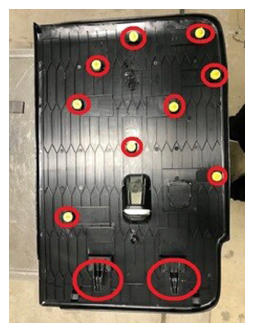

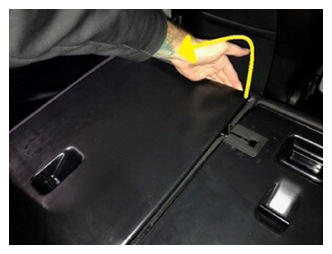

  23. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14823506Courtesy of TESLA, INC.
    G14823507Courtesy of TESLA, INC.

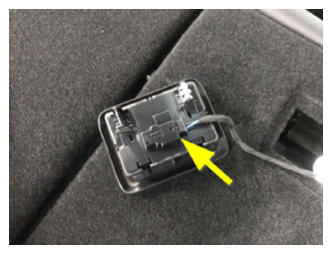

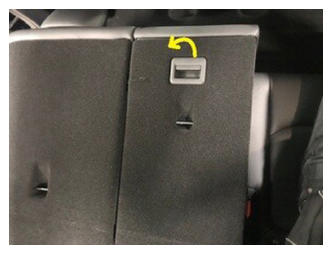

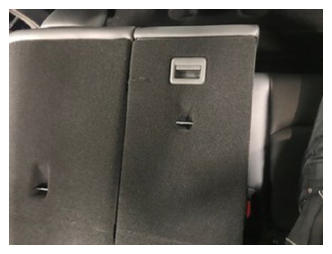

  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal
    G14823508Courtesy of TESLA, INC.
    G14823509Courtesy of TESLA, INC.
    G14823510Courtesy of TESLA, INC.

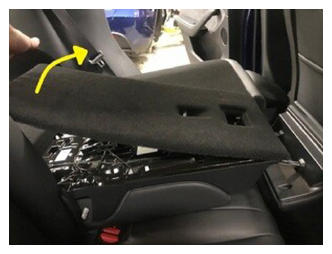

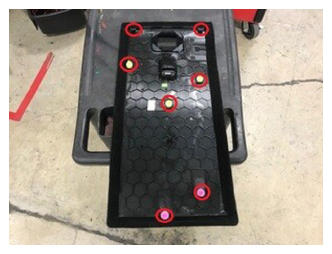

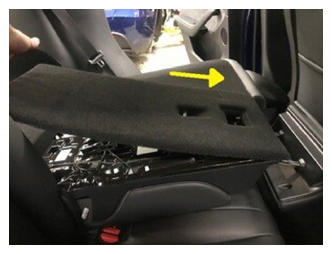

  25. Remove center backpanel from center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release
    G14823511Courtesy of TESLA, INC.
    G14823512Courtesy of TESLA, INC.
    G14823513Courtesy of TESLA, INC.

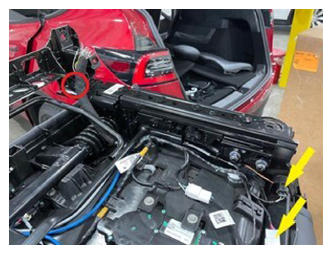

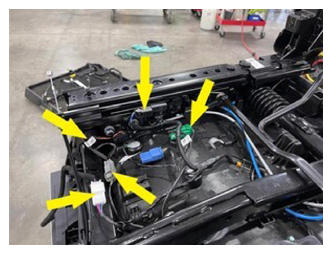

  26. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14823514Courtesy of TESLA, INC.
    G14823515Courtesy of TESLA, INC.

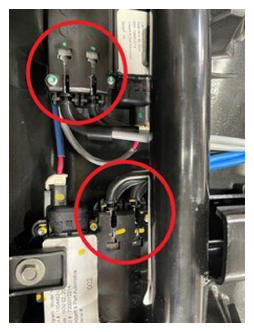

  27. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14823516Courtesy of TESLA, INC.

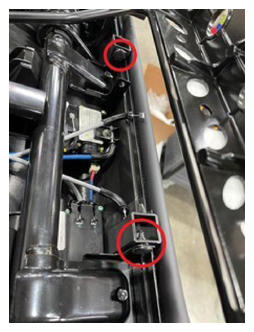

  28. Remove push clips for 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14823517Courtesy of TESLA, INC.
  29. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14823518Courtesy of TESLA, INC.
    G14823519Courtesy of TESLA, INC.

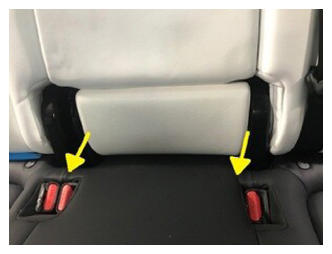

  30. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14823520Courtesy of TESLA, INC.

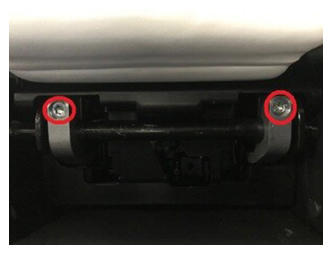

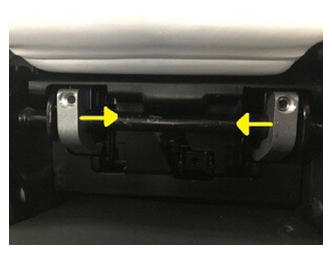

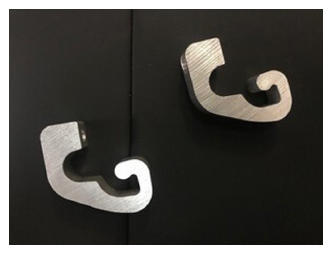

  31. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14823521Courtesy of TESLA, INC.
    G14823522Courtesy of TESLA, INC.

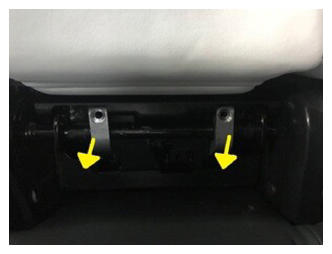

    G14823523Courtesy of TESLA, INC.
    G14823524Courtesy of TESLA, INC.

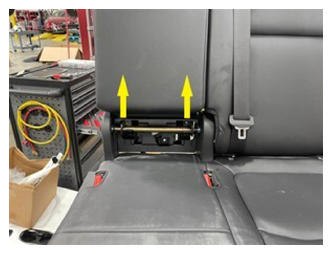

  32. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G14823525Courtesy of TESLA, INC.

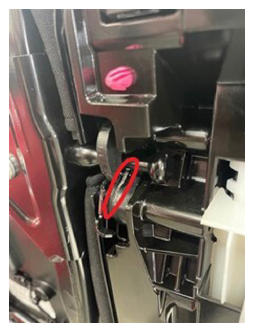

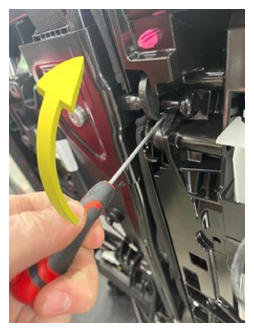

  33. Manually release the center seatback latch
    NOTE: Use small screwdriver to manipulate the center seatback latch to release
    G14823526Courtesy of TESLA, INC.
    G14823527Courtesy of TESLA, INC.

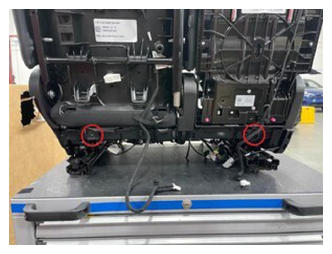

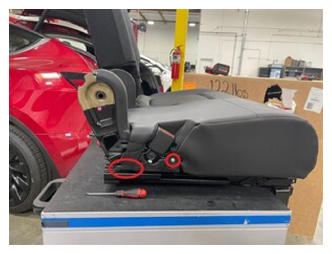

  34. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14823528Courtesy of TESLA, INC.
    G14823529Courtesy of TESLA, INC.
    G14823530Courtesy of TESLA, INC.

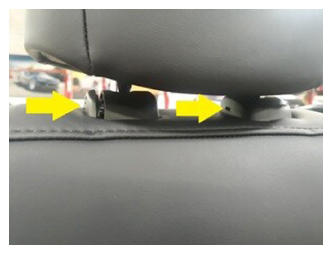

  35. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14823531Courtesy of TESLA, INC.
    G14823532Courtesy of TESLA, INC.

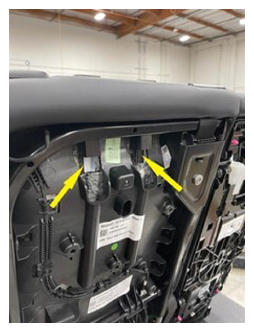

  36. Remove headrest guides from 60 seat
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G14823533Courtesy of TESLA, INC.
    G14823534Courtesy of TESLA, INC.

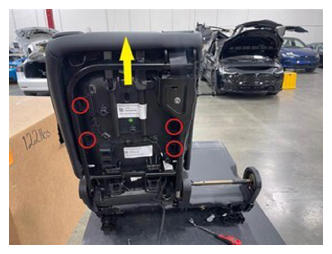

  37. Remove 60 seatback
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards
    G14823535Courtesy of TESLA, INC.

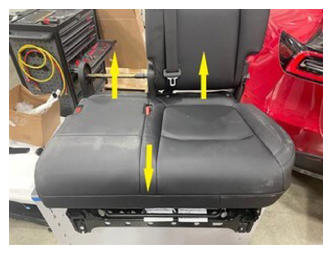

  38. Remove 60 seat bottom
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G14823536Courtesy of TESLA, INC.

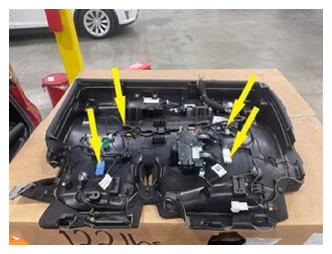

  39. Remove remaining connections from 60 seat pan
    NOTE: 4x connections, Remove remaining connections to 60 seat cushion
    G14823537Courtesy of TESLA, INC.

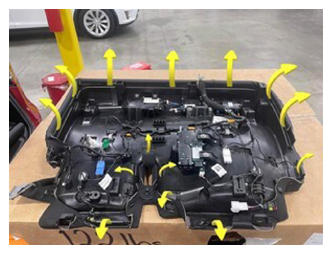

  40. Remove seat cover from 60 seat pan
    NOTE: Remove 60 seat cover from perimeter of seat pan by releasing J-hooks around the perimeter of the seat
    G14823538Courtesy of TESLA, INC.

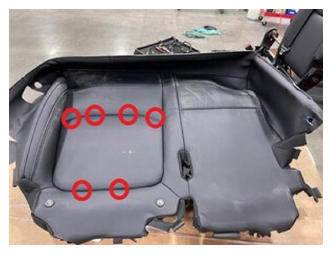

  41. Remove 60 seat cushion from seat cover
    NOTE: 6x hog ring, Cut the hog rings holding the seat cover to seat cushion and remove seat cover

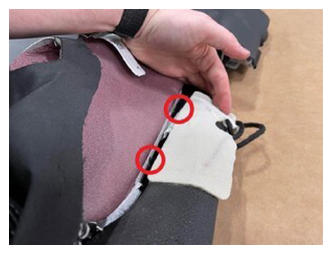

    G14823539Courtesy of TESLA, INC.
    G14823540Courtesy of TESLA, INC.
    G14823541Courtesy of TESLA, INC.

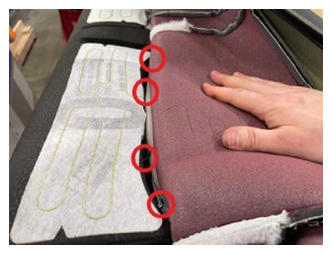

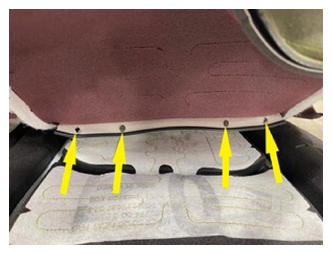

  42. Install seat cover on cushion
    NOTE: 6x hog ring, Place seat cover on new cushion and attach with 6x hog rings, ensure the hog rings go through the seat in the intended areas
    G14823542Courtesy of TESLA, INC.
    G14823543Courtesy of TESLA, INC.
    G14823544Courtesy of TESLA, INC.
    G14823545Courtesy of TESLA, INC.

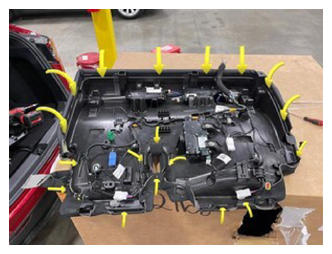

  43. Install 60 seat pan onto seat cushion
    NOTE: Place seat pan onto seat cushion and cover, Secure seat cover to pan by hooking the J-hooks around the perimeter of the seat
    G14823546Courtesy of TESLA, INC.

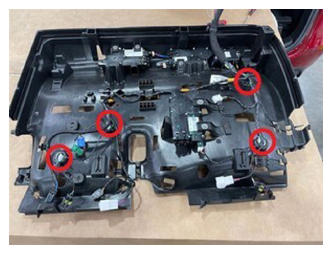

  44. Install 60 under-seat harness
    NOTE: 4x clips
    G14823547Courtesy of TESLA, INC.

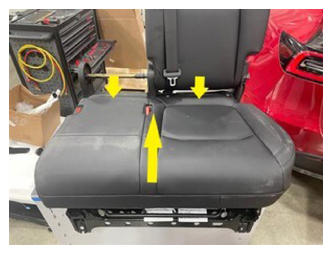

  45. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G14823548Courtesy of TESLA, INC.

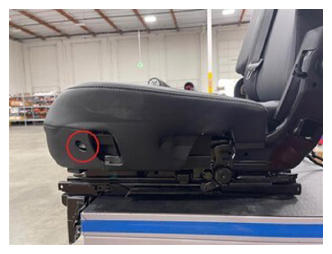

  46. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G14823549Courtesy of TESLA, INC.
    G14823550Courtesy of TESLA, INC.
    G14823551Courtesy of TESLA, INC.

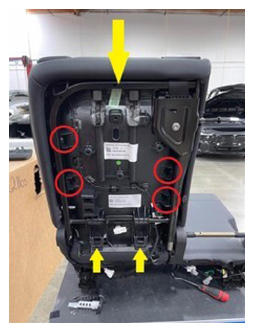

  47. Install 60 seat back into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G14823552Courtesy of TESLA, INC.

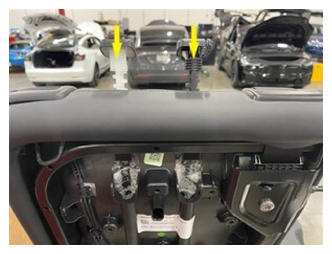

  48. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G14823553Courtesy of TESLA, INC.
  49. Install headrest onto 60 seat assembly
    NOTE: Push down to secure

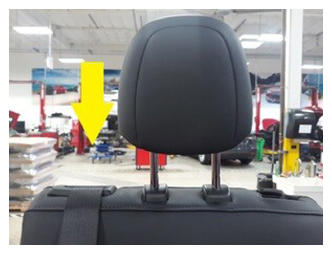

    G14823554Courtesy of TESLA, INC.

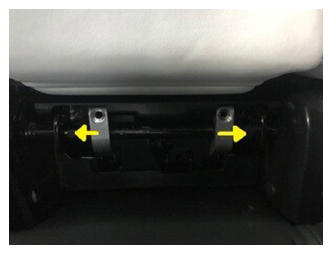

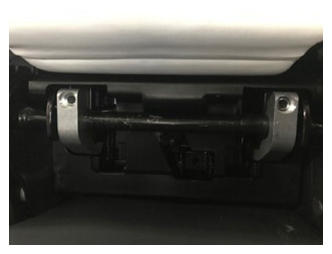

  50. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G14823555Courtesy of TESLA, INC.
    G14823556Courtesy of TESLA, INC.
    G14823557Courtesy of TESLA, INC.

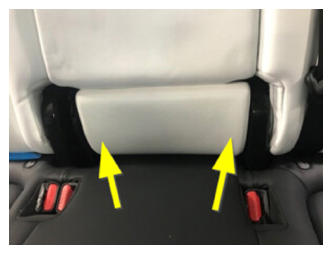

  51. Install center seatback lumbar bun
    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G14823558Courtesy of TESLA, INC.

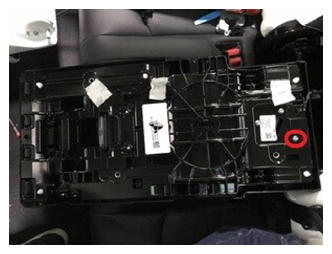

  52. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14823559Courtesy of TESLA, INC.

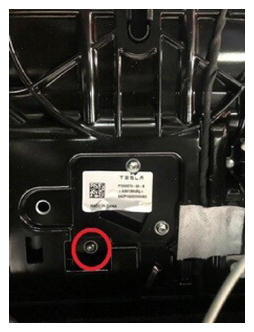

    G14823560Courtesy of TESLA, INC.

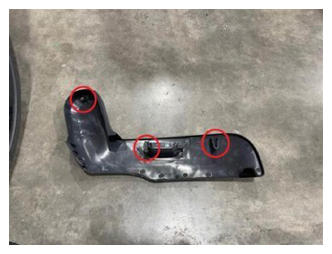

  53. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G14823561Courtesy of TESLA, INC.
    G14823562Courtesy of TESLA, INC.

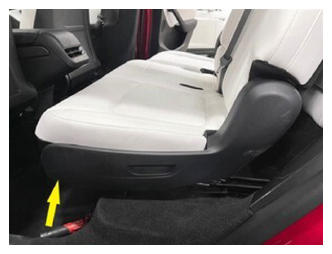

  54. Install push clip at front of outer 60 sideshield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim
    G14823563Courtesy of TESLA, INC.
    G14823564Courtesy of TESLA, INC.

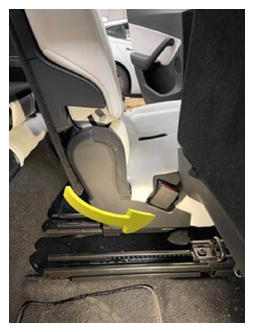

  55. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and reseat 3x clips
    G14823565Courtesy of TESLA, INC.

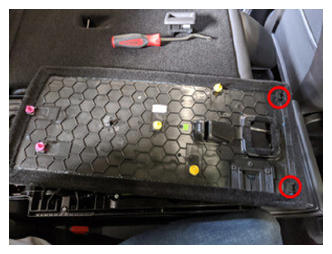

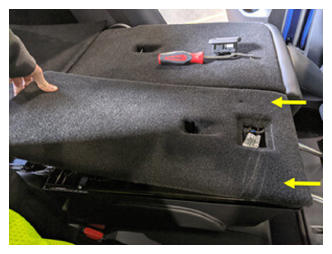

  56. Insert backpanel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G14823566Courtesy of TESLA, INC.
    G14823567Courtesy of TESLA, INC.

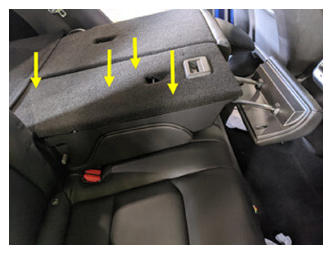

  57. Install center backpanel onto seat back
    NOTE: 5x clips
    G14823568Courtesy of TESLA, INC.

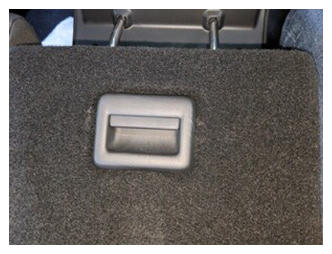

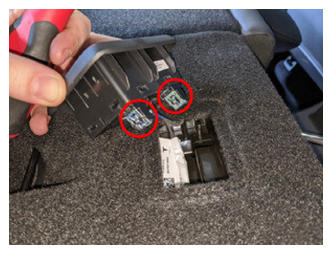

  58. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G14823569Courtesy of TESLA, INC.
    G14823570Courtesy of TESLA, INC.
    G14823571Courtesy of TESLA, INC.

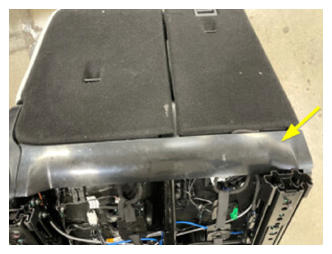

  59. Install 60 toe kick cover
    NOTE: 7x clips
    G14823572Courtesy of TESLA, INC.
    G14823573Courtesy of TESLA, INC.

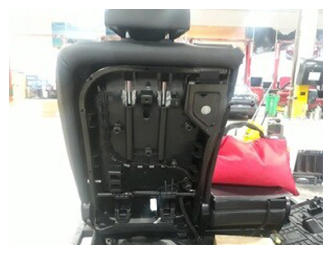

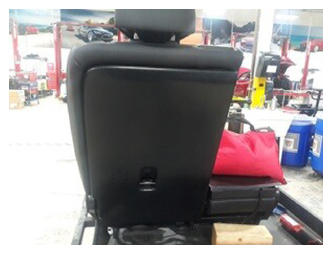

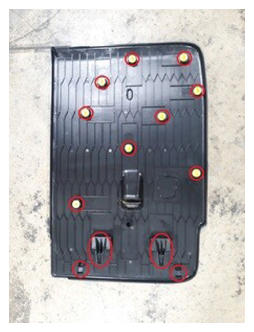

  60. Install LH seatback onto 60 seat assembly
    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G14823574Courtesy of TESLA, INC.
    G14823575Courtesy of TESLA, INC.
    G14823576Courtesy of TESLA, INC.

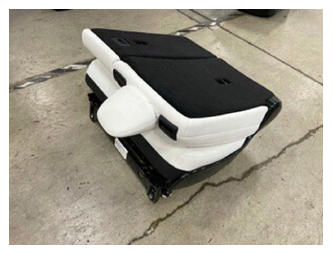

  61. Install 2nd row 60 seat assembly
    NOTE: Recommend assistance
    G14823577Courtesy of TESLA, INC.
    G14823578Courtesy of TESLA, INC.
  62. Connect logic connector at LH 60 seat frame
    NOTE: 1x connector
    G14823579Courtesy of TESLA, INC.

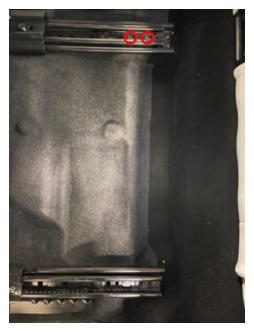

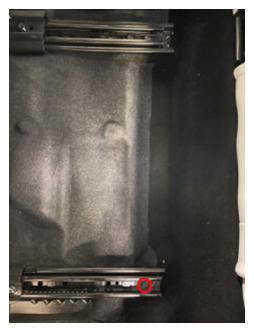

  63. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G14823580Courtesy of TESLA, INC.
    G14823581Courtesy of TESLA, INC.
    G14823582Courtesy of TESLA, INC.
    G14823583Courtesy of TESLA, INC.
  64. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on

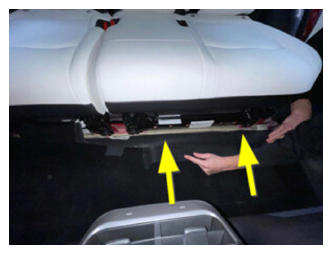

    G14823584Courtesy of TESLA, INC.

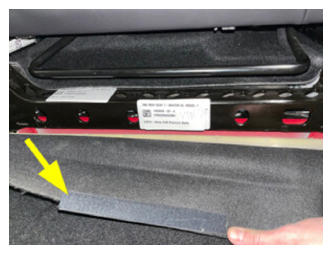

    G14823585Courtesy of TESLA, INC.

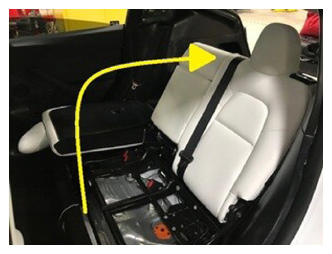

  65. Fold the 60 seat into vertical position
    NOTE: Remove seat back protection if necessary
    G14823586Courtesy of TESLA, INC.
  66. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14823587Courtesy of TESLA, INC.
    G14823588Courtesy of TESLA, INC.
    G14823589Courtesy of TESLA, INC.

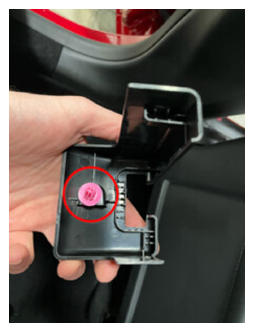

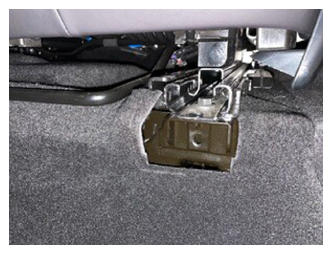

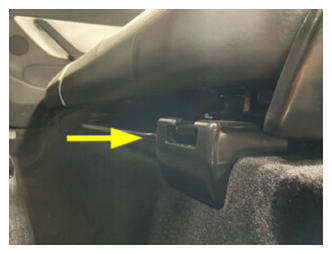

  67. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14823590Courtesy of TESLA, INC.
    G14823591Courtesy of TESLA, INC.
    G14823592Courtesy of TESLA, INC.

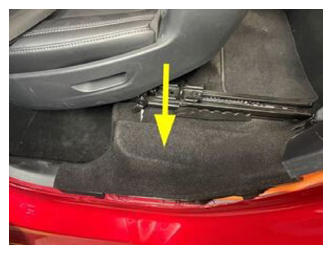

  68. Install LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14823593Courtesy of TESLA, INC.
    G14823594Courtesy of TESLA, INC.

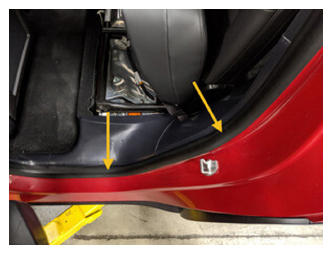

  69. Reseat LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal
    G14823595Courtesy of TESLA, INC.
  70. Move RH front seat to original position
  71. Move LH front seat to original position
  72. Raise all four windows
  73. Close all four doors
    NOTE: If 12 V is powered up, Unlatch rear doors before closing
