Home >> Tesla >> 2021 >> Model Y Performance >> Repair and Diagnosis >> Body & Frame >> Seats -- Model Y >> 2nd Row Seat Covers Pads And Trims (7-Seater) >> Cover - Seat Back - 2nd Row - LH (7-Seat) - Remove and Replace >> Remove and Replace

Remove and Replace

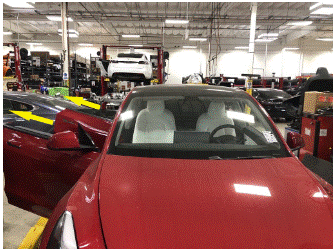

  1. Open RH front and rear doors
    G00648510Courtesy of TESLA, INC.

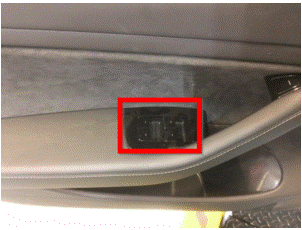

  2. Lower all four windows
    G00648511Courtesy of TESLA, INC.

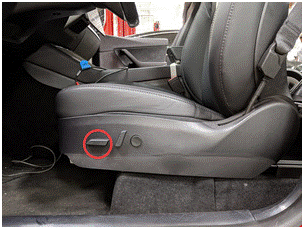

  3. Move LH front seat forward
    G00648512Courtesy of TESLA, INC.

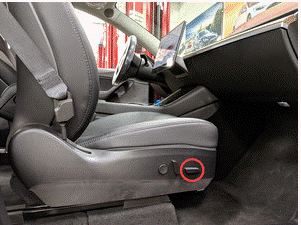

  4. Move RH front seat forward
    G00648513Courtesy of TESLA, INC.
  5. Partially remove LH rear door seal
    G00648514Courtesy of TESLA, INC.

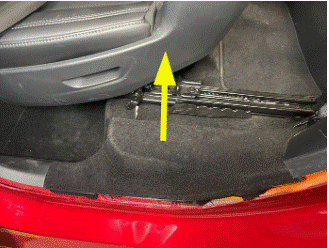

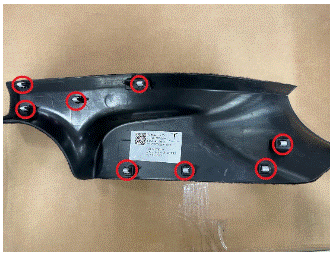

  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G00648515Courtesy of TESLA, INC.
    G00648516Courtesy of TESLA, INC.

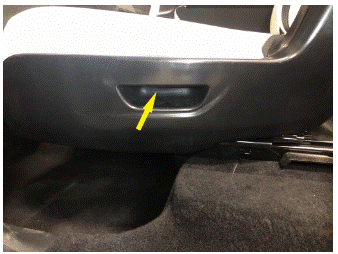

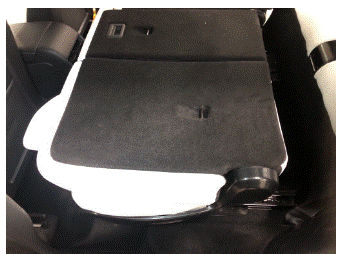

  7. Fold down 2nd row 60 seatback assembly
    NOTE: Press button, fold forwards
    G00648517Courtesy of TESLA, INC.
    G00648518Courtesy of TESLA, INC.

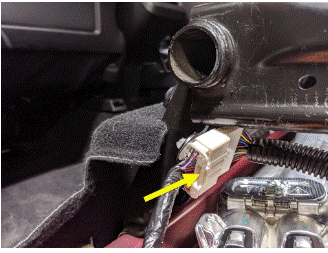

  8. Disconnect 2nd row 60 seat connector
    NOTE: 1x connector
    G00648519Courtesy of TESLA, INC.

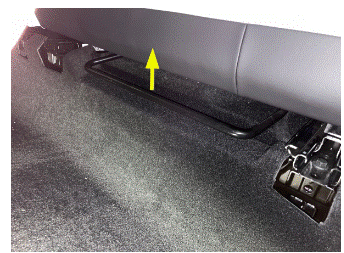

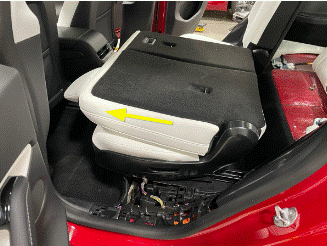

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G00648520Courtesy of TESLA, INC.
    G00648521Courtesy of TESLA, INC.

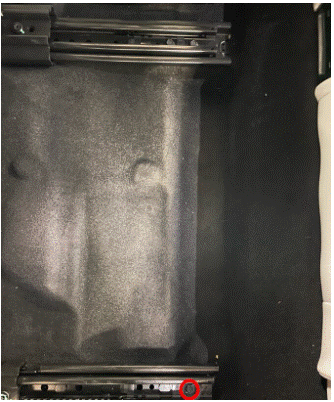

  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11mm, 37 N.m, Discard after removal
    G00648522Courtesy of TESLA, INC.

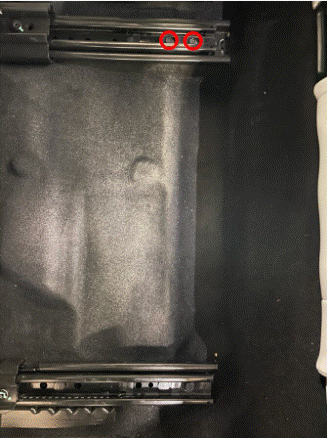

  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11mm, 37 N.m, Discard after removal
    G00648523Courtesy of TESLA, INC.
  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand

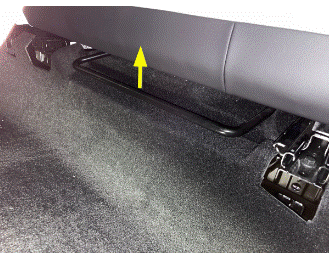

    G00648524Courtesy of TESLA, INC.

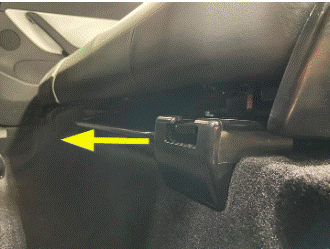

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks

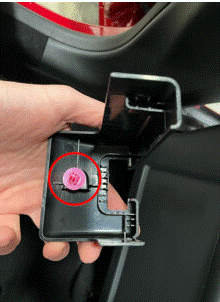

    G00648525Courtesy of TESLA, INC.

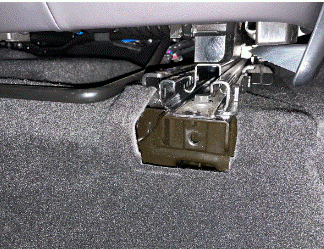

    G00648526Courtesy of TESLA, INC.
    G00648527Courtesy of TESLA, INC.

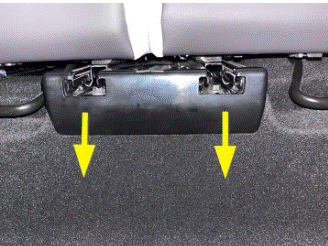

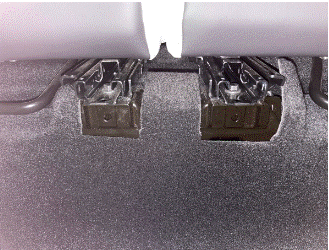

  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks
    G00648528Courtesy of TESLA, INC.
    G00648529Courtesy of TESLA, INC.

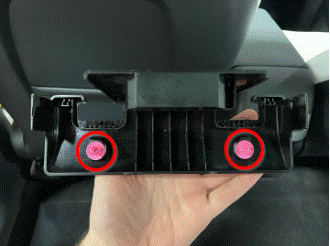

    G00648530Courtesy of TESLA, INC.

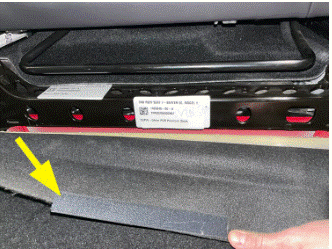

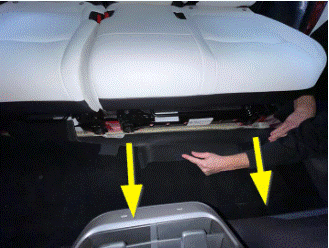

  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G00648531Courtesy of TESLA, INC.
    G00648532Courtesy of TESLA, INC.

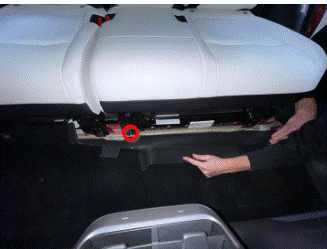

  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11mm, 37 N.m, Discard after removal
    G00648533Courtesy of TESLA, INC.

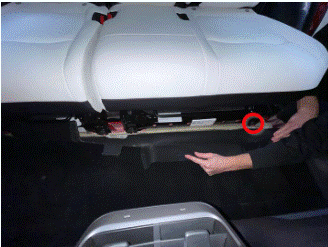

  17. Remove 2nd row 60 seat frame front outboard track fasteners
    NOTE: 1x bolts, 11mm, 37 N.m, Discard after removal
    G00648534Courtesy of TESLA, INC.

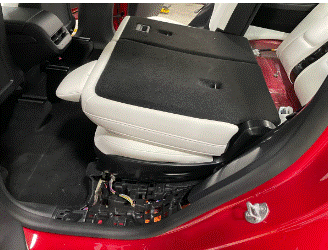

  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G00648535Courtesy of TESLA, INC.
    G00648536Courtesy of TESLA, INC.

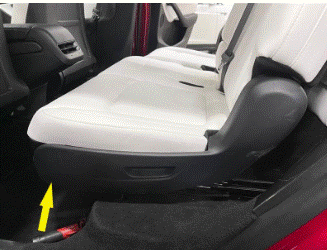

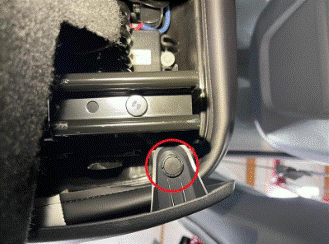

  19. Remove front push clip from 2nd row 60 cushion assembly outer side shield
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover
    G00648537Courtesy of TESLA, INC.
    G00648538Courtesy of TESLA, INC.

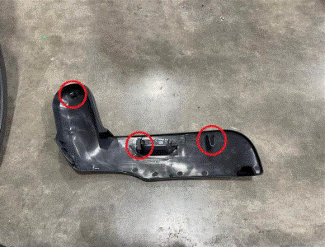

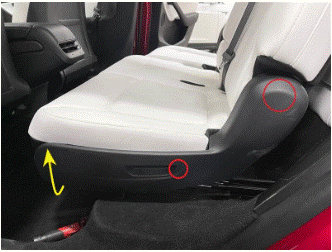

  20. Remove 2nd row 60 cushion assembly outer side shield
    NOTE: 1x clip 1x connector, Remove outer side shield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G00648539Courtesy of TESLA, INC.
    G00648540Courtesy of TESLA, INC.

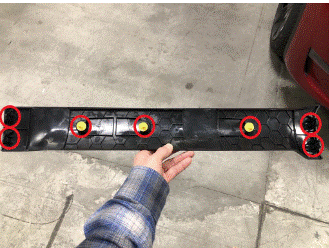

  21. Remove 2nd row 60 seatback assembly toe kick panel
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove

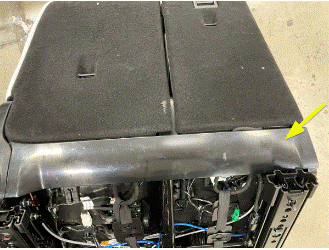

    G00648541Courtesy of TESLA, INC.
    G00648542Courtesy of TESLA, INC.

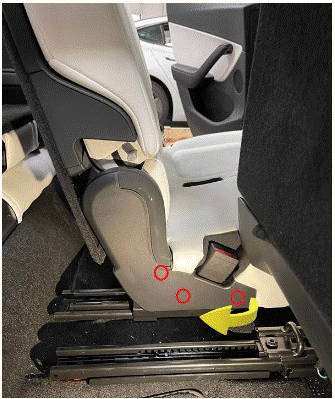

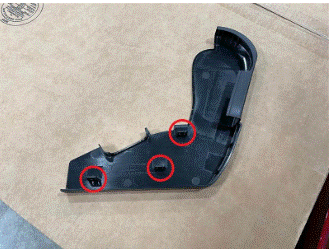

  22. Release clips and remove inboard outer trim from 2nd row 60 seat cushion assembly
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G00648543Courtesy of TESLA, INC.
    G00648544Courtesy of TESLA, INC.

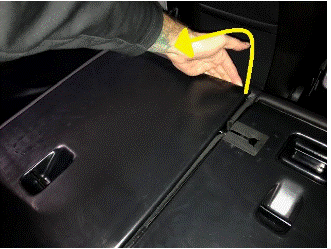

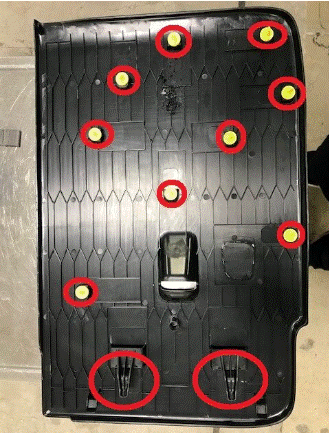

  23. Remove 2nd row 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of back panel working your way down the lower back panel, pull 60 back panel towards front of vehicle to remove
    G00648545Courtesy of TESLA, INC.
    G00648546Courtesy of TESLA, INC.

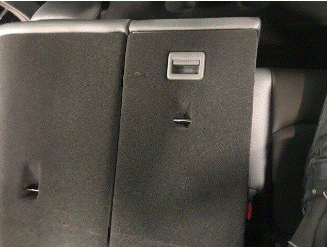

  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 back panel to ease removal
    G00648547Courtesy of TESLA, INC.

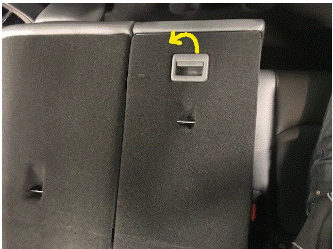

    G00648548Courtesy of TESLA, INC.

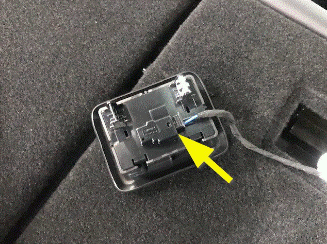

    G00648549Courtesy of TESLA, INC.

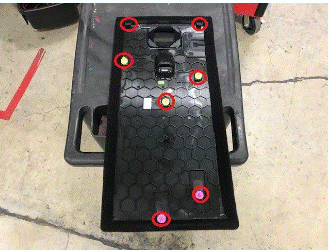

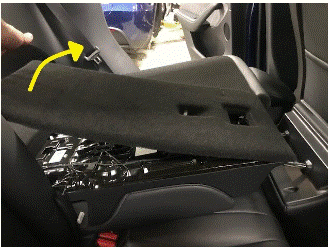

  25. Remove center back panel from 2nd row center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 back panel and then slide forward to release
    G00648550Courtesy of TESLA, INC.

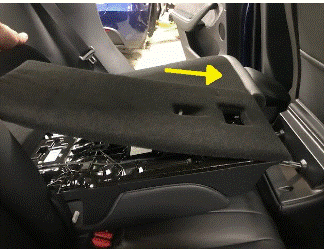

    G00653691Courtesy of TESLA, INC.
    G00653692Courtesy of TESLA, INC.

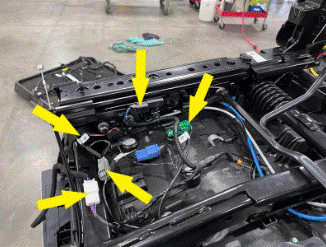

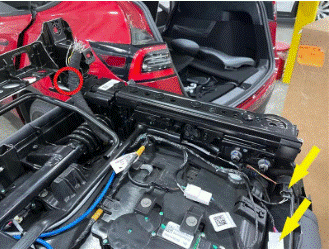

  26. Release 2nd row 60 seat harness connectors and clip from seat frame
    NOTE: 1x clip, 7x connectors
    G00653693Courtesy of TESLA, INC.
    G00653694Courtesy of TESLA, INC.

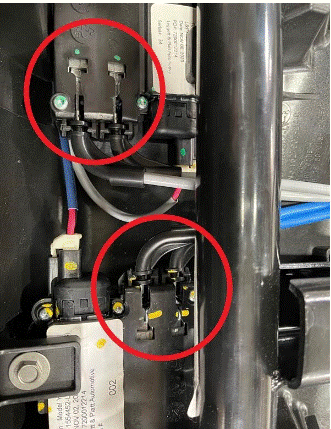

  27. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G00653695Courtesy of TESLA, INC.

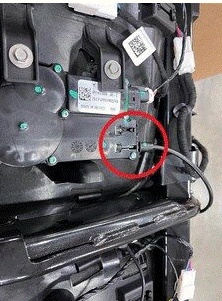

  28. Remove cable from 60 fold actuator
    NOTE: 1x clip, Remove cable from 60 fold actuator
    G00653696Courtesy of TESLA, INC.

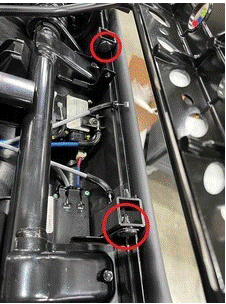

  29. Remove push clips for 2nd row 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G00653697Courtesy of TESLA, INC.

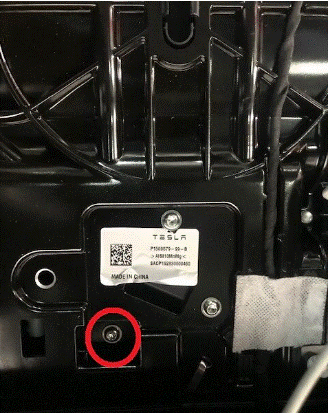

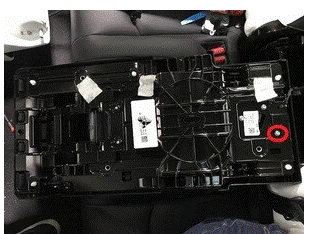

  30. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G00653698Courtesy of TESLA, INC.
    G00653699Courtesy of TESLA, INC.

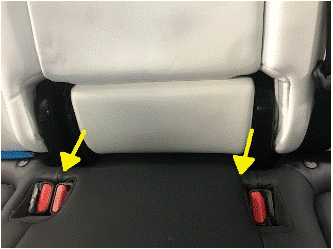

  31. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G00653700Courtesy of TESLA, INC.

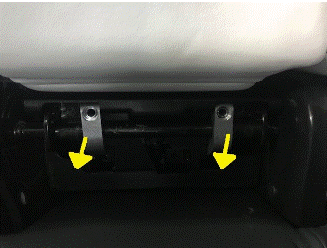

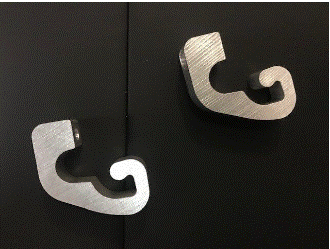

  32. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove

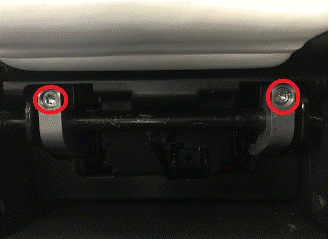

    G00653701Courtesy of TESLA, INC.

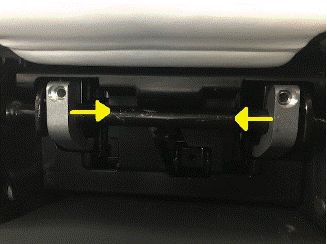

    G00653702Courtesy of TESLA, INC.
    G00653703Courtesy of TESLA, INC.
    G00653704Courtesy of TESLA, INC.

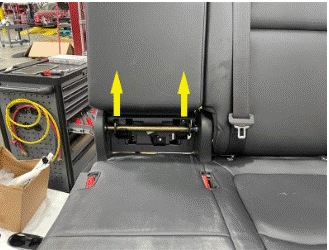

  33. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G00653705Courtesy of TESLA, INC.

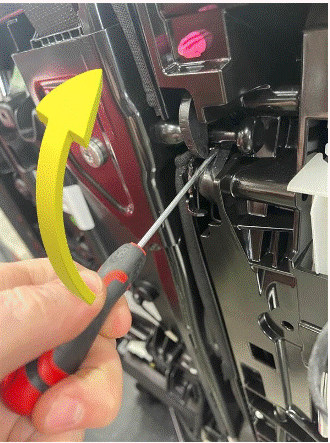

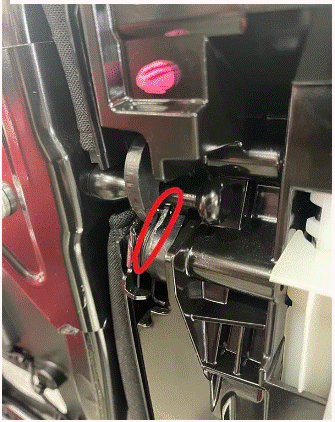

  34. Manually release the center seatback latch
    NOTE: Use small screwdriver to manipulate the center seatback latch to release
    G00653706Courtesy of TESLA, INC.
    G00653707Courtesy of TESLA, INC.

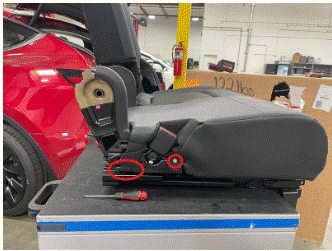

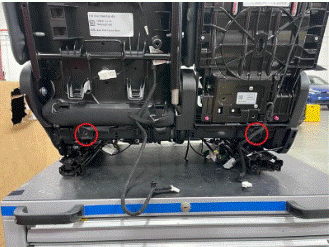

  35. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G00653708Courtesy of TESLA, INC.
    G00653709Courtesy of TESLA, INC.
    G00653710Courtesy of TESLA, INC.

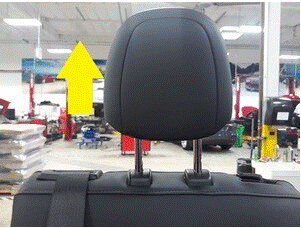

  36. Remove headrest from 2nd row 60 seatback assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged

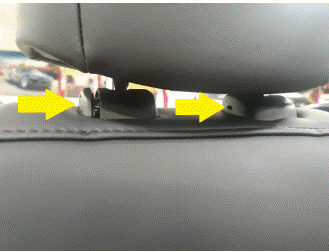

    G00653711Courtesy of TESLA, INC.
    G00653712Courtesy of TESLA, INC.

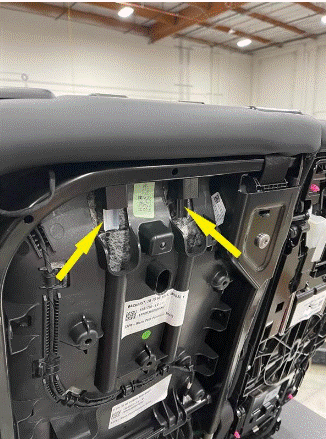

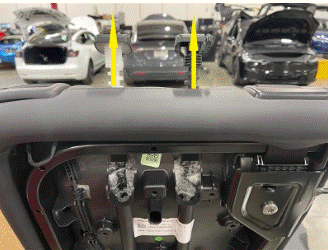

  37. Remove headrest guides from 2nd row 60 seatback assembly
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G00653713Courtesy of TESLA, INC.
    G00653714Courtesy of TESLA, INC.

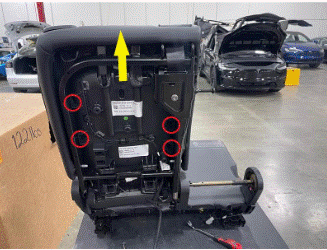

  38. Remove 2nd row 60 seatback assembly
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards, Seat belt will be removed in a later step
    G00653715Courtesy of TESLA, INC.

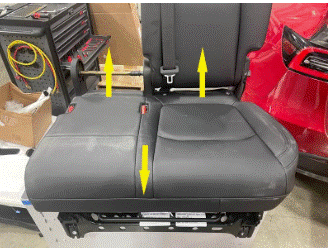

  39. Remove 2nd row 60 seat cushion assembly
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G00653716Courtesy of TESLA, INC.

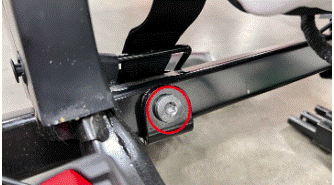

  40. Remove 2nd row center seat belt anchor
    NOTE: 1x bolt, T50, 40 N.m, Discard after removal
    G00653717Courtesy of TESLA, INC.

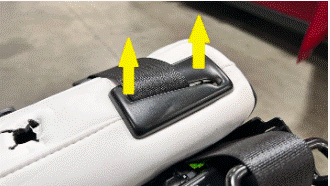

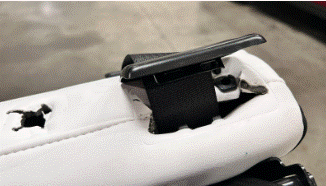

  41. Remove 2nd row center seat belt guide
    NOTE: 2x clips, 2x datums
    G00653718Courtesy of TESLA, INC.
    G00653719Courtesy of TESLA, INC.

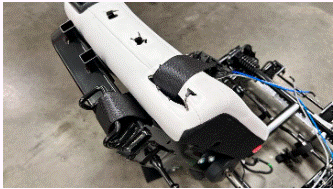

  42. Remove 2nd row center seat belt from 2nd row 60 seatback assembly
    NOTE: Pass seat belt through opening
    G00653720Courtesy of TESLA, INC.

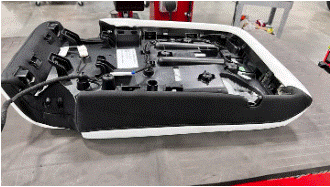

  43. Place 2nd row 60 seatback assembly on a suitable working surface
    NOTE: Avoid damage to seat cover
    G00653721Courtesy of TESLA, INC.

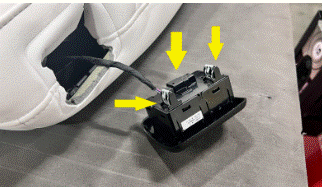

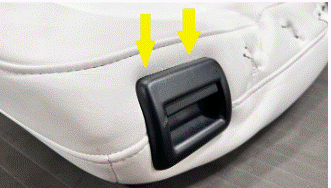

  44. Remove easy-entry switch
    NOTE: 2x clips, 1x connector
    G00653722Courtesy of TESLA, INC.
    G00653723Courtesy of TESLA, INC.

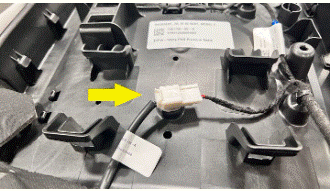

  45. Disconnect seat heating connector
    NOTE: 1x connector
    G00653724Courtesy of TESLA, INC.
  46. Release 2nd row 60 seatback cover
    NOTE: 16x tabs, Pull material downward to release

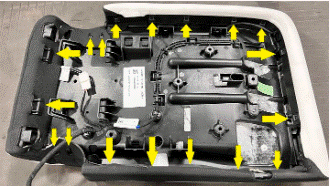

    G00653725Courtesy of TESLA, INC.

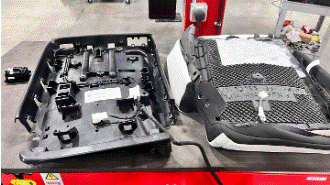

  47. Remove backrest shell from 2nd row 60 seatback cover
    NOTE: Early production models may have staples holding material to shell in some areas
    G00653726Courtesy of TESLA, INC.

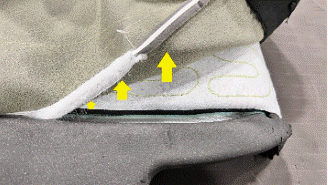

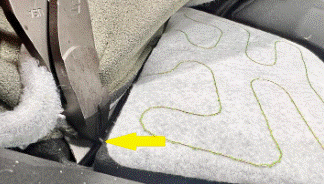

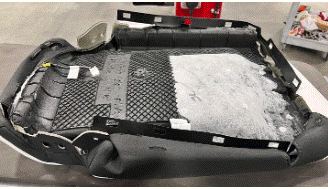

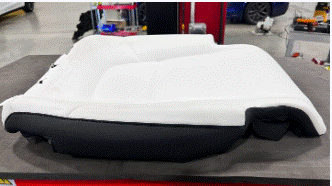

  48. Remove seatback cover from foam

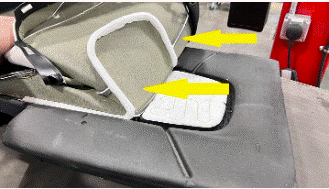

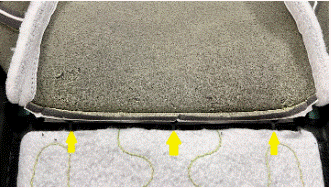

    NOTE: 3x hogring, Hook & loop attachment around perimeter, Cut hogrings, clean debris
    G00653727Courtesy of TESLA, INC.
    G00653728Courtesy of TESLA, INC.
    G00653729Courtesy of TESLA, INC.
    G00653730Courtesy of TESLA, INC.
    G00653731Courtesy of TESLA, INC.
    G00653732Courtesy of TESLA, INC.

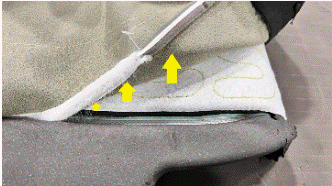

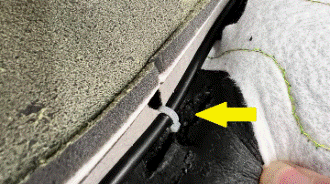

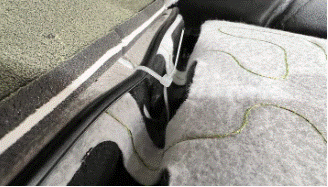

  49. Install seatback cover to foam
    NOTE: 3x hogrings, Small tie wraps may be used as a substitute, if used trim flush and rotate tie wrap head away from visible surface, Hook & loop around perimeter
    G00653732Courtesy of TESLA, INC.
    G00653733Courtesy of TESLA, INC.
    G00653734Courtesy of TESLA, INC.
    G00653735Courtesy of TESLA, INC.
  50. Install 2nd row 60 seatback cover to backrest shell
    NOTE: 16x hooks, Pull material downward to attach, Ensure material is distributed correctly on visible face
    G00653725Courtesy of TESLA, INC.
  51. Connect heating pad connector
    NOTE: 1x connector
    G00653724Courtesy of TESLA, INC.
  52. Install easy-entry switch
    NOTE: 2x tabs, 1x connector
    G00653723Courtesy of TESLA, INC.
  53. Install 2nd row center seat belt to 2nd row 60 seatback assembly
    NOTE: Pass seat belt through opening
    G00653720Courtesy of TESLA, INC.

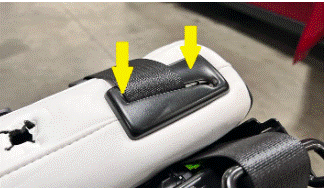

  54. Install 2nd row center seat belt guide
    NOTE: 2x clips, 2x datums
    G00653719Courtesy of TESLA, INC.
    G00653736Courtesy of TESLA, INC.
  55. Install 2nd row center seat belt anchor
    NOTE: 1x bolt, T50, 40 N.m

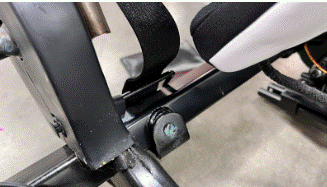

    G00653737Courtesy of TESLA, INC.

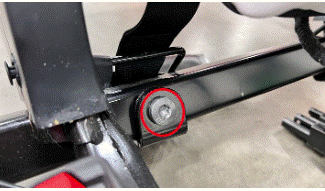

    G00653738Courtesy of TESLA, INC.
  56. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G00653739Courtesy of TESLA, INC.

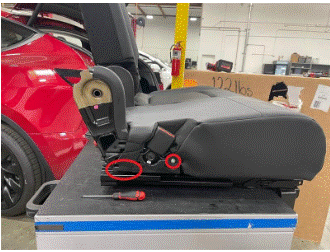

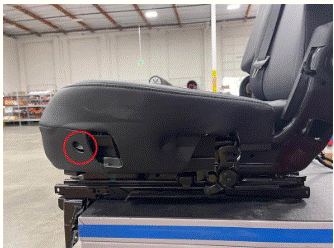

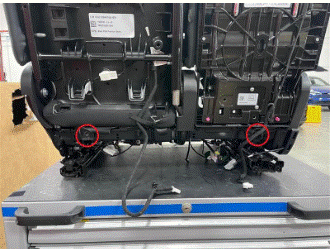

  57. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G00653740Courtesy of TESLA, INC.
    G00653741Courtesy of TESLA, INC.
    G00653742Courtesy of TESLA, INC.

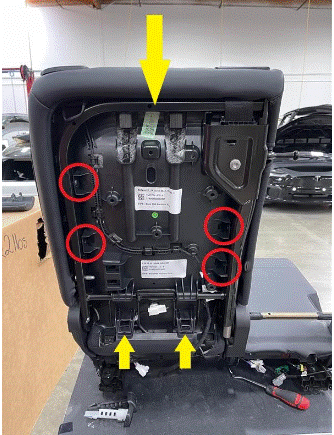

  58. Install 2nd row 60 seatback into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G00653743Courtesy of TESLA, INC.

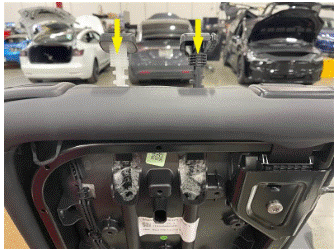

  59. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G00653744Courtesy of TESLA, INC.

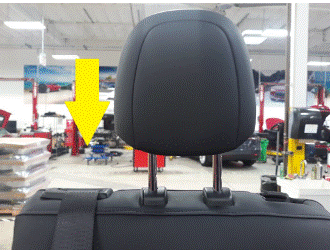

  60. Install headrest onto 60 seat assembly
    NOTE: Push down to secure
    G00653745Courtesy of TESLA, INC.

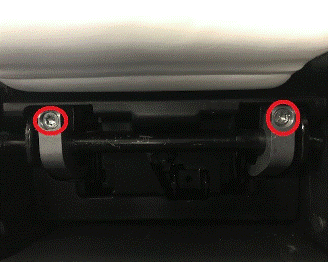

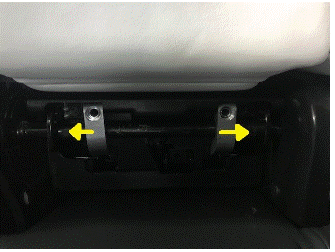

  61. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G00653746Courtesy of TESLA, INC.
    G00653747Courtesy of TESLA, INC.
    G00653748Courtesy of TESLA, INC.

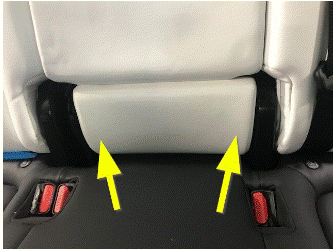

  62. Install center seatback lumbar bun
    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G00653749Courtesy of TESLA, INC.

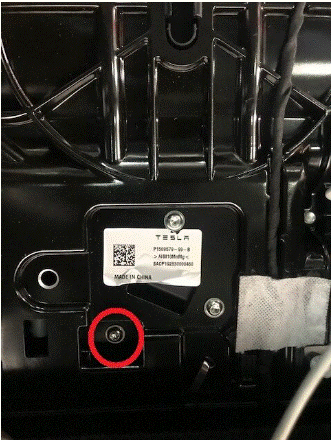

  63. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G00653750Courtesy of TESLA, INC.
    G00653751Courtesy of TESLA, INC.

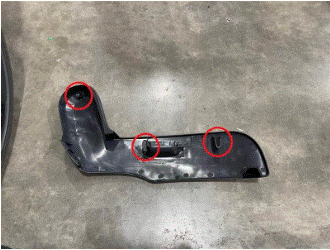

  64. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G00653752Courtesy of TESLA, INC.
    G00653753Courtesy of TESLA, INC.
  65. Install push clip at front of outer 60 side shield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim

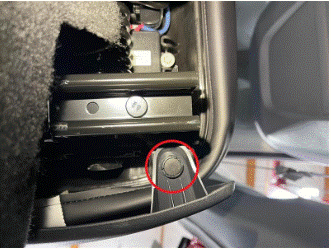

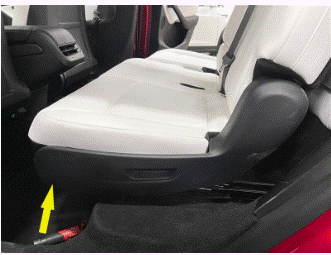

    G00653754Courtesy of TESLA, INC.
    G00653755Courtesy of TESLA, INC.

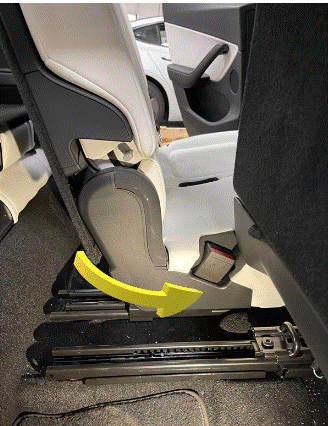

  66. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and re-seat 3x clips
    G00653756Courtesy of TESLA, INC.

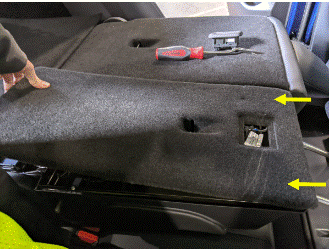

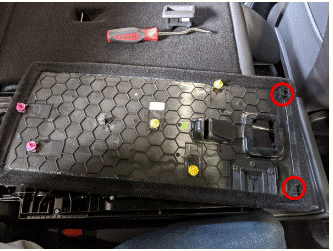

  67. Insert back panel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G00653757Courtesy of TESLA, INC.
    G00653758Courtesy of TESLA, INC.

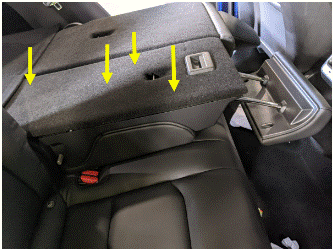

  68. Install center back panel onto seat back
    NOTE: 5x clips
    G00653759Courtesy of TESLA, INC.

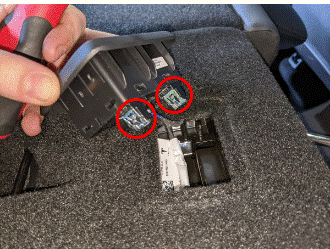

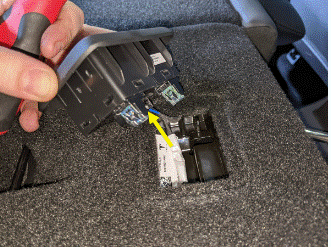

  69. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G00653760Courtesy of TESLA, INC.
    G00653761Courtesy of TESLA, INC.
    G00653762Courtesy of TESLA, INC.
  70. Install 60 toe kick cover
    NOTE: 7x clips

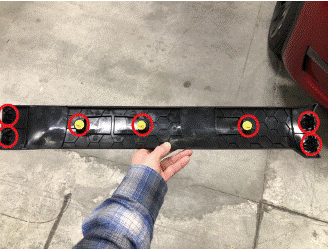

    G00653763Courtesy of TESLA, INC.
    G00653764Courtesy of TESLA, INC.

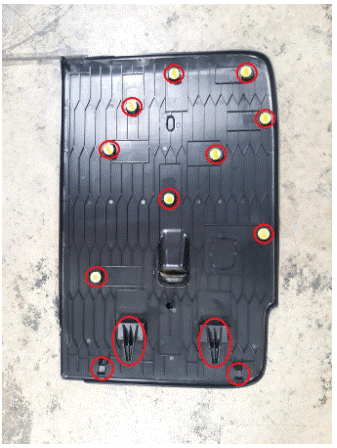

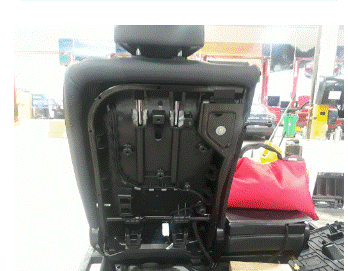

  71. Install LH seatback onto 60 seat assembly
    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G00653765Courtesy of TESLA, INC.
    G00653766Courtesy of TESLA, INC.

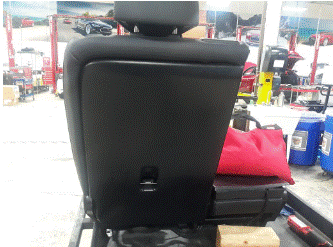

    G00653767Courtesy of TESLA, INC.
  72. Install 2nd row 60 seat assembly

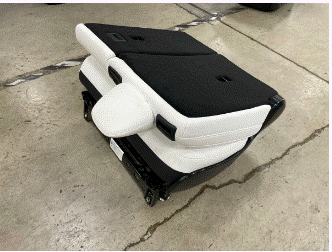

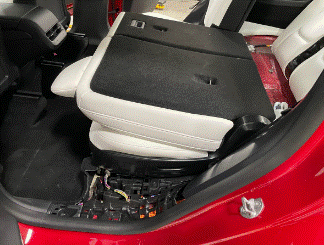

    NOTE: Recommend assistance
    G00653768Courtesy of TESLA, INC.
    G00653769Courtesy of TESLA, INC.
  73. Connect 2nd row 60 seat connector
    NOTE: 1x connector

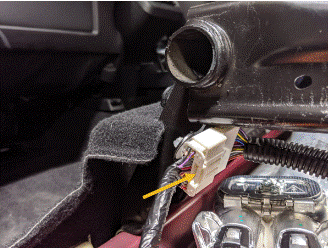

    G00653770Courtesy of TESLA, INC.

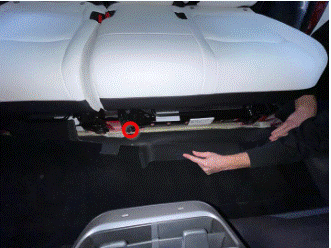

  74. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G00653771Courtesy of TESLA, INC.
    G00653772Courtesy of TESLA, INC.
    G00653773Courtesy of TESLA, INC.

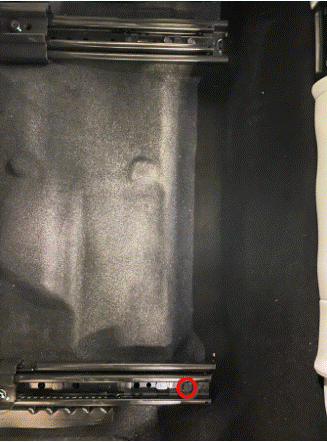

    G00653774Courtesy of TESLA, INC.
  75. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on

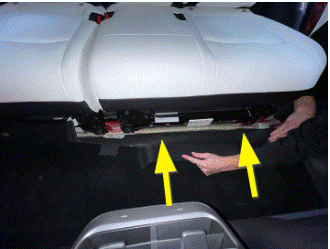

    G00653775Courtesy of TESLA, INC.

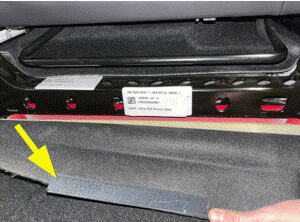

    G00653776Courtesy of TESLA, INC.
  76. Move 2nd row 60 seatback to vertical position
    NOTE: Remove seat back protection if necessary

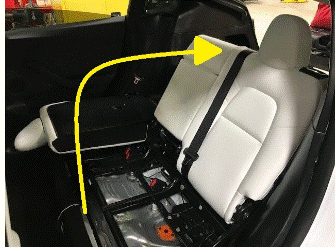

    G00653777Courtesy of TESLA, INC.

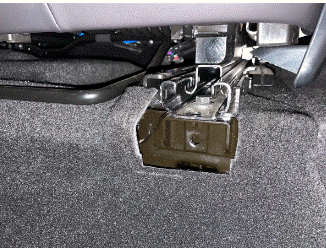

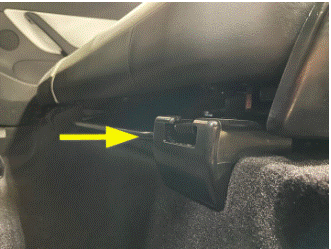

  77. Install 60 seat outboard track cover
    NOTE: 1x clip

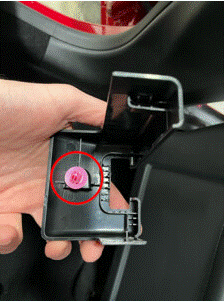

    G00653778Courtesy of TESLA, INC.
    G00653779Courtesy of TESLA, INC.
    G00653780Courtesy of TESLA, INC.
  78. Install 60 seat outboard track cover
    NOTE: 1x clip
    G00653778Courtesy of TESLA, INC.
    G00653779Courtesy of TESLA, INC.
    G00653780Courtesy of TESLA, INC.

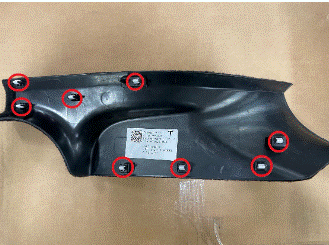

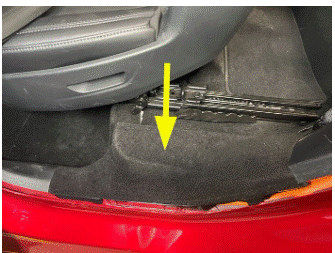

  79. Install LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G00653781Courtesy of TESLA, INC.
    G00653782Courtesy of TESLA, INC.

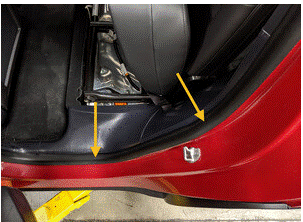

  80. Re-seat LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal
    G00653783Courtesy of TESLA, INC.
  81. Move the RH front seat to its original position.
  82. Move LH front seat to original position
    NOTE: This can also be achieved by selecting driver profile via UI

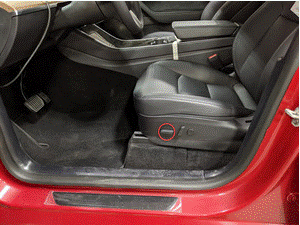

    G00653784Courtesy of TESLA, INC.

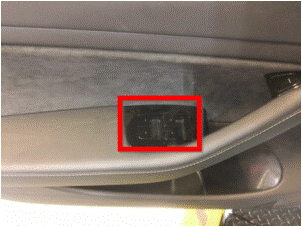

  83. Raise all four windows
    G00653785Courtesy of TESLA, INC.

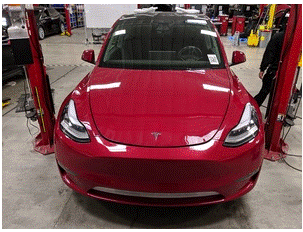

  84. Close all four doors
    NOTE: If 12V is powered up, Unlatch rear doors before closing
    G00653786Courtesy of TESLA, INC.
scientia non olet · About LEMON Manuals
