B-Cover - Outer - 2nd Row - RH (7-Seat) - Remove And Replace: Remove

  1. Open all doors and fully lower all windows.
  2. Move the driver seat fully forward.
  3. Position the LH 2nd row seat into easy entry mode.
  4. Fold the RH 2nd row seat to the down position.
  5. Move the RH 2nd row seat fully forward.
  6. Remove the RH 2nd row seat toe kick cover. See COVER - TOE KICK - 2ND ROW SEAT - RH (7-SEAT) (REMOVE AND REPLACE) .

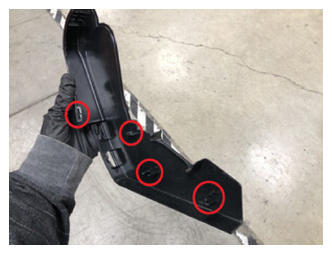

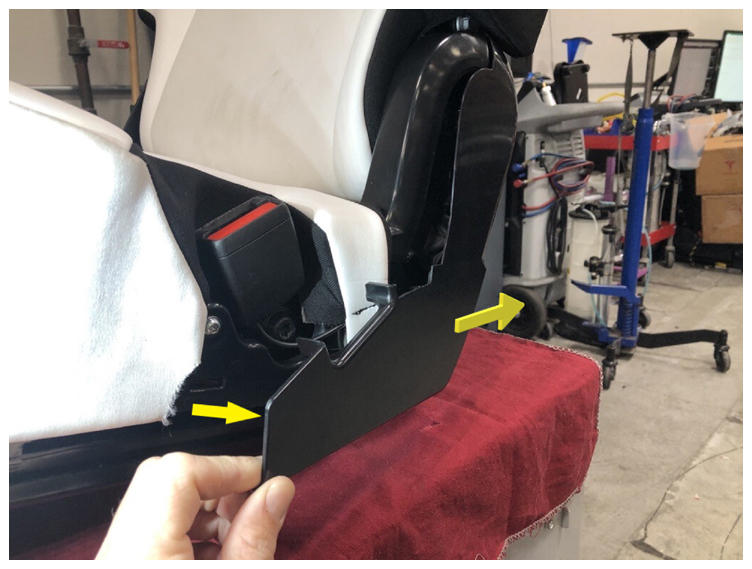

  7. Release the clips (x4) that attach the RH 2nd row seat outer B-cover from the inner B-cover, and slide the cover towards the rear of the seat to remove it from the assembly.
    G14823465Courtesy of TESLA, INC.
    G14823466Courtesy of TESLA, INC.
