Cover - Seat Back - 2nd Row Seat - RH - 5-Seat | Remove And Replace: Install

  1. Starting from the upper seat back, install the RH seat back upholstery trim cover.
    NOTE: Massage the velcro while working downward toward the center of the seat back.

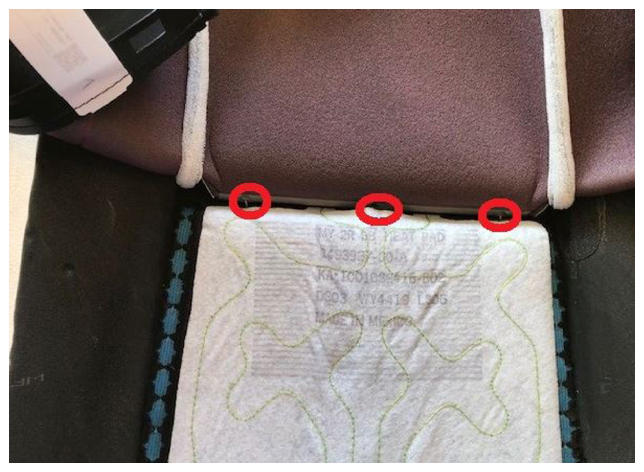

  2. Use hog ring pliers to crimp new hog rings (1566544-00-A X3) to the RH seat back upholstery trim cover at the center of the seat back.
    G14823757Courtesy of TESLA, INC.
  3. Attach the remaining portion of the RH seat back upholstery trim cover to the seat.
  4. Install the hook and tabs (x20) that attach the RH 2nd row seat back upholstery trim flaps to the upholstery support.
    G14823758Courtesy of TESLA, INC.
  5. Install the clips that attach the shoulder switch harness to the RH seat upholstery support.
    G14823759Courtesy of TESLA, INC.

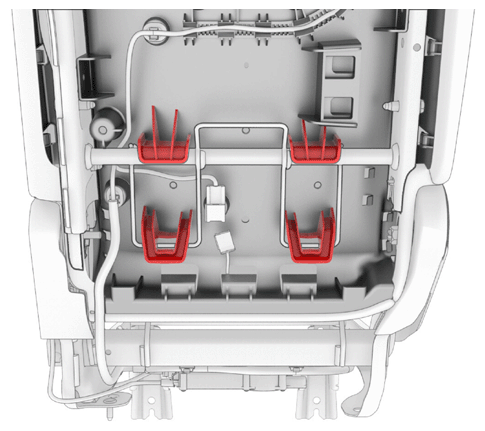

  6. Install the upholstery support onto the RH 2nd row seat rail.
    G14823760Courtesy of TESLA, INC.
  7. Attach the connector clip, and then connect the RH 2nd row seat heater electrical connector.
    G14823761Courtesy of TESLA, INC.
  8. Install the clips that attaches the upholstery support to the RH 2nd row seat frame.
    G14823762Courtesy of TESLA, INC.
  9. Install the RH 2nd row seatback panel. See BACK PANEL - 2ND ROW SEAT - RH (REMOVE AND REPLACE) .
  10. Install the RH 2nd row seat back shoulder switch. See SHOULDER SWITCH - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  11. Install the RH 2nd row headrest guide lock. See GUIDE LOCK - HEADREST - 2ND ROW (REMOVE AND REPLACE) .
  12. Install the RH 2nd row headrest guide adjustment. See ADJUSTMENT GUIDE - HEADREST - 2ND ROW (REMOVE AND REPLACE) .
  13. Install the RH 2nd row headrest. See HEADREST - 2ND ROW - OUTER - LH (REMOVE AND REPLACE) .
  14. Install the RH 2nd row seat back. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .
  15. Install the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  16. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
