Cushion Pan - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Remove

  1. Remove the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
  2. Remove the RH 2nd row seat toe kick cover.
    G14822688Courtesy of TESLA, INC.

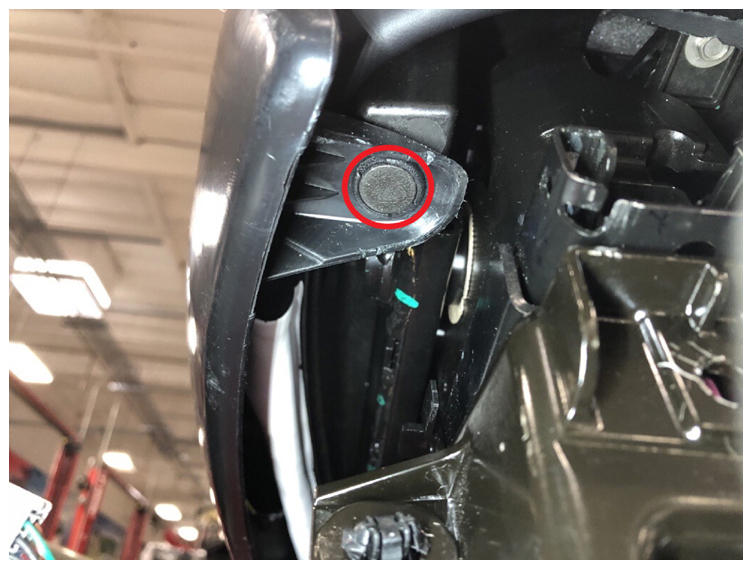

  3. Remove the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14822689Courtesy of TESLA, INC.

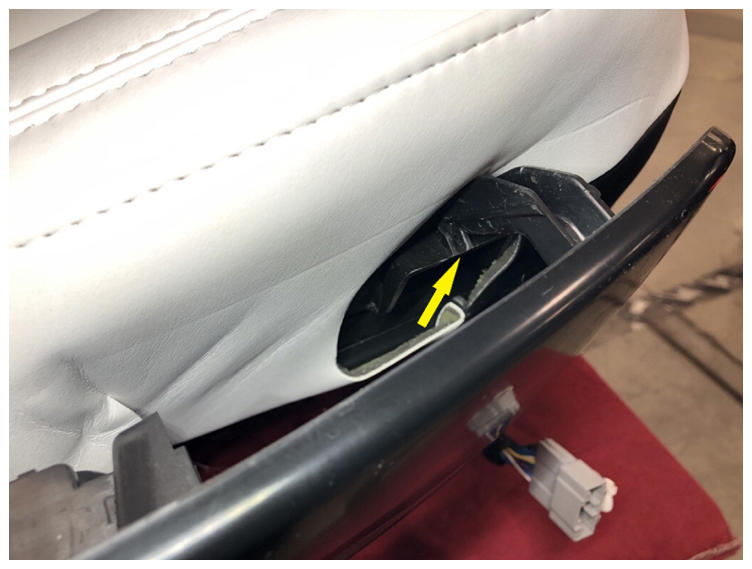

  4. Release the clip that attaches the RH 2nd row seat side shield to the RH 2nd row seat assembly, and then lift the shield up to release it from the assembly.
    NOTE: Do not pull the shield away from the assembly as there is still an electrical connector connected
    G14822690Courtesy of TESLA, INC.

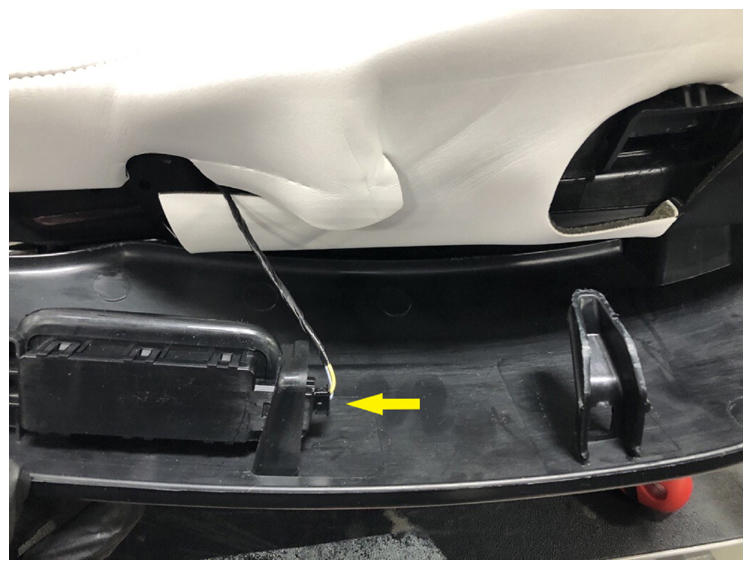

  5. Disconnect the RH 2nd row seat side shield electrical connector, and then remove the shield from the assembly.
    G14822691Courtesy of TESLA, INC.

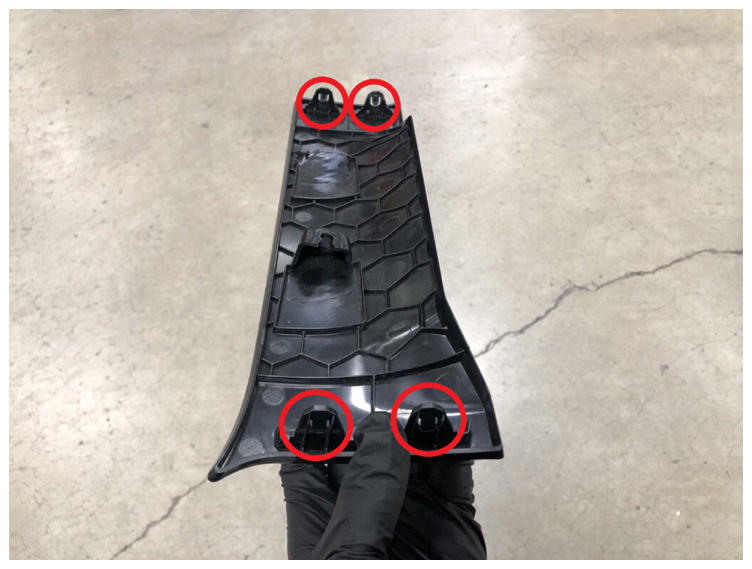

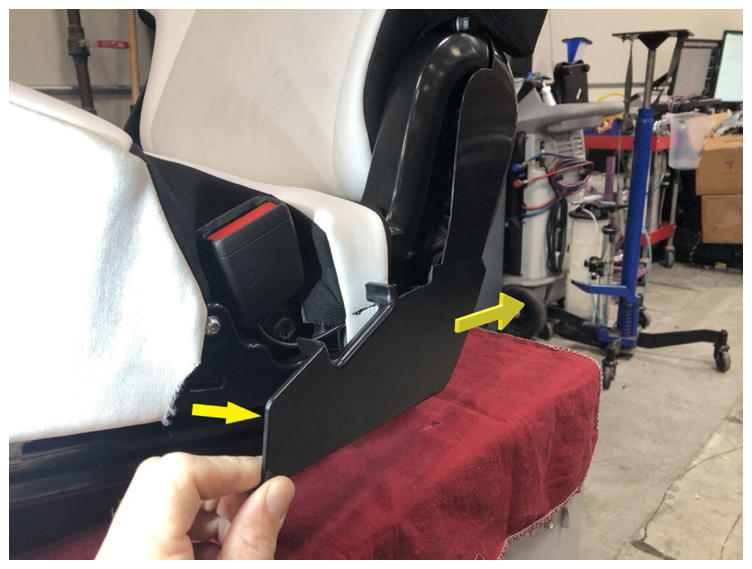

  6. Release the clips (x4) that attach the RH 2nd row seat outer B-cover from the inner B-cover, and slide the cover towards the rear of the seat to remove it from the assembly.
    G14822692Courtesy of TESLA, INC.
  7. Fold the seat to the upright position.

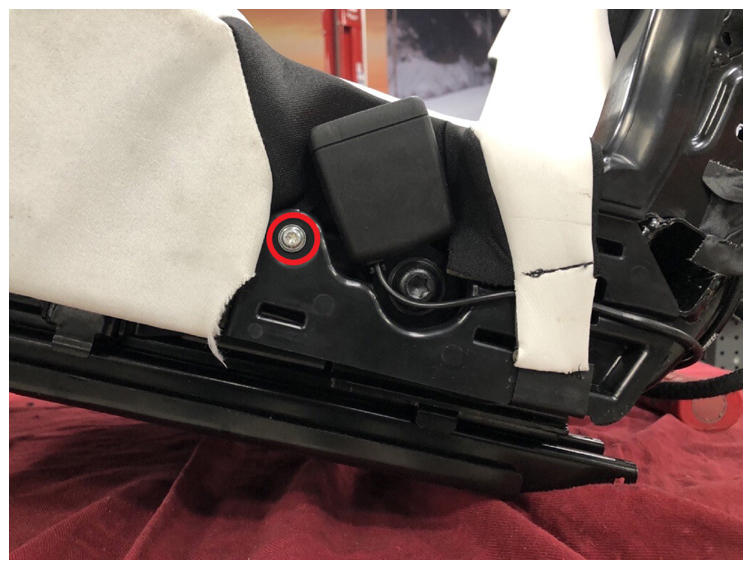

  8. Remove the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.

    Torque 1.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • Flex head ratchet/flex head torque wrench
    G14822694Courtesy of TESLA, INC.

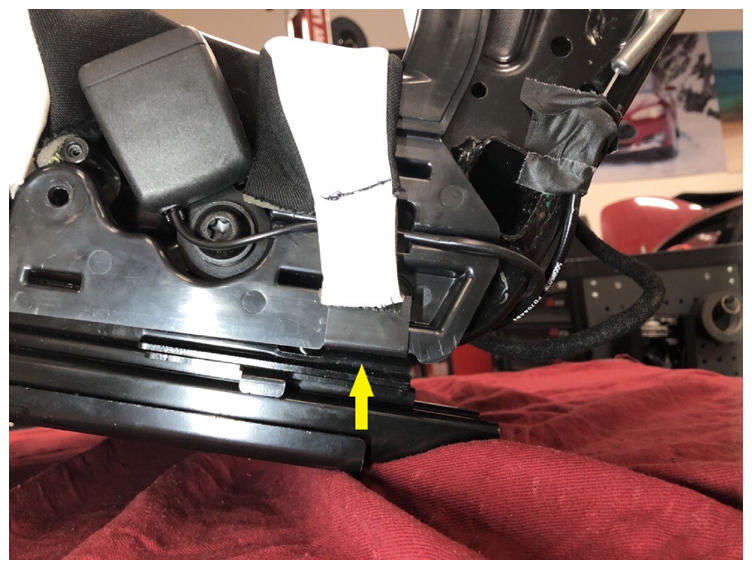

  9. Release the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
    G14822695Courtesy of TESLA, INC.

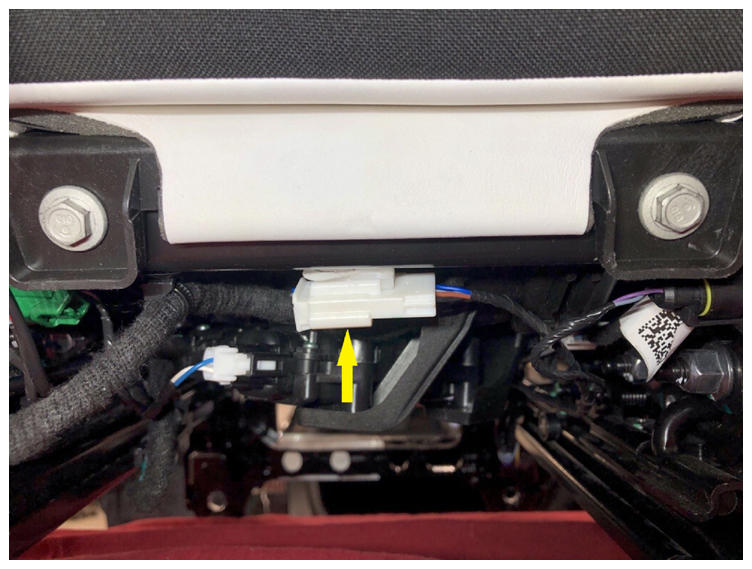

  10. Disconnect the LH 2nd row seatback harness electrical connector.
    G14822696Courtesy of TESLA, INC.
  11. Release the clip that attaches the RH 2nd row seat cushion harness connector to the seat frame.
    G14822697Courtesy of TESLA, INC.

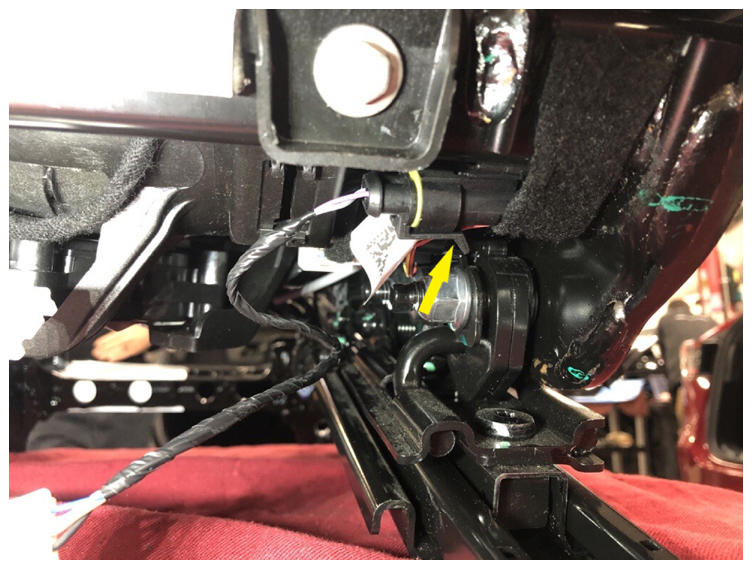

  12. Disconnect the RH 2nd row seat RH floor latch electrical connector.
    G14822698Courtesy of TESLA, INC.

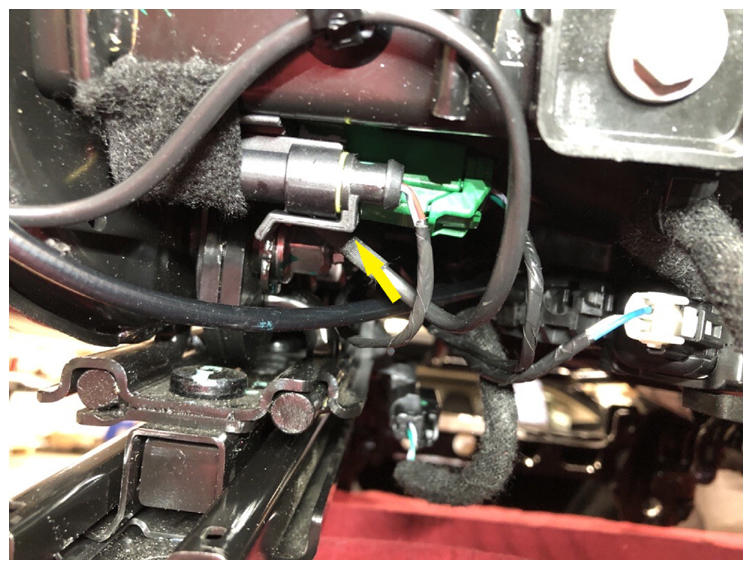

  13. Disconnect the RH 2nd row seat LH floor latch electrical connector.
    G14822699Courtesy of TESLA, INC.

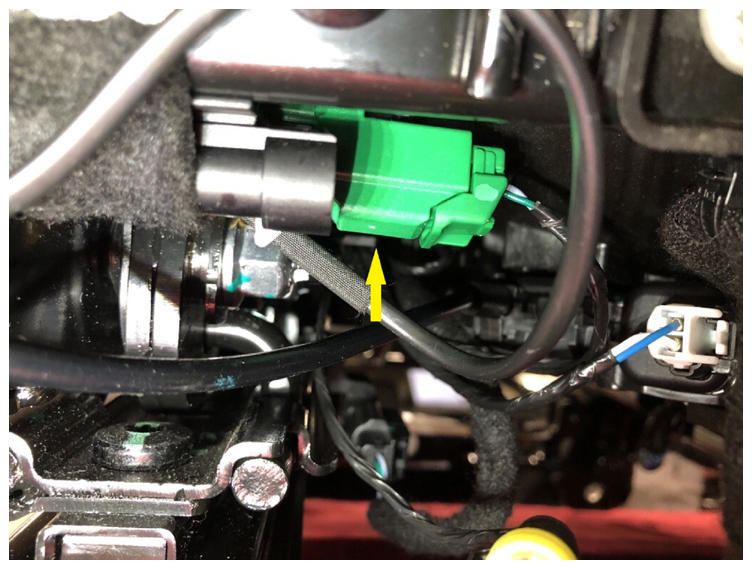

  14. Disconnect the RH 2nd row seat seatbelt buckle electrical connector.
    G14822700Courtesy of TESLA, INC.

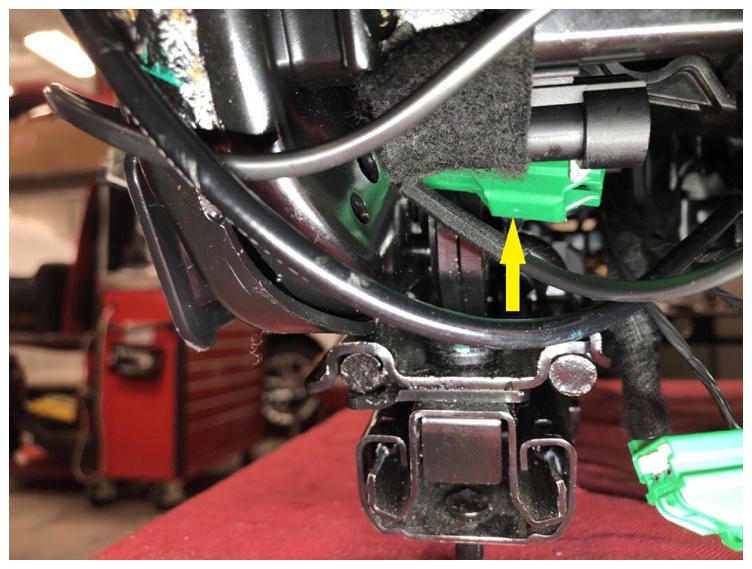

  15. Release the clip that attaches the RH 2nd row seat seatbelt buckle connector to the cushion pan.
    G14822701Courtesy of TESLA, INC.

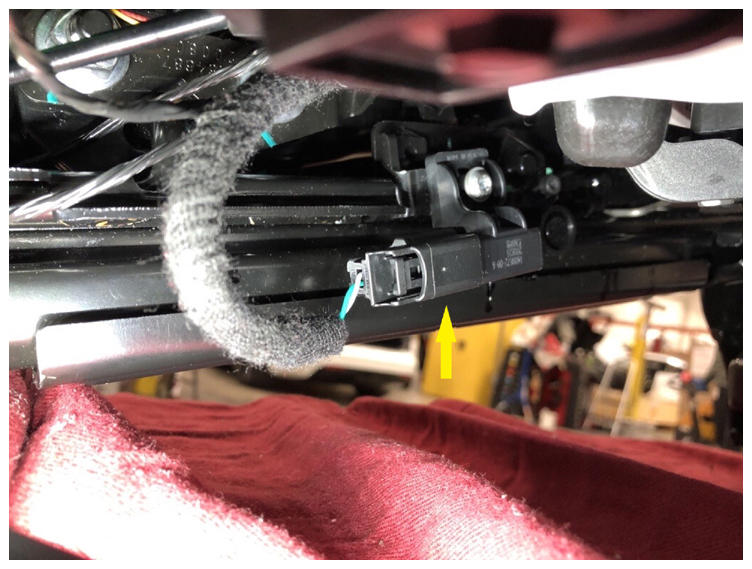

  16. Disconnect the RH 2nd row seat track position sensor electrical connector.
    G14822702Courtesy of TESLA, INC.

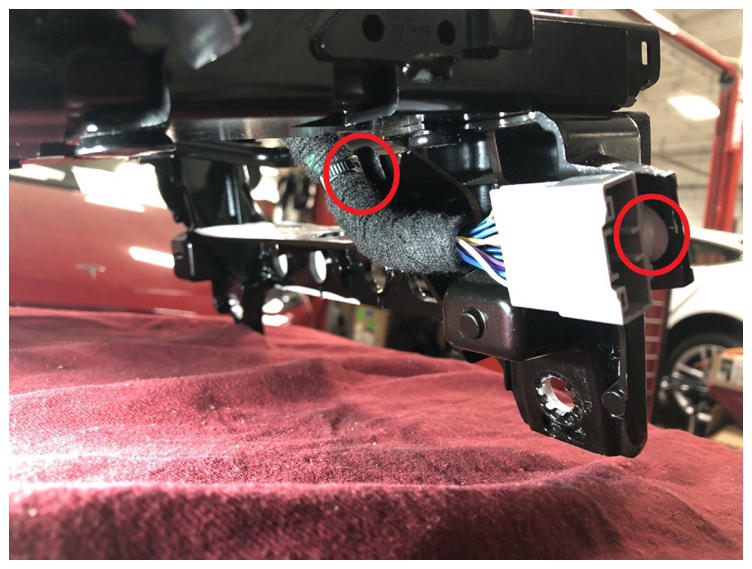

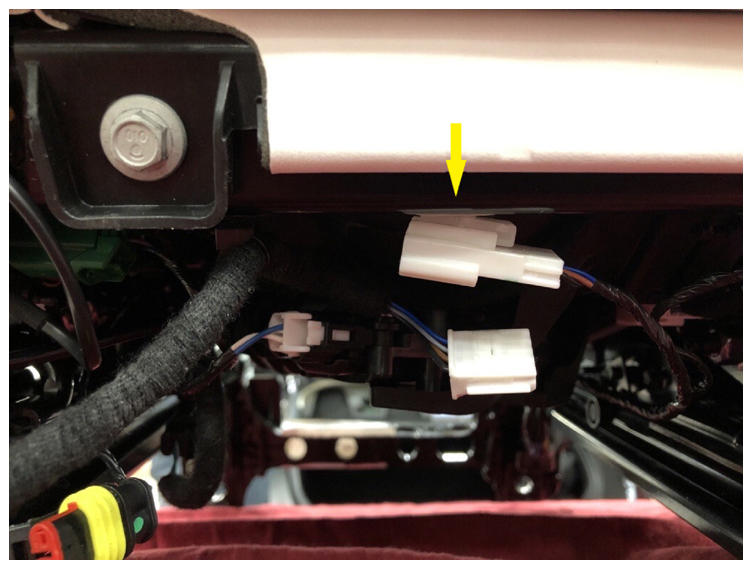

  17. Release the clips that attach the RH 2nd row seat cushion harness to the podium.
    G14822703Courtesy of TESLA, INC.

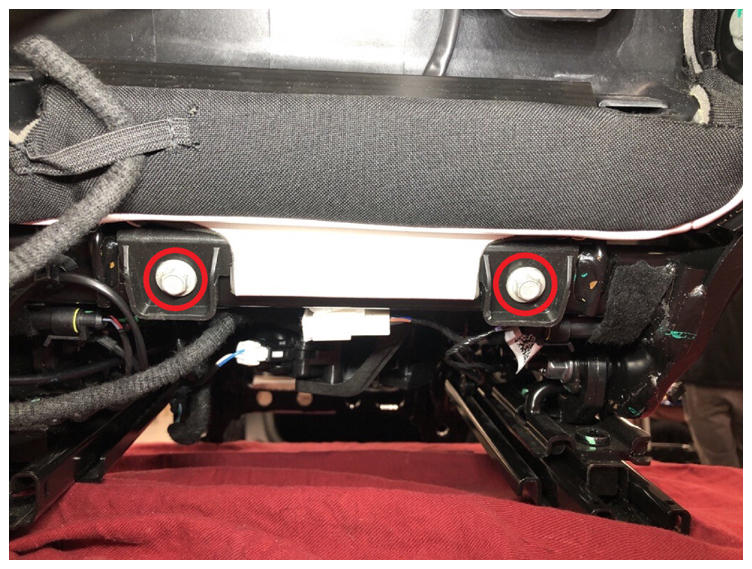

  18. Remove the bolts that attach the RH 2nd row seat cushion pan to the seat frame.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G14822705Courtesy of TESLA, INC.

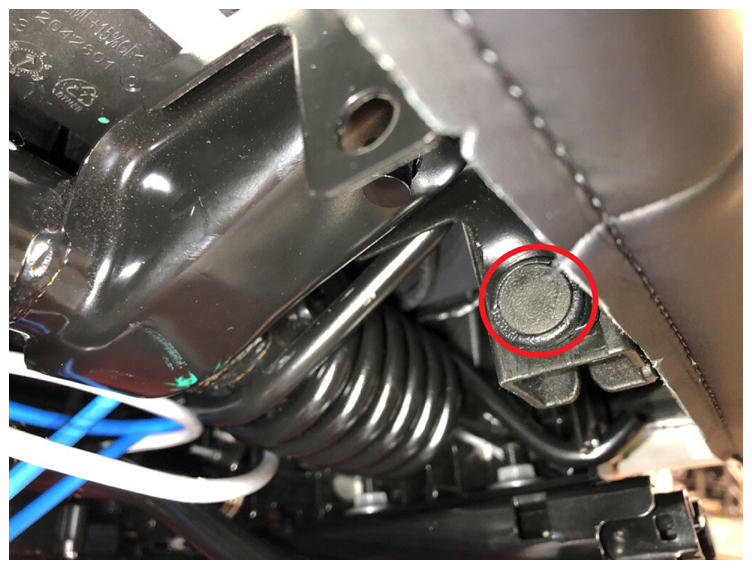

  19. Remove the clip that attaches the RH 2nd row seat cushion pan to the seat frame.
    G14822706Courtesy of TESLA, INC.

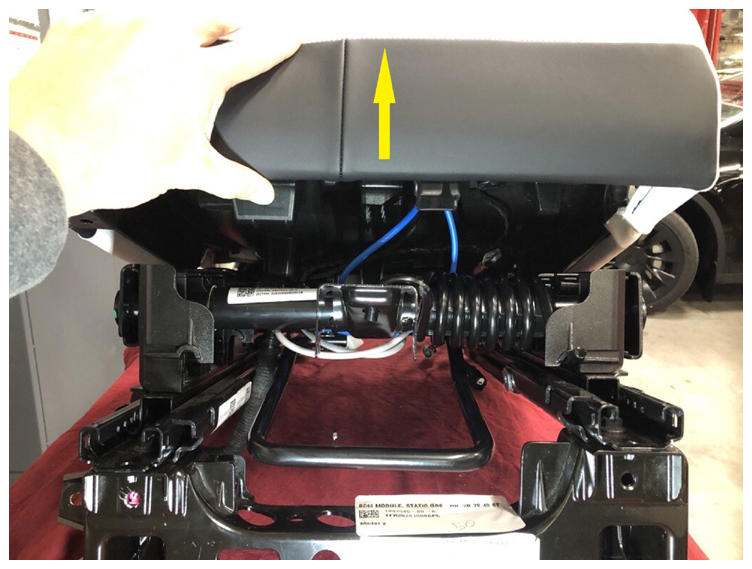

  20. Slightly lift the RH 2nd row seat cushion pan upward, but do not fully remove the cushion at this time.
    G14822707Courtesy of TESLA, INC.

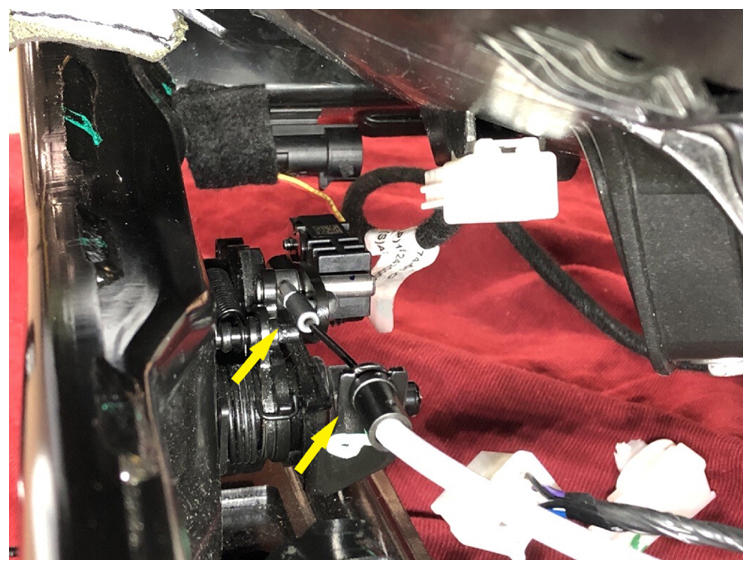

  21. Release the clips that attach the RH 2nd row seat floor latch actuator cable from the RH floor latch.
    G14822708Courtesy of TESLA, INC.

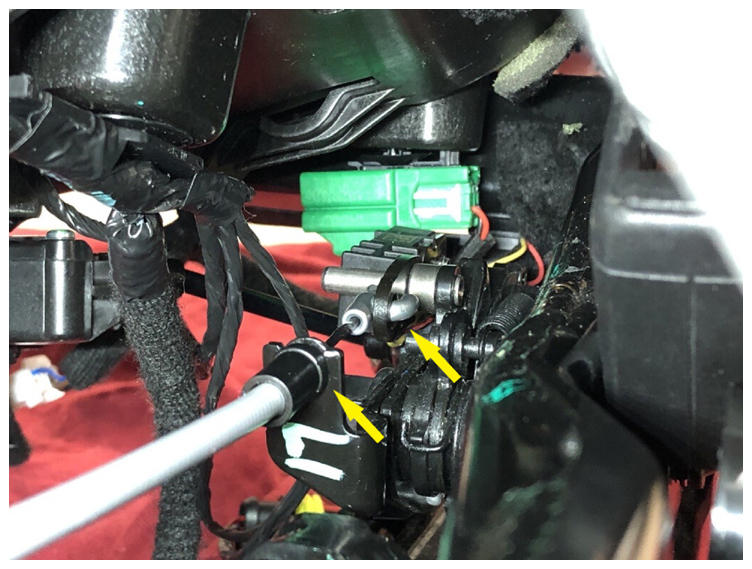

  22. Release the clips that attach the RH 2nd row seat floor latch actuator cable from the LH floor latch.
    G14822709Courtesy of TESLA, INC.

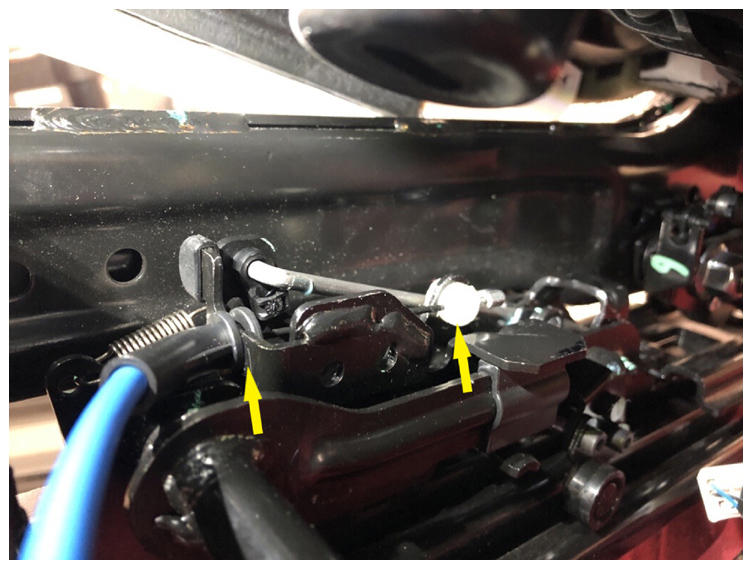

  23. Release the clips that attach the RH 2nd row seat easy entry actuator cable to the RH easy entry latch.
    G14822710Courtesy of TESLA, INC.

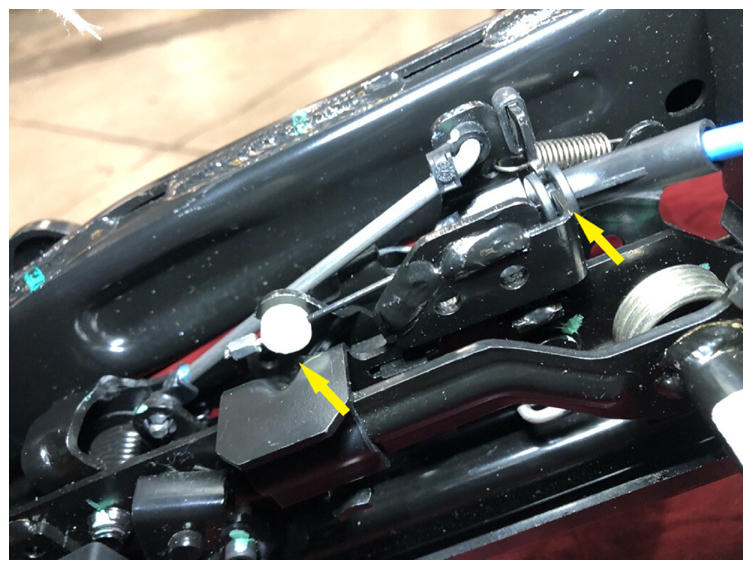

  24. Release the clips that attach the RH 2nd row seat easy entry actuator cable to the LH easy entry latch.
    G14822711Courtesy of TESLA, INC.

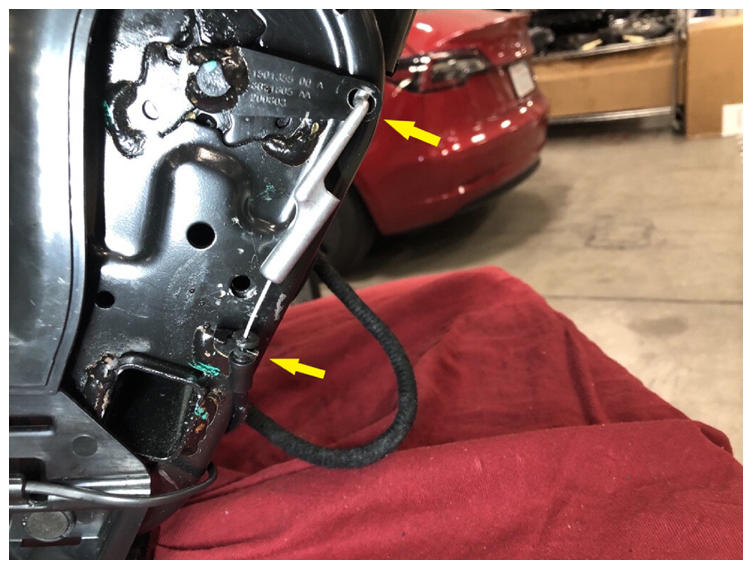

  25. Release the clips that attach the RH 2nd row seat recliner actuator cable to the recliner release arm.
    G14822712Courtesy of TESLA, INC.

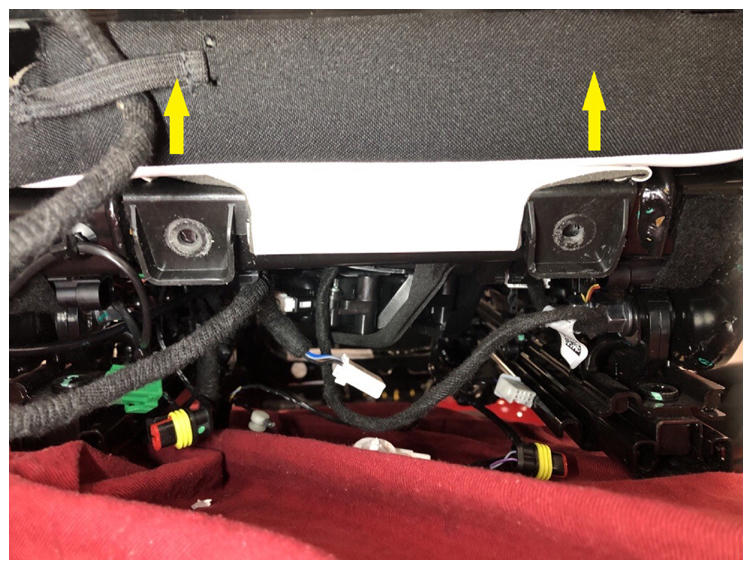

  26. Remove the RH 2nd row seat cushion assembly from seat frame.
    G14822713Courtesy of TESLA, INC.

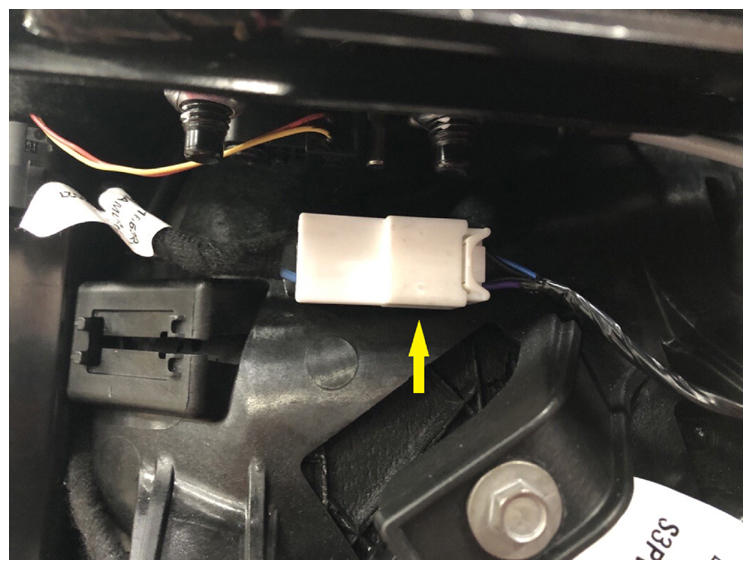

  27. Disconnect the RH 2nd row seat heat pad electrical connector.
    G14822714Courtesy of TESLA, INC.

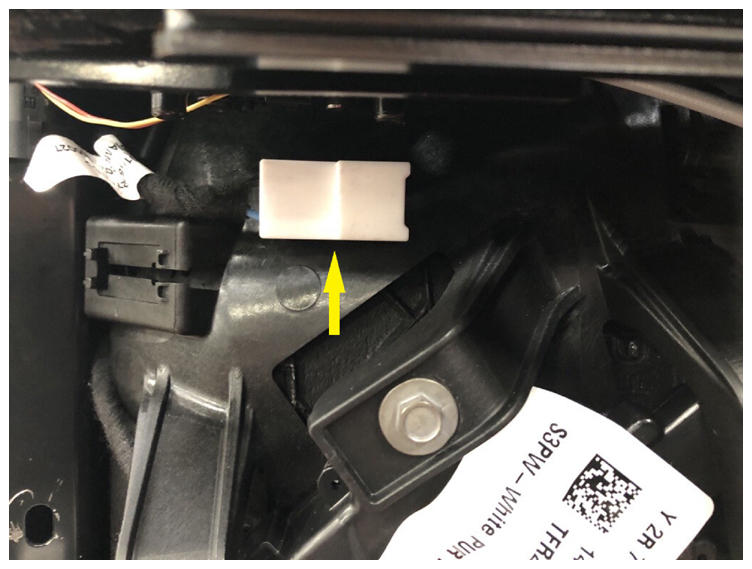

  28. Release locking tab that attaches the RH 2nd row seat heater pad connector to the cushion pan.
    G14822715Courtesy of TESLA, INC.

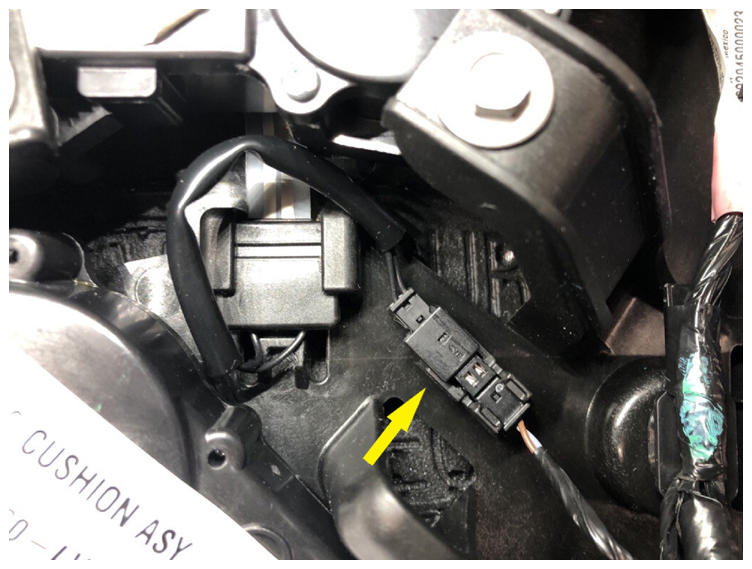

  29. Disconnect the RH 2nd row seat occupancy sensor electrical connector.
    G14822716Courtesy of TESLA, INC.

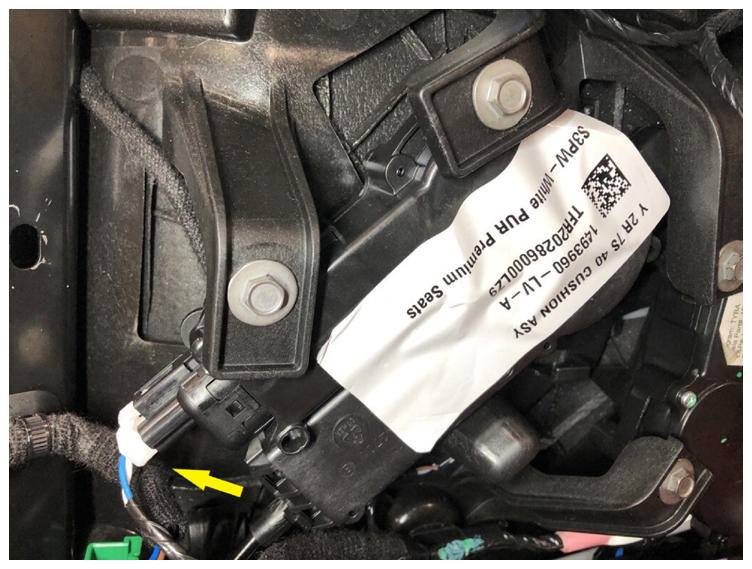

  30. Disconnect the RH 2nd row seat recliner actuator electrical connector.
    G14822717Courtesy of TESLA, INC.

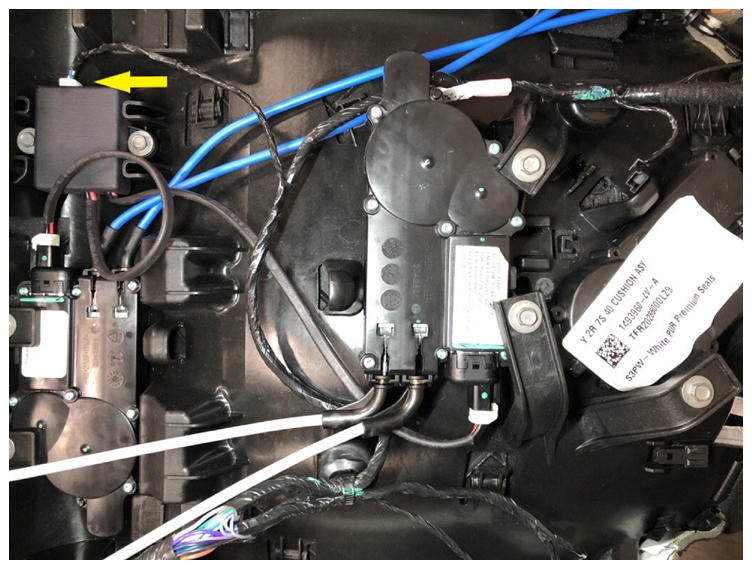

  31. Disconnect the RH 2nd row seat actuator switch box electrical connector.
    G14822718Courtesy of TESLA, INC.

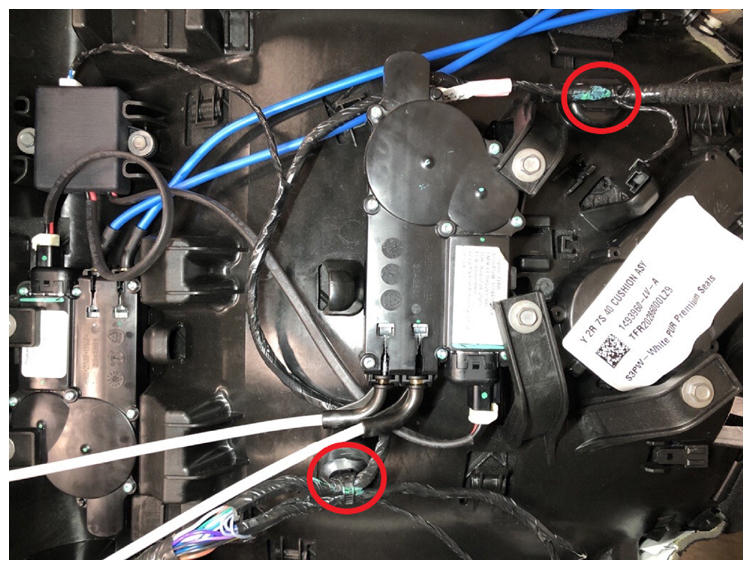

  32. Release the clips that attach the RH 2nd row seat cushion harness to the cushion pan, and then remove the harness from the assembly.
    G14822719Courtesy of TESLA, INC.

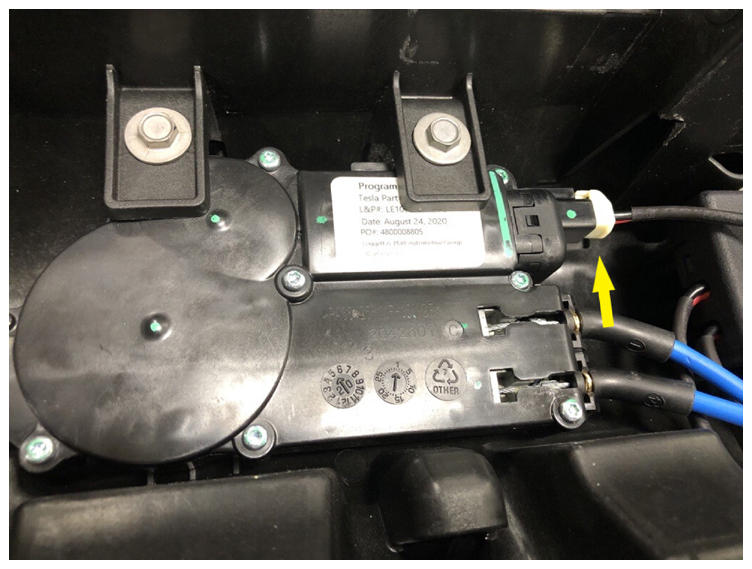

  33. Disconnect the RH 2nd row seat easy entry actuator electrical connector.
    G14822720Courtesy of TESLA, INC.

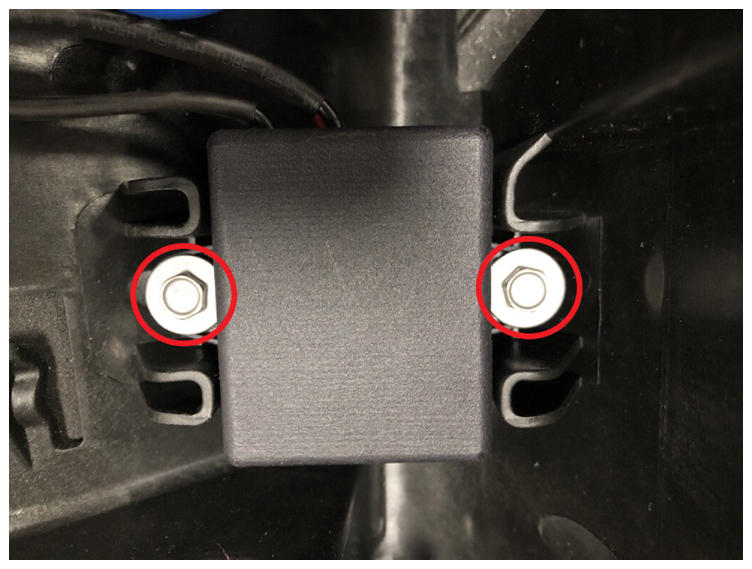

  34. Remove the bolts that attach the RH 2nd row seat actuator switch box to the seat assembly, and then remove it from the assembly.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822722Courtesy of TESLA, INC.
  35. Remove the bolts that attach the RH 2nd row seat easy entry actuator to the cushion pan, and then remove the actuator from the seat assembly.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822724Courtesy of TESLA, INC.

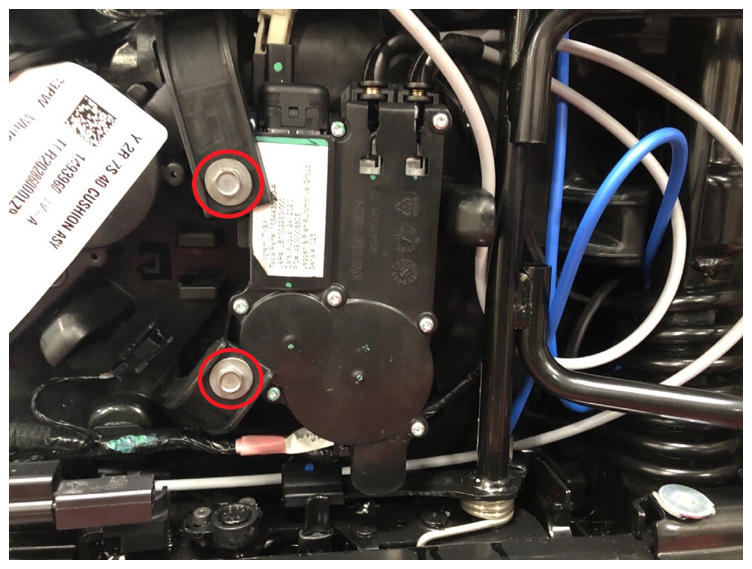

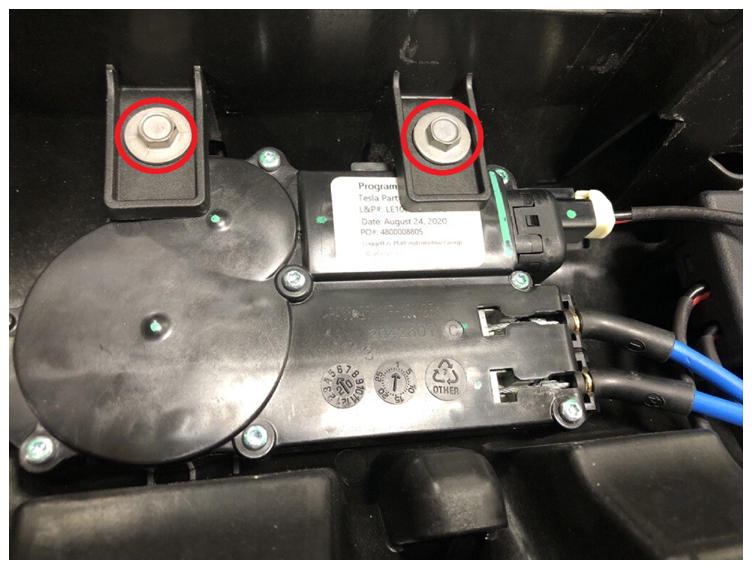

  36. Remove the bolts that attach the RH 2nd row seat floor latch actuator to the cushion pan.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822726Courtesy of TESLA, INC.

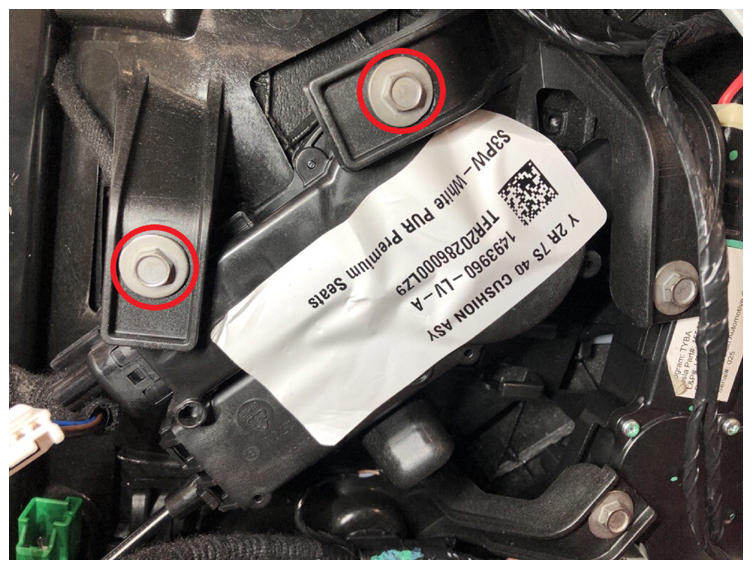

  37. Remove the bolts that attach the RH 2nd row seat recliner to the cushion pan.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822728Courtesy of TESLA, INC.
  38. Release the holding tab that attaches the RH 2nd row seat occupancy sensor harness to the cushion pan.
    G14822729Courtesy of TESLA, INC.

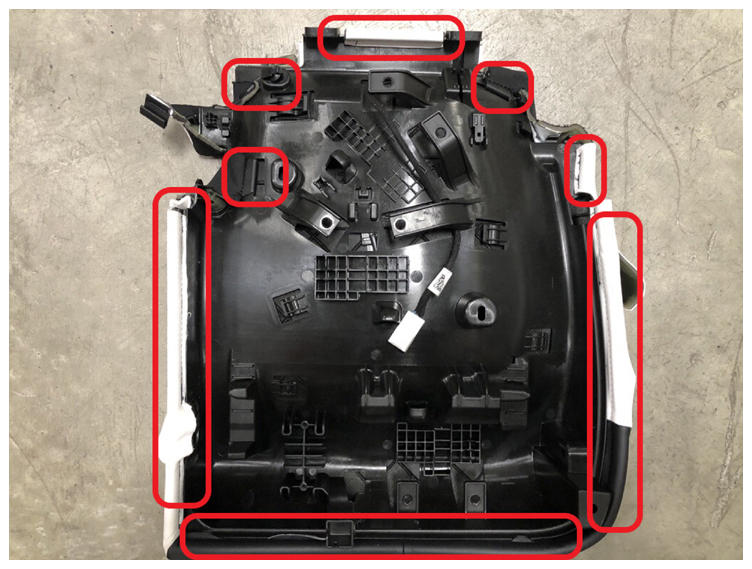

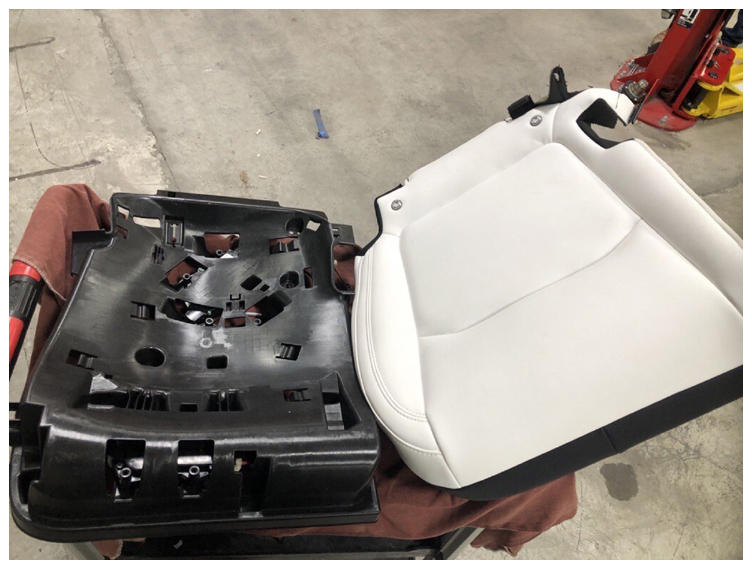

  39. Release the hooks that attach the RH 2nd row seat cushion trim cover to the cushion pan.
    G14822730Courtesy of TESLA, INC.
    G14822731Courtesy of TESLA, INC.
