Cushion Pan - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Install

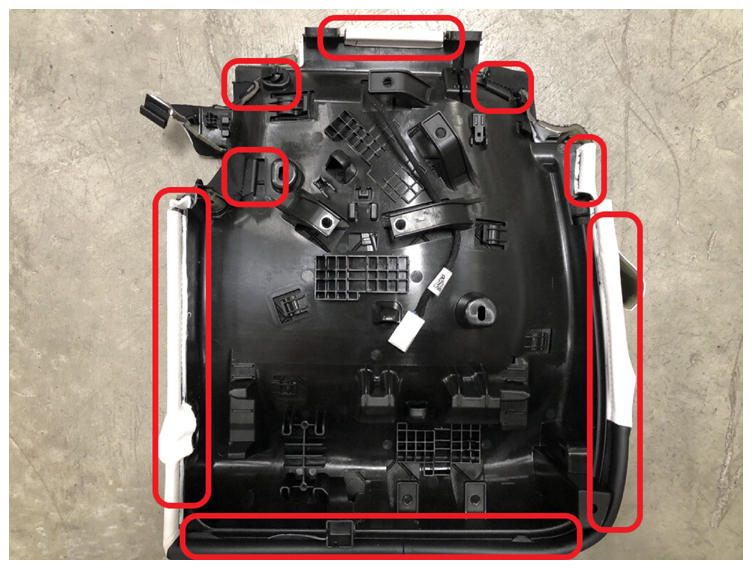

  1. Position the RH 2nd row seat cushion trim cover onto the cushion pan, and then fasten the hooks.
    G14822732Courtesy of TESLA, INC.

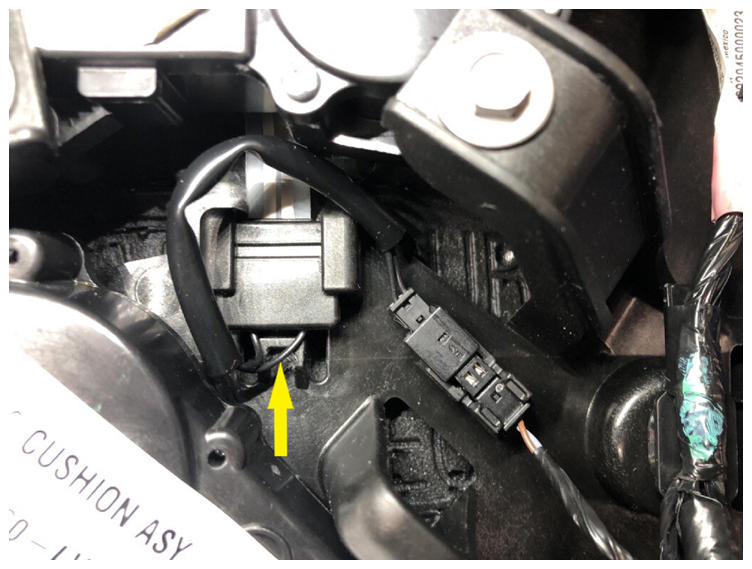

  2. Fasten the holding tab that attaches the RH 2nd row seat occupancy sensor harness to the cushion pan.
    G14822733Courtesy of TESLA, INC.

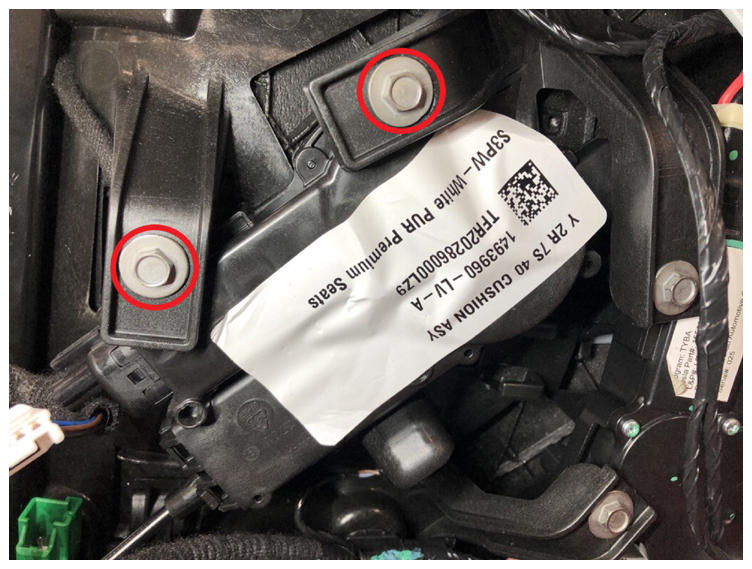

  3. Install the bolts that attach the RH 2nd row seat recliner to the cushion pan.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822735Courtesy of TESLA, INC.

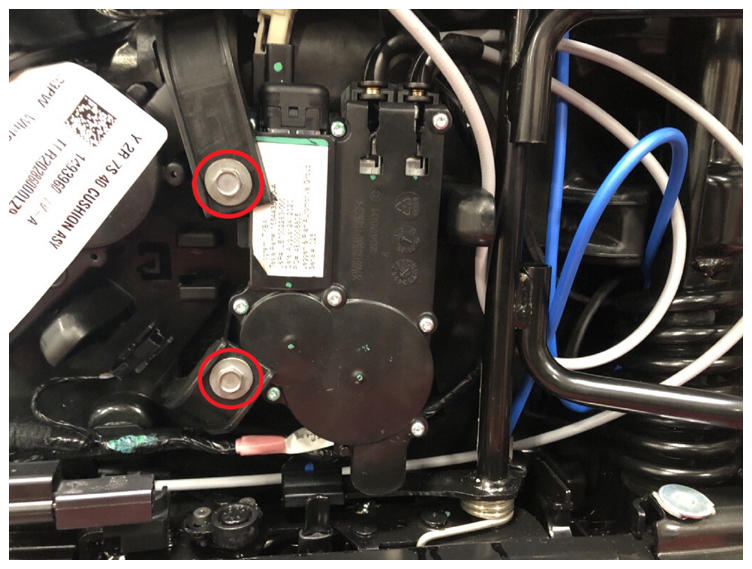

  4. Install the bolts that attach the RH 2nd row seat floor latch actuator to the cushion pan.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822737Courtesy of TESLA, INC.

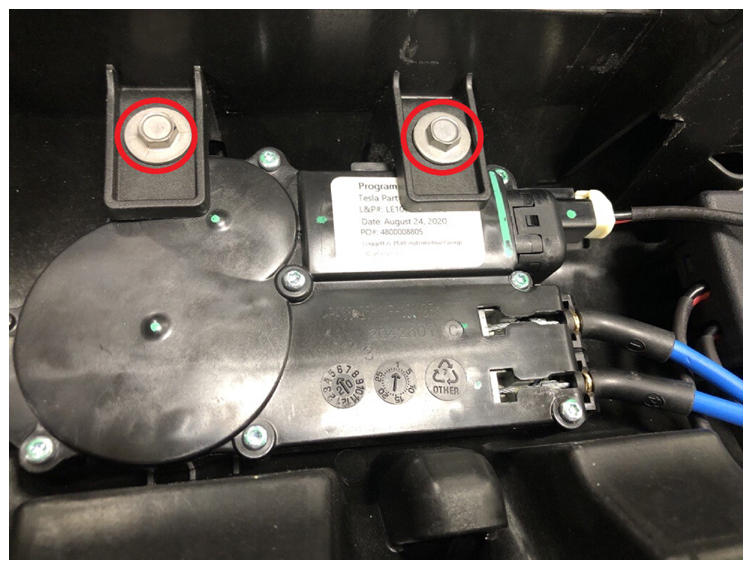

  5. Position the RH 2nd row seat easy entry actuator onto the RH second row seat assembly, and then install the bolts that attach the actuator to the assembly.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822739Courtesy of TESLA, INC.

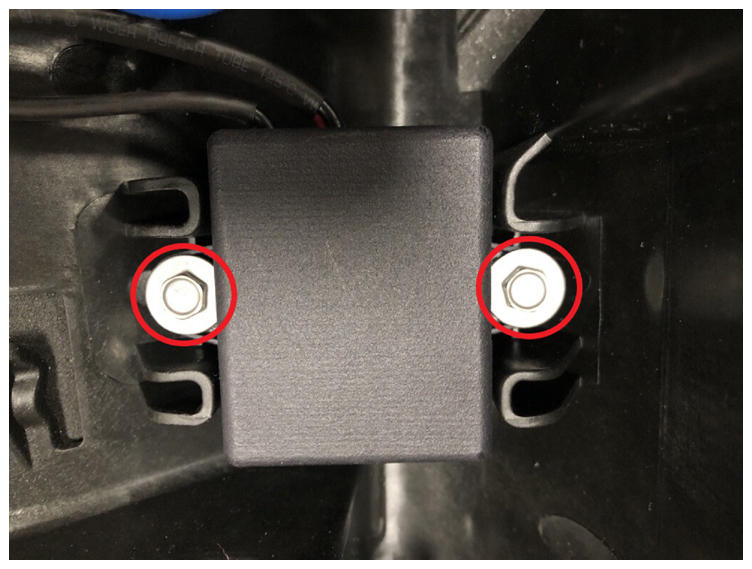

  6. Position the RH 2nd row seat actuator switch box onto the seat assembly, and then install the bolts.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14822741Courtesy of TESLA, INC.

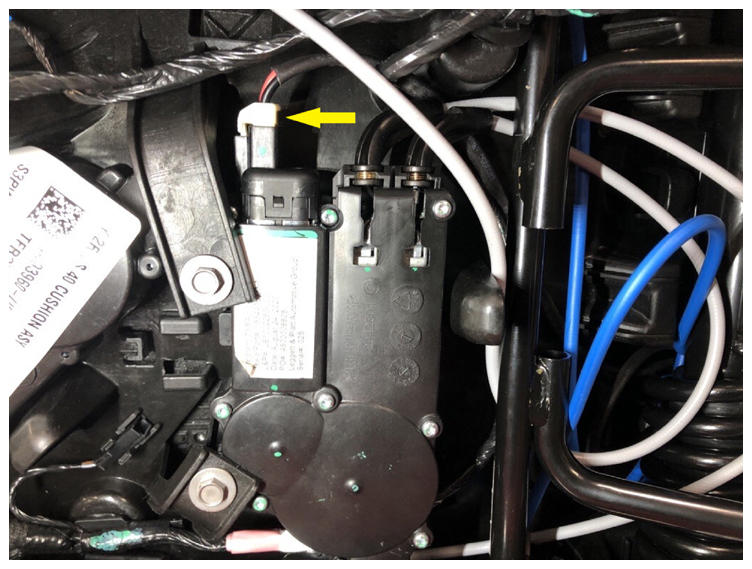

  7. Connect the RH 2nd row seat floor latch actuator electrical connector.
    G14822742Courtesy of TESLA, INC.

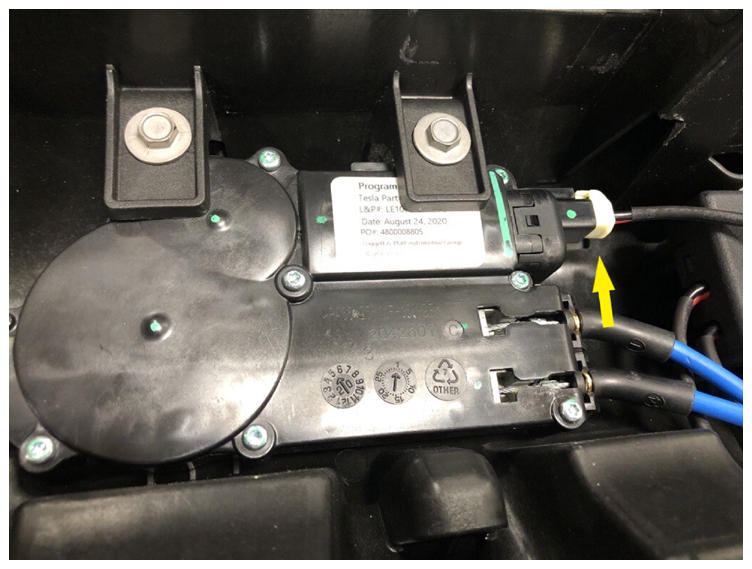

  8. Connect the RH 2nd row seat easy entry actuator electrical connector.
    G14822743Courtesy of TESLA, INC.

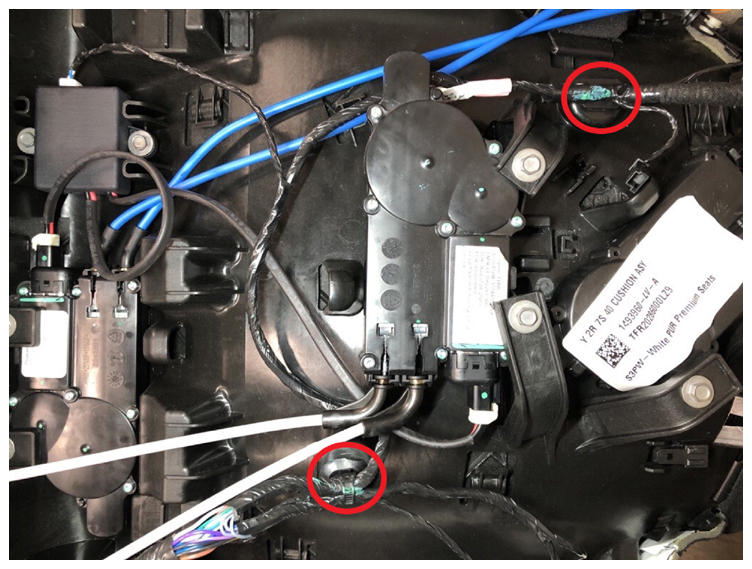

  9. Position the RH 2nd row seat cushion harness onto the cushion pan, and then install the clips that attach the harness to the cushion pan.
    G14822744Courtesy of TESLA, INC.

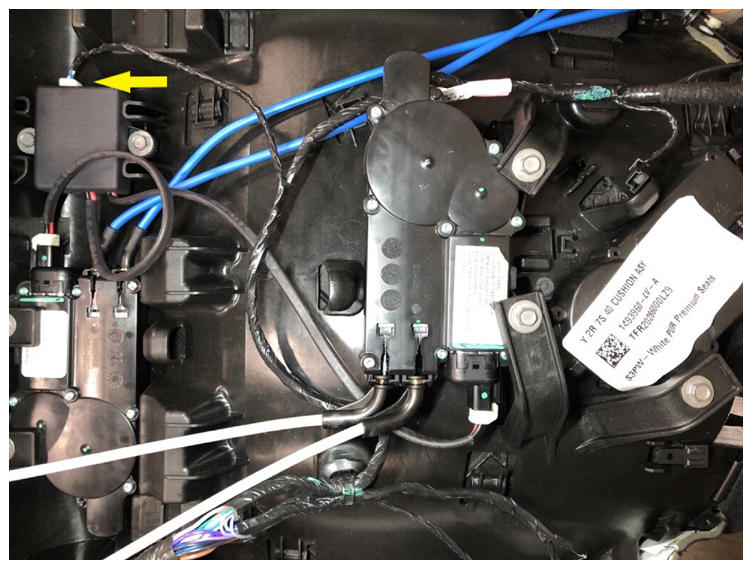

  10. Connect the RH 2nd row seat actuator switch box electrical connector.
    G14822745Courtesy of TESLA, INC.
  11. Connect the RH 2nd row seat occupancy sensor electrical connector.
    G14822746Courtesy of TESLA, INC.

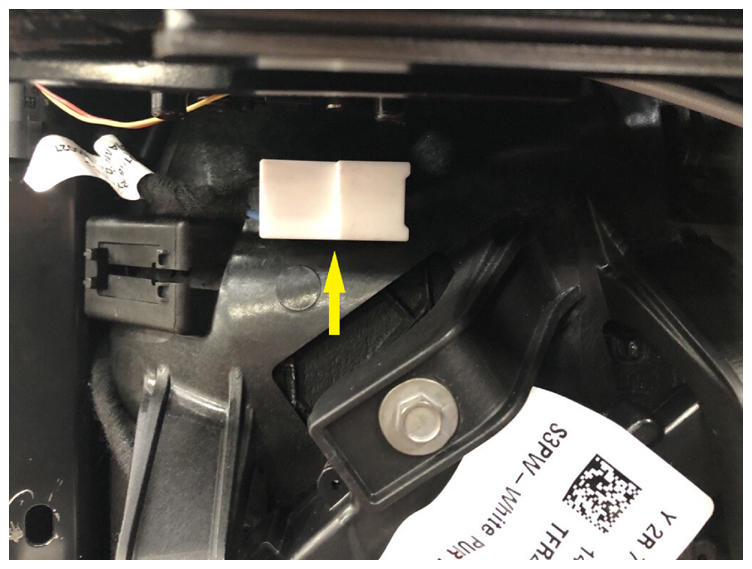

  12. Install the RH 2nd row seat heater pad connector to the cushion pan.
    G14822747Courtesy of TESLA, INC.

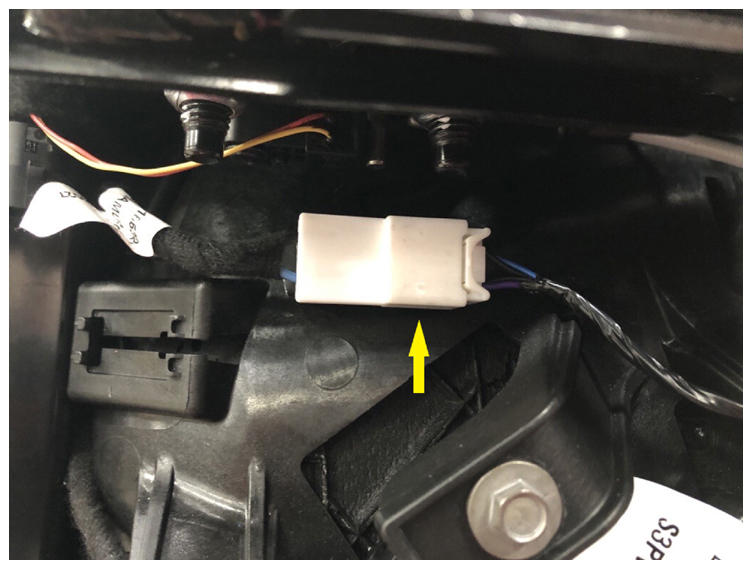

  13. Connect the RH 2nd row seat heat pad electrical connector.
    G14822748Courtesy of TESLA, INC.

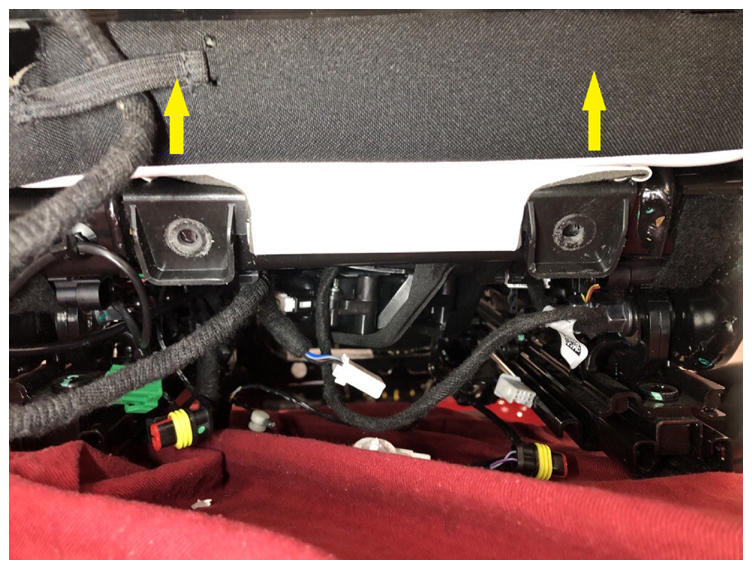

  14. Remove the RH 2nd row seat cushion assembly from seat frame.
    G14822749Courtesy of TESLA, INC.
  15. Position the RH 2nd row seat cushion assembly onto the seat from, but do not fully seat the cushion assembly.

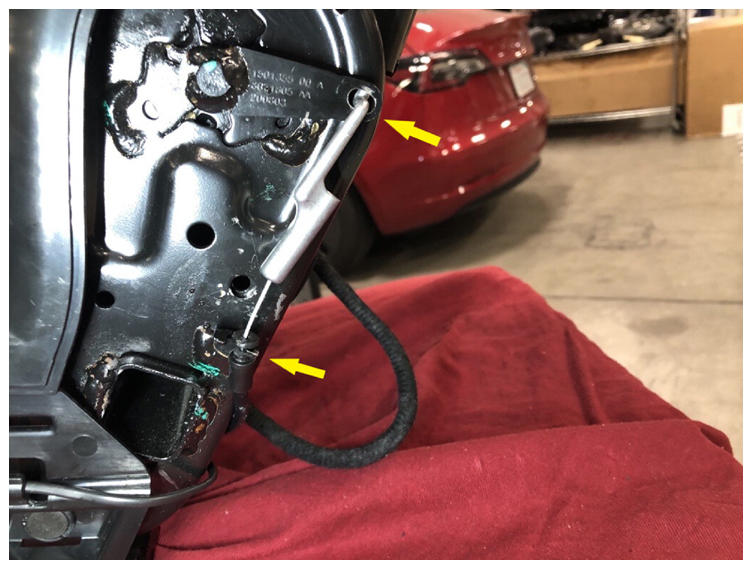

  16. Fasten the clips that attach the RH 2nd row seat recliner actuator cable to the recliner release arm.
    G14822750Courtesy of TESLA, INC.

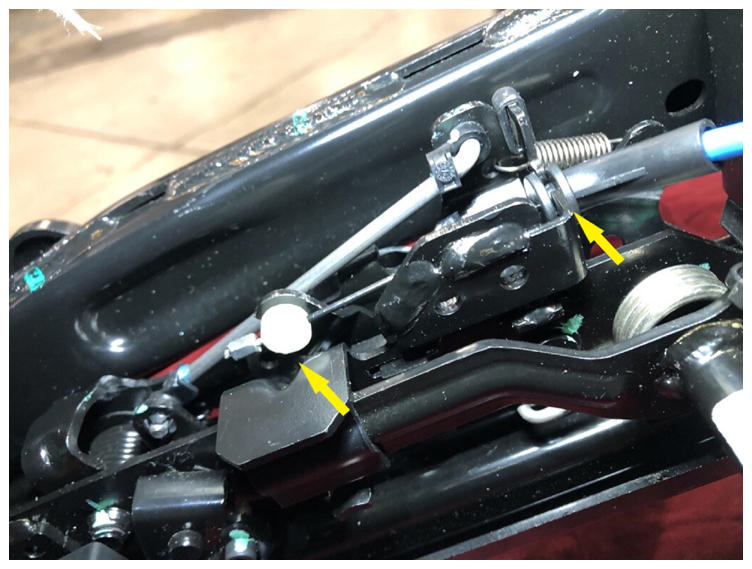

  17. Install the RH 2nd row seat easy entry actuator cable to the LH easy entry latch.
    G14822751Courtesy of TESLA, INC.

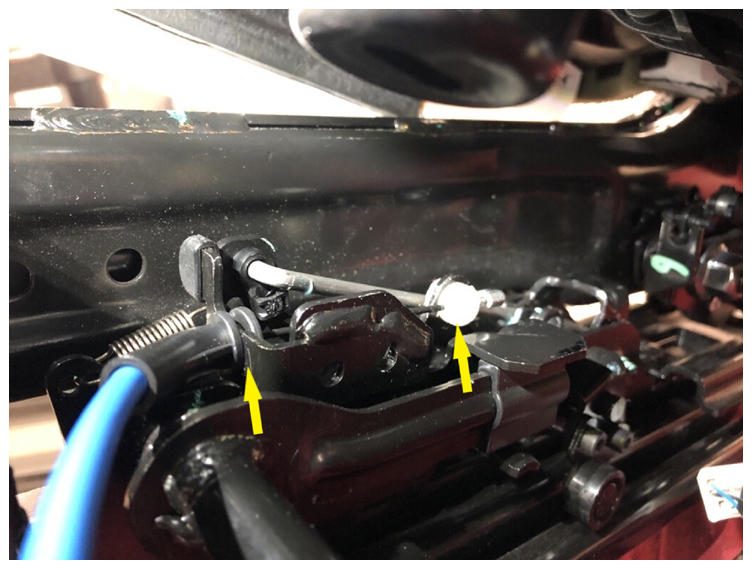

  18. Install the RH 2nd row seat easy entry actuator cable to the RH easy entry latch.
    G14822752Courtesy of TESLA, INC.

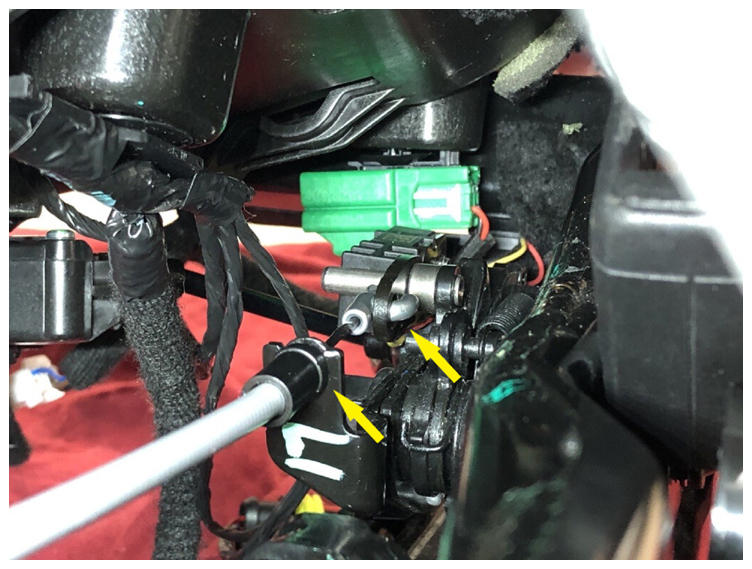

  19. Install the RH 2nd row seat floor latch actuator cable to the LH floor latch.
    G14822753Courtesy of TESLA, INC.

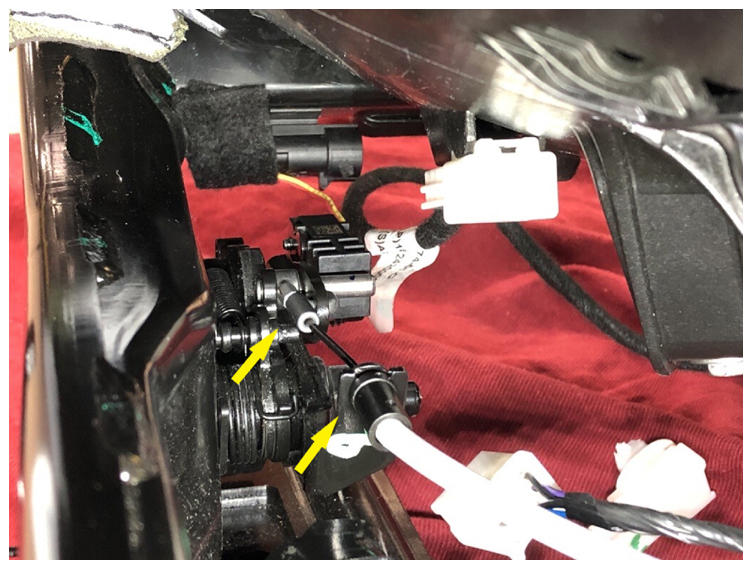

  20. Install the RH 2nd row seat floor latch actuator cable from the RH floor latch.
    G14822754Courtesy of TESLA, INC.
  21. Push downward on the RH 2nd row seat cushion assembly to fully seat it to the seat frame.

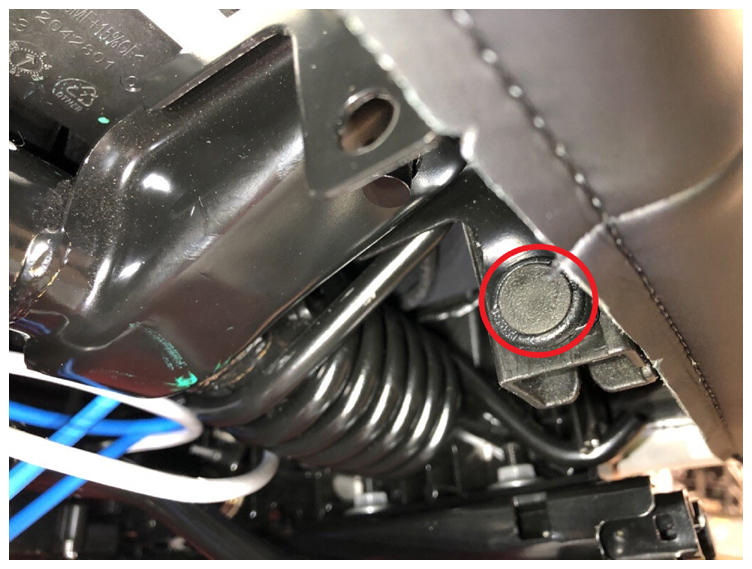

  22. Install the clip that attaches the RH 2nd row seat cushion pan to the seat frame.
    G14822755Courtesy of TESLA, INC.

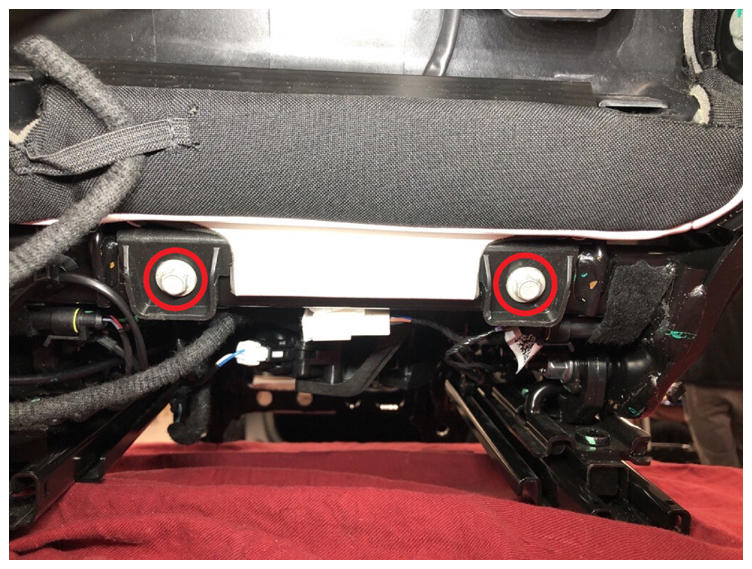

  23. Install the bolts that attach the RH 2nd row seat cushion pan to the seat frame.

    Torque 2.5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G14822757Courtesy of TESLA, INC.

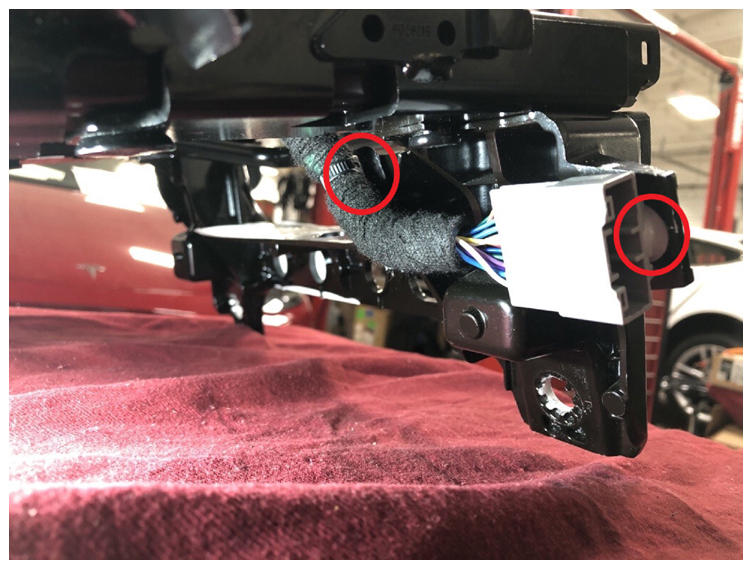

  24. Fasten the clips that attach the RH 2nd row seat cushion harness to the podium.
    G14822758Courtesy of TESLA, INC.

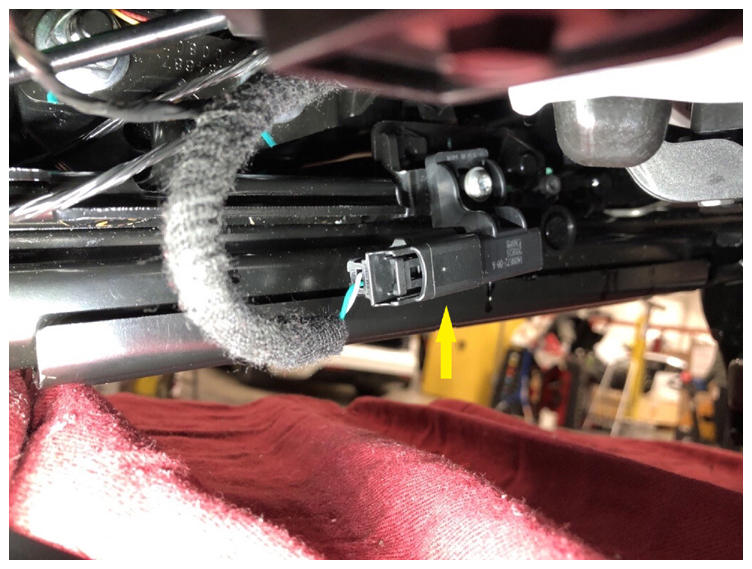

  25. Connect the RH 2nd row seat track position sensor electrical connector.
    G14822759Courtesy of TESLA, INC.

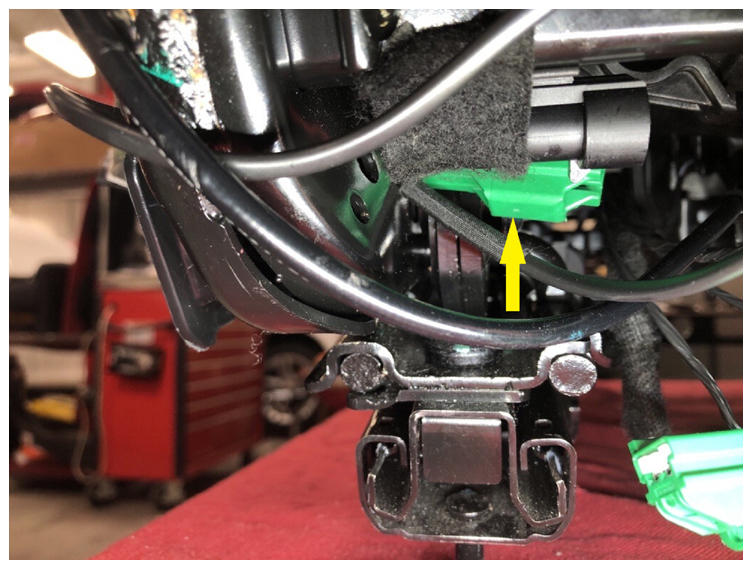

  26. Fasten the clip that attaches the RH 2nd row seat seatbelt buckle connector to the cushion pan.
    G14822760Courtesy of TESLA, INC.

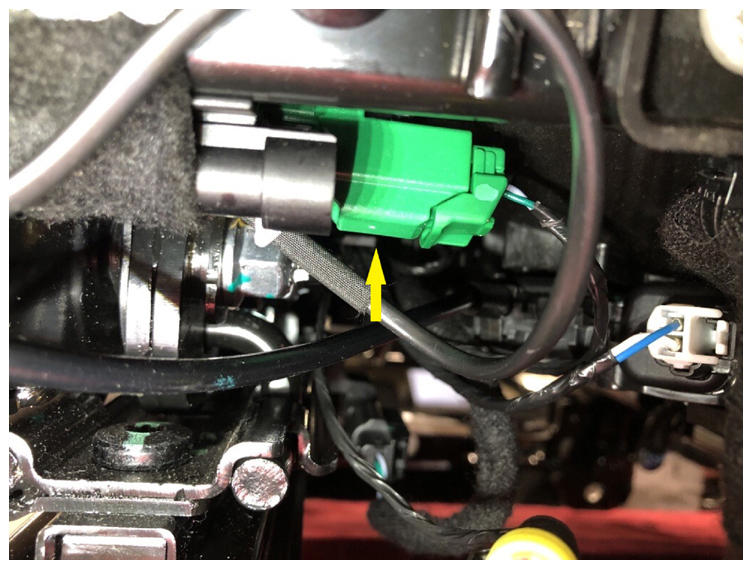

  27. Connect the RH 2nd row seat seatbelt buckle electrical connector.
    G14822761Courtesy of TESLA, INC.

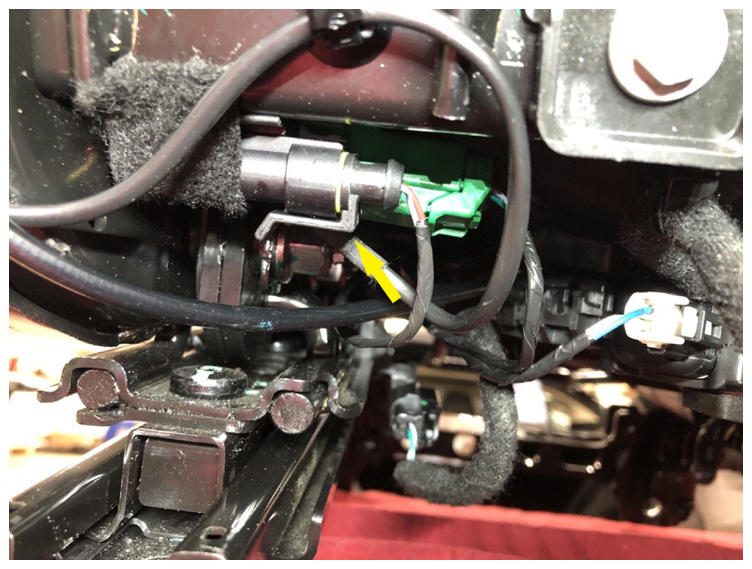

  28. Connect the RH 2nd row seat LH floor latch electrical connector.
    G14822762Courtesy of TESLA, INC.

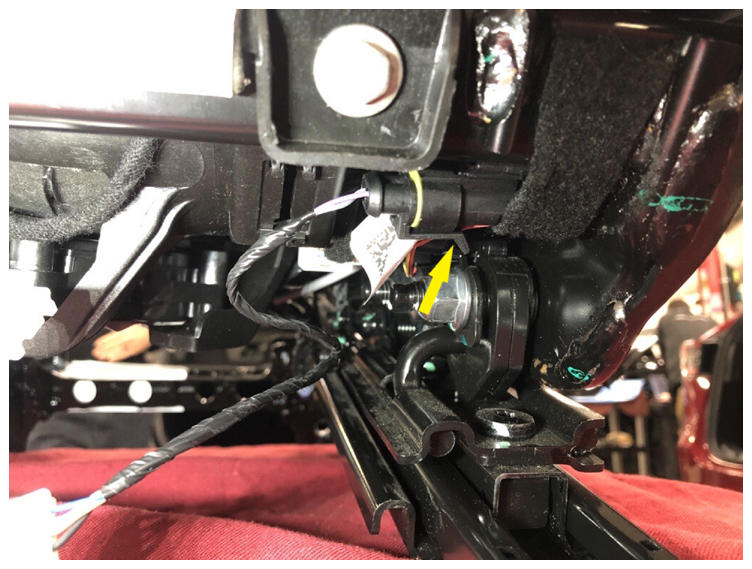

  29. Connect the RH 2nd row seat RH floor latch electrical connector.
    G14822763Courtesy of TESLA, INC.

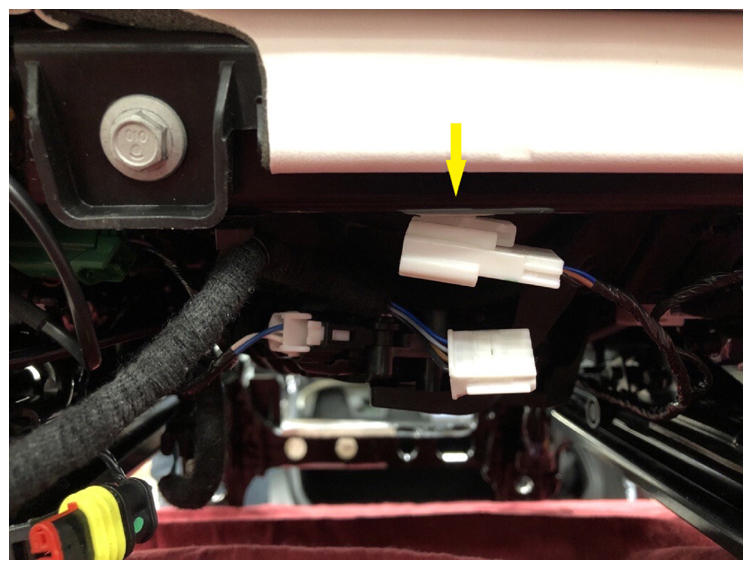

  30. Install the clip that attaches the RH 2nd row seat cushion harness connector to the seat frame.
    G14822764Courtesy of TESLA, INC.

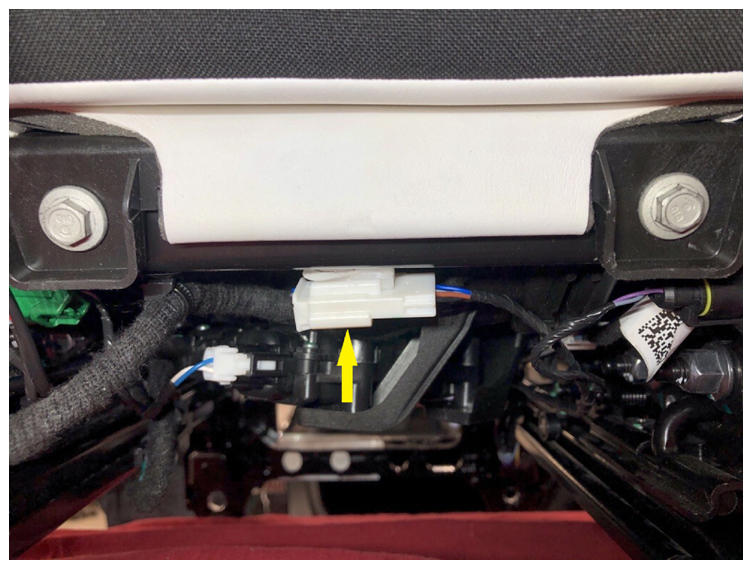

  31. Connect the LH 2nd row seatback harness electrical connector.
    G14822765Courtesy of TESLA, INC.

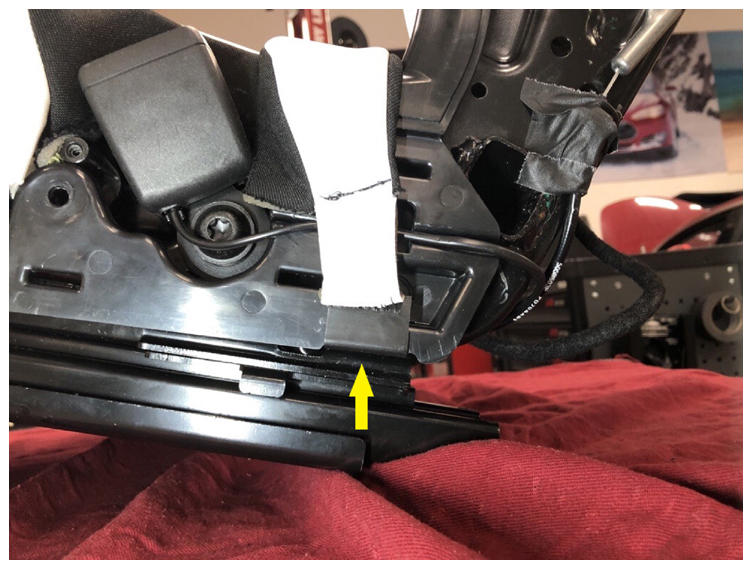

  32. Fasten the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
    G14822766Courtesy of TESLA, INC.

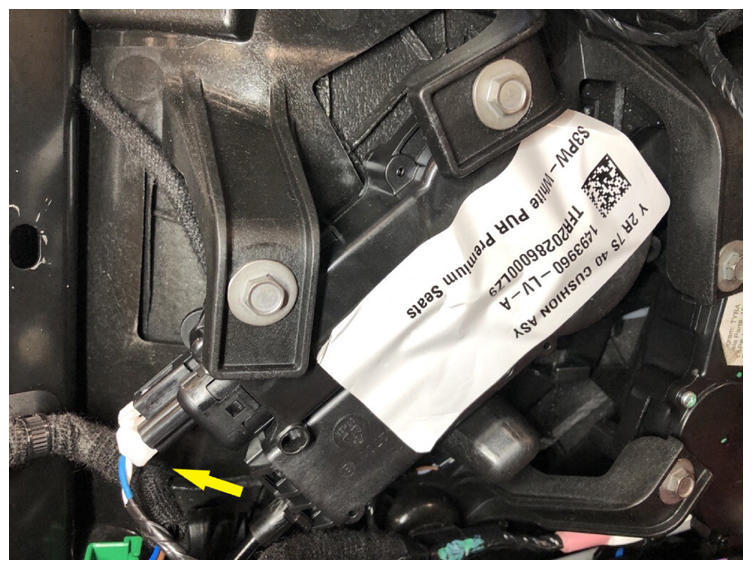

  33. Disconnect the RH 2nd row seat recliner actuator electrical connector.
    G14822767Courtesy of TESLA, INC.
  34. Using the seat fold tool, connect the recliner actuator electrical connector into the recliner actuator, and then activate the switch to fold the RH 2nd row seat down.
  35. Disconnect the seat fold tool from the RH 2nd row seat.
  36. Connect the RH 2nd row seat recliner actuator electrical connector.

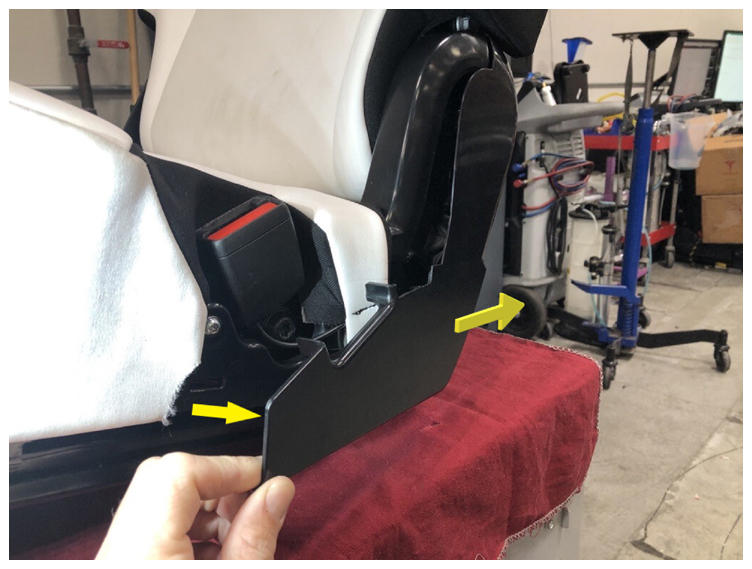

  37. Position the RH 2nd row seat outer B-cover onto the inner B-cover, and then install the clips (x4).
    G14822768Courtesy of TESLA, INC.

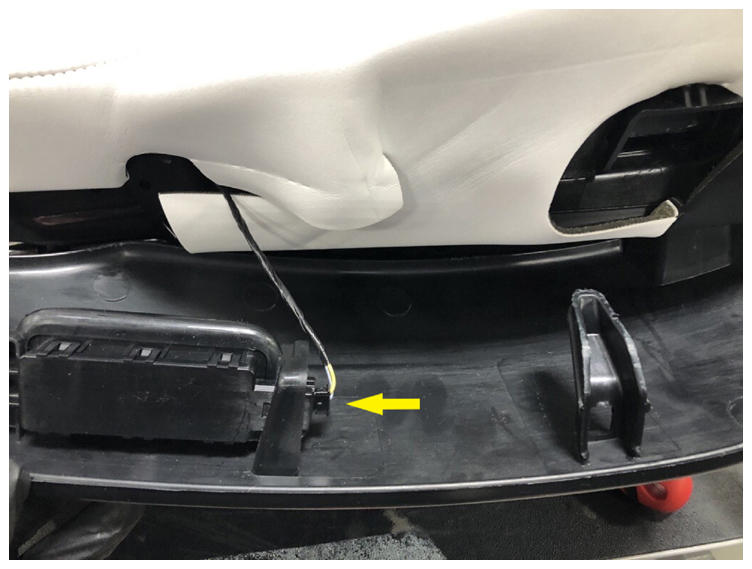

  38. Connect the RH 2nd row seat side shield electrical connector.
    G14822769Courtesy of TESLA, INC.

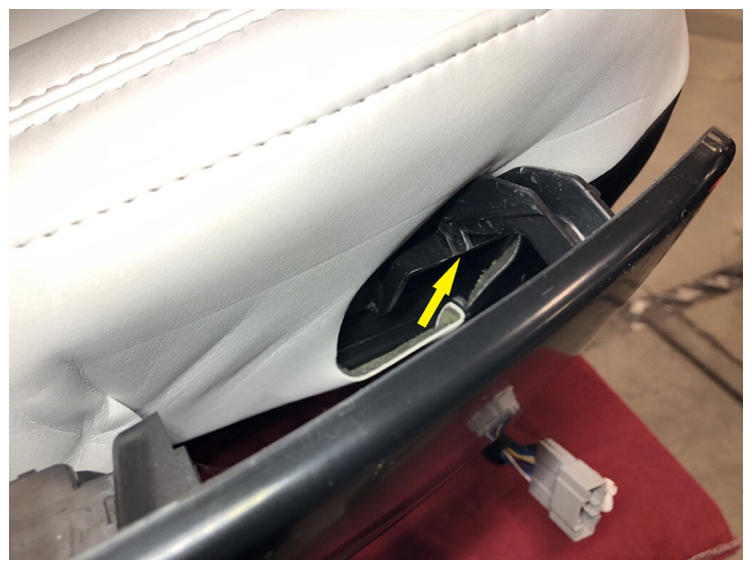

  39. Position the RH 2nd row seat side shield onto the RH 2nd row seat assembly, and then install the clip.
    G14822770Courtesy of TESLA, INC.

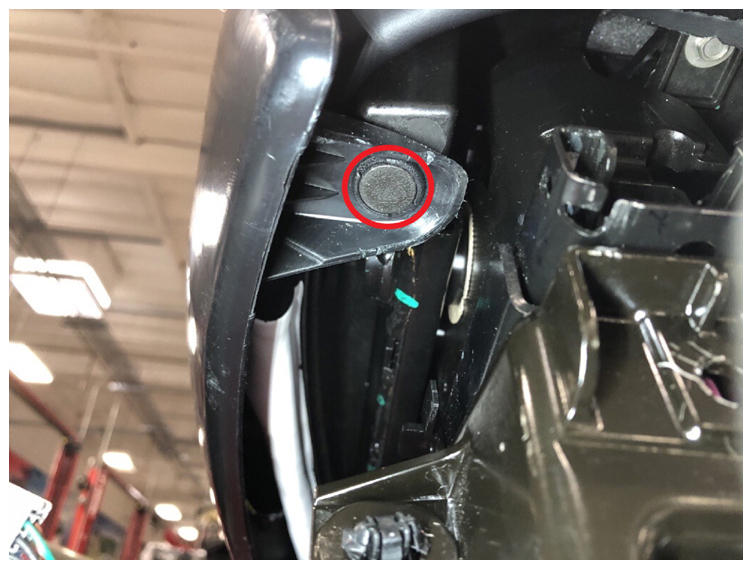

  40. Install the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14822771Courtesy of TESLA, INC.

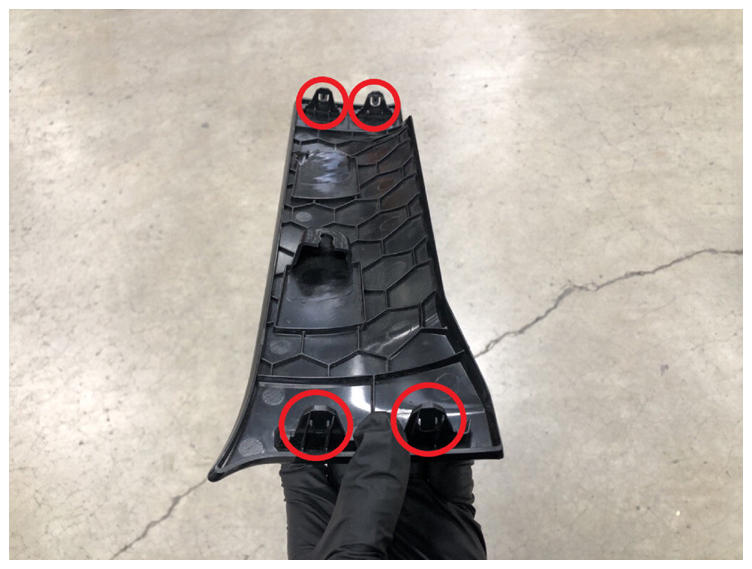

  41. Install the RH 2nd row seat toe kick cover.
    G14822772Courtesy of TESLA, INC.
  42. Install the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
