Remove And Replace

  1. Open RH front and rear doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward

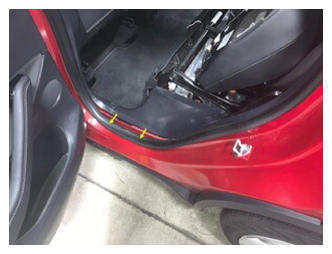

  5. Partially remove LH rear door seal
    G14822560Courtesy of TESLA, INC.

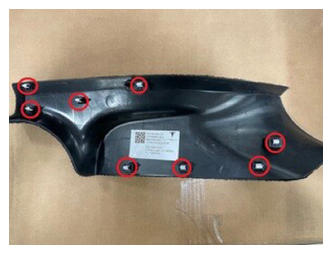

  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim

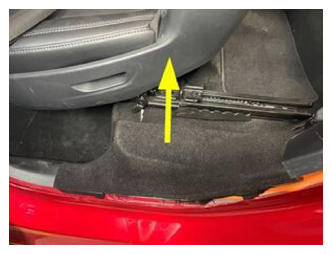

    G14822561Courtesy of TESLA, INC.
    G14822562Courtesy of TESLA, INC.

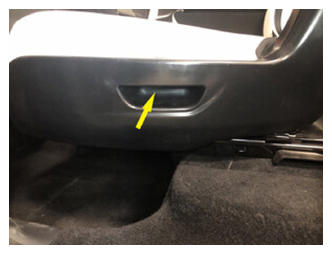

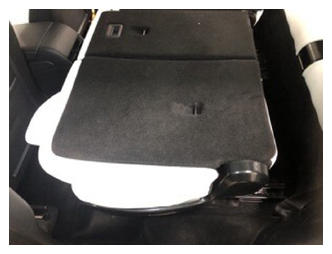

  7. Fold 60 seat into down position
    G14822563Courtesy of TESLA, INC.
    G14822564Courtesy of TESLA, INC.
  8. Disconnect logic connector at LH seat frame
    NOTE: 1x connector
    G14822565Courtesy of TESLA, INC.

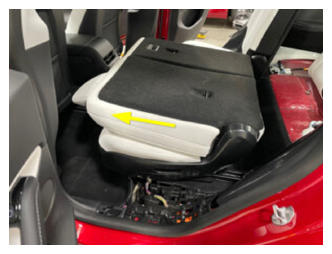

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14822566Courtesy of TESLA, INC.
    G14822567Courtesy of TESLA, INC.
  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal
    G14822568Courtesy of TESLA, INC.
  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14822569Courtesy of TESLA, INC.
  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand

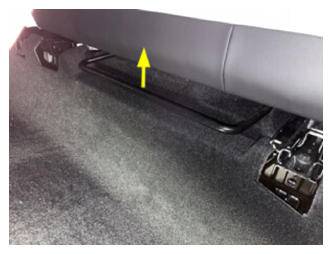

    G14822570Courtesy of TESLA, INC.

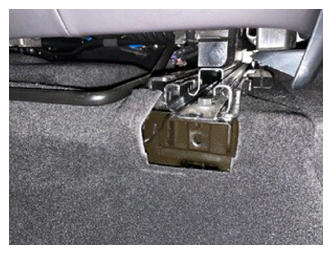

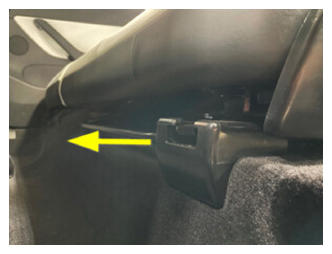

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14822571Courtesy of TESLA, INC.
    G14822572Courtesy of TESLA, INC.
    G14822573Courtesy of TESLA, INC.

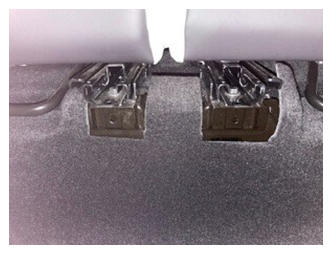

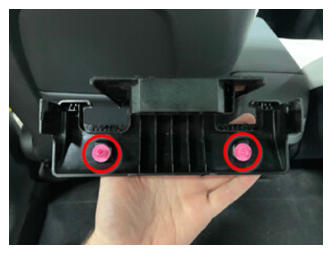

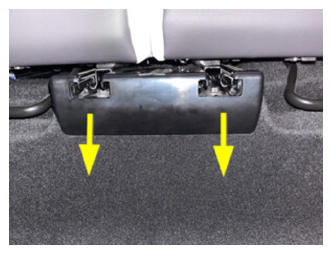

  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks
    G14822574Courtesy of TESLA, INC.
    G14822575Courtesy of TESLA, INC.
    G14822576Courtesy of TESLA, INC.

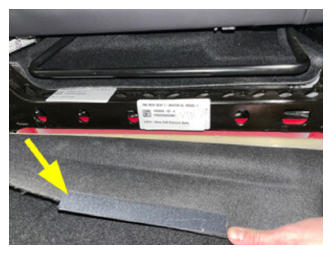

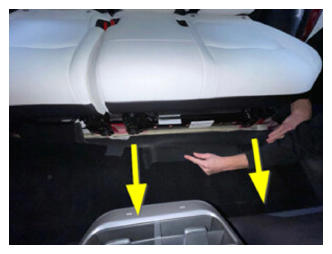

  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14822577Courtesy of TESLA, INC.
    G14822578Courtesy of TESLA, INC.
  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14822579Courtesy of TESLA, INC.

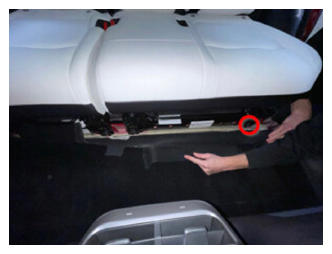

  17. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14822580Courtesy of TESLA, INC.

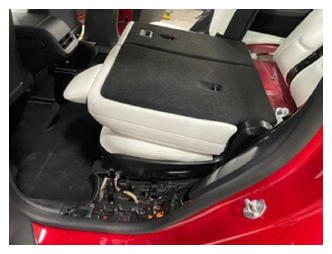

  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14822581Courtesy of TESLA, INC.
    G14822582Courtesy of TESLA, INC.

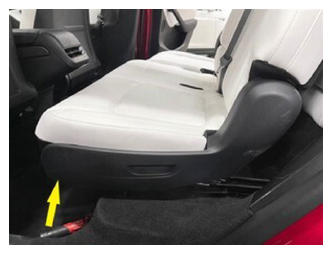

  19. Remove front push clip from 60 outer sideshield assembly
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover

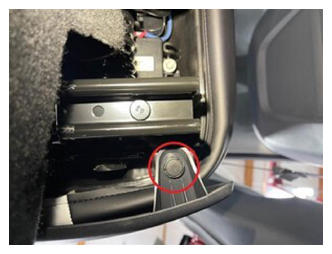

    G14822583Courtesy of TESLA, INC.
    G14822584Courtesy of TESLA, INC.

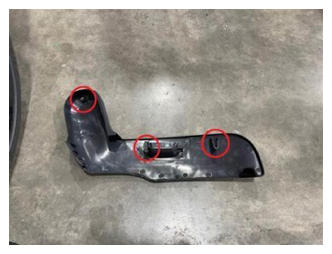

  20. Remove 60 outer sideshield assembly
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14822585Courtesy of TESLA, INC.
    G14822586Courtesy of TESLA, INC.
  21. Remove 60 seat toe kick cover
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G14822587Courtesy of TESLA, INC.
    G14822588Courtesy of TESLA, INC.

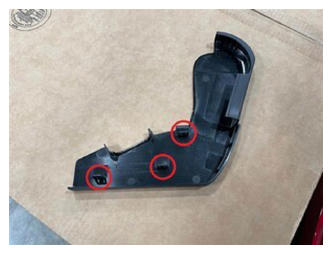

  22. Release clips and remove inboard outer trim from 60 seat
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle

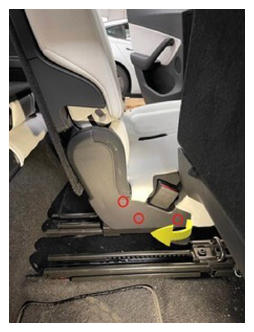

    G14822589Courtesy of TESLA, INC.
    G14822590Courtesy of TESLA, INC.

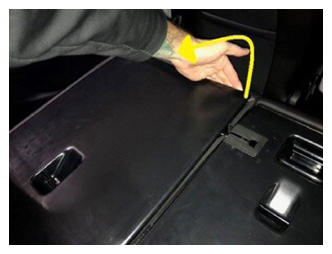

  23. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14822591Courtesy of TESLA, INC.

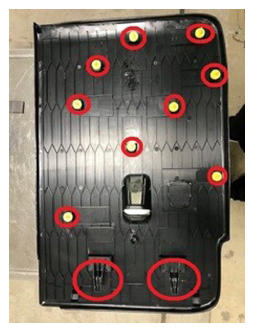

    G14822592Courtesy of TESLA, INC.

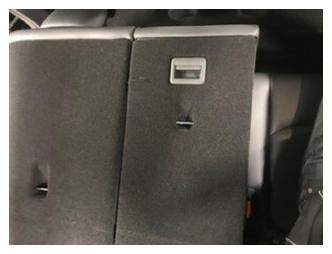

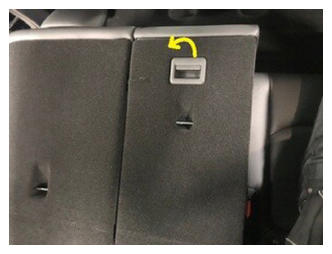

  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal
    G14822593Courtesy of TESLA, INC.
    G14822594Courtesy of TESLA, INC.

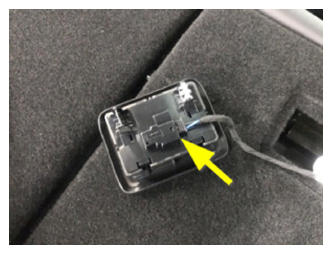

    G14822595Courtesy of TESLA, INC.

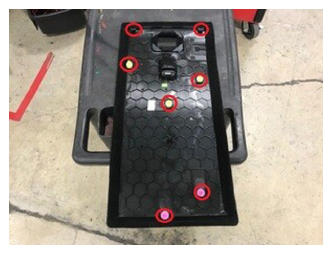

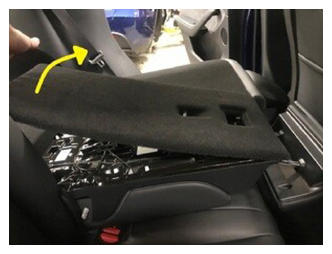

  25. Remove center backpanel from center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release

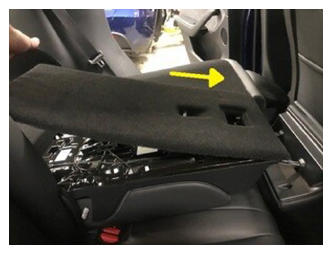

    G14822596Courtesy of TESLA, INC.
    G14822597Courtesy of TESLA, INC.
    G14822598Courtesy of TESLA, INC.

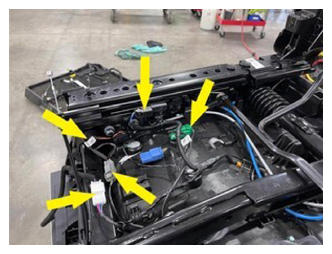

  26. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors

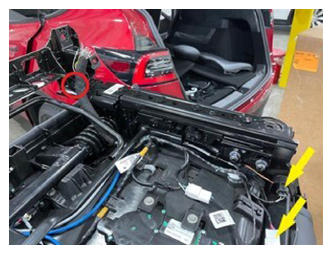

    G14822599Courtesy of TESLA, INC.
    G14822600Courtesy of TESLA, INC.

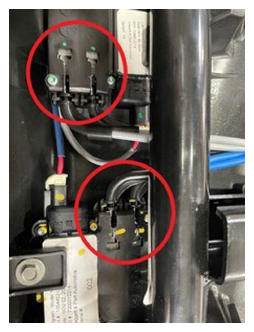

  27. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14822601Courtesy of TESLA, INC.

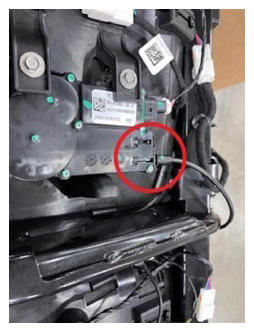

  28. Remove cable from 60 fold actuator
    NOTE: 1x clip, Remove cable from 60 fold actuator
    G14822602Courtesy of TESLA, INC.

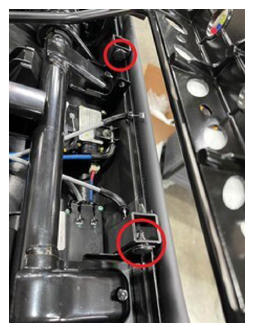

  29. Remove push clips for 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14822603Courtesy of TESLA, INC.

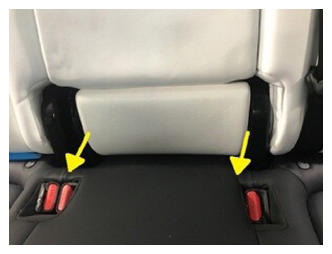

  30. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14822604Courtesy of TESLA, INC.
    G14822605Courtesy of TESLA, INC.
  31. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14822606Courtesy of TESLA, INC.

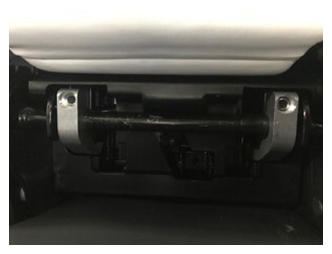

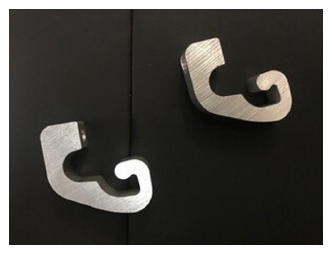

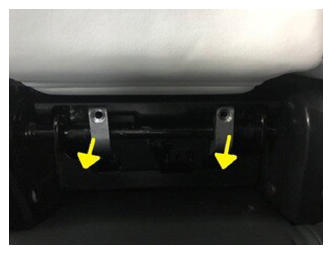

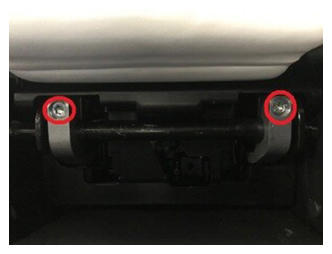

  32. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14822607Courtesy of TESLA, INC.

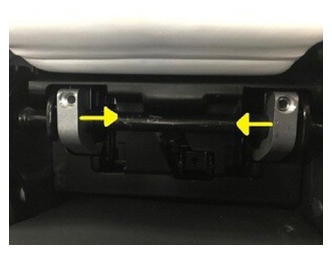

    G14822608Courtesy of TESLA, INC.
    G14822609Courtesy of TESLA, INC.
    G14822610Courtesy of TESLA, INC.
  33. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards

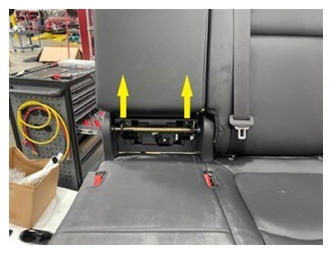

    G14822611Courtesy of TESLA, INC.

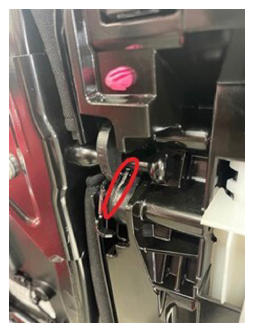

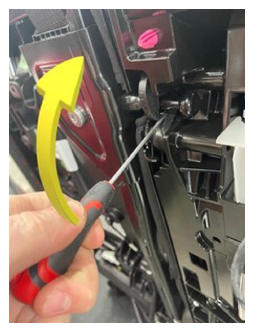

  34. Manually release the center seatback latch
    NOTE: Use small screwdriver to manipulate the center seatback latch to release
    G14822612Courtesy of TESLA, INC.
    G14822613Courtesy of TESLA, INC.

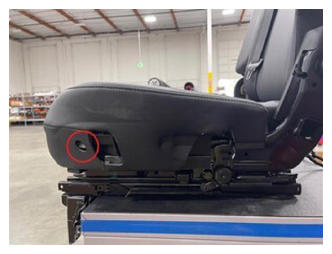

  35. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14822614Courtesy of TESLA, INC.
    G14822615Courtesy of TESLA, INC.
    G14822616Courtesy of TESLA, INC.

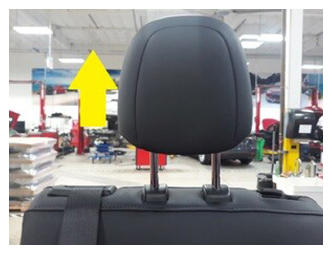

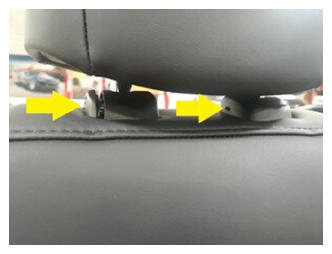

  36. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14822617Courtesy of TESLA, INC.
    G14822618Courtesy of TESLA, INC.

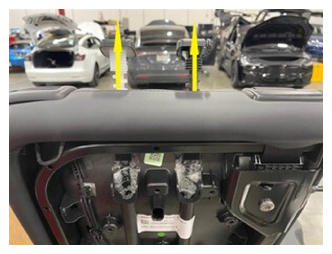

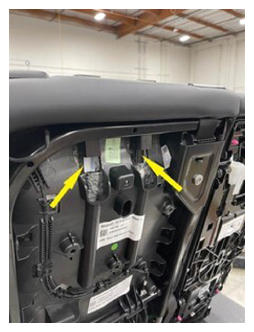

  37. Remove headrest guides from 60 seat
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G14822619Courtesy of TESLA, INC.
    G14822620Courtesy of TESLA, INC.

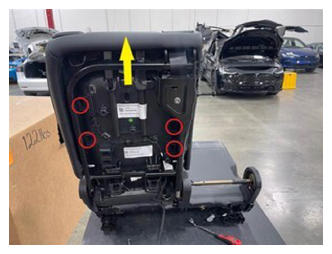

  38. Remove 60 seatback
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards
    G14822621Courtesy of TESLA, INC.
  39. Remove 60 seat bottom
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat

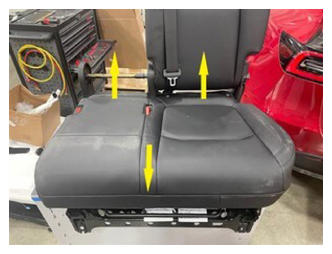

    G14822622Courtesy of TESLA, INC.
  40. Remove remaining connections from 60 seat pan
    NOTE: 4x connections, Remove remaining connections to 60 seat cushion

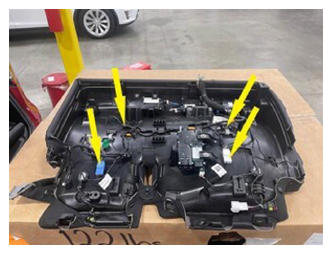

    G14822623Courtesy of TESLA, INC.

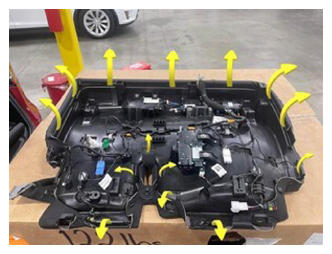

  41. Remove seat cover from 60 seat pan
    NOTE: Remove 60 seat cover from perimeter of seat pan by releasing J-hooks around the perimeter of the seat
    G14822624Courtesy of TESLA, INC.
  42. Remove connection from 60 fold actuator
    NOTE: 1x connection
    G14822625Courtesy of TESLA, INC.

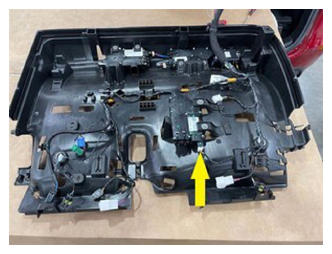

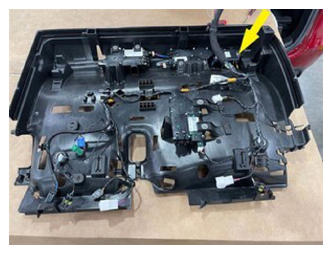

  43. Remove connection from actuator switch box
    NOTE: 1x connection
    G14822626Courtesy of TESLA, INC.
  44. Remove remaining harness clips from 60 seat pan
    NOTE: 4x clips, Remove remaining clips holding the seat harness to 60 seat pan
    G14822627Courtesy of TESLA, INC.

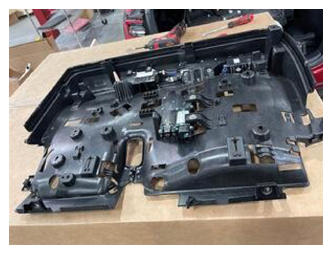

    G14822628Courtesy of TESLA, INC.
  45. Remove 60 fold actuator from 60 seat pan
    NOTE: 2x bolts, 2x 8 mm, 2.5 N.m
    G14822629Courtesy of TESLA, INC.
  46. Remove fasteners from 60 seat actuator switch box, easy entry and floor latch actuators
    NOTE: 6x bolts, 6x 8 mm, 2.5 N.m
    G14822630Courtesy of TESLA, INC.

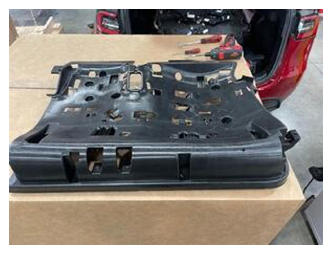

    G14822631Courtesy of TESLA, INC.

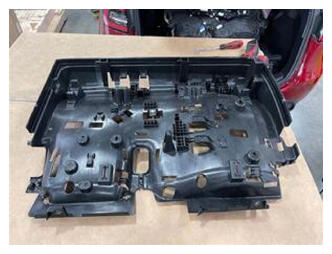

    G14822632Courtesy of TESLA, INC.

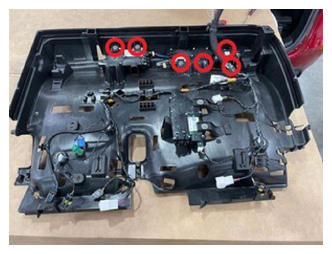

  47. Install 60 seat actuator switch box, easy entry and floor latch actuators to new seat pan
    NOTE: 6x bolts, 6x 8 mm, 2.5 N.m
    G14822633Courtesy of TESLA, INC.
  48. Install 60 fold actuator to seat pan
    NOTE: 2x bolt, 2x 8 mm, 2.5 N.m
    G14822634Courtesy of TESLA, INC.

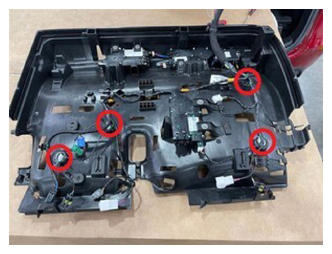

  49. Install 60 under-seat harness
    NOTE: 4x clips
    G14822635Courtesy of TESLA, INC.
  50. Plug in connection for 60 seat fold actuator
    NOTE: 1x connector
    G14822636Courtesy of TESLA, INC.
  51. Plug in connection to seat actuator switch box
    NOTE: 1x connection
    G14822637Courtesy of TESLA, INC.

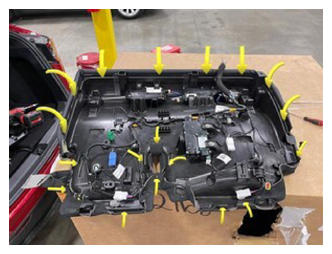

  52. Install 60 seat pan onto seat cushion
    NOTE: Place seat pan onto seat cushion and cover, Secure seat cover to pan by hooking the J-hooks around the perimeter of the seat
    G14822638Courtesy of TESLA, INC.

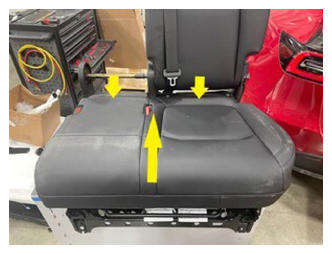

  53. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G14822639Courtesy of TESLA, INC.
  54. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G14822640Courtesy of TESLA, INC.

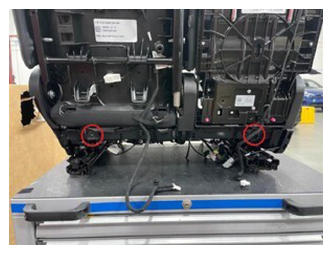

    G14822641Courtesy of TESLA, INC.
    G14822642Courtesy of TESLA, INC.

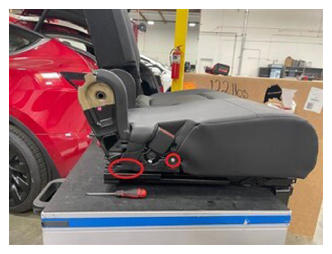

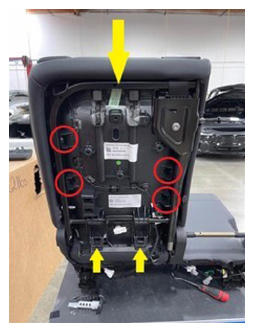

  55. Install 60 seat back into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G14822643Courtesy of TESLA, INC.
  56. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G14822644Courtesy of TESLA, INC.
  57. Install headrest onto 60 seat assembly
    NOTE: Push down to secure
    G14822645Courtesy of TESLA, INC.

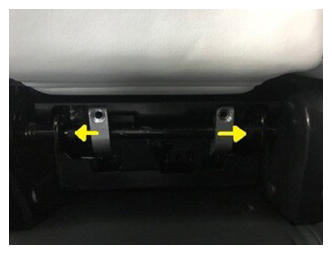

  58. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G14822646Courtesy of TESLA, INC.
    G14822647Courtesy of TESLA, INC.
    G14822648Courtesy of TESLA, INC.

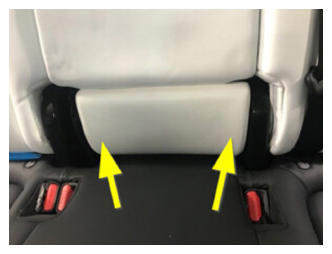

  59. Install center seatback lumbar bun
    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G14822649Courtesy of TESLA, INC.

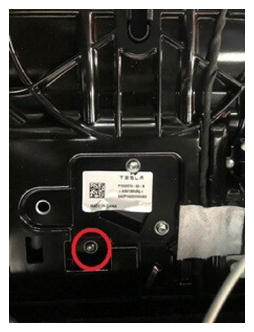

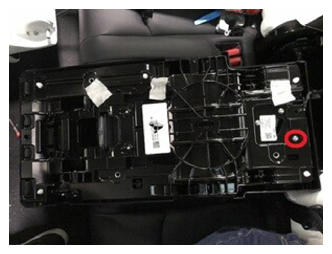

  60. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14822650Courtesy of TESLA, INC.
    G14822651Courtesy of TESLA, INC.

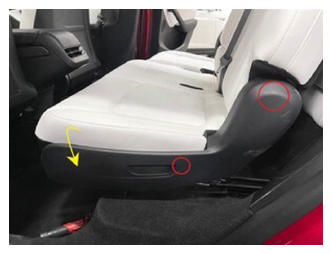

  61. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G14822652Courtesy of TESLA, INC.
    G14822653Courtesy of TESLA, INC.
  62. Install push clip at front of outer 60 sideshield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim
    G14822654Courtesy of TESLA, INC.
    G14822655Courtesy of TESLA, INC.

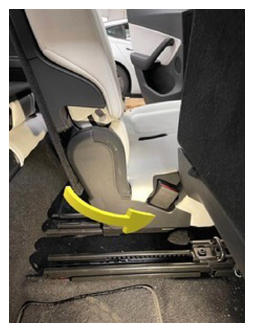

  63. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and reseat 3x clips
    G14822656Courtesy of TESLA, INC.

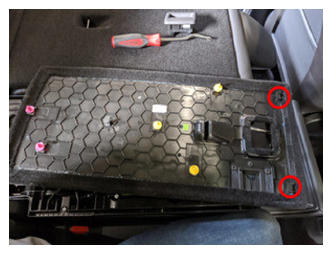

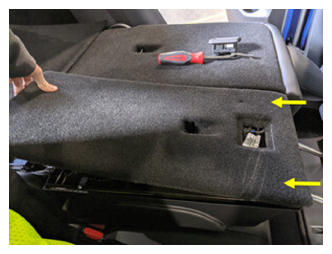

  64. Insert backpanel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G14822657Courtesy of TESLA, INC.
    G14822658Courtesy of TESLA, INC.

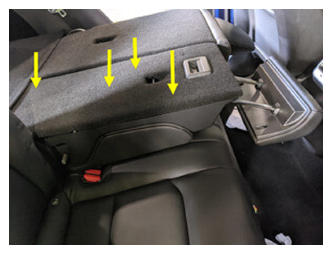

  65. Install center backpanel onto seat back
    NOTE: 5x clips
    G14822659Courtesy of TESLA, INC.

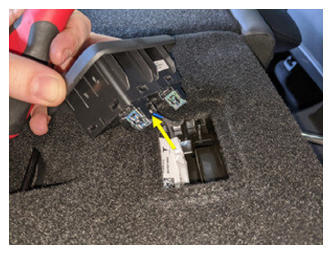

  66. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G14822660Courtesy of TESLA, INC.
    G14822661Courtesy of TESLA, INC.
    G14822662Courtesy of TESLA, INC.

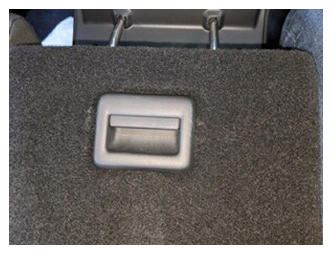

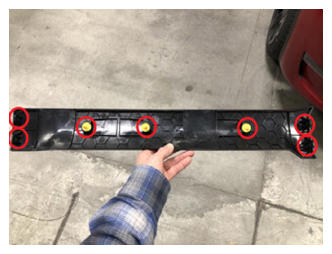

  67. Install 60 toe kick cover
    NOTE: 7x clips

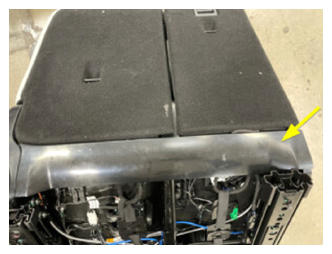

    G14822663Courtesy of TESLA, INC.
    G14822664Courtesy of TESLA, INC.

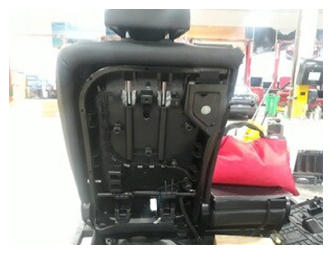

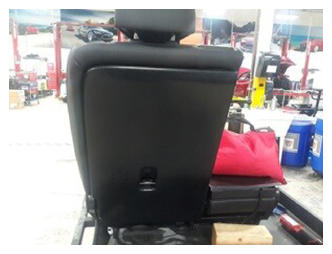

  68. Install LH seatback onto 60 seat assembly

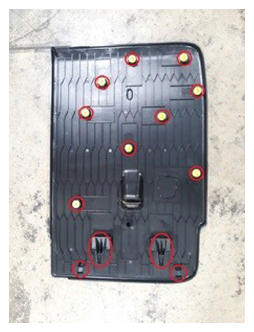

    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G14822665Courtesy of TESLA, INC.
    G14822666Courtesy of TESLA, INC.
    G14822667Courtesy of TESLA, INC.

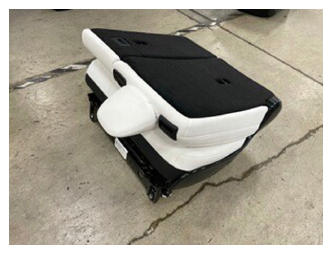

  69. Install 2nd row 60 seat assembly
    NOTE: Recommend assistance
    G14822668Courtesy of TESLA, INC.
    G14822669Courtesy of TESLA, INC.

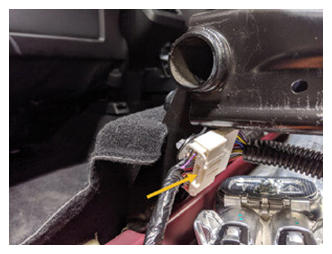

  70. Connect logic connector at LH 60 seat frame
    NOTE: 1x connector
    G14822670Courtesy of TESLA, INC.

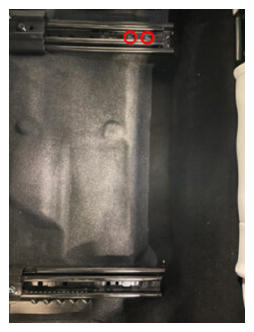

  71. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G14822671Courtesy of TESLA, INC.
    G14822672Courtesy of TESLA, INC.
    G14822673Courtesy of TESLA, INC.
    G14822674Courtesy of TESLA, INC.

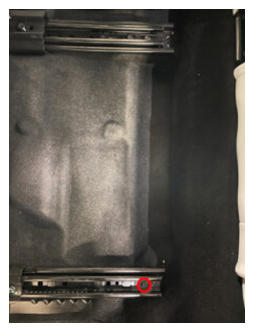

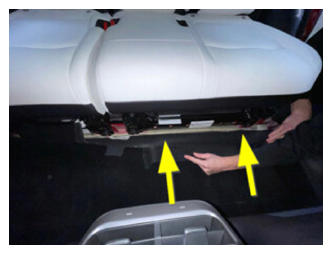

  72. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on
    G14822675Courtesy of TESLA, INC.
    G14822676Courtesy of TESLA, INC.

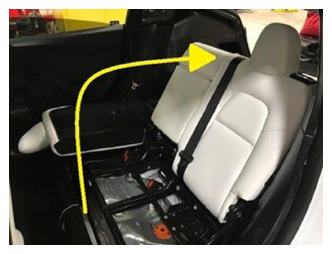

  73. Fold the 60 seat into vertical position
    NOTE: Remove seat back protection if necessary
    G14822677Courtesy of TESLA, INC.

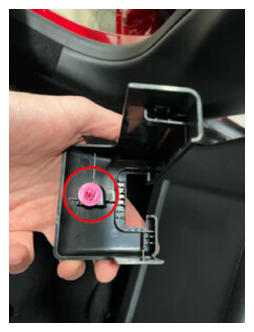

  74. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14822678Courtesy of TESLA, INC.
    G14822679Courtesy of TESLA, INC.
    G14822680Courtesy of TESLA, INC.
  75. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14822681Courtesy of TESLA, INC.
    G14822682Courtesy of TESLA, INC.

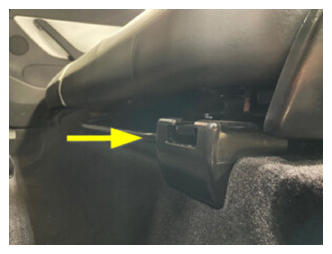

    G14822683Courtesy of TESLA, INC.
  76. Install LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14822684Courtesy of TESLA, INC.

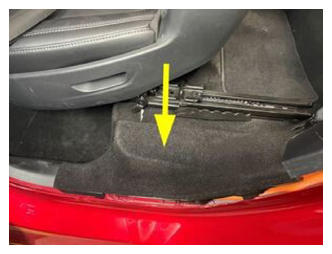

    G14822685Courtesy of TESLA, INC.
  77. Reseat LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal

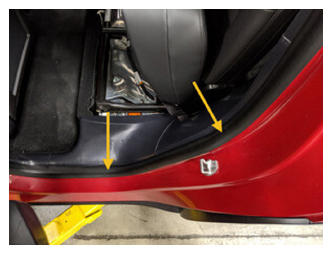

    G14822686Courtesy of TESLA, INC.
  78. Move RH front seat to original position
  79. Move LH front seat to original position
  80. Raise all four windows
  81. Close all four doors
    NOTE: If 12 V is powered up, Unlatch rear doors before closing
scientia non olet · About LEMON Manuals
