Wiring Diagrams (FREMONT/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021) -- Model Y
>>

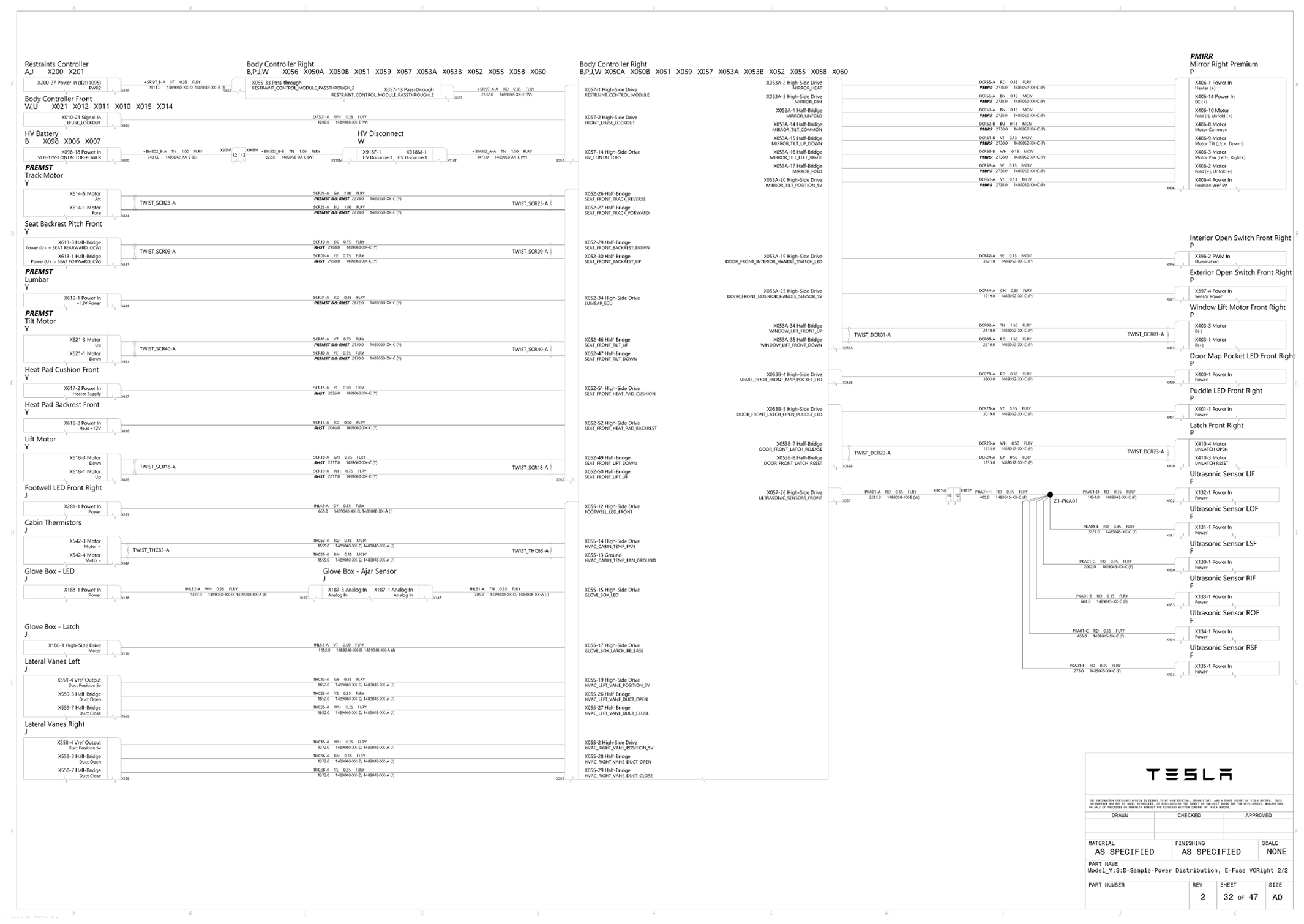

Power Distribution, E-Fuse VC Right 2/2 - Wiring Diagram [FREMONT/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Power Distribution, E-Fuse VC Right 2/2 - Wiring Diagram [FREMONT/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Courtesy of TESLA, INC.
Courtesy of TESLA, INC.
