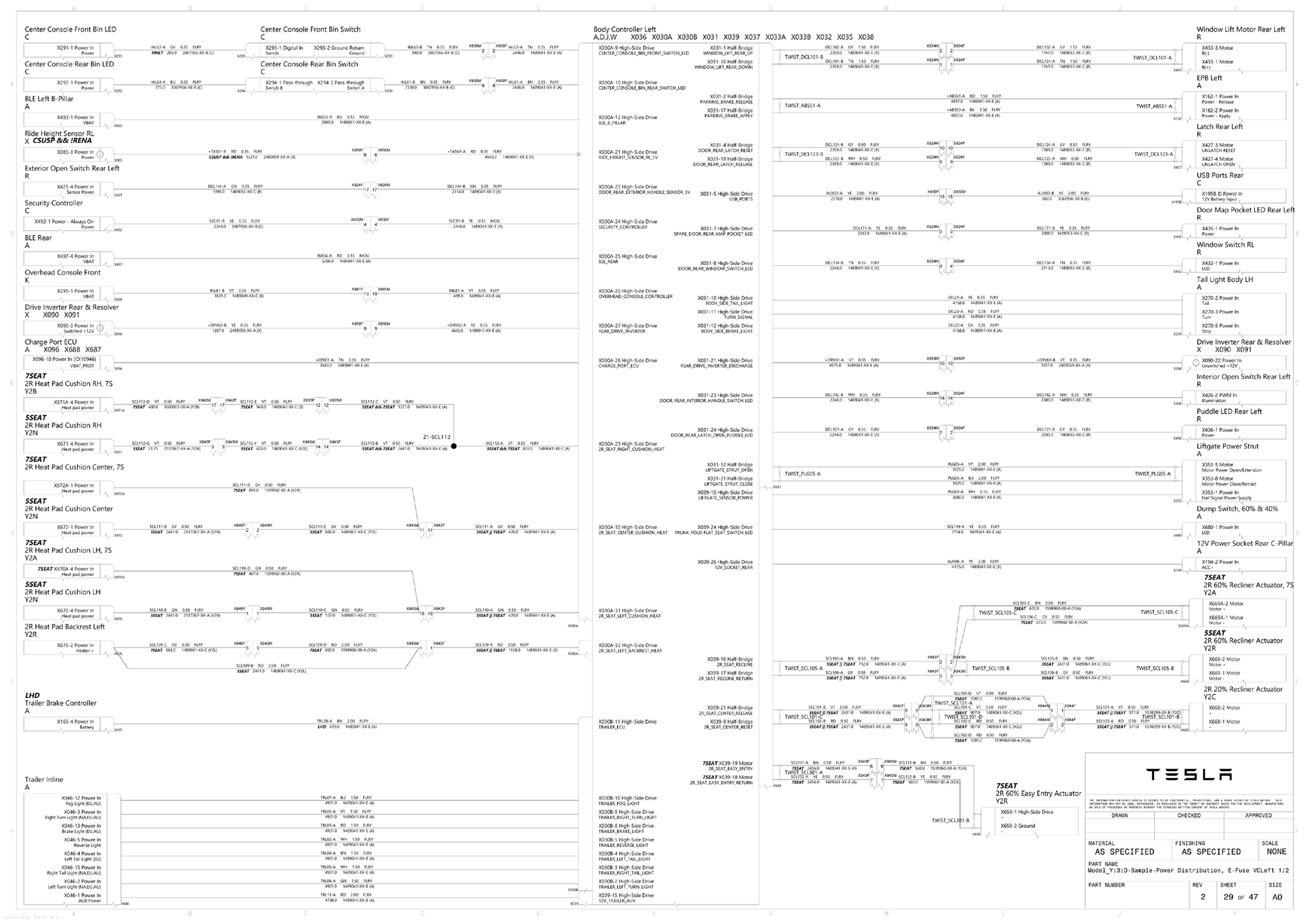

Power Distribution, E-Fuse VC Left 1/2 - Wiring Diagram [FREMONT/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

G14846981

Courtesy of TESLA, INC.
