Wiring Diagrams (FREMONT/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -) -- Model Y
>>

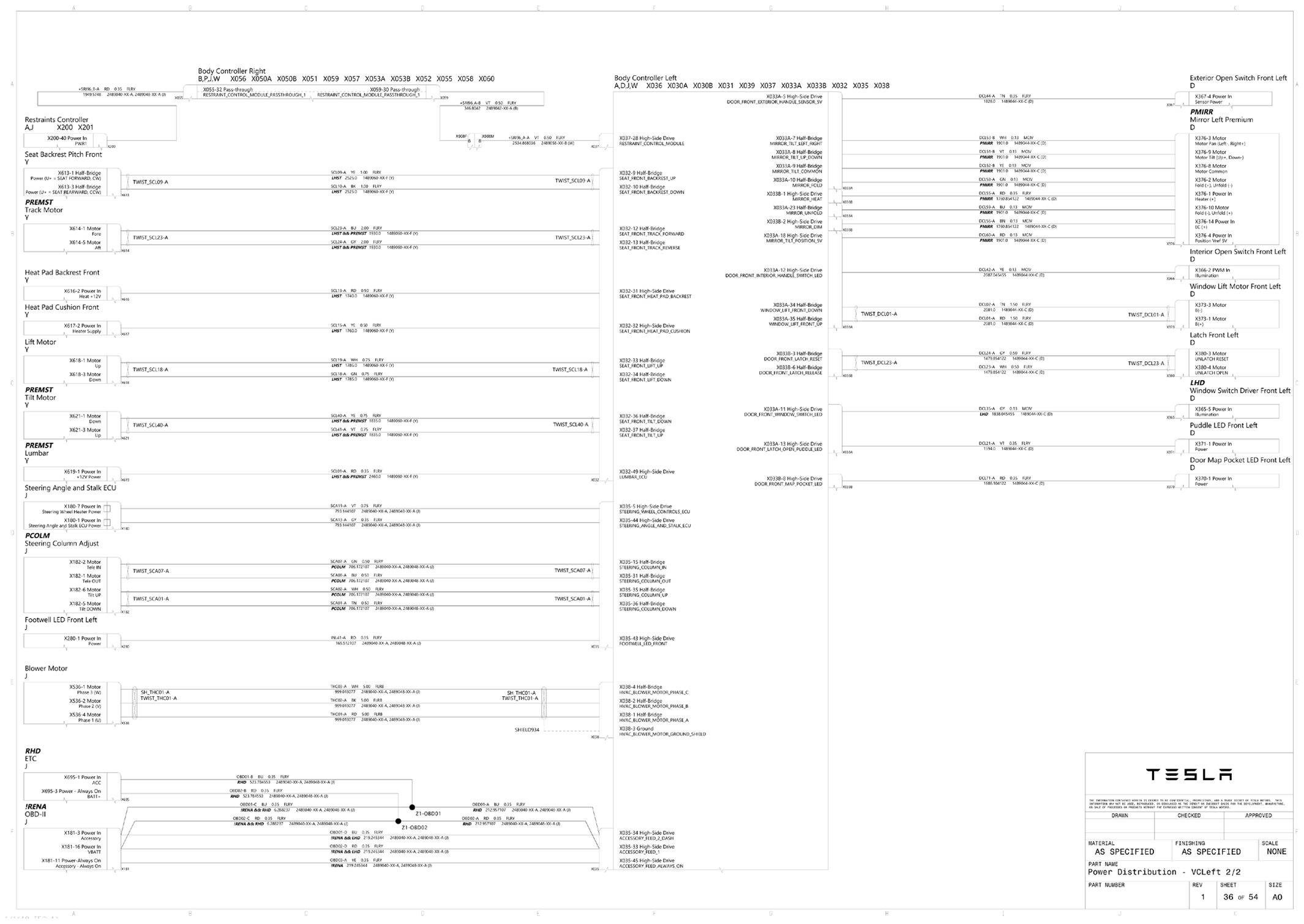

Power Distribution - VC Left 2/2 - Wiring Diagram [FREMONT/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
Power Distribution - VC Left 2/2 - Wiring Diagram [FREMONT/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
Courtesy of TESLA, INC.
Courtesy of TESLA, INC.
