Connector End View - X910F [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

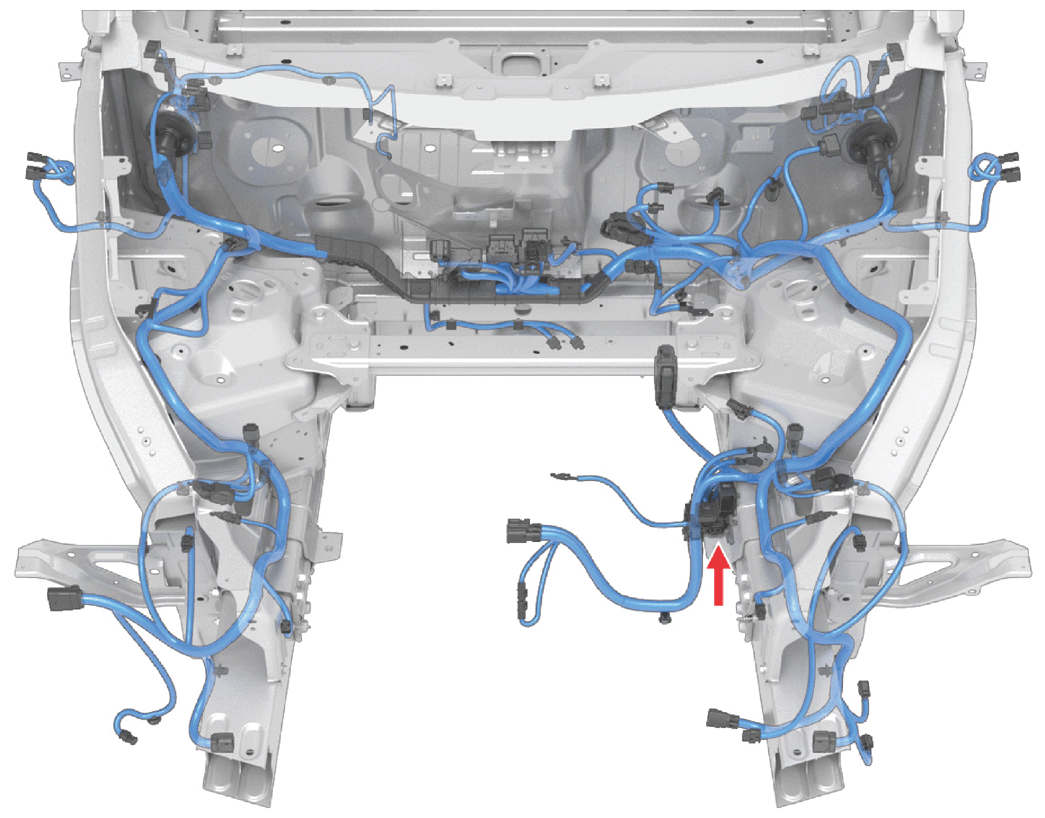

Fig 1: Connector Component Location - X910F [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: FEP 42122900
Color: BK

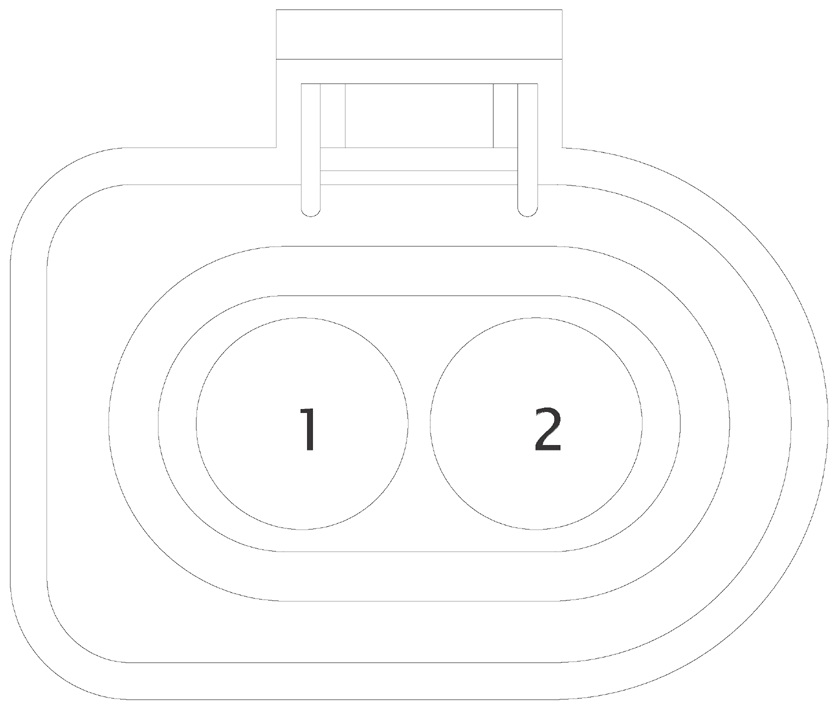

Fig 2: Connector End View - X910F [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | BU | 4.00 | SN | X012-4 | 969044-1 | 1394512-1 |
| 2 | BK | 4.00 | SN | X012-1 | 969044-1 | 1394512-1 |
