Connector End View - X906M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

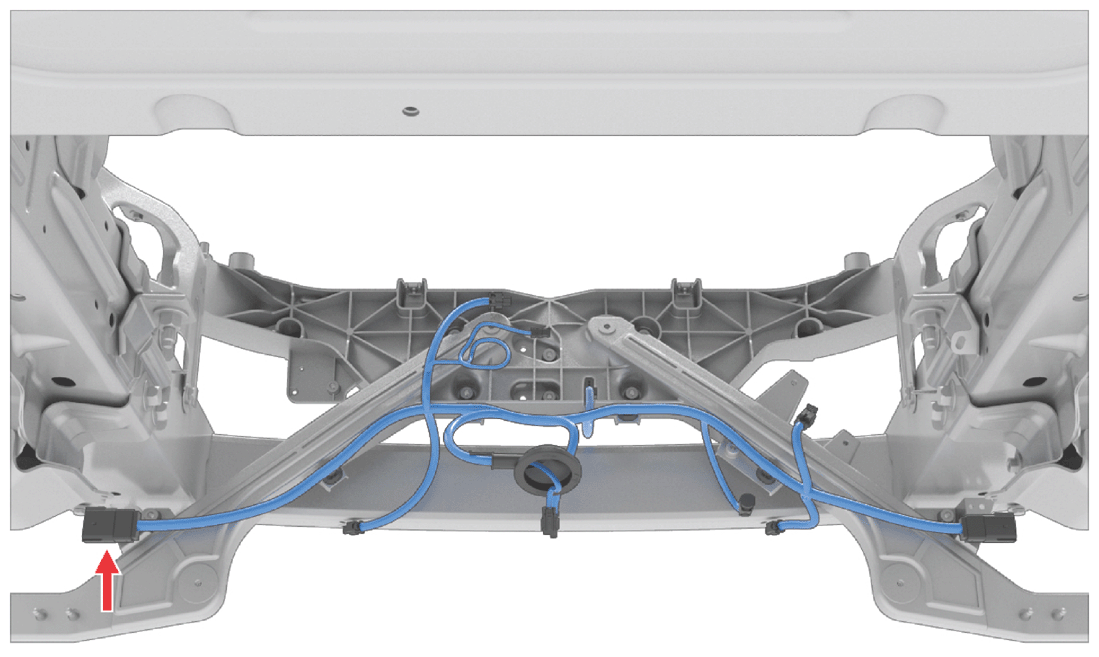

Fig 1: Connector Component Location - X906M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Connector Detail: DELPHI 15521020

Color: BK

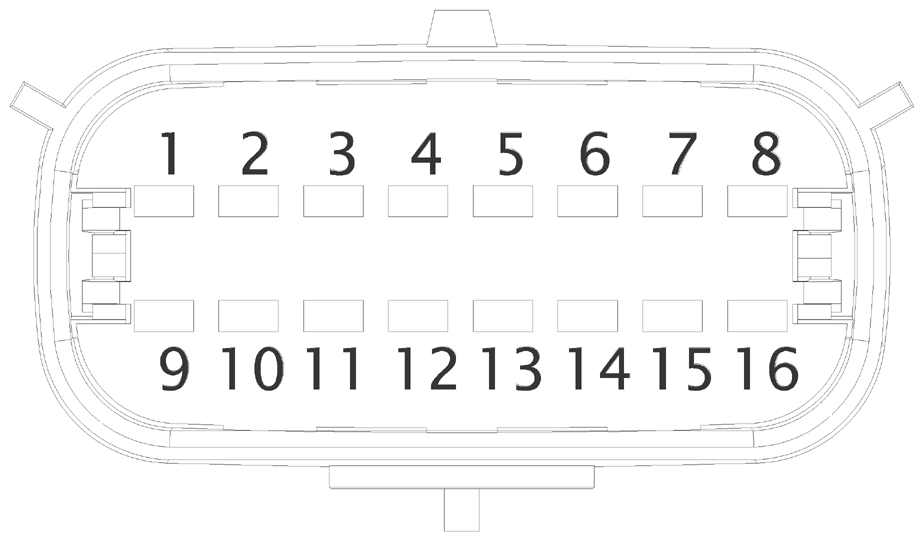

Fig 2: Connector End View - X906M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal
1	YE	0.35	SN	X506-3	13964789	MAT-120-240
2	RD	0.35	SN	X506-4	13964789	MAT-120-240
3	VT	0.35	SN	X506-2	13964789	MAT-120-240
4	GY	0.35	SN		13964789	MAT-120-240
5	RD	0.35	SN	X104-3	13964789	MAT-120-240
6	BU	0.35	SN	X104-2	13964789	MAT-120-240
7	GY	0.35	SN	X333-3	13964789	MAT-120-240
8	RD	0.35	SN	X332-3	13964789	MAT-120-240
9	BN	0.35	SN	X487-2	13964789	MAT-120-240
10	WH	0.35	SN	X330-1	13964789	MAT-120-240
11	BK	0.35	SN	X330-2	13964789	MAT-120-240
12	YE	0.35	SN	X333-2	13964789	MAT-120-240
13	TN	0.35	SN	X332-2	13964789	MAT-120-240
14	YE	0.35	SN	X332-1	13964789	MAT-120-240
15	VT	0.35	SN	X333-1	13964789	MAT-120-240
16	BU	0.35	SN	X487-3	13964789	MAT-120-240
