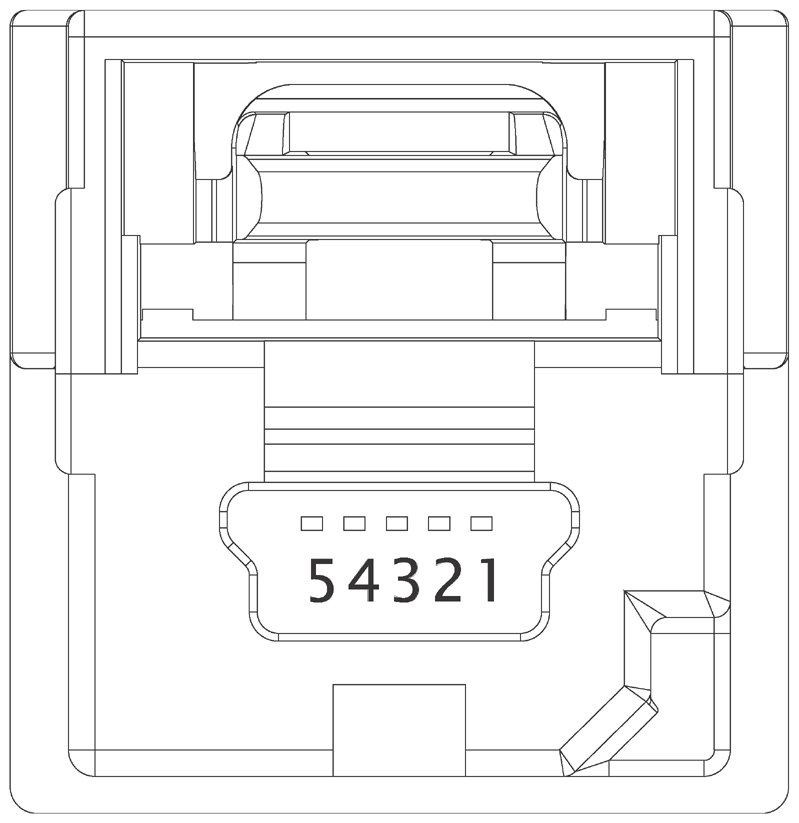

Connector End View - X875F_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:
Courtesy of TESLA, INC.
Connector Detail: DELPHI 13868727
Color: BK
Serviceability: Cable Subassembly
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
BK |
USB |
SN |
X803A-1 |
PIA-USB |
