Connector End View - X850 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

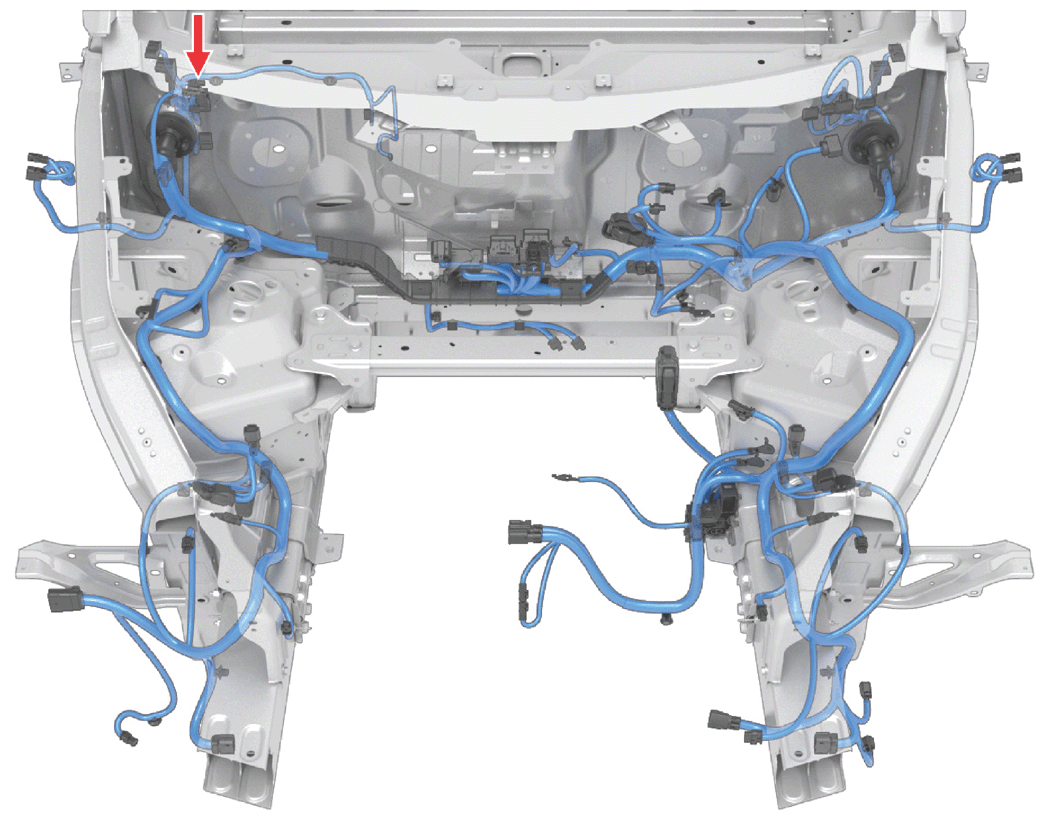

Fig 1: Connector Component Location - X850 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: ROSENBERGER E6K10A-1CAZ5-B
Color: WH

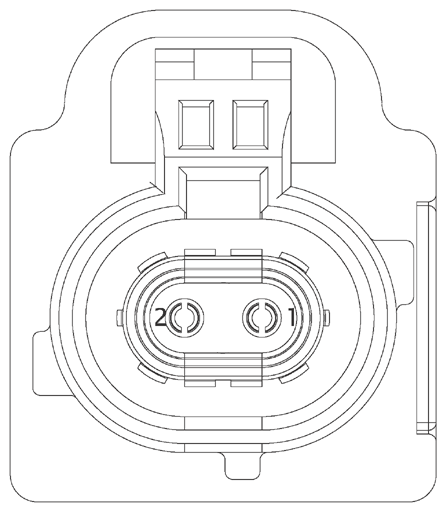

Fig 2: Connector End View - X850 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| H | BK | HMTD | AU | X851-H | PIA-HMTD |
