Connector End View - X695 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

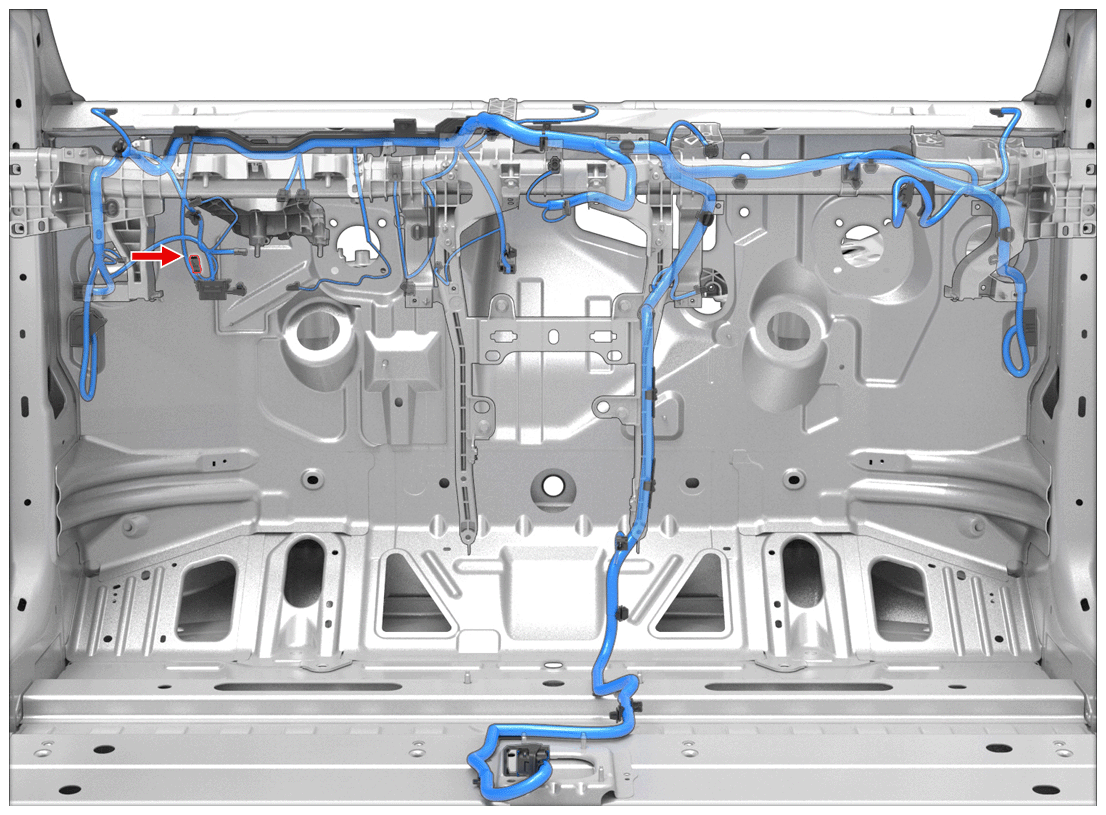

Fig 1: Connector Component Location - X695 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: AMP 3-968700-1
Color: BU
Fig 2: Connector End View - X695 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X035_1-34 | 6-928918-1 |
| 2 | BK | 0.50 | SN | 6-928918-1 | |
| 3 | RD | 0.35 | SN | X035_1-33 | 6-928918-1 |
