Connector End View - X691 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

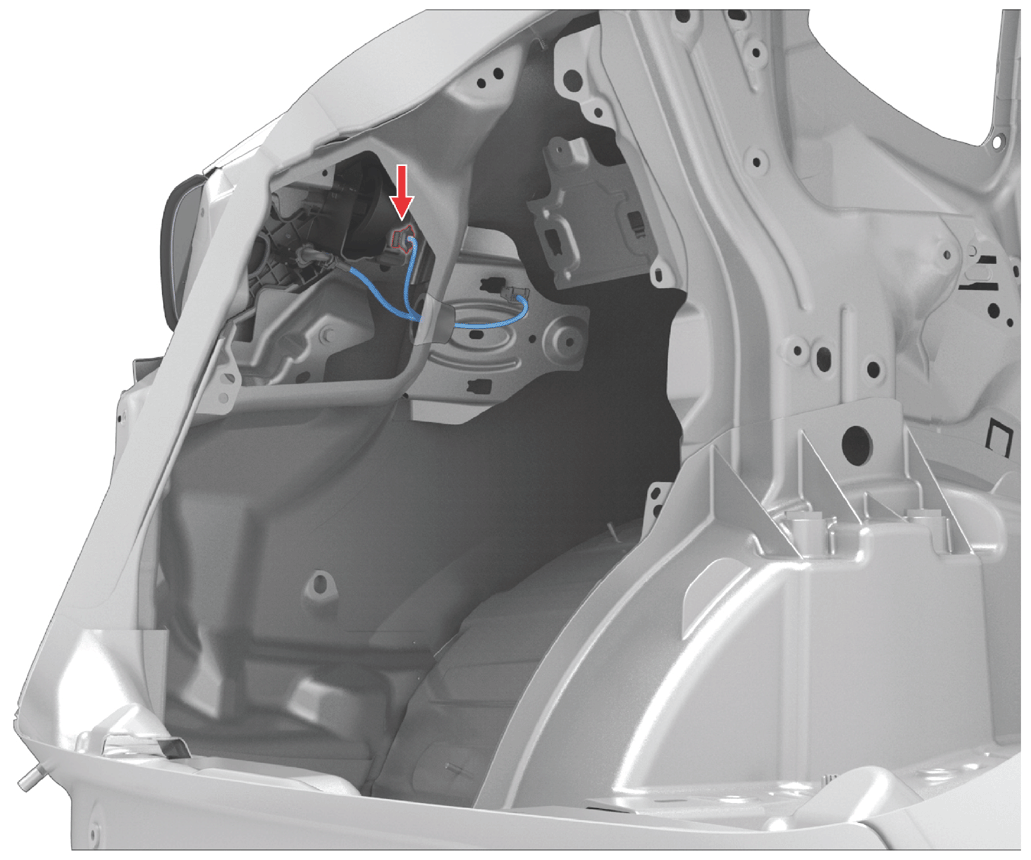

Fig 1: Connector Component Location - X691 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: MOLEX 35022-0005
Color: NA
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X687-16 | 35021-1001 |
| 2 | VT | 0.35 | SN | X687-15 | 35021-1001 |
| 3 | OG | 0.35 | SN | X687-11 | 35021-1001 |
| 4 | RD | 0.35 | SN | X687-5 | 35021-1001 |
| 5 | BK | 0.35 | SN | X687-10 | 35021-1001 |
