Connector End View - X670A [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

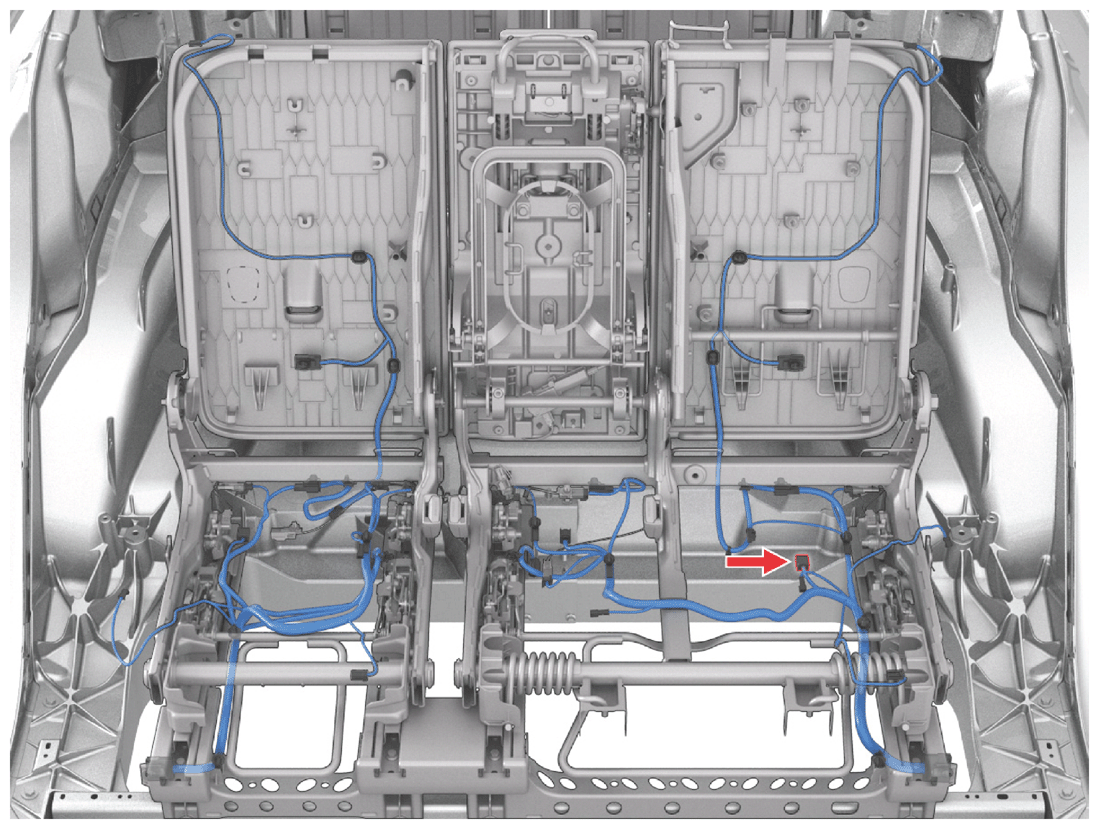

Fig 1: Connector Component Location - X670A [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-5695
Color: WH

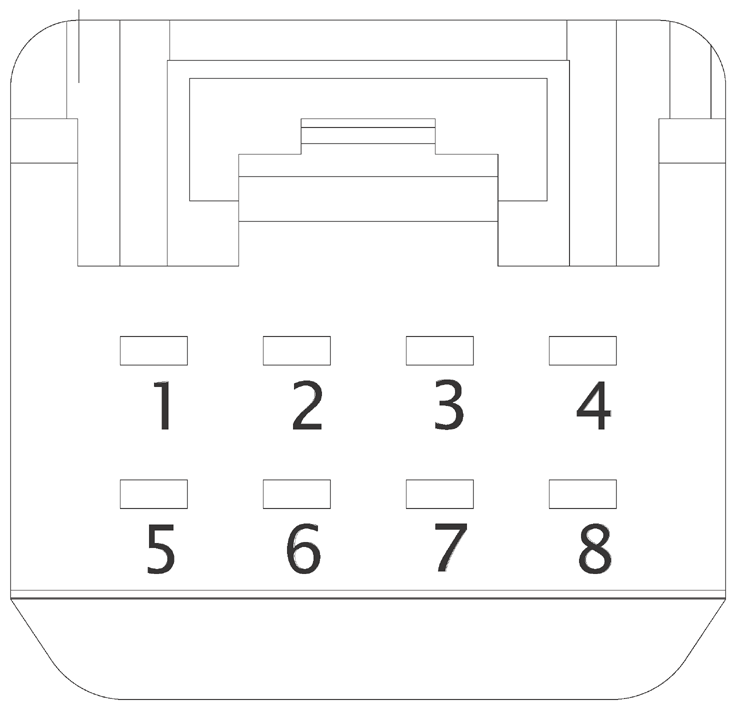

Fig 2: Connector End View - X670A [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.50 | SN | 8240-0215 | |
| 2 | |||||
| 3 | |||||
| 4 | GN | 0.50 | SN | X943M-15 | 8240-0215 |
| 5 | WH | 0.35 | SN | X943M-16 | 8240-0215 |
| 6 | |||||
| 7 | |||||
| 8 | GY | 0.35 | SN | 8240-0215 |
