Connector End View - X666 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

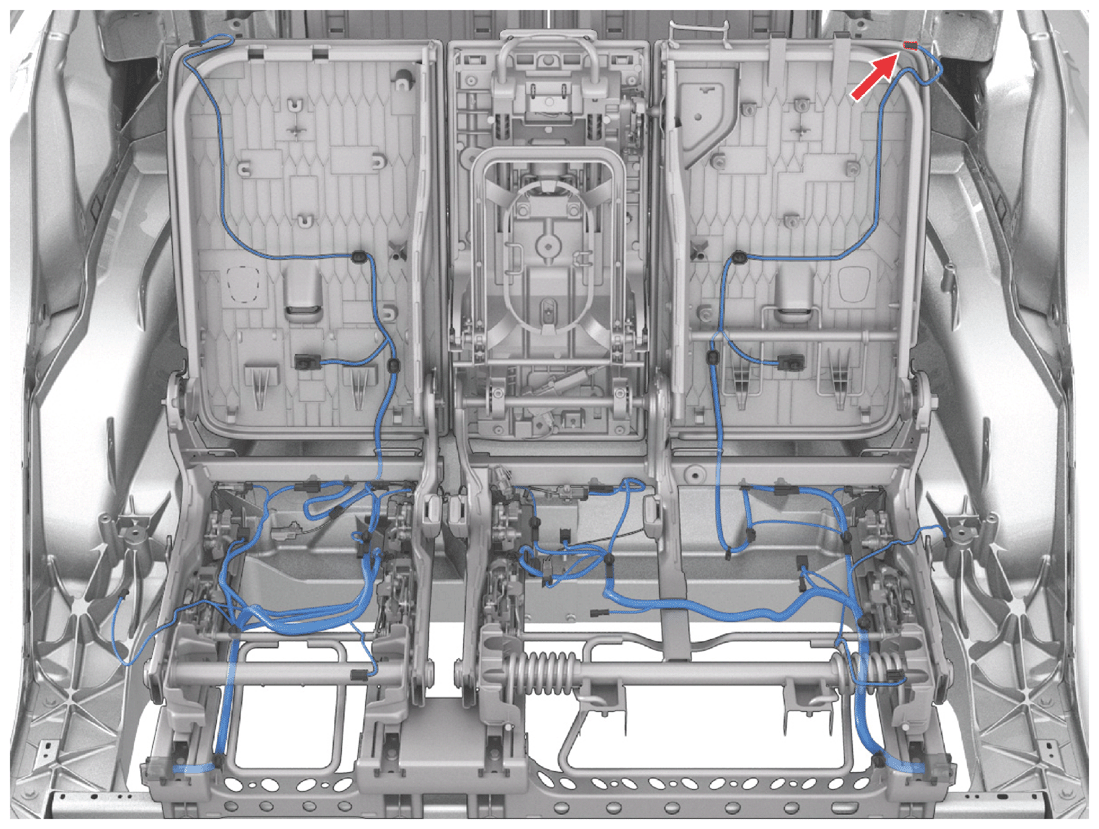

Fig 1: Connector Component Location - X666 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 13623681
Color: BK

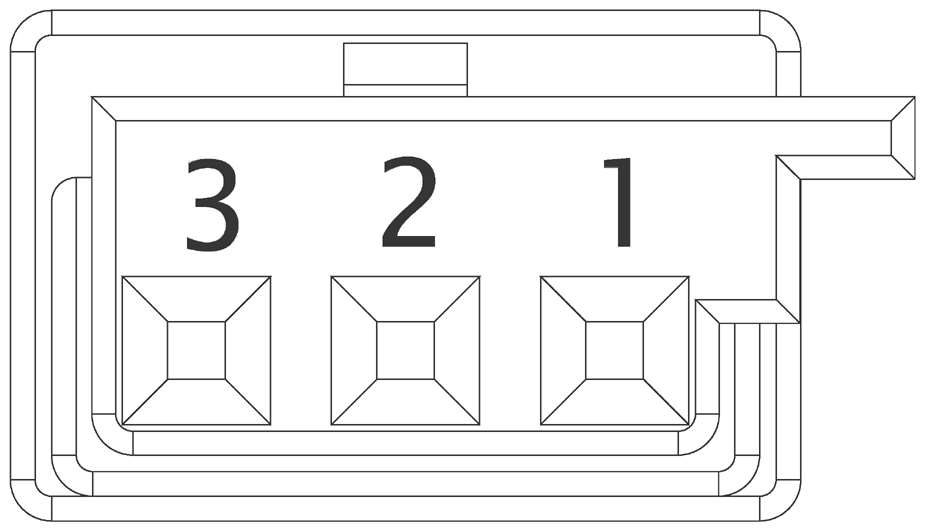

Fig 2: Connector End View - X666 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | WH | 0.35 | SN | X943M_1-4 | 13580633 |
| 2 | GY | 0.35 | SN | 13580633 | |
| 3 |
