Connector End View - X624 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

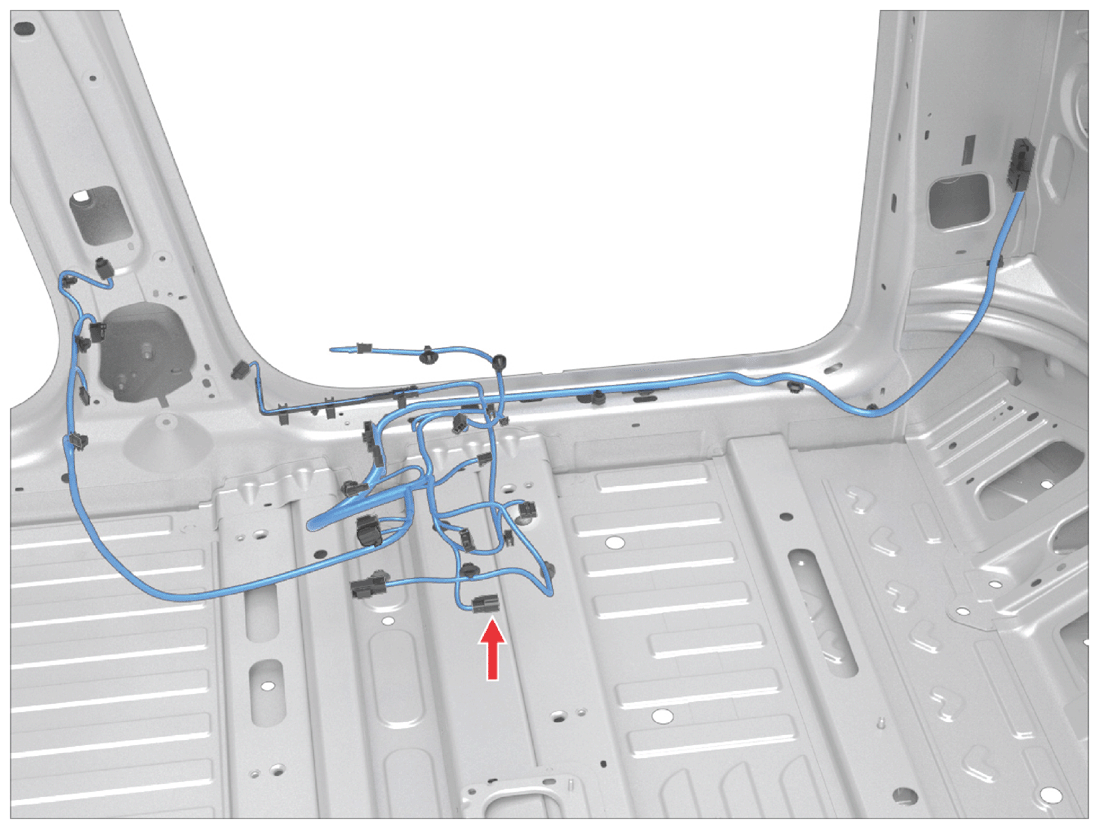

Fig 1: Connector Component Location - X624 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: MOLEX 31403-2100
Color: BK

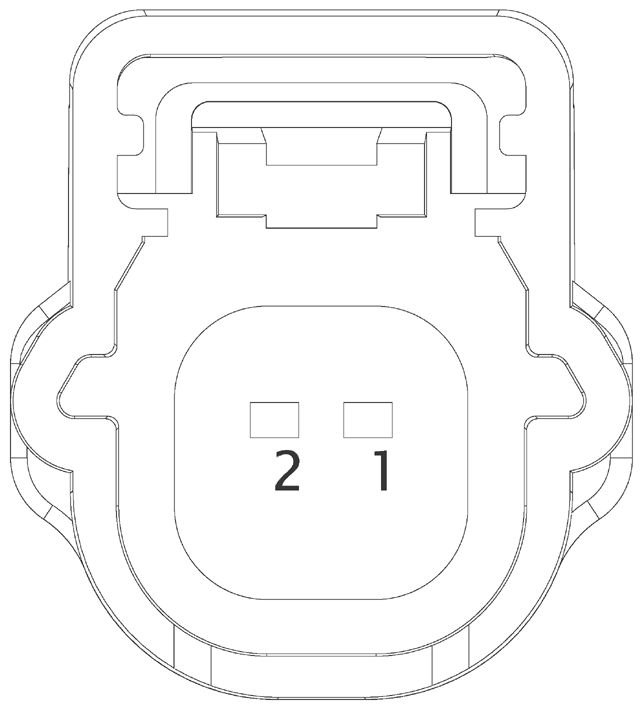

Fig 2: Connector End View - X624 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | WH | 0.35 | SN | X052-33 | 33468-0022 | MAT-120-206 |
| 2 | BN | 0.35 | SN | X052-32 | 33468-0022 | MAT-120-206 |
