Connector End View - X617 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

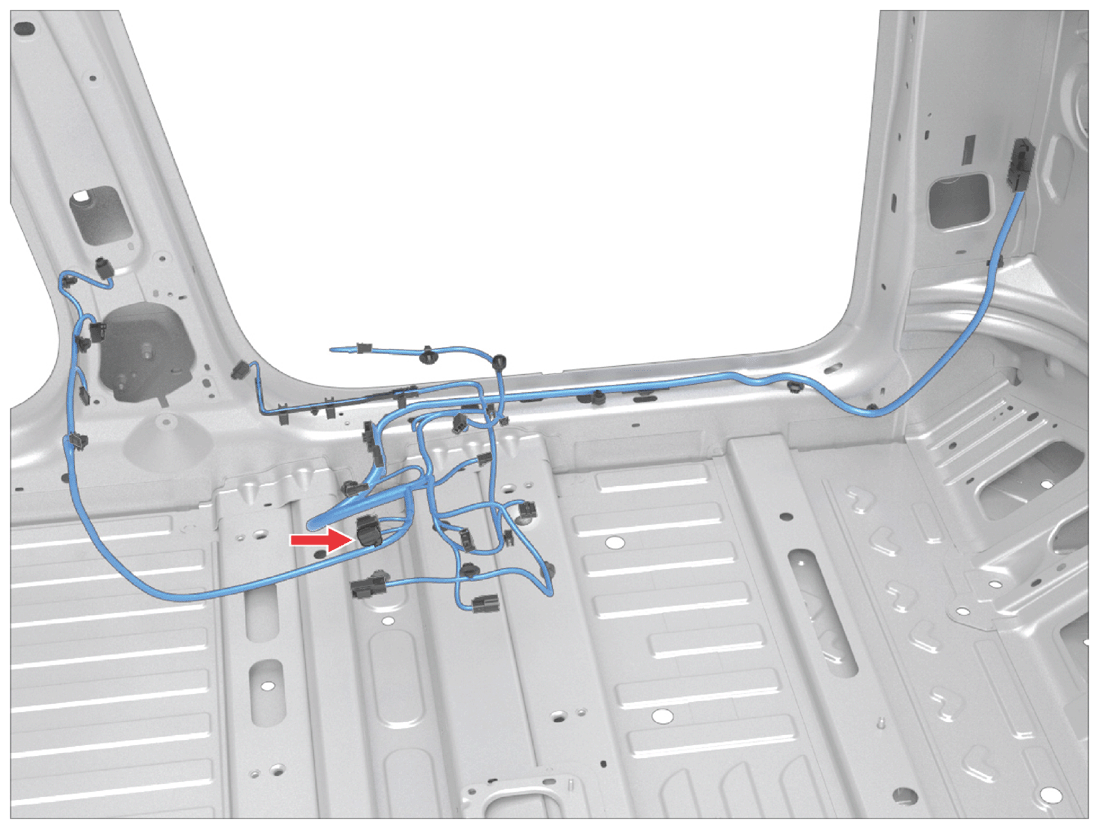

Fig 1: Connector Component Location - X617 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: YAZAKI 7283-6449-40
Color: GY

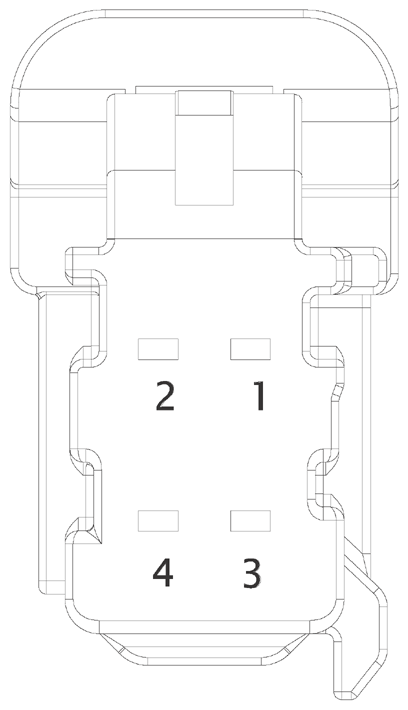

Fig 2: Connector End View - X617 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | GN | 0.50 | SN | X052-35 | 7116-6315-02 |
| 2 | YE | 0.50 | SN | X052-51 | 7116-6315-02 |
| 3 | GY | 0.35 | SN | X052-17 | 7116-6315-02 |
| 4 | BK | 0.35 | SN | 7116-6315-02 |
