Connector End View - X614 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

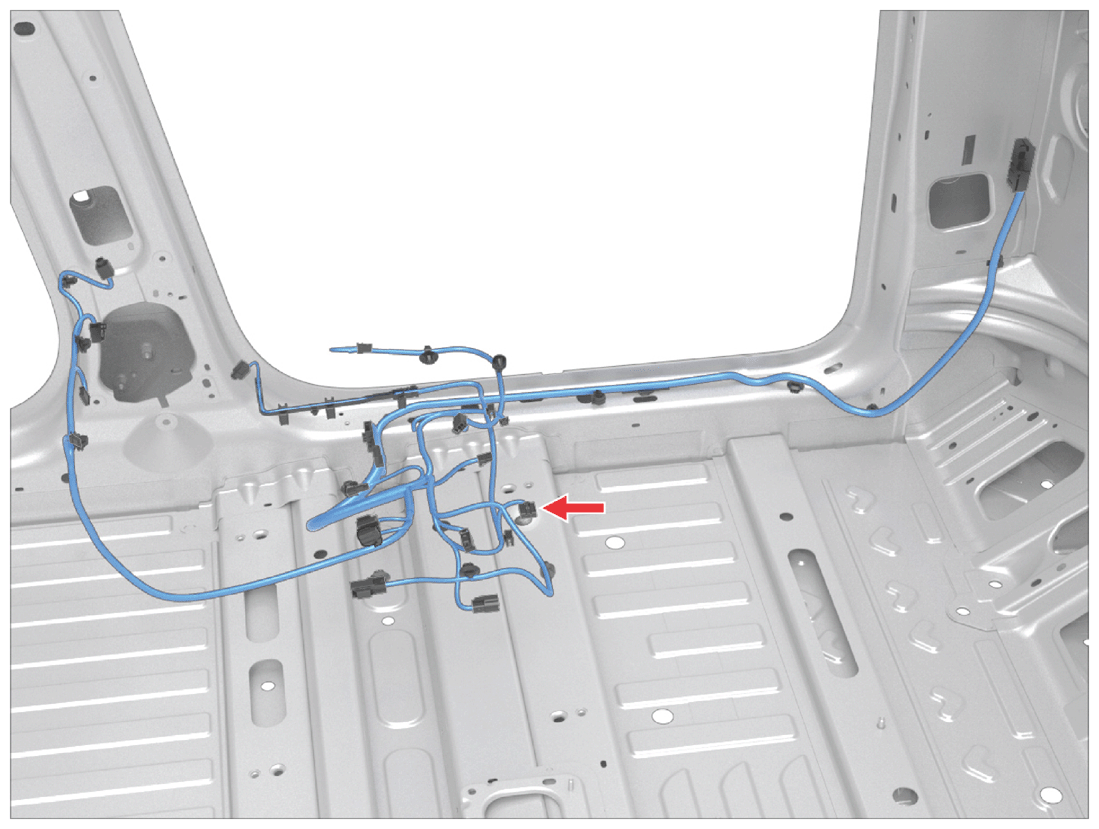

Fig 1: Connector Component Location - X614 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: AMP 1379217-3
Color: BK

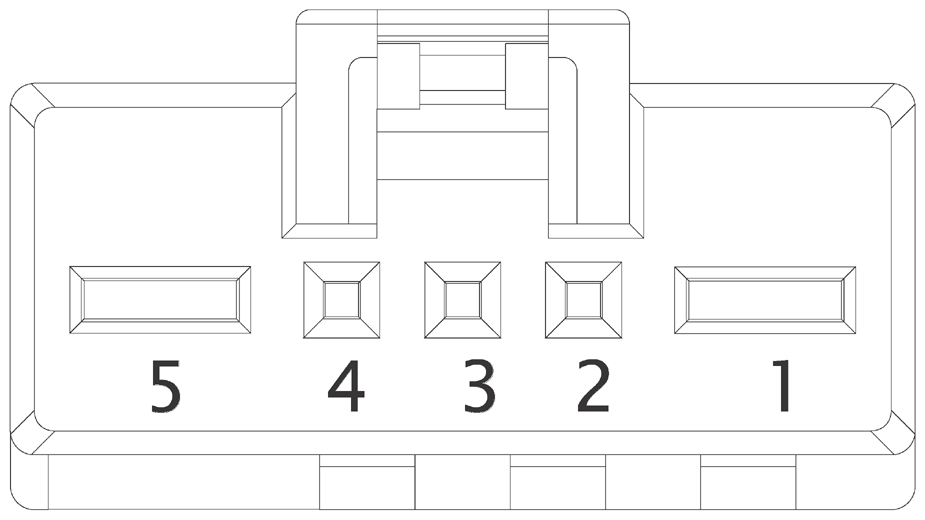

Fig 2: Connector End View - X614 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BU | 1.00 | SN | X052-27 | 968074-2 |
| 2 | BK | 0.35 | SN | 5-928999-1 | |
| 3 | |||||
| 4 | WH | 0.35 | SN | X052-4 | 5-928999-1 |
| 5 | GY | 1.00 | SN | X052-26 | 968074-2 |
