Connector End View - X596_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location: Not Available
Connector Detail: DELPHI 13649799
Color: WH

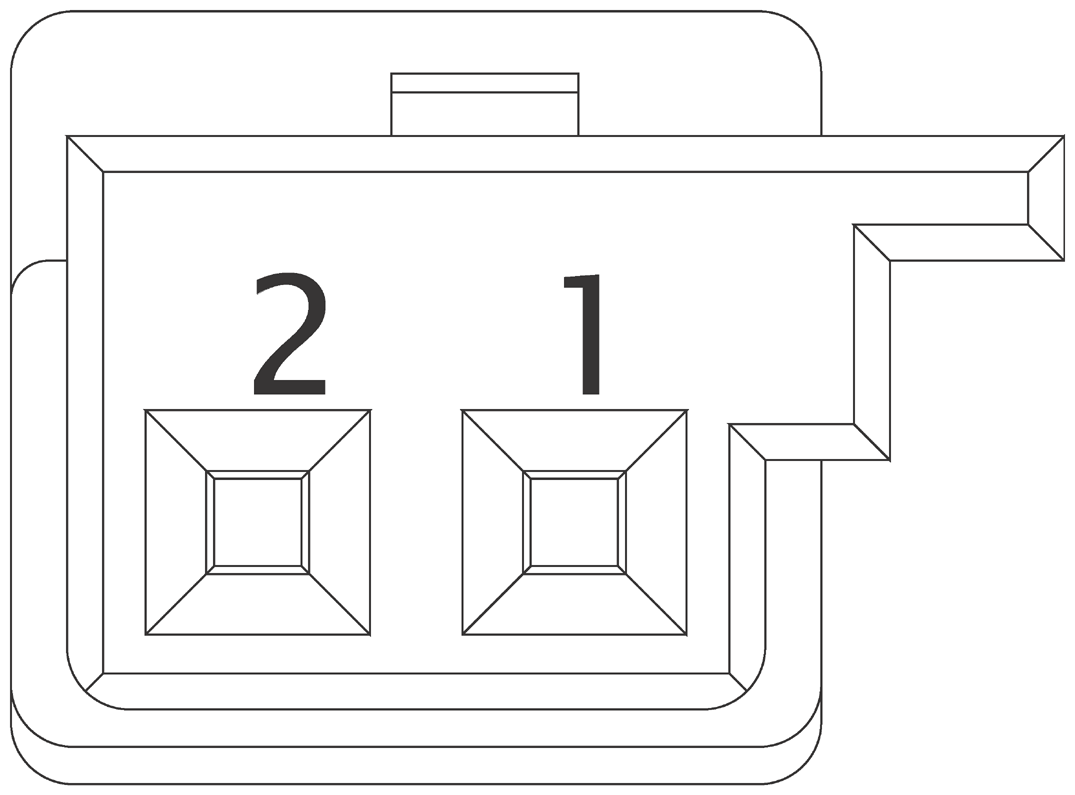

Fig 1: Connector End View - X596_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | 13580635 | |
| 2 | BU | 0.75 | SN | 13580635 |
