Connector End View - X576_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location: Not Available
Connector Detail: AMP 1-1534113-1
Color: BK

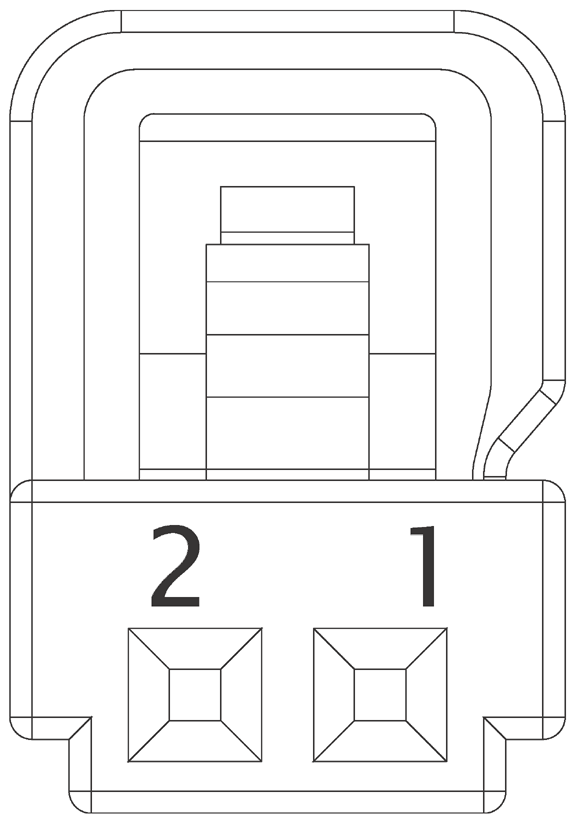

Fig 1: Connector End View - X576_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | TN | 0.50 | SN | X055_1-35 | 5-963715-1 |
| 2 | BK | 0.50 | SN | X055_1-36 | 5-963715-1 |
