Connector End View - X562 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

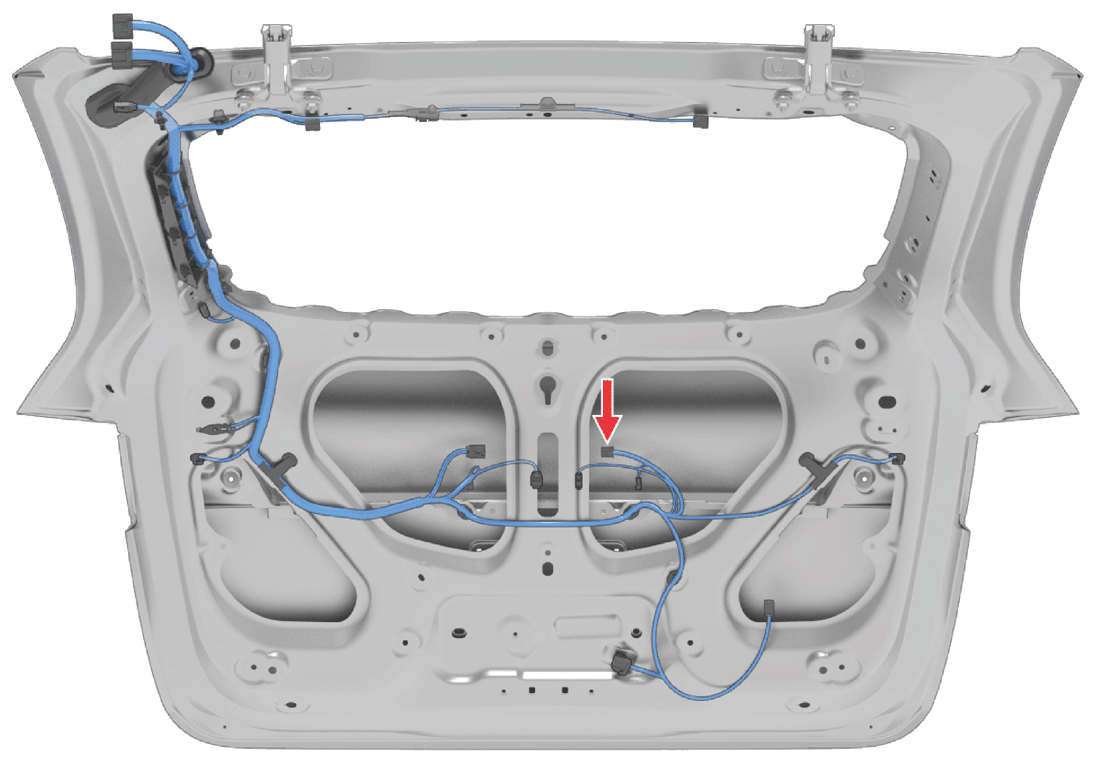

Fig 1: Connector Component Location - X562 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Connector Detail: AMP 2302475-2

Color: WH

Fig 2: Connector End View - X562 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X953F-10	2-1703930-1
2
3
4	BK	0.35	SN		2-1703930-1
5
6
7	GY	0.13	SN	X953F-11	1-1703930-1
8
9	YE	0.13	SN	X953F-12	1-1703930-1
10
