Connector End View - X559_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location: Not Available
Connector Detail: KUM PH845-07010
Color: WT

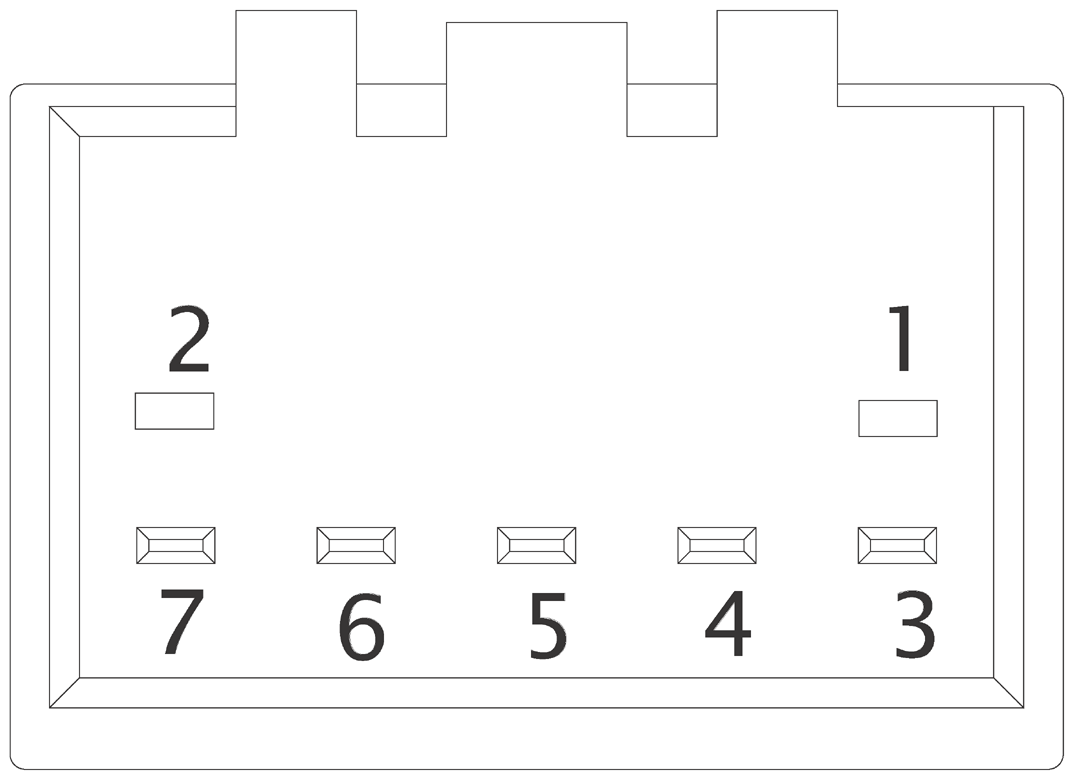

Fig 1: Connector End View - X559_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | |||||
| 2 | |||||
| 3 | YE | 0.35 | SN | X055_1-26 | MT095-29080 |
| 4 | GY | 0.35 | SN | X055_1-19 | MT095-29080 |
| 5 | GN | 0.35 | SN | X055_1-4 | MT095-29080 |
| 6 | BK | 0.35 | SN | X055_1-21 | MT095-29080 |
| 7 | WH | 0.35 | SN | X055_1-27 | MT095-29080 |
