Connector End View - X558 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

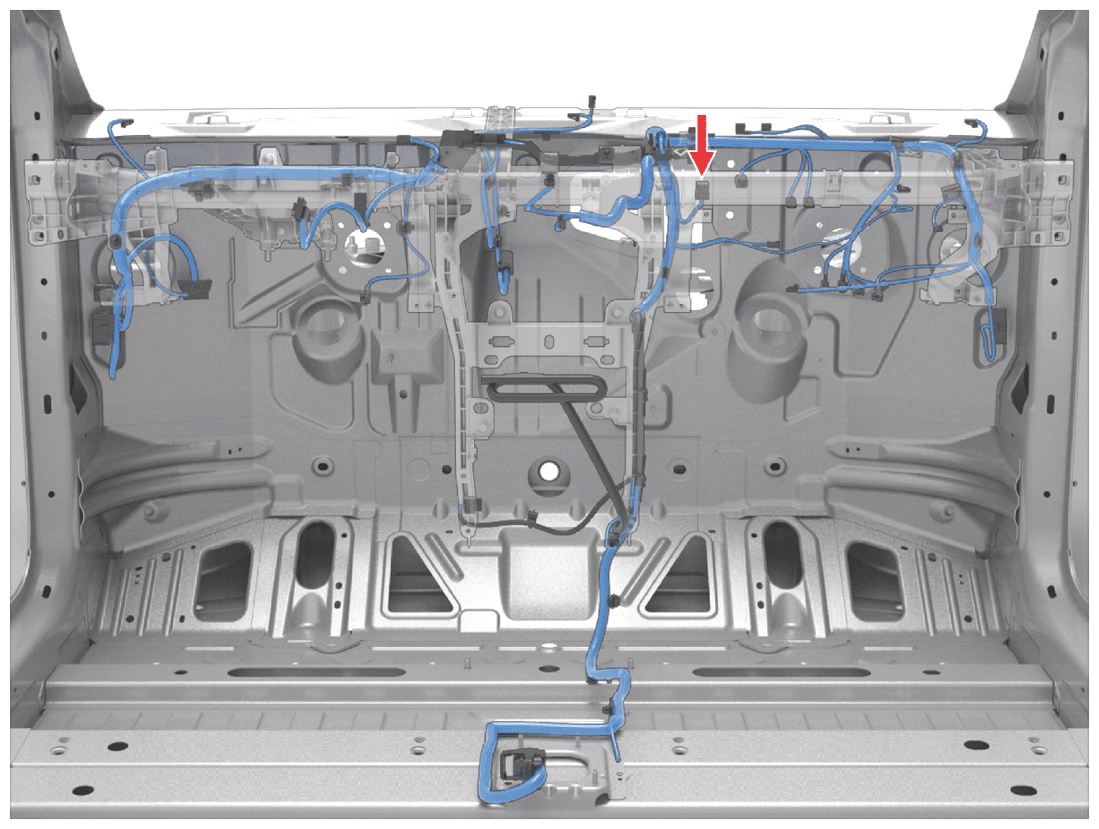

Fig 1: Connector Component Location - X558 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: KUM PH845-07010
Color: WT
Fig 2: Connector End View - X558 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | |||||
| 2 | |||||
| 3 | BN | 0.35 | SN | X055-28 | MT095-29080 |
| 4 | WH | 0.35 | SN | X055-2 | MT095-29080 |
| 5 | BU | 0.35 | SN | X055-3 | MT095-29080 |
| 6 | VT | 0.35 | SN | X055-20 | MT095-29080 |
| 7 | YE | 0.35 | SN | X055-29 | MT095-29080 |
