Connector End View - X553 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:
Fig 1: Connector Component Location - X553 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: MOLEX 98193-0001
Color: BK

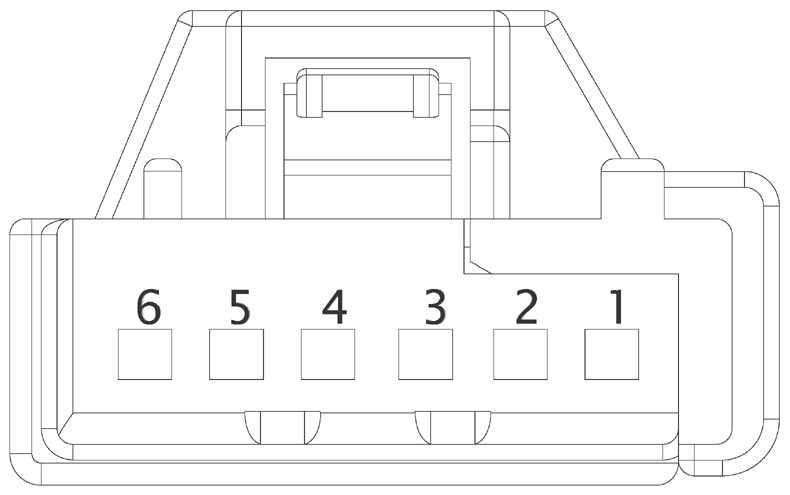

Fig 2: Connector End View - X553 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BU | 0.35 | SN | 0986581211 | |
| 2 | RD/GY | 0.35 | SN | X058-2 | 0986581211 |
| 3 | RD | 0.35 | SN | 0986581211 | |
| 4 | |||||
| 5 | GN | 0.35 | SN | X058-23 | 0986581211 |
| 6 | GY | 0.35 | SN | X058-24 | 0986581211 |
