Connector End View - X533 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

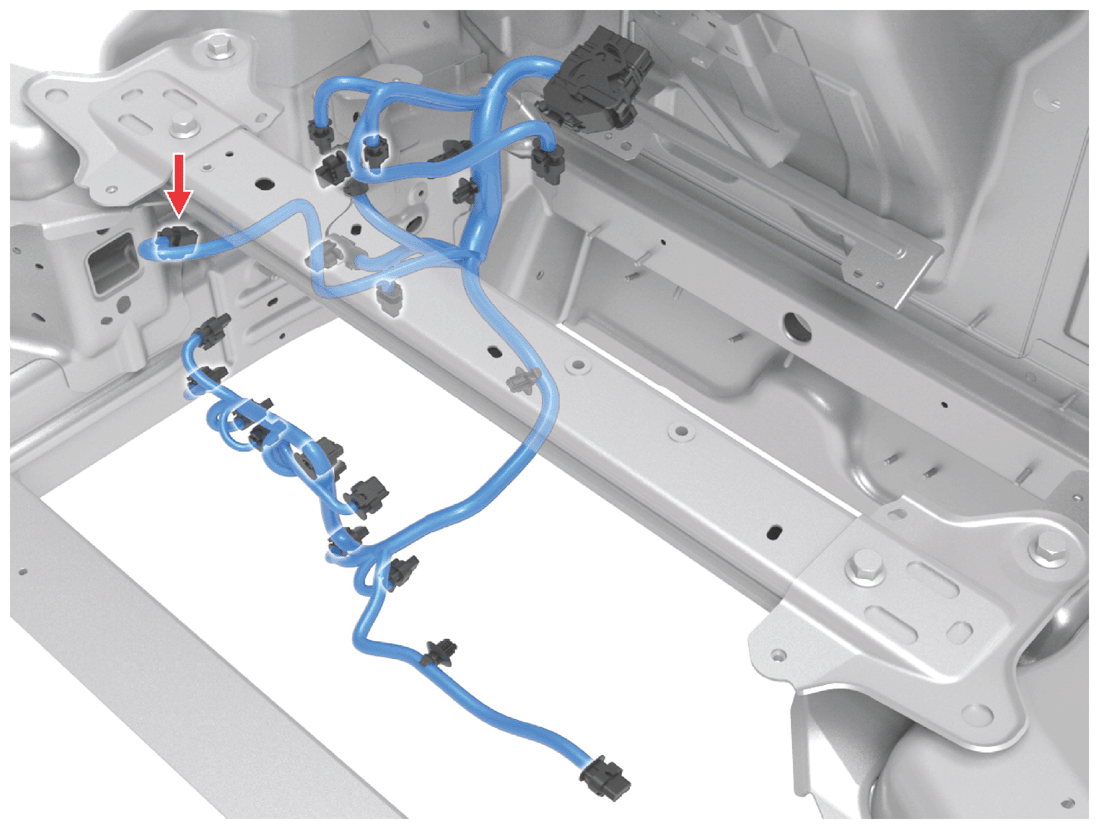

Fig 1: Connector Component Location - X533 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 35126381
Color: BK

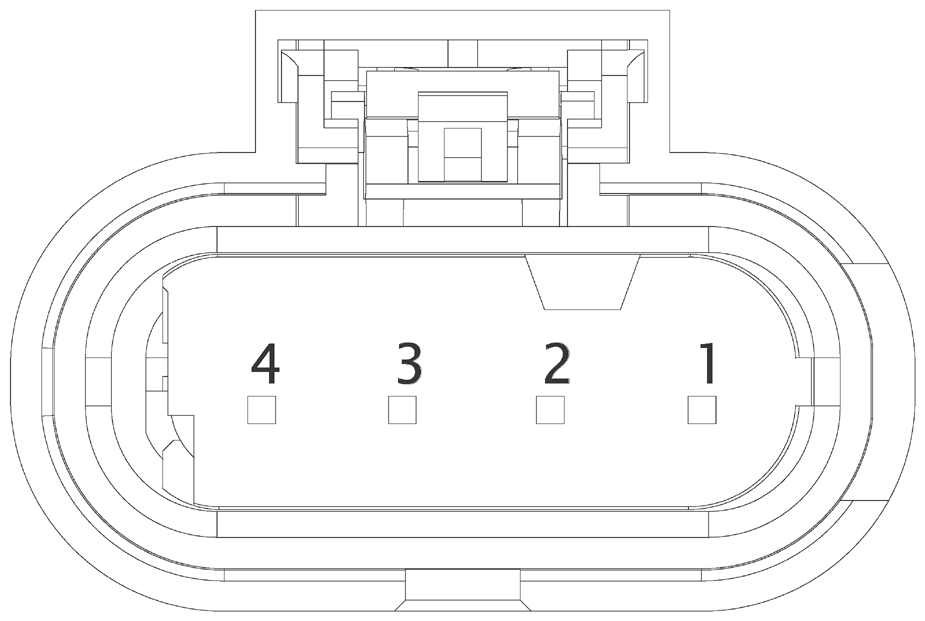

Fig 2: Connector End View - X533 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | BU | 0.50 | AG | X021-K2 | 7-1452668-3 | 967067-1 |
| 2 | GN | 0.50 | AG | X021-G2 | 7-1452668-3 | 967067-1 |
| 3 | VT | 0.50 | AG | X021-H2 | 7-1452668-3 | 967067-1 |
| 4 | BK | 0.50 | AG | X021-J2 | 7-1452668-3 | 967067-1 |
