Connector End View - X529 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

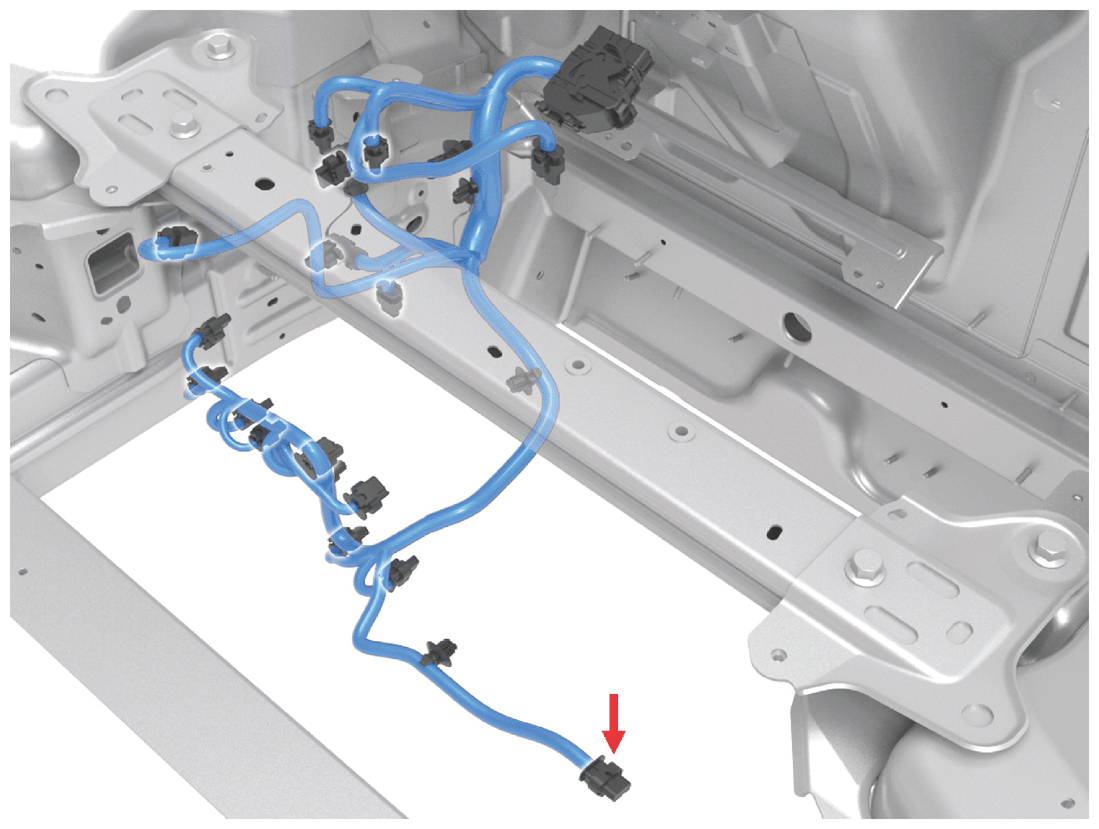

Fig 1: Connector Component Location - X529 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 35126376
Color: BK

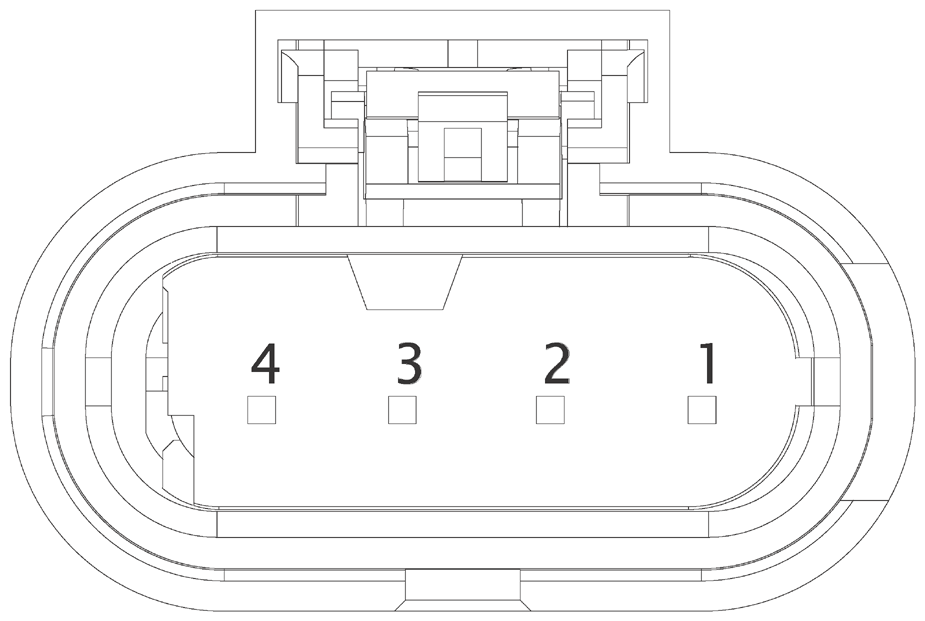

Fig 2: Connector End View - X529 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | BU | 0.50 | SN | X021-G3 | 7-1452668-1 | 967067-1 |
| 2 | WH | 0.50 | SN | X021-N4 | 7-1452668-1 | 967067-1 |
| 3 | YE | 0.50 | SN | X021-O4 | 7-1452668-1 | 967067-1 |
| 4 | BK | 0.50 | SN | X021-F2 | 7-1452668-1 | 967067-1 |
