Connector End View - X527 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

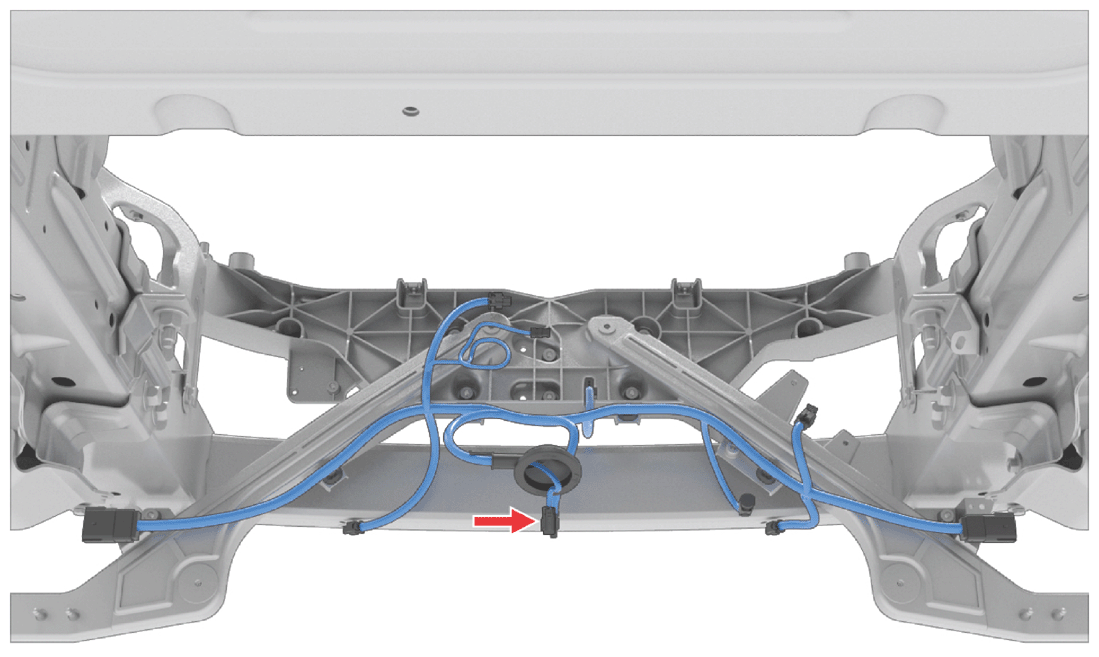

Fig 1: Connector Component Location - X527 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: YAZAKI 7123-1424
Color: NA

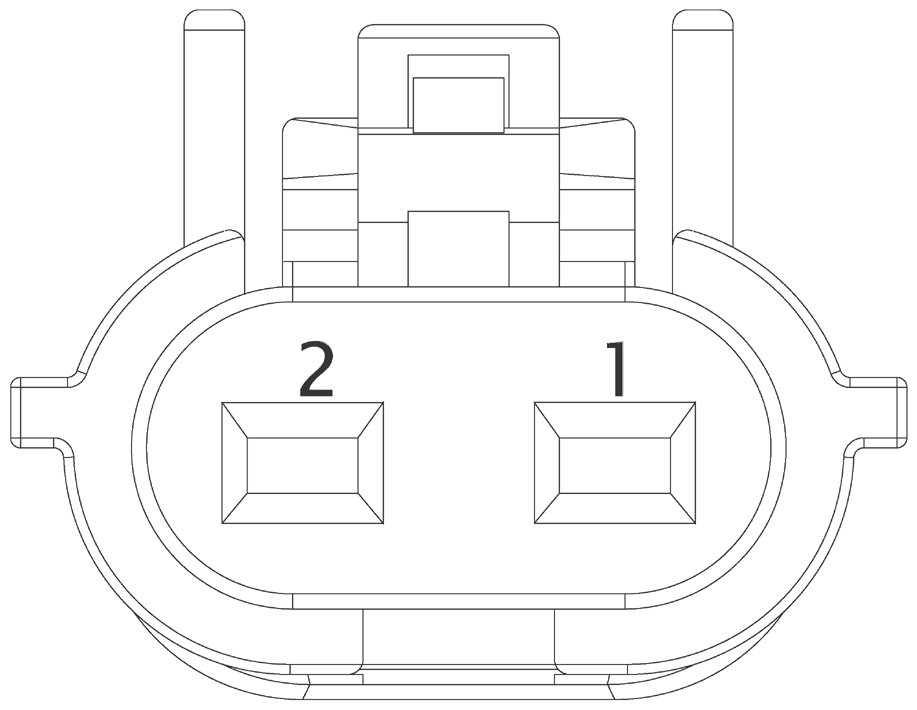

Fig 2: Connector End View - X527 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | RD | 0.50 | SN | X905M-9 | 7116-1471 | 7157-7897-60 |
| 2 | BK | 0.50 | SN | X905M-10 | 7116-1471 | 7157-7897-60 |
