Connector End View - X493 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

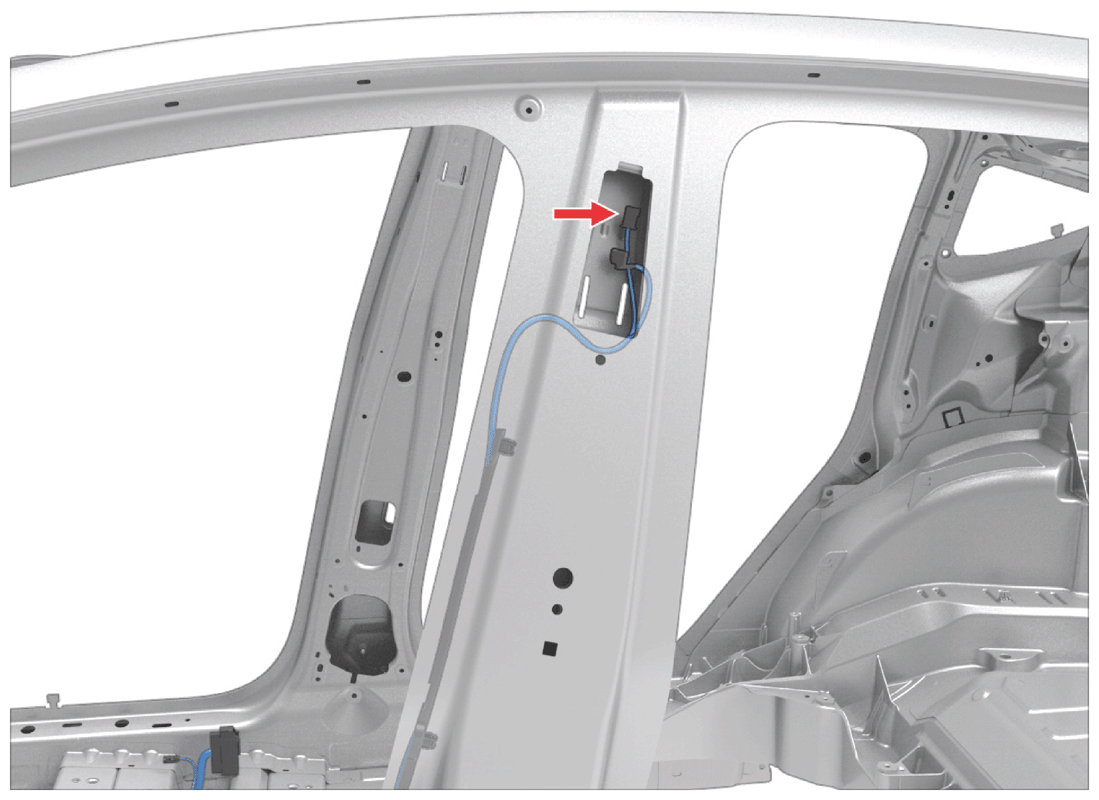

Fig 1: Connector Component Location - X493 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: AMP 3-1355397-3
Color: BU
Fig 2: Connector End View - X493 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BU | 0.13 | SN | X030A-12 | 1355717-1 |
| 2 | BK | 0.35 | SN | G031-6 | 5-928999-1 |
| 3 | VT | 0.13 | SN | X930F-12 | 1355717-1 |
| 4 | GN | 0.13 | SN | X930F-13 | 1355717-1 |
