Connector End View - X481 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

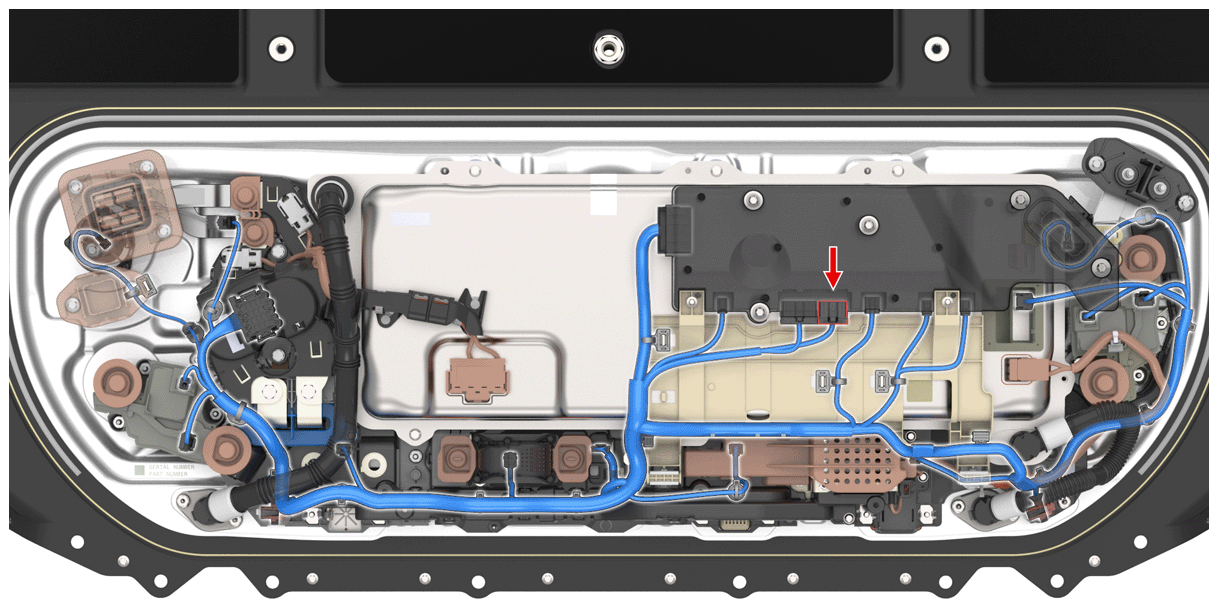

Fig 1: Connector Component Location - X481 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: AMP 174465-1
Color: BK
Fig 2: Connector End View - X481 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | WH | 0.35 | SN | X475-4 | 173630-1 |
| 2 | |||||
| 3 | |||||
| 4 | WH | 0.35 | SN | X477-10 | 173630-1 |
| 5 | |||||
| 6 | |||||
| 7 | WH | 0.35 | SN | X475-1 | 173630-1 |
| 8 | |||||
| 9 | |||||
| 10 |
