Connector End View - X480 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

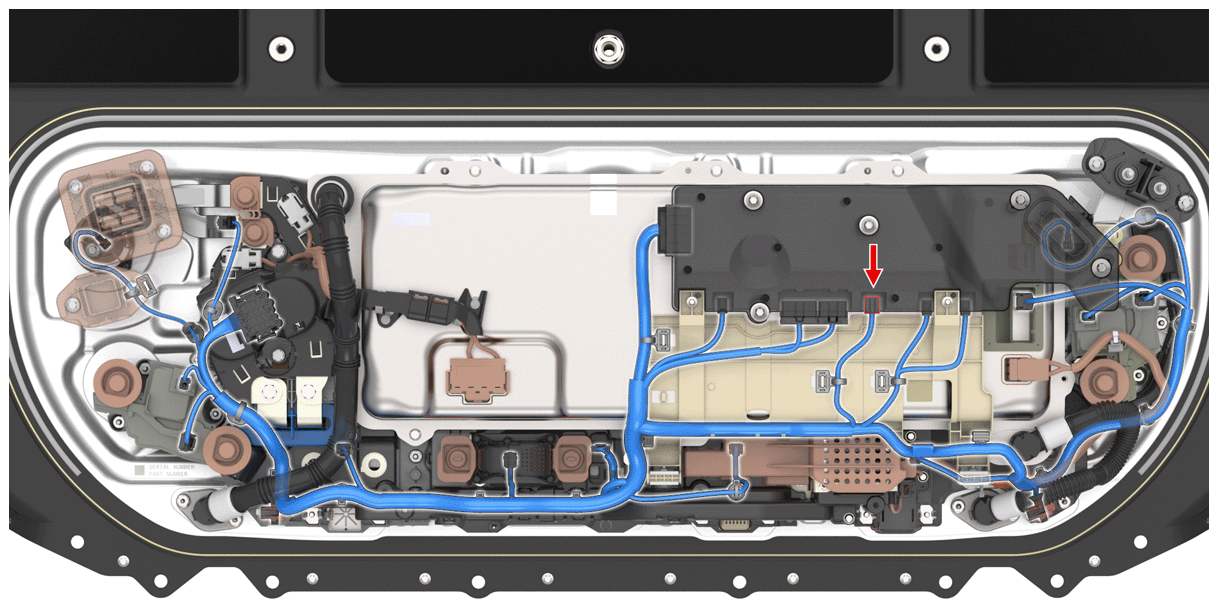

Fig 1: Connector Component Location - X480 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: HIROSE ZE05-8DS-HU
Color: BK

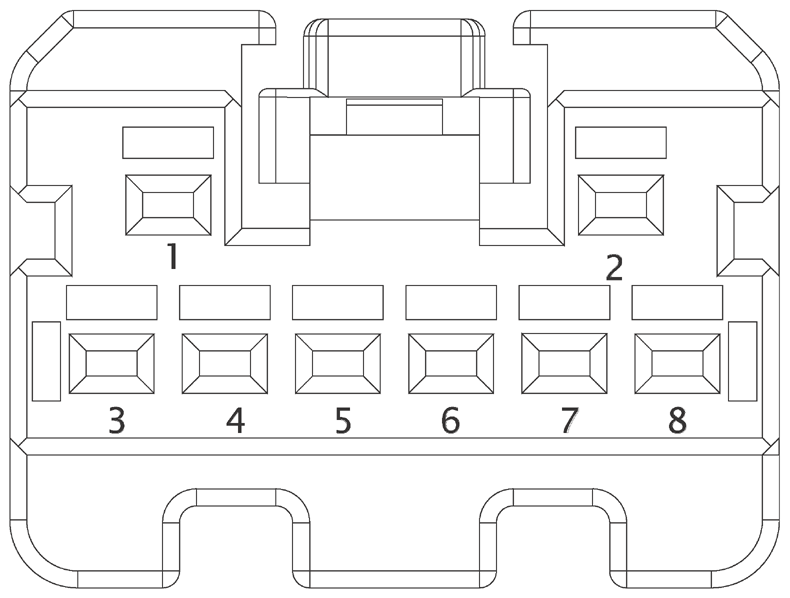

Fig 2: Connector End View - X480 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | WH/RD | 0.35 | SN | X469-2 | ZE05-2022SCF |
| 2 | |||||
| 3 | WH/RD | 0.35 | SN | X469-1 | ZE05-2022SCF |
| 4 | WH/RD | 0.35 | SN | X469-3 | ZE05-2022SCF |
| 5 | WH/RD | 0.35 | SN | X469-4 | ZE05-2022SCF |
| 6 | WH/RD | 0.35 | SN | X469-5 | ZE05-2022SCF |
| 7 | WH/RD | 0.35 | SN | X469-6 | ZE05-2022SCF |
| 8 | WH/RD | 0.35 | SN | X469-7 | ZE05-2022SCF |
