Connector End View - X469 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

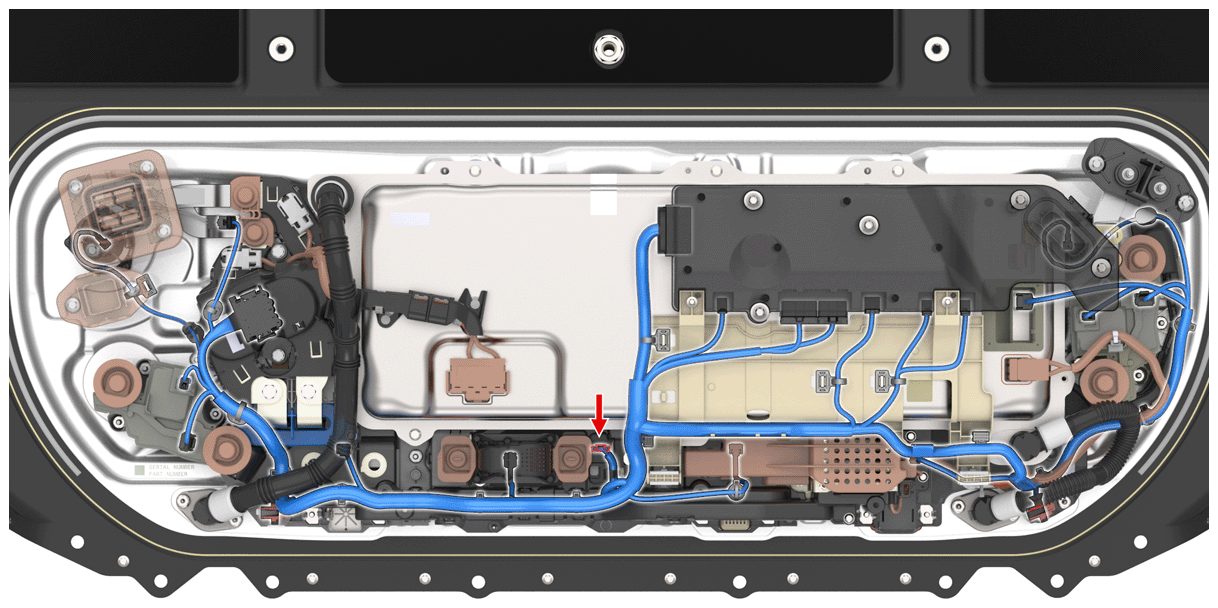

Fig 1: Connector Component Location - X469 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: MOLEX 5051510700
Color: BK
Fig 2: Connector End View - X469 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | WH/RD | 0.35 | SN | X480-3 | 5051538000 |
| 2 | WH/RD | 0.35 | SN | X480-1 | 5051538000 |
| 3 | WH/RD | 0.35 | SN | X480-4 | 5051538000 |
| 4 | WH/RD | 0.35 | SN | X480-5 | 5051538000 |
| 5 | WH/RD | 0.35 | SN | X480-6 | 5051538000 |
| 6 | WH/RD | 0.35 | SN | X480-7 | 5051538000 |
| 7 | WH/RD | 0.35 | SN | X480-8 | 5051538000 |
