Connector End View - X403 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

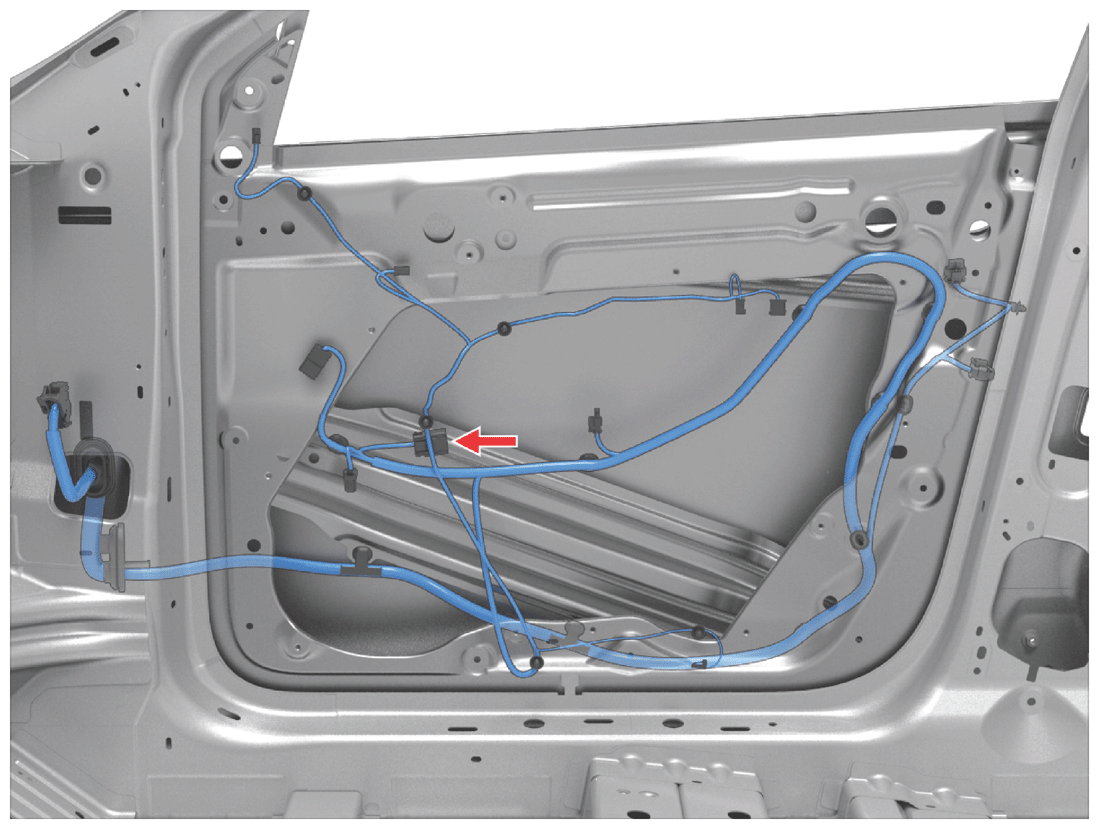

Fig 1: Connector Component Location - X403 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 15441804
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 1.50 | SN | X053A-35 | 13979933 |
| 2 | |||||
| 3 | TN | 1.50 | SN | X053A-34 | 13979933 |
| 4 | GN | 0.35 | SN | X053B-6 | 33512053 |
| 5 | |||||
| 6 | BK | 0.35 | SN | X053A-7 | 33512053 |
