Connector End View - X376 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

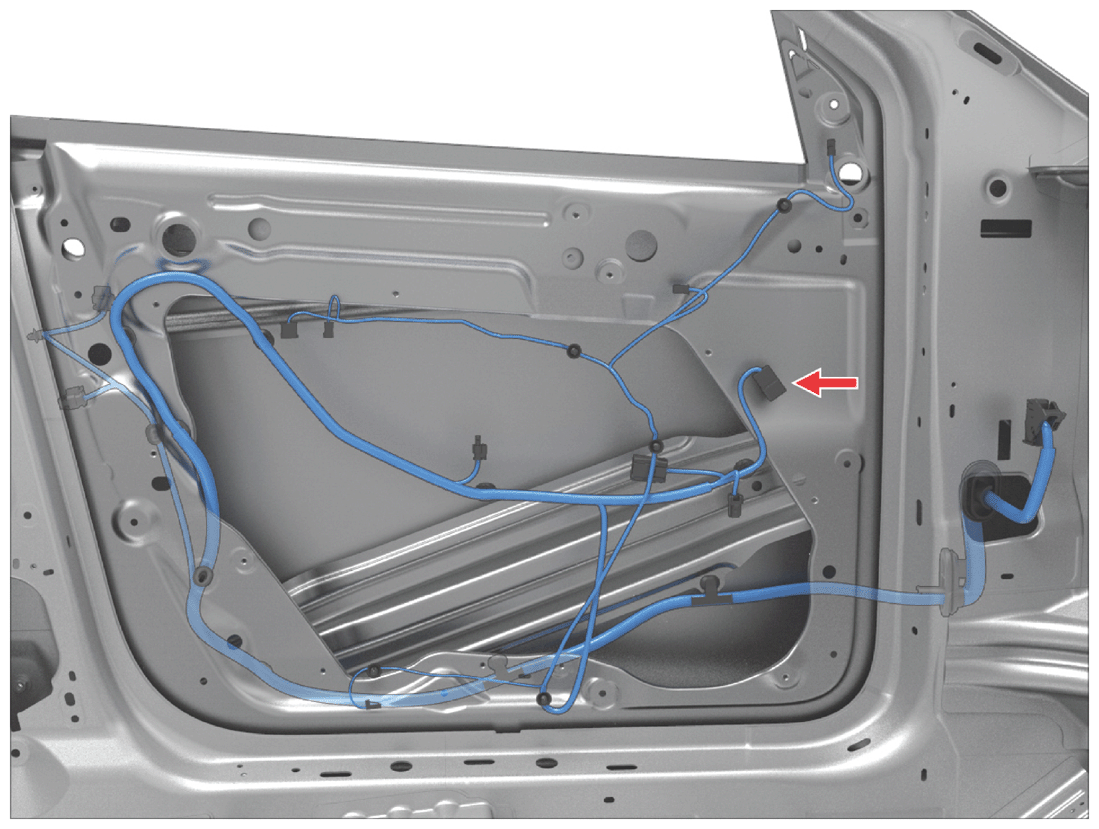

Fig 1: Connector Component Location - X376 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-3879
Color: BU
Fig 2: Connector End View - X376 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X033B-1 | 8100-3623 |
| 2 | GN | 0.13 | SN | X033A-10 | 8230-4878 |
| 3 | WH | 0.13 | SN | X033A-7 | 8230-4878 |
| 4 | RD | 0.13 | SN | X033A-18 | 8230-4878 |
| 5 | YE | 0.13 | SN | X033A-3 | 8230-4878 |
| 6 | BK | 0.35 | SN | 8100-3623 | |
| 7 | BK | 0.35 | SN | 8100-3623 | |
| 8 | YE | 0.13 | SN | X033A-9 | 8230-4878 |
| 9 | VT | 0.13 | SN | X033A-8 | 8230-4878 |
| 10 | BU | 0.13 | SN | X033A-23 | 8230-4878 |
| 11 | |||||
| 12 | GY | 0.13 | SN | X033A-2 | 8230-4878 |
| 13 | BK | 0.35 | SN | 8100-3623 | |
| 14 | BN | 0.13 | SN | X033B-2 | 8230-4878 |
